ADVANTAGE-5 — MIZRAK ADVANTAGE-5 Edge Banding Machine 1 / 3

MIZRAK

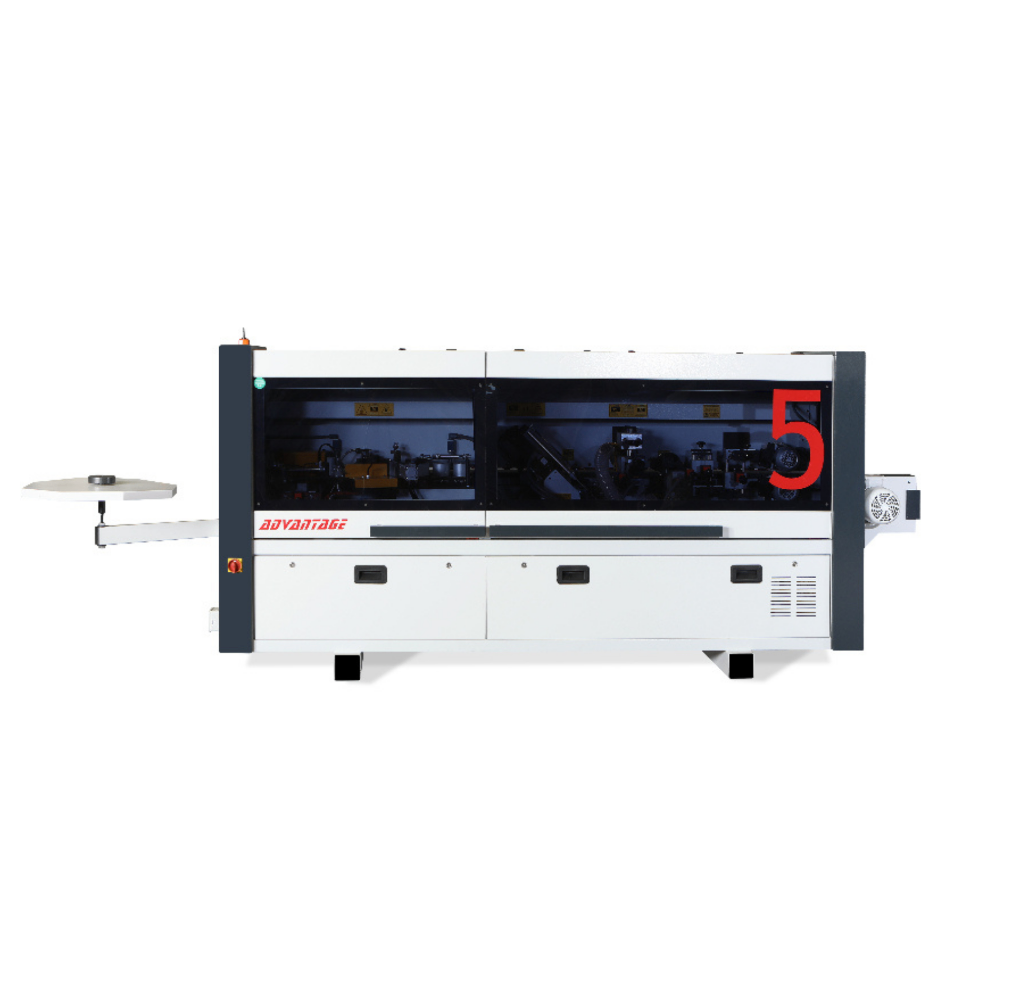

MIZRAK ADVANTAGE-5 Edge Banding Machine

ADVANTAGE-5

Where the ADVANTAGE-4 works straight from the sawn edge, the ADVANTAGE-5 adds a 1.5 kW pre-milling unit that recuts the panel before glue is applied. Rated 9.37 kW, the ADVANTAGE-5 bands 8 to 42 mm panels with 0.40 to 3 mm tape at 10 m/min and weighs 860 kg over a 4000 mm frame.

ფასი მოთხოვნით

The ADVANTAGE-5 price moves with the pre-milling and scraping unit specification, the blade and spare tooling package, whether a compressor and extraction ducting are added, and delivery and commissioning - the 860 kg weight keeps rigging cost below that of the heavier ADVANTAGE-6.

ფასის მოთხოვნა

What the ADVANTAGE-5 does

The ADVANTAGE-5 mills the panel edge clean, glues the tape, trims it and polishes it in a single pass at 10 m/min. Panels from 8 to 42 mm thick and at least 100 mm wide pass under a 42 mm top pressure beam while the gluing, shear and pressing units lay tape between 0.40 mm and 3 mm thick. A Ø100 x 3.2 mm saw cuts the front and rear overhang, Ø49 x R3 cutters trim top and bottom, and the radius scraper and 0.25 kW polishing unit finish the edge before it leaves the ADVANTAGE-5.

Who the ADVANTAGE-5 suits

The ADVANTAGE-5 suits workshops whose saw cuts are not always perfect. The 1.5 kW pre-milling unit at 12,000 rpm, fitted with a Ø70 x 35 x 3 mm blade, removes chipping and squares the edge immediately before glue is applied, which is what makes a 2 mm tape sit tight on MDF and chipboard. For a joinery moving from hand banding to a production line, the ADVANTAGE-5 covers the full sequence without the extra length of a corner rounding machine.

How the ADVANTAGE-5 compares with the ADVANTAGE-4 and ADVANTAGE-6

The ADVANTAGE-5 sits between the two. Against the ADVANTAGE-4, the ADVANTAGE-5 adds the pre-milling unit, which lifts total power from 5.27 kW to 9.37 kW and length from 3500 mm to 4000 mm. Against the ADVANTAGE-6, the ADVANTAGE-5 leaves out the corner rounding unit, the Ø69 x R3 trim cutter and the cleaning fluid system, which is why the ADVANTAGE-5 is 900 mm shorter and 540 kg lighter at 860 kg.

What is included with the ADVANTAGE-5

The ADVANTAGE-5 comes with the gluing, shear and pressing units, a glue pot holding up to 2.5 kg, the 42 mm top pressure beam, pre-milling, front and rear cutting, top and bottom trimming, radius scraping, polishing, a 0.55 kW integrated dust extraction motor and a 1.1 kW chain conveyor drive. Installation needs a 380-430 V 50 Hz three-phase supply (3P + 1N) and compressed air at 6-8 atm; working height is 950 mm.

ძირითადი მახასიათებლები

  • 1.5 kW pre-milling unit at 12,000 rpm with a Ø70 x 35 x 3 mm blade
  • Processes panels 8-42 mm thick with a 100 mm minimum width
  • Applies edge tape from 0.40 mm to 3 mm at 10 m/min
  • Ø100 x 3.2 mm front and rear cutting saw and Ø49 x R3 top and bottom trim cutters
  • Radius scraping unit plus a 0.25 kW / 2840 rpm polishing unit
  • 0.55 kW integrated dust extraction and 2.5 kg maximum glue pot
  • 9.37 kW total power in a 4000 x 700 x 1550 mm frame weighing 860 kg

ტექნიკური მახასიათებლები

Nominal current
380-430 V, 50 Hz - 3P + 1N 1MP
Sound level
Lwa 82.9 dB
Band thickness
0.40 mm - 3 mm
Workpiece thickness
8 - 42 mm
Minimum workpiece width
100 mm
Working speed
10 m/min
Working height
950 mm
Maximum glue pot capacity
2.5 kg
Air pressure
6 - 8 atm
Pre-milling blade diameter
Ø70 x 35 x 3 mm
Front-rear cutting saw blade diameter
Ø100 x 3.2 mm
Top-bottom trimming blade diameter
Ø49 x R3 mm
Pre-milling motor power / speed
1.5 kW / 12,000 rpm
Front-rear cutting motor power / speed
0.37 kW / 12,000 rpm
Top-bottom trimming motor power / speed
0.55 kW / 12,000 rpm
Polishing motor power / speed
0.25 kW / 2840 rpm
Dust extraction motor power / speed
0.55 kW / 2840 rpm
Chain conveyor motor power / speed
1.1 kW / 26 rpm
Total electric power
9.37 kW
Machine length
4000 mm
Machine width
700 mm
Machine height
1550 mm
Machine weight
860 kg

უპირატესობები

  • Pre-milling before gluing gives a tighter glue line on saw-cut panels
  • 860 kg and 4000 mm long, so the ADVANTAGE-5 is easier to place than the ADVANTAGE-6
  • Integrated 0.55 kW extraction motor is already fitted

გასათვალისწინებელი

  • No corner rounding unit, so thick tape corners still need hand dressing
  • Three-phase 380-430 V only
  • Requires a separate compressor delivering 6-8 atm

ხშირად დასმული კითხვები

What power supply does the ADVANTAGE-5 need?
The ADVANTAGE-5 needs a 380-430 V, 50 Hz three-phase supply (3P + 1N) and draws 9.37 kW in total, so the ADVANTAGE-5 requires a three-phase connection at the installation point.
Why does the ADVANTAGE-5 have a pre-milling unit?
The pre-milling unit on the ADVANTAGE-5 is a 1.5 kW spindle at 12,000 rpm with a Ø70 x 35 x 3 mm blade that squares and cleans the panel edge just before glue is applied, which improves adhesion on saw-cut chipboard and MDF.
What panels can the ADVANTAGE-5 handle?
The ADVANTAGE-5 handles panels 8 to 42 mm thick with a minimum width of 100 mm, and applies edge tape 0.40 mm to 3 mm thick at a conveyor speed of 10 m/min.
Does the ADVANTAGE-5 need a separate extraction unit?
The ADVANTAGE-5 has a 0.55 kW integrated dust extraction motor listed in its specification, so chips are drawn off at the machine; the ADVANTAGE-5 still needs the 6-8 atm compressed air supply to be provided separately.
How much space does the ADVANTAGE-5 occupy?
The ADVANTAGE-5 measures 4000 x 700 x 1550 mm, weighs 860 kg and works at a 950 mm height, so allow additional clear floor at the infeed and outfeed for full-size panels.
What does the ADVANTAGE-5 not do?
The ADVANTAGE-5 has no corner rounding unit and no glue cleaning fluid system; those are on the ADVANTAGE-6. The ADVANTAGE-5 also bands one edge at a time and does not size panels.
How much does the ADVANTAGE-5 cost?
The ADVANTAGE-5 edge banding machine is priced on quotation rather than published as a list price. What moves the figure for an ADVANTAGE-5 is the pre-milling and scraping unit specification, the blade and spare tooling package, whether a compressor and extraction ducting are added, and delivery and commissioning in Georgia. Send the panel and tape sizes to be run and a written ADVANTAGE-5 quotation follows.
Is the ADVANTAGE-5 held in stock, and what is the lead time?
The ADVANTAGE-5 is built to order by Mizrak, so the current lead time is confirmed at quotation rather than published. Availability of an ADVANTAGE-5 varies with the factory schedule; ask at enquiry and the delivery window is stated in writing on the offer.
What is needed on site before an ADVANTAGE-5 is installed?
Before an ADVANTAGE-5 is installed the site needs a bay of at least 4000 x 700 mm plus infeed and outfeed clearance, a level floor for 860 kg, a 380-430 V three-phase supply for 9.37 kW and a compressor delivering 6-8 atm. Installation and commissioning of the ADVANTAGE-5 - levelling, pre-milling and glue settings, sample panel and operator handover - are arranged through the dealer and quoted separately.
What consumables should be budgeted separately from the ADVANTAGE-5?
Separate from the ADVANTAGE-5 machine price, budget for hot-melt glue, edge tape from 0.40 mm to 3 mm and replacement tooling in the sizes the ADVANTAGE-5 uses - Ø70 x 35 x 3 mm pre-milling blades, Ø100 x 3.2 mm front and rear cutting saws and Ø49 x R3 mm trim cutters - plus scraper knives. A compressor for the 6-8 atm air supply is also a separate purchase.
