ADVANTAGE-6 — MIZRAK ADVANTAGE-6 Edge Banding Machine 1 / 4

MIZRAK

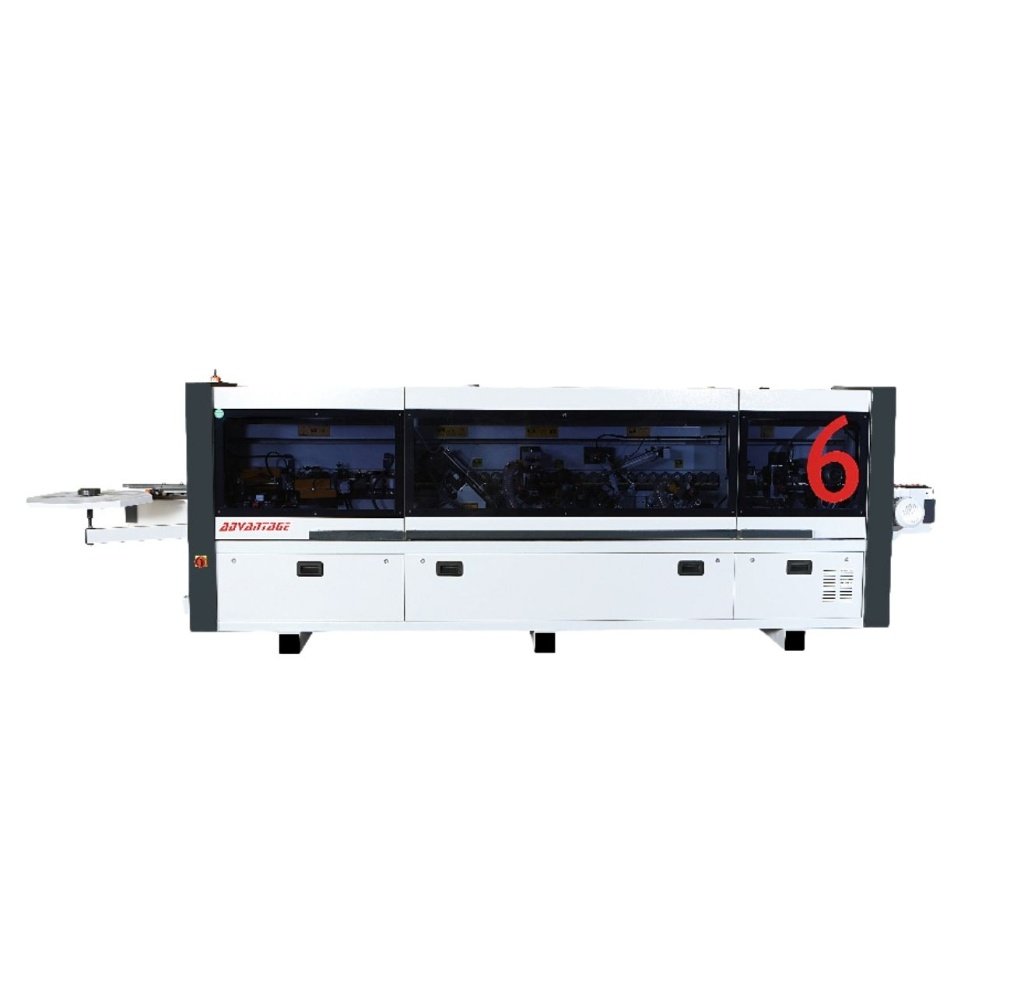

MIZRAK ADVANTAGE-6 Edge Banding Machine

ADVANTAGE-6

Corner rounding to a maximum 36 mm is what separates the ADVANTAGE-6 from the pre-milling-only ADVANTAGE-5. The ADVANTAGE-6 pre-mills, glues, end-cuts, trims, rounds, radius-scrapes and polishes panels 8 to 42 mm thick at 10 m/min, on 9.37 kW in a 4900 mm frame weighing 1400 kg.

ფასი მოთხოვნით

The ADVANTAGE-6 price is driven by the corner rounding and radius scraping unit specification, the blade and spare tooling package, whether a compressor and extraction ducting are included, and delivery, rigging into a 4900 mm bay and commissioning.

ფასის მოთხოვნა

What the ADVANTAGE-6 does

The ADVANTAGE-6 glues, trims and finishes edge tape on panels between 8 and 42 mm thick in one pass at 10 m/min. Tape from 0.40 mm to 3 mm runs through the gluing, shear and pressing units; a 1.5 kW pre-milling unit turning at 12,000 rpm squares the panel edge first, a Ø100 x 3.2 mm saw cuts the tape front and rear, Ø49 x R3 cutters trim top and bottom, a Ø69 x R3 trim cutter and the corner rounding unit finish the corners up to a 36 mm rounding distance, and the radius scraper, cleaning fluid and polishing unit close the sequence.

Who the ADVANTAGE-6 suits

The ADVANTAGE-6 suits furniture and kitchen workshops that already cut panels daily and want a finished edge straight off the machine rather than a hand-finished one. Because the ADVANTAGE-6 carries both a corner rounding unit and a radius scraper, thick 2 mm and 3 mm PVC tape can be run without an operator dressing every corner with a hand trimmer, which is where the machine earns its place in a shop producing kitchen fronts, wardrobe sides and shelving in volume.

How the ADVANTAGE-6 compares with the ADVANTAGE-5

The ADVANTAGE-6 is the corner rounding version of the same platform. Both machines share the 9.37 kW total power, the 10 m/min conveyor, the 8-42 mm thickness range and the 100 mm minimum workpiece width, but the ADVANTAGE-6 adds the corner rounding unit, the Ø69 x R3 trim cutter and the glue cleaning fluid system. That extra section makes the ADVANTAGE-6 4900 mm long against 4000 mm and 1400 kg against 860 kg, so the floor plan is the deciding factor as much as the budget.

What is included with the ADVANTAGE-6

The ADVANTAGE-6 is delivered with the gluing, shear and pressing units, a 2.5 kg maximum glue pot, the 42 mm top pressure beam, pre-milling, front and rear cutting, top and bottom trimming, corner rounding, radius scraping, cleaning fluid application, polishing and a 0.55 kW integrated dust extraction motor. Site requirements are a 380-430 V 50-60 Hz three-phase supply and a compressed air line at 6-8 atm; working height is 950 mm.

ძირითადი მახასიათებლები

  • Corner rounding unit with a maximum rounding distance of 36 mm
  • 1.5 kW pre-milling unit at 12,000 rpm with a Ø70 x 35 x 3 mm blade
  • Handles edge tape 0.40 mm to 3 mm on panels 8-42 mm thick
  • Chain conveyor at 10 m/min driven by a 1.1 kW / 26 rpm motor
  • Ø100 x 3.2 mm front and rear cutting saw plus Ø49 x R3 and Ø69 x R3 trim cutters
  • Radius scraping unit, glue cleaning fluid application and 0.25 kW polishing unit
  • 0.55 kW integrated dust extraction motor and 42 mm top pressure beam
  • 9.37 kW total power, 4900 x 630 x 1550 mm, 1400 kg

ტექნიკური მახასიათებლები

Nominal current
380-430 V, 50-60 Hz
Sound level
Lwa 82.9 dB
Band thickness
0.40 mm - 3 mm
Workpiece thickness
8 - 42 mm
Minimum workpiece width
100 mm
Working speed
10 m/min
Working height
950 mm
Glue pot capacity (max.)
2.5 kg
Air pressure
6 - 8 atm
Pre-milling saw blade diameter
Ø70 x 35 x 3 mm
Front-rear cutting saw blade diameter
Ø100 x 3.2 mm
Top-bottom trimming blade diameter
Ø49 x R3 mm
Trim trimming blade diameter
Ø69 x R3 mm
Max. corner rounding distance
36 mm
Pre-milling motor power / speed
1.5 kW / 12,000 rpm
Front-rear cutting motor power / speed
0.37 kW / 12,000 rpm
Top-bottom trimming motor power / speed
0.55 kW / 12,000 rpm
Trim trimming motor power / speed
0.55 kW / 12,000 rpm
Polishing motor power / speed
0.25 kW / 2840 rpm
Dust extraction motor power / speed
0.55 kW / 2840 rpm
Chain conveyor motor power / speed
1.1 kW / 26 rpm
Total electric power
9.37 kW
Machine length
4900 mm
Machine width
630 mm
Machine height
1550 mm
Machine weight
1400 kg

უპირატესობები

  • Corner rounding unit and radius scraper give a finished edge without hand dressing
  • Pre-milling at 1.5 kW cleans up saw-cut edges before the tape is applied
  • 0.55 kW integrated dust extraction motor is already on the machine

გასათვალისწინებელი

  • 4900 mm long and 1400 kg, so the ADVANTAGE-6 needs a dedicated bay with access at both ends
  • Three-phase 380-430 V only, with no single-phase option
  • Depends on a separate 6-8 atm compressed air supply that is not supplied with the machine

ხშირად დასმული კითხვები

What power supply does the ADVANTAGE-6 need?
The ADVANTAGE-6 runs on a 380-430 V, 50-60 Hz three-phase supply and draws 9.37 kW in total, so the ADVANTAGE-6 cannot be operated from a single-phase workshop socket.
Does the ADVANTAGE-6 need compressed air?
Yes, the ADVANTAGE-6 requires a compressed air line at 6-8 atm. A compressor is not part of the machine, so the air supply has to be planned separately when the ADVANTAGE-6 is installed.
What panel sizes can the ADVANTAGE-6 process?
The ADVANTAGE-6 processes panels from 8 to 42 mm thick with a minimum workpiece width of 100 mm, and applies edge tape from 0.40 mm to 3 mm thick. Narrower strips than 100 mm fall outside the ADVANTAGE-6 specification.
What tooling does the ADVANTAGE-6 use?
The ADVANTAGE-6 uses a Ø70 x 35 x 3 mm pre-milling blade, a Ø100 x 3.2 mm front and rear cutting saw, Ø49 x R3 top and bottom trim cutters and a Ø69 x R3 trim cutter, plus EVA granule glue in a pot holding up to 2.5 kg.
How much floor space does the ADVANTAGE-6 take?
The ADVANTAGE-6 measures 4900 x 630 x 1550 mm and weighs 1400 kg, with a 950 mm working height. Plan additional clear length at the infeed and outfeed so an operator can load and take off full-size panels.
What does the ADVANTAGE-6 not do?
The ADVANTAGE-6 bands one edge per pass and does not cut panels to size, so a panel saw or beam saw is still needed upstream. The ADVANTAGE-6 also has no automatic panel return, so long runs need an operator at each end.
How much does the ADVANTAGE-6 cost?
The ADVANTAGE-6 edge banding machine is supplied on quotation, not at a published list price. The quoted figure for an ADVANTAGE-6 depends on the corner rounding and radius scraping unit specification, the blade and spare tooling package, whether a compressor and extraction ducting are added, and delivery, rigging and commissioning in Georgia. Send the panel thicknesses and tape sizes the workshop runs and a written quotation is prepared for the ADVANTAGE-6.
How long does it take to get an ADVANTAGE-6?
The ADVANTAGE-6 is built to order by Mizrak, so the current lead time is confirmed at quotation rather than quoted as a standing figure. Delivery timing for an ADVANTAGE-6 depends on the factory schedule and the units specified, and it is stated in writing on the offer.
What does commissioning an ADVANTAGE-6 involve?
Commissioning an ADVANTAGE-6 is arranged through the dealer and quoted separately from the machine. The site needs a 4900 mm bay with clear infeed and outfeed, a level floor rated for 1400 kg, a 380-430 V three-phase connection for 9.37 kW and a 6-8 atm compressed air line. Commissioning then covers levelling, glue pot and corner rounding unit setting, a first sample panel and operator handover.
What consumables and tooling should be budgeted alongside the ADVANTAGE-6?
Alongside the ADVANTAGE-6 machine price, budget for hot-melt glue, edge tape from 0.40 mm to 3 mm, glue cleaning fluid and replacement cutters - Ø70 x 35 x 3 mm pre-milling, Ø100 x 3.2 mm front and rear cutting, Ø49 x R3 and Ø69 x R3 trimming, plus corner rounding cutters. A compressor delivering 6-8 atm is a separate purchase, as the ADVANTAGE-6 does not include one.
