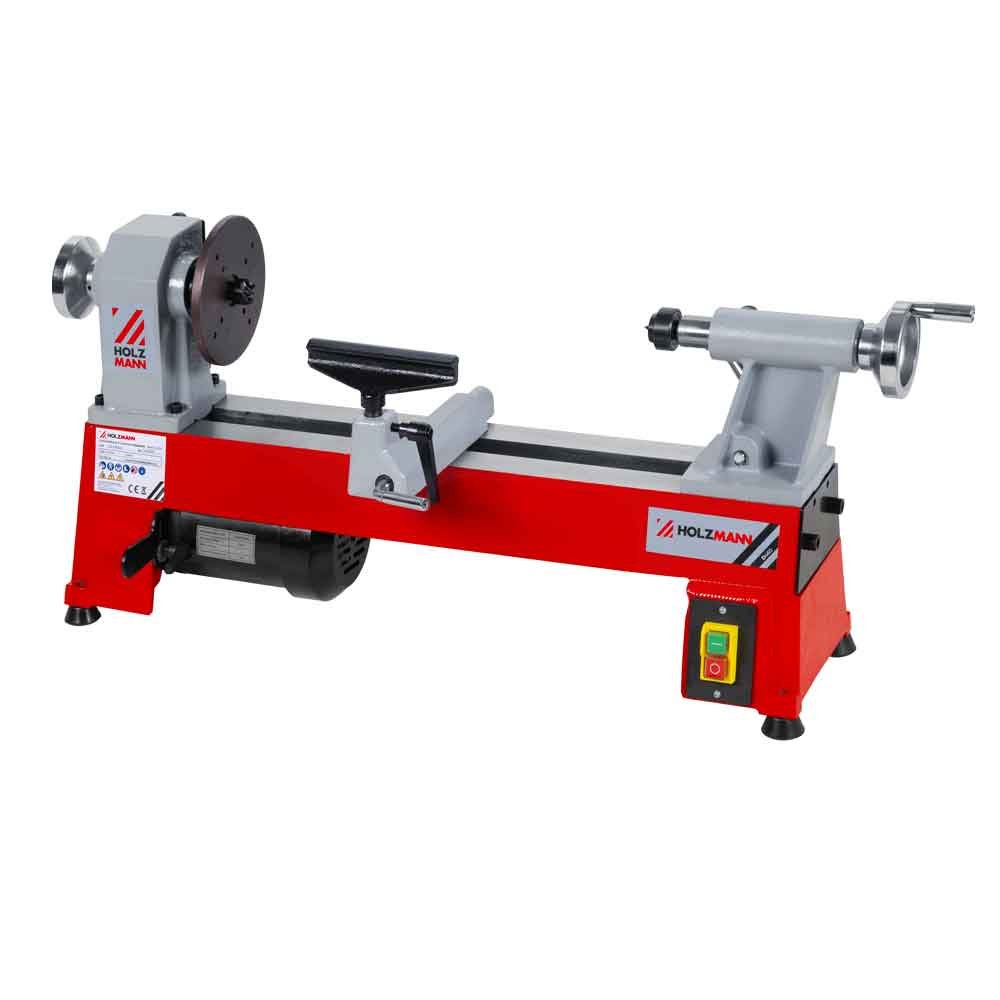

HOLZMANN D460 Wood Lathe
D460
Five fixed belt speeds — 600, 910, 1340, 1960 and 2800 min-1 — are what you set on the D460, moving the belt by hand instead of dialling a speed in. Capacity runs to 460 mm between centres over a 130 mm centre height, on a grey cast iron bed with an M33 DIN 800 spindle and an MT2 tailstock.
The delivered price of the D460 is moved by the turning tool set specified, the M33 DIN 800 chuck package, MT2 centres and drill chuck, whether a stand or heavy bench is included, EMC provision for urban premises, and delivery within Georgia.
ფასის მოთხოვნაThe HOLZMANN D460 in a workshop
The HOLZMANN D460 is a stepped-pulley wood lathe for spindle turning up to 460 mm between centres with 130 mm centre height, which puts chair legs, balusters, tool handles and small bowls inside its working range. D460 runs a 600 W S6 / 400 W S1 motor on 230 V, so the lathe needs no three-phase connection and no special installation.
Five fixed speeds instead of an electronic drive
The defining feature of the D460 is its five-step belt drive: 600, 910, 1340, 1960 and 2800 rpm. Changing speed on the D460 means moving the POLY-V belt across the pulleys rather than turning a dial, which costs a minute at the machine but delivers full belt-driven torque at every step, and that is exactly what a turner wants when roughing an unbalanced blank at 600 rpm. Turners who change speed constantly, or who finish small-diameter work, should look at the variable-speed D460F instead.
Cast iron construction and tooling interfaces
The D460 is built on a grey cast iron bed with cast iron headstock, tailstock and tool rest, and stands on rubber feet to damp vibration. The tailstock on the D460 takes an MT2 taper with 55 mm quill travel and a quick-lock system, and the headstock spindle is M33 DIN 800, the common thread for aftermarket scroll chucks. A 300 mm extended tool rest with quick lock and a face plate of 145 mm diameter are part of the D460 specification.
Electrical classification and siting
HOLZMANN classes the D460 in electric filter class B, which means the lathe has to be EMC-protected if it is used in an urban area. That is worth raising early when the D460 is destined for a residential or mixed-use building. At 34 kg net the D460 is a bench machine, and mounting it on a heavy bench or a purpose-built stand improves surface finish more than any accessory will.
ძირითადი მახასიათებლები
- Five fixed spindle speeds selected at the belt: 600, 910, 1340, 1960 and 2800 min-1
- 600 min-1 bottom step for roughing unbalanced blanks, 2800 min-1 top step for finishing cuts
- 460 mm between centres with 130 mm centre height
- 600 W S6 / 400 W S1 motor on a 230 V single-phase supply
- M33 DIN 800 headstock spindle, the standard thread for aftermarket scroll chucks
- MT2 tailstock taper with 55 mm quill travel and quick-lock system
- Grey cast iron bed, headstock, tailstock and tool rest on rubber feet
- 34 kg net, 36 kg gross, packed 840 x 430 x 300 mm
ტექნიკური მახასიათებლები
- Motor power S6
- 600 W
- Motor power S1
- 400 W
- Voltage
- 230 V
- Head stock spindle
- M33 DIN 800
- Tailstock taper
- MK2 / MT2
- Lathe spindle speeds
- 600 / 910 / 1340 / 1960 / 2800 min-1
- Tailstock sleeve (quill) travel
- 55 mm
- Distance between centres
- 460 mm
- Centre height
- 130 mm
- Net weight
- 34 kg
- Gross weight
- 36 kg
- Packaging height
- 300 mm
- Packaging width
- 430 mm
- Packaging length
- 840 mm
- EAN code
- 9120039900100
უპირატესობები
- Five belt steps down to 600 rpm give full drive torque for roughing unbalanced blanks
- Grey cast iron bed, headstock, tailstock and tool rest in a 34 kg bench machine
- Standard M33 DIN 800 spindle and MT2 tailstock accept widely available chucks and centres
გასათვალისწინებელი
- Speed changes need a belt move on the pulleys, not a dial - slower than the variable-speed D460F
- 2800 rpm top speed limits finishing quality on small-diameter work compared with the D460F at 3800 rpm
- Classed in electric filter class B, so the D460 must be EMC-protected when used in urban areas
