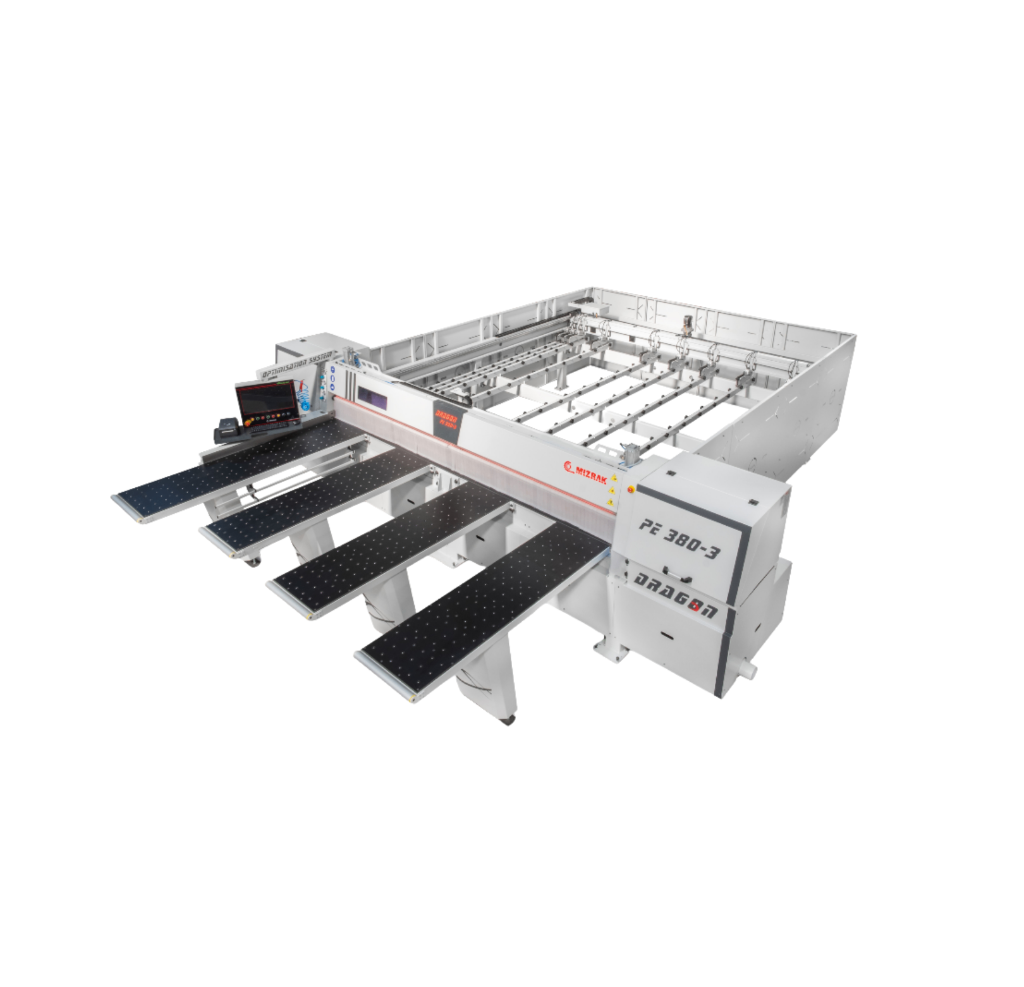

MIZRAK DRAGON PE 383 Beam Saw
DRAGON PE 383
Sized for 3800 x 3800 mm boards rather than the 4200 mm of the larger DRAGON models, the DRAGON PE 383 is also the only DRAGON beam saw that adjusts the scoring saw automatically in both axes. The DRAGON PE 383 cuts three particle boards at once to 54 mm high with a 7.5 kW main saw, on 25 kW and 6500 kg.
The price of the DRAGON PE 383 is moved by the blade and tooling package, the extraction plant sized to the Ø120 mm and three Ø60 mm outlets, software and label setup at commissioning, electrical connection for a 25 kW load at 50 A, and transport, rigging and commissioning of a 6500 kg machine into a 56 m² bay.
ფასის მოთხოვნაWhat the DRAGON PE 383 does
The DRAGON PE 383 is a computer-controlled beam saw sized for workshops that cut 3800 mm boards rather than oversize panels. The DRAGON PE 383 handles a 3800 x 3800 mm cutting size, a 54 mm cutting height and three particle boards at a time, held by nine standard clamps and squared by a servo-controlled side alignment system. The cutting unit returns at 100 m/min, and cutting speed adjusts automatically to material thickness across three settings.
Automatic scoring adjustment
The scoring saw on the DRAGON PE 383 adjusts automatically in both axes, forwards and backwards as well as up and down, which is the feature most often missed on cheaper beam saws. On a shop running melamine-faced board in several thicknesses, that removes a manual setting step at every changeover. The scoring group uses a Ø200 x 4.2 mm blade at 2870 RPM driven by a 1.1 kW motor, while the main saw uses a Ø320 x 4.4 mm blade at 2945 RPM on a 7.5 kW motor.
Who the DRAGON PE 383 suits
The DRAGON PE 383 suits a furniture or joinery workshop moving from a sliding table saw to its first beam saw. Total connected power is 25 kW against 29 kW for the DRAGON PE 420-4 and 40 kW for the DRAGON PE 420-5, and the specified working area is 56 m² against 91 m² and 68 m² respectively, so the PE 383 is the least demanding DRAGON to install. The trade-off is capacity: 3800 mm instead of 4200 mm, 54 mm cutting height instead of 72 or 90 mm, and three boards per cut instead of four.
Included equipment and services
Standard equipment on the DRAGON PE 383 covers the computer control unit, optimisation system, barcode printer and remote service connection. Machine dimensions are 6300 x 8000 x 1900 mm at 6500 kg. The workshop must provide a 400 V 50 Hz three-phase supply at 50 A, compressed air at 6 bar, and extraction connected to the Ø120 mm bottom outlet and three Ø60 mm top outlets, assisted by the 3 kW turbine fan.
ძირითადი მახასიათებლები
- 3800 x 3800 mm cutting size, against 4200 mm on both DRAGON PE 420 models
- Automatic forward-backward and up-down adjustment of the scoring saw, which the DRAGON PE 420-4 does not have
- 54 mm cutting height with three particle boards cut at once
- 7.5 kW main saw motor with a Ø320 x 4.4 mm blade at 2945 RPM
- 1.1 kW scoring saw with a Ø200 x 4.2 mm blade at 2870 RPM
- 9 standard clamps with a servo-controlled side alignment system
- Cutting unit returns at 100 m/min and works at up to 80 m/min, with automatic speed selection for 40, 50 and 60 material settings
- Ø120 mm bottom extraction outlet and three Ø60 mm top outlets served by a 3 kW turbine fan
- 25 kW total electrical power at 400 V 50 Hz and 50 A, 6500 kg machine weight, 56 m² working area
ტექნიკური მახასიათებლები
- Cutting Width
- 3800 mm
- Cutting Depth
- 3800 mm
- Cutting Height
- 54 mm
- Saw Group Operating Speed
- Max. 80 m/min
- Pusher Group Operating Speed
- Max. 50 m/min
- Main Saw Blade Dimensions
- Ø320 x 4.4 mm
- Scoring Saw Blade Dimensions
- Ø200 x 4.2 mm
- Main Saw Blade Speed
- 2945 RPM
- Scoring Saw Blade Speed
- 2870 RPM
- Main Saw Motor Power
- 7.5 kW
- Scoring Saw Motor Power
- 1.1 kW
- Saw Group Servo Motor
- 2 kW
- Pusher Servo Motor
- 2 kW
- Turbine Fan Motor
- 3 kW
- Saw Group Dust Extraction Port Diameter (Bottom Outlet)
- Ø120 mm
- Top Pressure Dust Extraction Port Diameter (Top Outlet x3)
- Ø60 mm
- Machine Working Area
- 56 m²
- Air Pressure
- 6 Bar
- Mains Voltage
- 400 V - 50 Hz
- Nominal Current
- 50 A
- Total Electrical Power
- 25 kW
- Machine Dimensions (L x W x H)
- 6300 x 8000 x 1900 mm
- Machine Weight
- 6500 kg
- Standard Clamps
- 9
- Simultaneous Board Capacity
- 3 particle boards
- Cutting Unit Return Speed
- 100 m/min
უპირატესობები
- Automatic two-axis scoring blade adjustment, a feature the larger DRAGON PE 420-4 does not have
- Lowest installation burden of the DRAGON range at 56 m², 25 kW and 50 A
- Optimisation software, barcode printer and remote service connection included as standard
გასათვალისწინებელი
- 54 mm cutting height limits stack cutting compared with 72 mm and 90 mm on the larger DRAGON models
- 3800 mm cutting size cannot handle 4100-4200 mm boards
- Top extraction outlets are only Ø60 mm, which demands a well-sized extraction system to keep the pressure beam clear
