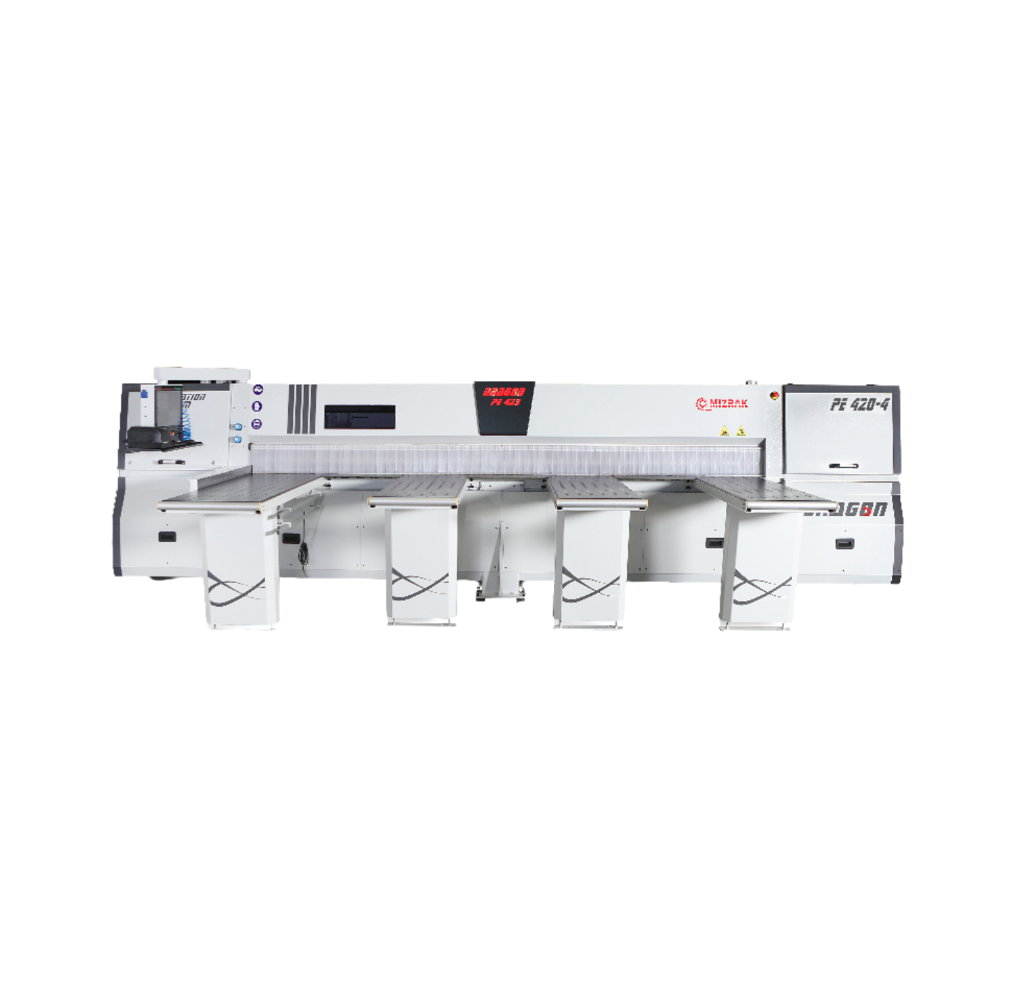

MIZRAK DRAGON PE 420-4 Beam Saw
DRAGON PE 420-4
Eleven clamps and four chipboards cut in one pass put the DRAGON PE 420-4 a full board ahead of the nine-clamp, three-board DRAGON PE 383. The DRAGON PE 420-4 sizes 4200 x 4200 mm panels up to 72 mm high with a 15 kW main saw at 6000 rpm, optimisation software and barcode printing, on 29 kW.
The price of the DRAGON PE 420-4 is moved by the blade and tooling package, the extraction plant sized to the Ø120 mm and three Ø100 mm ports, the software and barcode-label setup carried out at commissioning, electrical connection for the 29 kW load, and transport and rigging of a 7500 kg machine into a 91 m² bay.
ფასის მოთხოვნაWhat the DRAGON PE 420-4 does
The DRAGON PE 420-4 is a computer-controlled beam saw for high-volume panel sizing, specified to cut four chipboards simultaneously to a 4200 x 4200 mm cutting size. A servo-controlled cutting unit and servo-controlled side alignment system position each book of boards, eleven standard clamps hold the stack, and the saw moves under a servo pneumatic system. Cutting height is 72 mm and the cutting group returns at up to 80 m/min idle, working at up to 50 m/min.
Software and production control
The DRAGON PE 420-4 is sold as a production cell rather than a bare saw. Supplied equipment includes a computer control unit, an optimisation system that plans cutting patterns from the parts list, a barcode printer for labelling parts as they leave the saw, and a remote service connection for diagnostics. Feed speed adjusts automatically to material thickness, which keeps edge quality consistent when the shop switches between 18 mm and thicker boards during a shift.
How the DRAGON PE 420-4 compares in the range
The DRAGON PE 420-4 sits between the DRAGON PE 383 and the DRAGON PE 420-5. Compared with the PE 383, the PE 420-4 gains 4200 mm cutting depth instead of 3800 mm, 11 clamps instead of 9, four-board cutting instead of three, and a 15 kW main saw instead of 7.5 kW. Compared with the PE 420-5, the PE 420-4 gives up cutting height, 72 mm against 90 mm, and its scoring blade is adjusted manually forwards, backwards, up and down rather than automatically. Shops that change scoring settings many times a day should weigh that difference seriously.
Installation requirements
The DRAGON PE 420-4 needs a dedicated bay. Machine dimensions are 6650 x 9400 x 1850 mm, the specified working area is 91 m², and the machine weighs 7500 kg. Electrical supply is 400 V 50 Hz three-phase with a 29 kW total connected load, and compressed air at 6 bar is required. Chip extraction runs through a Ø120 mm bottom port plus three Ø100 mm ports on the upper press, served by a 4 kW fan motor.
ძირითადი მახასიათებლები
- 11 standard clamps and four chipboards cut simultaneously, against 9 clamps and three boards on the DRAGON PE 383
- 4200 x 4200 mm cutting size with a 72 mm cutting height
- Servo-controlled side alignment system
- 15 kW main saw motor with a Ø350 x 4.4 mm blade at 6000 rpm
- 1.5 kW scoring saw with a Ø200 x 4.4 mm blade at 5500 rpm
- Computer control unit with optimisation system, barcode printer and remote service connection
- 2 kW servo motor on the cutting group and 2 kW on the pusher, with cutting speed set automatically by material thickness
- Ø120 mm bottom extraction port plus three Ø100 mm upper press ports, driven by a 4 kW fan
- 6650 x 9400 x 1850 mm dimensions over a 91 m² working area, 7500 kg weight
ტექნიკური მახასიათებლები
- Cutting Width
- 4200 mm
- Cutting Depth
- 4200 mm
- Cutting Height
- 72 mm
- Cutting Group Idle Speed
- Max. 80 m/min
- Cutting Group Working Speed
- Max. 50 m/min
- Pusher Group Working Speed
- Max. 50 m/min
- Main Saw Blade Size
- Ø350 × 4.4 mm
- Scoring Saw Blade Size
- Ø200 × 4.4 mm
- Main Saw Blade Speed
- 6000 rpm
- Scoring Saw Blade Speed
- 5500 rpm
- Main Saw Motor Power
- 15 kW
- Scoring Saw Motor Power
- 1.5 kW
- Cutting Group Servo Motor Power
- 2 kW
- Pusher Servo Motor Power
- 2 kW
- Snail Fan Motor Power
- 4 kW
- Dust Suction Pipe Diameter (Bottom Exit)
- Ø120 mm
- Upper Press Dust Suction Pipe Diameter (Upper Exit ×3)
- Ø100 mm × 3
- Machine Working Area
- 91 m²
- Air Pressure
- 6 Bar
- Mains Voltage
- 400 V – 50 Hz
- Nominal Current
- 380–400 V, 50/60 Hz
- Total Electrical Power
- 29 kW
- Machine Dimensions (W × L × H)
- 6650 × 9400 × 1850 mm
- Machine Weight
- 7500 kg
- Standard Clamps
- 11
- Simultaneous Board Capacity
- 4 chipboards
უპირატესობები
- Four-board cutting with 11 clamps and servo side alignment for real production throughput
- Optimisation software and barcode printing included, not priced as extras
- Ø120 mm bottom extraction port is larger than on the DRAGON PE 383
გასათვალისწინებელი
- Manual scoring blade adjustment in both axes, unlike the automatic adjustment on the DRAGON PE 383
- Largest installation footprint of the range at 91 m² and 6650 x 9400 mm
- 72 mm cutting height is lower than the 90 mm of the DRAGON PE 420-5, limiting stack heights
