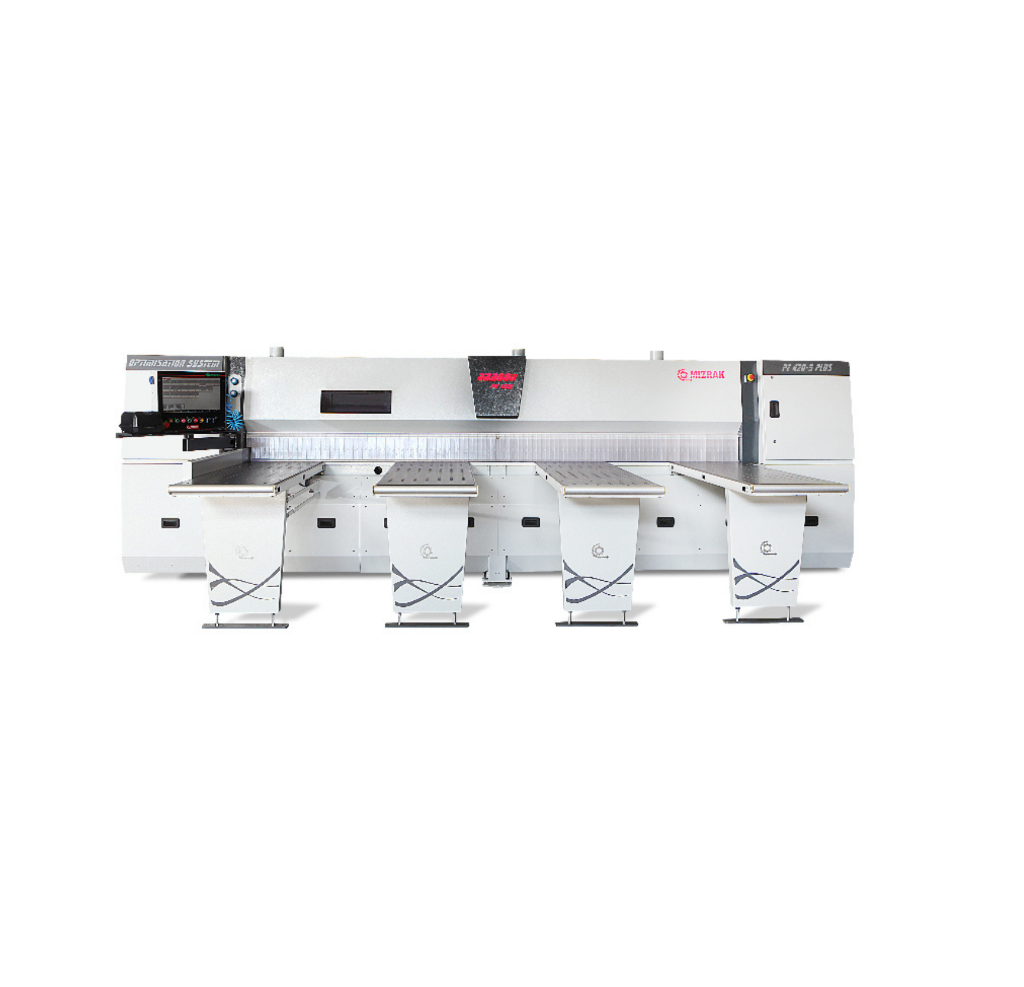

MIZRAK DRAGON PE 420-5 Beam Saw
DRAGON PE 420-5
Stack height is where the DRAGON PE 420-5 separates from the DRAGON PE 420-4: 90 mm of cutting height against 72 mm, cut by a 15 kW main saw turning a Ø400 x 4.4 mm blade at 2945 RPM. The DRAGON PE 420-5 sizes 4200 mm panels, draws 40 kW at 400 V and 80 A, and weighs 7500 kg.
The price of the DRAGON PE 420-5 is moved by the blade and tooling package specified, the extraction plant sized for the 4 kW fan and four Ø100 mm ports, any electrical supply upgrade needed for 80 A and 40 kW, and transport, rigging and commissioning of a 7500 kg machine into a 68 m² bay.
ფასის მოთხოვნაWhat the DRAGON PE 420-5 does
The DRAGON PE 420-5 is a beam saw built to break down full-size panels into finished parts in one controlled pass. Panels are pushed into the saw line by a servo-driven pusher group running at up to 45 m/min, while the saw carriage travels at up to 70 m/min beneath a pneumatically clamped top pressure beam. Cutting depth is 4200 mm and cutting height is 90 mm, which covers standard chipboard and MDF sheet sizes as well as stacked cutting for repeat parts.
Cutting power and blades
The DRAGON PE 420-5 carries the heaviest saw package in the DRAGON beam saw range: a 15 kW main saw motor turning a Ø400 x 4.4 mm blade at 2945 RPM, backed by a 2.2 kW scoring saw with a Ø200 x 4.4 mm blade at 2870 RPM. The larger main blade is what allows the 90 mm cutting height. Saw group and pusher group each use a 1.8 kW servo motor, and a 4 kW turbine fan serves the extraction circuit.
How the DRAGON PE 420-5 compares in the range
Against the DRAGON PE 420-4, the PE 420-5 trades a smaller footprint for more cutting capacity: 90 mm of cutting height instead of 72 mm, a Ø400 mm main blade instead of Ø350 mm, and a 40 kW total connected load instead of 29 kW. Against the smaller DRAGON PE 383, the PE 420-5 offers 4200 mm of cutting depth instead of 3800 mm and double the main saw power. Workshops that only size 3800 mm boards will find the PE 383 sufficient.
Installation requirements
Installing the DRAGON PE 420-5 is a building decision, not a bench decision. The machine measures 7660 x 8900 x 2100 mm, the supplier specifies a 68 m² working area, and the machine weighs 7500 kg, so a level industrial floor and crane or forklift access are needed. Services required are a 400 V 50 Hz three-phase supply at 80 A nominal current and compressed air at 6 bar. Extraction connects through one Ø100 mm port under the saw group and three Ø100 mm ports above the pressure beam.
ძირითადი მახასიათებლები
- 90 mm cutting height, the tallest stack in the DRAGON range against 72 mm on the PE 420-4 and 54 mm on the PE 383
- 4200 mm cutting depth for full-size boards
- 15 kW main saw motor driving a Ø400 x 4.4 mm blade at 2945 RPM
- 2.2 kW scoring saw with a Ø200 x 4.4 mm blade at 2870 RPM
- Saw group travels at up to 70 m/min, pusher group at up to 45 m/min
- 1.8 kW servo motor on the saw group and a second 1.8 kW servo on the pusher
- 4 kW turbine fan with four Ø100 mm extraction ports (one under the saw, three above the top pressure beam)
- 400 V 50 Hz supply, 80 A nominal current, 40 kW total electrical power and 6 bar compressed air
- 7660 x 8900 x 2100 mm machine dimensions, 68 m² working area, 7500 kg weight
ტექნიკური მახასიათებლები
- Cutting Depth
- 4200 mm
- Cutting Height
- 90 mm
- Saw Group Operating Speed
- Max. 70 m/min
- Pusher Group Operating Speed
- Max. 45 m/min
- Main Saw Blade Dimensions
- Ø400 x 4.4 mm
- Scoring Saw Blade Dimensions
- Ø200 x 4.4 mm
- Main Saw Blade Speed
- 2945 RPM
- Scoring Saw Blade Speed
- 2870 RPM
- Main Saw Motor Power
- 15 kW
- Scoring Saw Motor Power
- 2.2 kW
- Saw Group Servo Motor
- 1.8 kW
- Main Saw Servo Motor (Electric Cylinder)
- 750 V
- Pusher Servo Motor
- 1.8 kW
- Turbine Fan Motor
- 4 kW
- Dust Extraction Port Diameter – Saw Group (Bottom Outlet)
- 100 mm
- Dust Extraction Port Diameter – Top Pressure (Top Outlet x3)
- 100 mm
- Machine Working Area
- 68 m²
- Air Pressure
- 6 Bar
- Mains Voltage
- 400 V – 50 Hz
- Nominal Current
- 80 A
- Total Electrical Power
- 40 kW
- Machine Dimensions (L x W x H)
- 7660 x 8900 x 2100 mm
- Machine Weight
- 7500 kg
უპირატესობები
- 15 kW main motor with a Ø400 mm blade gives a 90 mm cutting height, the highest of the three DRAGON models
- Servo motors on both the saw group and the pusher group for repeatable positioning
- Four Ø100 mm extraction ports and a 4 kW turbine fan built into the machine
გასათვალისწინებელი
- Needs 68 m² of working area and a 7660 x 8900 mm footprint, so it is not an option for a small rented workshop
- 400 V three-phase only, with an 80 A nominal current and 40 kW connected load that many older Georgian buildings cannot supply without an upgrade
- A dust collector and filter unit are not listed as included and must be bought separately
