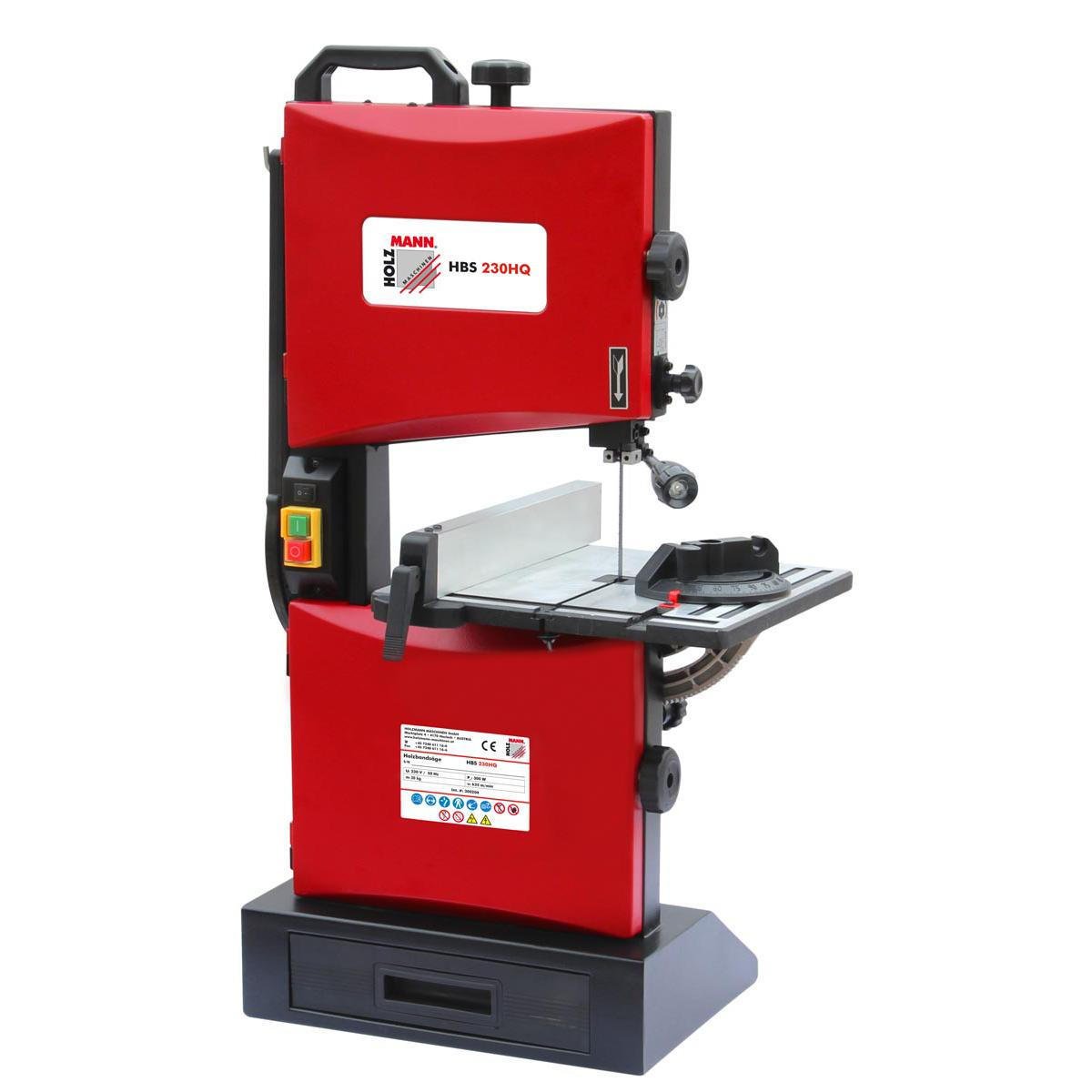

HOLZMANN HBS230HQ Benchtop Wood Bandsaw
HBS230HQ
The HOLZMANN HBS230HQ is a 20 kg benchtop wood bandsaw with 228 mm throat clearance, 90 mm maximum cutting height at 90° and a 300 W motor on 230 V / 50 Hz. The HBS230HQ runs a 1575 x 6-10 mm blade at 635 m/min and is supplied with a rip fence, mitre gauge and push stick.
The delivered price of the HBS230HQ is moved by the spare saw band package, whether a bench or stand is included, order quantity (training centres buying several units are quoted differently), and delivery within Georgia.
ფასის მოთხოვნაWhat the HOLZMANN HBS230HQ is for
The HOLZMANN HBS230HQ is a benchtop bandsaw for light curve cutting, prototype and model work, and small joinery repairs. HBS230HQ weighs 20 kg net and measures 490 x 380 x 840 mm overall, so the saw sits on a bench or a rolling cabinet and can be moved by one person. The 300 W S1 motor runs on a 230 V / 50 Hz single-phase supply.
Cutting capacity, stated honestly
Capacity sets the real limit of the HBS230HQ: 90 mm maximum cutting height at 90 degrees and 228 mm of throat clearance. That covers curve cutting in stock up to 90 mm, small joinery parts and light model work, and it does not cover resawing thick billets. The HBS230HQ runs a 1575 x 6-10 mm band at a single speed of 635 m/min over 230 mm flywheels, so blade choice rather than speed selection is how the operator adapts to different materials.
Table and what is supplied
The HBS230HQ has a 300 x 300 mm table with 0 to 45 degree tilt. A rip fence, a mitre gauge and a push stick are supplied with the HBS230HQ, which means straight rips and mitred cuts are possible from the first day without an accessory order.
Choosing between the HBS230HQ and the HBS245HQ
The HBS230HQ is the smaller of the two HOLZMANN benchtop bandsaws. Against the HBS245HQ, the HBS230HQ has 90 mm rather than 152 mm cutting height, 230 mm rather than 254 mm flywheels, a 1575 mm rather than an 1826 mm band, and a 300 W rather than a 375 W motor. If the workshop expects to cut anything approaching 150 mm deep, the HBS245HQ is the safer specification to quote.
Power supply and siting
Because the HBS230HQ runs on 230 V single-phase and draws only 300 W, no three-phase connection and no special siting are required. Clamping or bolting the HBS230HQ to a solid bench is still worthwhile at 20 kg, since a light frame benefits from being anchored when a narrow blade is tracking through a curve.
ძირითადი მახასიათებლები
- 228 mm throat depth (outreach) with 90 mm maximum cutting height at 90°
- 1575 x 6-10 mm saw band running at a fixed 635 m/min
- 230 mm flywheels in a compact 490 x 380 x 840 mm frame
- 300 W S1 motor on 230 V / 50 Hz single-phase
- 300 x 300 mm work table with 0-45° tilt
- Rip fence, mitre gauge and push stick supplied with the machine
- 20 kg net weight - a genuine one-person benchtop machine
ტექნიკური მახასიათებლები
- Motor power S1
- 300 W
- Voltage
- 230 V / 50 Hz
- Total dimensions
- 490 x 380 x 840 mm
- Swivel range (table tilt)
- 0-45°
- Table size
- 300 x 300 mm
- Outreach (throat depth)
- 228 mm
- Max. cutting height at 90°
- 90 mm
- Saw band
- 1575 x 6-10 mm
- Saw band speed
- 635 m/min
- Flywheel diameter
- 230 mm
- Net weight
- 20 kg
- Gross weight
- 23 kg
- Packaging height
- 335 mm
- Packaging width
- 455 mm
- Packaging length
- 885 mm
- EAN code
- 9120058372803
უპირატესობები
- 20 kg net and 490 x 380 x 840 mm overall - one person can move and site it
- Rip fence, mitre gauge and push stick are supplied, so no accessory order is needed to start
- 228 mm of throat clearance is generous for a bandsaw of this size and price class
გასათვალისწინებელი
- 90 mm maximum cutting height rules out resawing anything thick
- Single fixed band speed of 635 m/min - material is matched by blade choice only
- 300 W is a hobby and light-workshop rating, not a rating for continuous daily production
