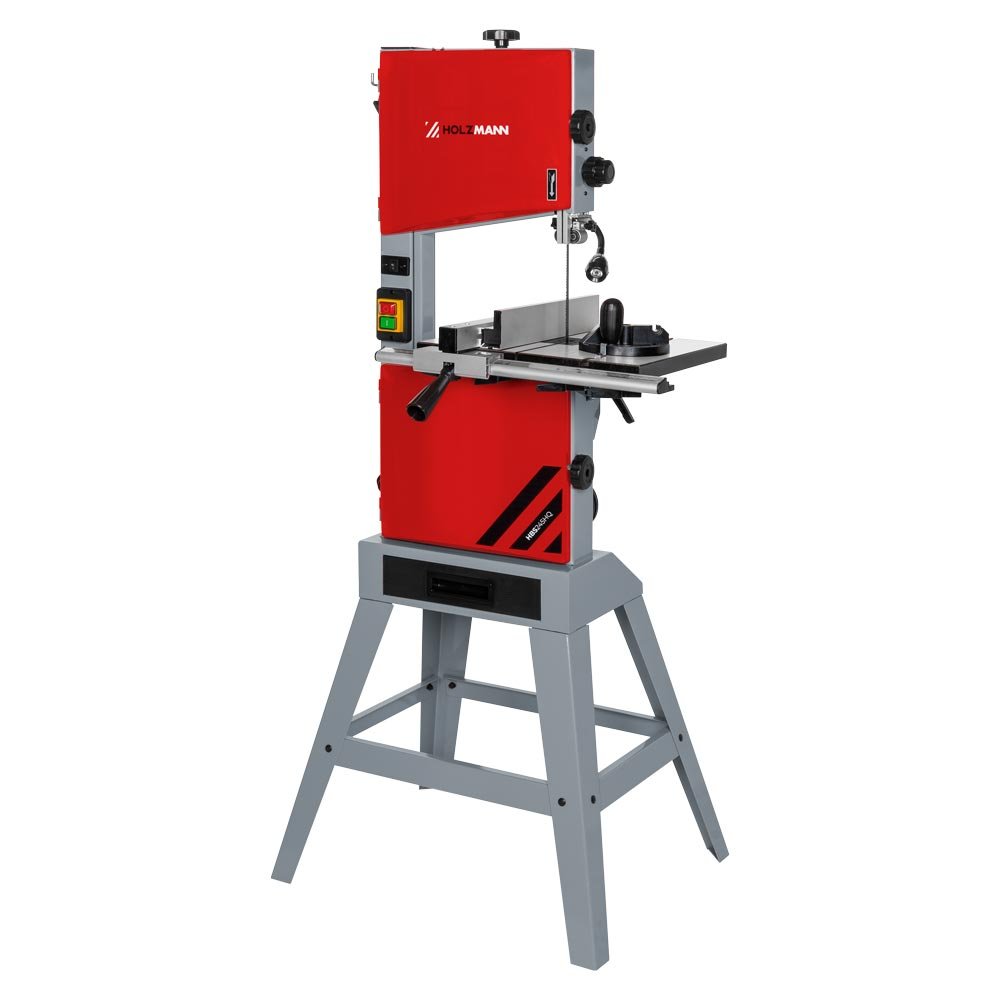

HOLZMANN HBS245HQ Wood Bandsaw
HBS245HQ
The HOLZMANN HBS245HQ is a compact 230 V bandsaw with 245 mm throat clearance, 152 mm maximum cutting height at 90° and a 375 W S1 motor. The HBS245HQ runs 1826 mm blades from 6 to 12.7 mm wide on 254 mm rubber-tyred wheels and weighs 37 kg net.
The delivered price of the HBS245HQ is moved by the 1826 mm saw band package specified, whether a stand or bench mounting is added, the extractor and hose chosen for the 100/75/50 mm port, delivery within Georgia, and whether operator hand-over is included.
ფასის მოთხოვნაWho the HOLZMANN HBS245HQ suits
The HOLZMANN HBS245HQ is a compact 230 V bandsaw for a small joinery, a model shop or a training workshop that cuts curves and light resaw work rather than production stock. HBS245HQ gives 245 mm of throat clearance and 152 mm maximum cutting height at 90 degrees, driven by a 375 W S1 motor modest enough to share a circuit with other bench machines.
Blade range and wheels
Blade width on the HBS245HQ runs from 6 mm to 12.7 mm on an 1826 mm band, carried on 254 mm die-cast aluminium wheels with rubber tyres. That range means the HBS245HQ takes a narrow band for tight radii and a half-inch band for straighter cuts, but the machine is not built for the wide, heavily tensioned bands used in resaw production.
Table and fence capacity
The cast iron table on the HBS245HQ measures 360 x 320 mm, is ground and polished, and tilts from 0 to 45 degrees at the front, with the table set 935 mm above the floor. Cutting width at the parallel fence is quoted at 120/145 mm, so the HBS245HQ is a saw for components rather than for ripping wide panels. Check that figure against your typical workpiece before asking for a quotation.
Noise and working environment
Measured sound power on the HBS245HQ is 83.7 dB(A) and sound pressure 70.7 dB(A), both with k=3 uncertainty, which is quiet enough for a shared workshop or a classroom. Extraction on the HBS245HQ connects through a port sized for 100, 75 and 50 mm hose, so a small mobile chip extractor is sufficient.
HBS245HQ against the larger HBS300J
Choose the HBS245HQ over the HBS300J when bench space and weight matter more than depth of cut: 37 kg net against 78 kg, 254 mm wheels against 315 mm, and a 1826 mm band against 2240 mm. The HBS245HQ specification also lists no two-speed drive, where the HBS300J offers 360 and 720 m/min. Choose the HBS300J instead when 165 mm resaw depth or 300 mm fence capacity is part of the daily job.
ძირითადი მახასიათებლები
- 245 mm throat depth (outreach) with 152 mm maximum cutting height at 90°
- 254 mm die-cast aluminium flywheels with rubber tyres for smooth running and long blade life
- Takes 1826 mm saw bands from 6 mm to 12.7 mm wide
- 375 W S1 motor on a 230 V single-phase supply
- Ground and polished cast iron table 360 x 320 mm with 0-45° front tilt
- Measured 83.7 dB(A) sound power and 70.7 dB(A) sound pressure (k=3)
- Dust extraction port sized for 100, 75 or 50 mm hose
- 37 kg net weight with a 935 mm working table height
ტექნიკური მახასიათებლები
- Motor power S1
- 375 W
- Voltage
- 230 V
- Swivel range (table tilt)
- 0°-45°
- Table size
- 360 x 320 mm
- Outreach (throat depth)
- 245 mm
- Table height
- 935 mm
- Dust collector port
- 100 / 75 / 50 mm
- Max. cutting height at 90°
- 152 mm
- Max. cutting width at parallel fence
- 120 / 145 mm
- Saw band length
- 1826 mm
- Flywheel diameter
- 254 mm
- Saw band width
- 6-12.7 mm
- Sound power level
- 83.7 dB(A), k=3
- Sound pressure level
- 70.7 dB(A), k=3
- Net weight
- 37 kg
- Gross weight
- 39 kg
- Packaging height
- 460 mm
- Packaging width
- 400 mm
- Packaging length
- 1000 mm
- EAN code
- 9120058371509
უპირატესობები
- 152 mm cutting height from a 37 kg machine that two people can position anywhere
- Quiet in a shared shop: 70.7 dB(A) sound pressure and 83.7 dB(A) sound power (k=3)
- Ground cast iron table tilting 0-45° gives accurate angled cuts on a small saw
გასათვალისწინებელი
- 375 W S1 is a light-duty rating - the HBS245HQ is not for continuous hardwood resawing
- 120/145 mm cutting width at the parallel fence is small, so wide ripping is out
- 254 mm wheels cap blade width at 12.7 mm, which limits how straight a deep cut stays
