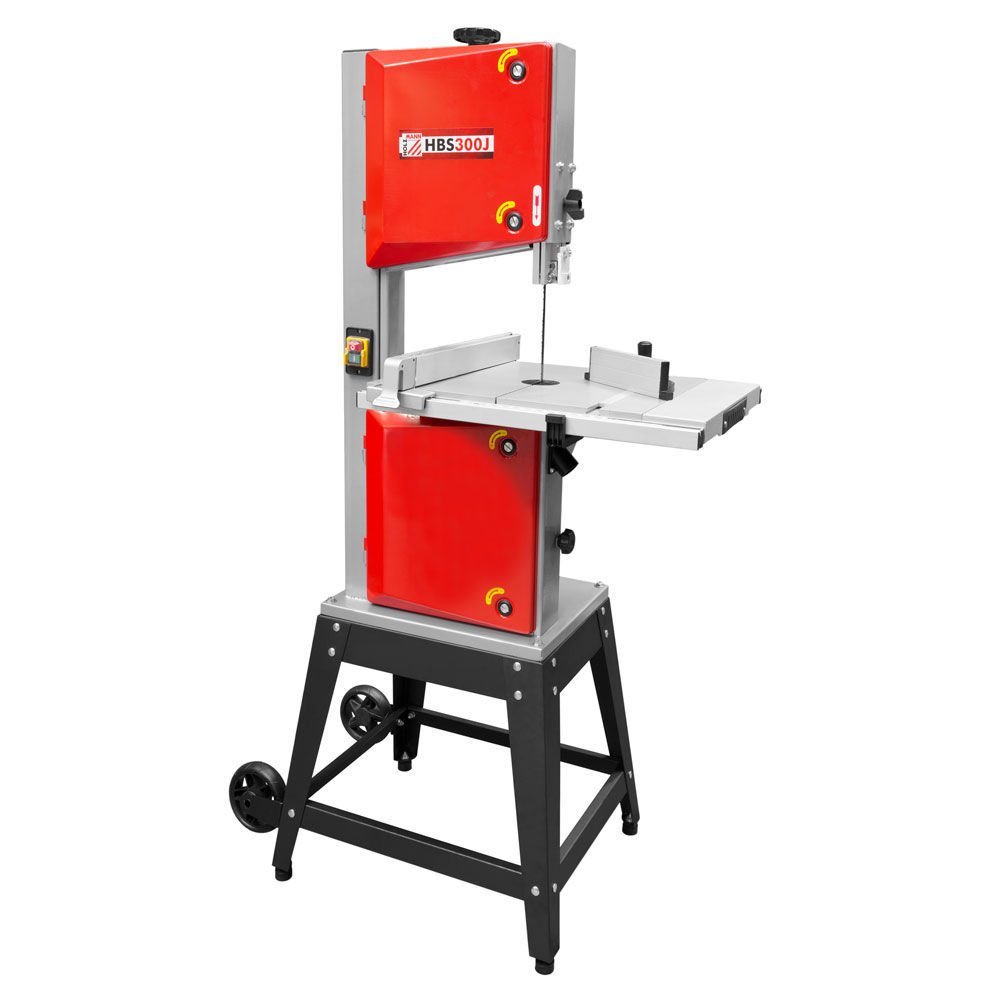

HOLZMANN HBS300J Wood Bandsaw
HBS300J
The HOLZMANN HBS300J is a 230 V single-phase wood bandsaw with a 305 mm throat, 165 mm maximum cutting height at 90° and two band speeds of 360 and 720 m/min. The HBS300J runs 2240 mm blades from 6 to 15 mm wide over 315 mm rubber-tyred wheels and weighs 78 kg net.
The delivered price of the HBS300J is moved by the saw band package (widths and tooth pitches in 2240 mm length), whether a stand and mobility kit are added, the extractor and hose specified for the 40/50/75/100 mm port, delivery to site in Georgia, and any commissioning or operator hand-over time included.
ფასის მოთხოვნაWhere the HOLZMANN HBS300J fits in a workshop
The HOLZMANN HBS300J is the bandsaw to specify when a joinery needs real resaw depth but has only a single-phase supply. HBS300J cuts up to 165 mm deep at 90 degrees and clears 305 mm between blade and column, which covers resawing thick boards, cutting curved rails and breaking down small billets. The motor is rated 1050 W S6 and 750 W S1 on 230 V, so the HBS300J plugs into an ordinary workshop socket rather than waiting on a 400 V connection.
Blade range and the two-speed drive
Blade flexibility is the strongest argument for the HBS300J. The saw takes 2240 mm bands from 6 mm to 15 mm wide, running over 315 mm die-cast aluminium wheels with rubber tyres, so one machine covers tight curve work on a 6 mm band and straight deep rips on a 15 mm band. Two band speeds, 360 m/min and 720 m/min, let the operator drop to the slower speed for dense hardwood and plastics and use the faster speed for softwood and general breakdown work.
Table, tilt and fence capacity
The HBS300J works from a ground cast iron table of 600-860 x 400 mm that tilts from 0 to 45 degrees at the front, set 1000 mm above the floor for comfortable standing work. Ripping at the parallel fence is limited to 300 mm of width, and that figure is the one to check against your own component sizes before requesting a quotation.
How the HBS300J differs from the smaller HOLZMANN bandsaws
Compared with the HBS245HQ, the HBS300J is a heavier class of machine: 315 mm wheels against 254 mm, 165 mm depth of cut against 152 mm, a 1050 W S6 motor against 375 W S1, and 78 kg net against 37 kg. That extra mass and wheel diameter are why the HBS300J holds a straight line in hardwood where a light bench saw wanders.
Extraction and installation
Dust extraction on the HBS300J runs through a port sized for 40, 50, 75 and 100 mm hose, so the saw connects either to a small mobile extractor or to a shop ring main. At 78 kg net the HBS300J is a two-person lift onto its stand, and the blade must be tensioned and tracked after siting before the first cut.
ძირითადი მახასიათებლები
- 305 mm throat depth (outreach) with 165 mm maximum cutting height at 90°
- 315 mm die-cast aluminium flywheels with rubber tyres for smooth running and longer blade life
- Two band speeds, 360 m/min and 720 m/min, for hardwood, softwood and plastics
- Takes 2240 mm saw bands from 6 mm to 15 mm wide
- Ground cast iron table 600-860 x 400 mm with 0-45° front tilt
- 1050 W S6 / 750 W S1 motor on a 230 V single-phase supply
- Table height 1000 mm and 300 mm maximum cutting width at the parallel fence
- Dust extraction port sized for 40, 50, 75 or 100 mm hose
ტექნიკური მახასიათებლები
- Motor power S6
- 1050 W
- Motor power S1
- 750 W
- Voltage
- 230 V
- Swivel range (table tilt)
- 0°-45°
- Table size
- 600-860 x 400 mm
- Outreach (throat depth)
- 305 mm
- Table height
- 1000 mm
- Dust collector port
- 40 / 50 / 75 / 100 mm
- Max. cutting height at 90°
- 165 mm
- Max. cutting width at parallel fence
- 300 mm
- Saw band length
- 2240 mm
- Flywheel diameter
- 315 mm
- Saw band width
- 6-15 mm
- Saw band speed
- 360 / 720 m/min
- Net weight
- 78 kg
- Gross weight
- 83 kg
- Packaging height
- 400 mm
- Packaging width
- 500 mm
- Packaging length
- 1100 mm
- EAN code
- 9120039901169
უპირატესობები
- 165 mm cutting height and 305 mm throat from an ordinary 230 V single-phase socket
- Two band speeds plus a 6-15 mm blade range make one saw cover curve work and deep rips
- 78 kg cast-iron-tabled frame holds a line better than lighter bench bandsaws
გასათვალისწინებელი
- 300 mm maximum cutting width at the parallel fence limits panel ripping
- 1050 W S6 / 750 W S1 is a workshop rating, not a continuous production resaw rating
- HOLZMANN publishes no accessory list for the HBS300J, so blades, stand and extraction must be budgeted and confirmed at quotation
