BBS550SMART — HOLZMANN BBS550SMART Head Band Saw – 550 mm Logs, 5.5 kW Electric 1 / 3

HOLZMANN

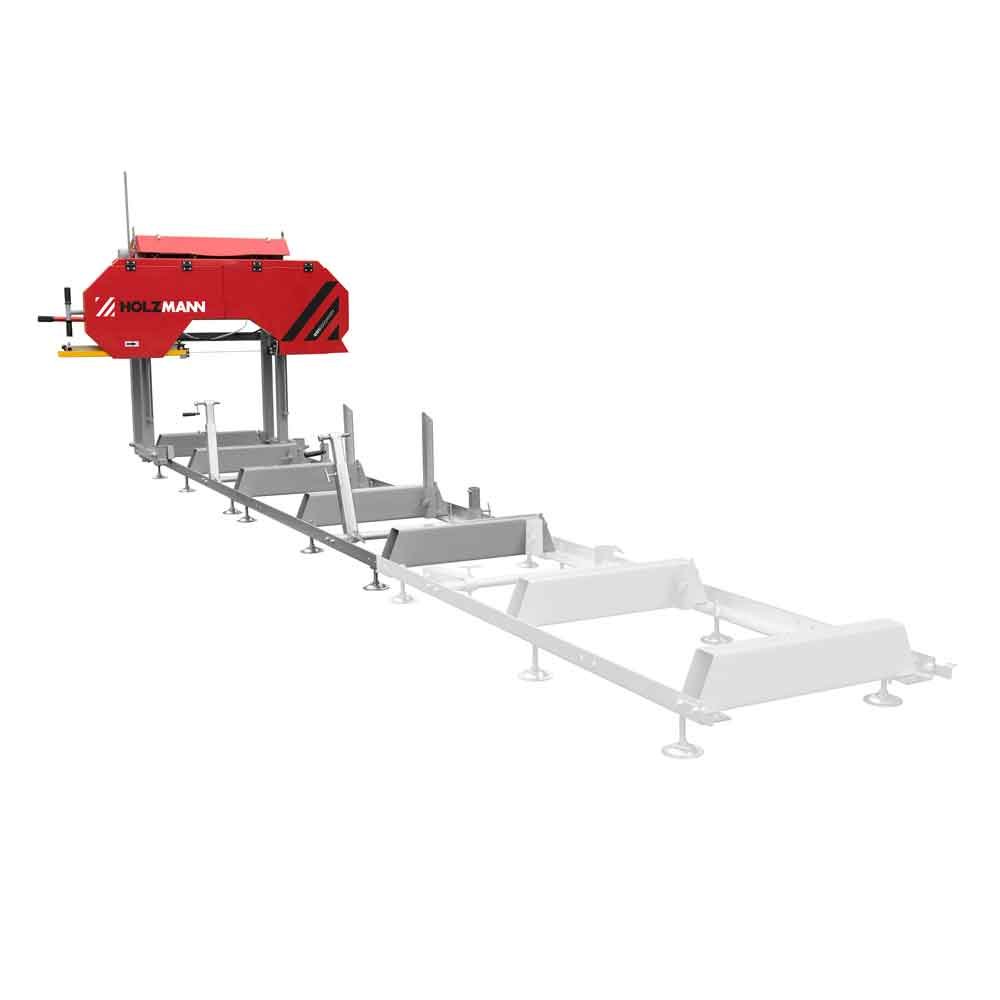

HOLZMANN BBS550SMART Head Band Saw – 550 mm Logs, 5.5 kW Electric

BBS550SMART

Where the BBS550SMART-G burns petrol, the BBS550SMART takes its 5500 W from a 400 V / 3 / 50 Hz supply - no fuel, no exhaust, no engine servicing. It mills Ø550 mm logs with a 3658 x 32 x 1.1 mm band at 1080 m/min, opens 530 mm at the guides, cuts 3.2 m as standard and weighs 335 kg net.

ფასი მოთხოვნით

Price for the BBS550SMART is driven by the number of 2.0 m track sections above the 3.2 m basic cut, the spare 3658 x 32 x 1.1 mm bands and sharpening equipment taken with it, the electrical work needed to bring 400 V / 3 / 50 Hz to the machine position, and delivery with offloading of a 387 kg gross crate.

ფასის მოთხოვნა

What the HOLZMANN BBS550SMART does

The HOLZMANN BBS550SMART is the mid-size electric log mill of the SMART series and the natural first serious mill for a Georgian sawmill or joinery. The BBS550SMART cuts logs up to Ø550 mm with 530 mm of opening between the blade guides, which covers most construction and furniture timber grown locally, and its basic version already saws 3.2 m long. Minimum workpiece length is 1050 mm.

Band, kerf and cutting behaviour

A 3658 x 32 x 1.1 mm band runs at 1080 m/min on Ø475 mm flywheels, cutting a kerf of 1.5-2.2 mm. Because the kerf is thin, the BBS550SMART converts a noticeably larger share of every log into board than a circular sawmill does, and the same band cuts soft, hard, dry and green timber without a blade change. The frame is a solid, twist-free construction, and cutting thickness is set by manual height adjustment of the saw head.

Power supply and running costs

The BBS550SMART is driven by a 5.5 kW motor on 400V / 3 / 50 Hz. Electric drive means the BBS550SMART is cheaper to run per cubic metre than a petrol mill, produces no exhaust under a roof, and needs no engine maintenance between seasons; in return, the machine must stand where three-phase power reaches. Track sections are 2.0 m long, so cutting length grows with each expanding section fitted.

How the BBS550SMART compares in the HOLZMANN range

Choose the BBS550SMART over the smaller HOLZMANN BBS350, which stops at 360 mm log diameter and 2.2 kW, when logs regularly exceed 400 mm. Choose the BBS810SMART instead when logs reach 810 mm and the extra 720 mm guide opening is needed. If the sawing site has no electricity, the identical-capacity BBS550SMART-G with its petrol engine is the version to order.

Delivery and who the BBS550SMART suits

The BBS550SMART is delivered with one saw band, weighs 335 kg net and measures 4350 x 1600 x 1800 mm assembled, with a sound power level of 98 dB(A). Maintenance requirements are low. The BBS550SMART suits sawmills, joineries, pallet makers and door manufacturers that mill their own timber at a fixed yard with a three-phase connection.

ძირითადი მახასიათებლები

  • 5500 W S1 motor on 400 V / 3 / 50 Hz mains - no fuel, exhaust or engine servicing
  • Ø550 mm log capacity with 530 mm between the blade guides
  • 3658 x 32 x 1.1 mm band driven at 1080 m/min over 475 mm flywheels
  • 3.2 m cutting length in the basic version, extended with 2.0 m track sections
  • 1050 mm minimum workpiece length
  • 335 kg net / 387 kg gross - 20 kg under the petrol BBS550SMART-G
  • 4350 x 1600 x 1800 mm assembled, the longer of the two published 550 mm layouts
  • 98 dB(A) sound power and 89 dB(A) sound pressure level
  • Manual height (thickness) adjustment, 1.5-2.2 mm kerf, one band type for every species

ტექნიკური მახასიათებლები

Motor power S1
5500 W
Voltage
400V / 3 / 50Hz
Total dimensions
4350 x 1600 x 1800 mm
Min. workpiece length
1050 mm
Saw band
3658 x 32 x 1.1 mm
Saw band speed
1080 m/min
Flywheel diameter
475 mm
Max. log diameter
550 mm
Max. opening between blade guides
530 mm
Kerf thickness
1.5-2.2 mm
Track section
2.0 m
Sound power level
98 dB(A)
Sound pressure level
89 dB(A)
Net weight
335 kg
Gross weight
387 kg
EAN code
9120058377594

უპირატესობები

  • 550 mm log capacity and 3.2 m basic cutting length cover most locally grown construction and furniture timber
  • Electric 5.5 kW drive is cheaper per cubic metre and needs no engine servicing
  • Thin 1.5-2.2 mm kerf and a single band type for all species keep yield high and downtime low

გასათვალისწინებელი

  • 400V three-phase only; no single-phase version exists
  • Manual height adjustment and manual feed, with no hydraulic log handling
  • 335 kg and 4350 mm long assembled, so the BBS550SMART stays where it is installed

ხშირად დასმული კითხვები

What power supply does the HOLZMANN BBS550SMART need?
The HOLZMANN BBS550SMART requires a 400V / 3 / 50 Hz three-phase connection for its 5.5 kW motor and is not available in a 230V single-phase version. A site without three-phase power should use the petrol-driven HOLZMANN BBS550SMART-G, which mills the same 550 mm logs, or the smaller BBS350, which is offered in 230V.
How big a log can the BBS550SMART cut?
The HOLZMANN BBS550SMART takes logs up to 550 mm in diameter and opens 530 mm between the blade guides. The shortest workpiece the BBS550SMART can hold is 1050 mm long.
What does the BBS550SMART not do?
The HOLZMANN BBS550SMART has no electric height adjustment, no powered feed and no hydraulic log loading or turning; all of that is manual. The BBS550SMART also does not edge, plane or dry timber, and it does not accept logs over 550 mm, which is the job of the BBS810SMART.
How long can the BBS550SMART cut?
The basic version of the HOLZMANN BBS550SMART cuts 3.2 m. Because the BBS550SMART track is assembled from 2.0 m sections, longer cutting lengths are reached by adding expanding sections.
Does the BBS550SMART need different bands for hardwood and softwood?
No. All timber types are cut with the same band on the HOLZMANN BBS550SMART, which uses 3658 x 32 x 1.1 mm bands running at 1080 m/min.
How much space does the HOLZMANN BBS550SMART need?
The HOLZMANN BBS550SMART measures 4350 x 1600 x 1800 mm assembled and weighs 335 kg net, so it needs a level, cleared area longer than the track plus room to roll logs alongside the BBS550SMART.
What drives the price of a HOLZMANN BBS550SMART?
The HOLZMANN BBS550SMART is quoted per configuration. What moves the figure is the number of 2.0 m track sections above the 3.2 m basic cutting length, the set of spare 3658 x 32 x 1.1 mm bands plus sharpener and setter ordered with it, the cabling and protection needed to bring a 400 V / 3 / 50 Hz supply to the machine, and transport with offloading. Tell us the longest log you intend to mill and we price the BBS550SMART around it.
How long does it take to get a BBS550SMART?
The HOLZMANN BBS550SMART is supplied to order, and the lead time for the BBS550SMART is confirmed in the quotation itself. Because the machine is imported in the configuration you choose, we state the delivery date in the offer instead of publishing a general figure.
What does commissioning a BBS550SMART involve?
Commissioning the HOLZMANN BBS550SMART covers siting it over its 4350 x 1600 x 1800 mm area, levelling and aligning the 2.0 m track sections, connecting the 5.5 kW motor to 400 V / 3 / 50 Hz through a qualified electrician, then tensioning and tracking the band, setting the guides to the log and taking a trial cut. No extraction hook-up is required, since the BBS550SMART has no published chip-extraction connection.
Which running items are not included in the BBS550SMART price?
The HOLZMANN BBS550SMART is delivered with one saw band, so a working rotation of spare 3658 x 32 x 1.1 mm bands, a sharpener and setter or an outside sharpening service, extension track sections, cant hooks and log clamps, and lubricants are budgeted separately. We list them against the BBS550SMART on the quotation so nothing surfaces after delivery.
