HOLZMANN

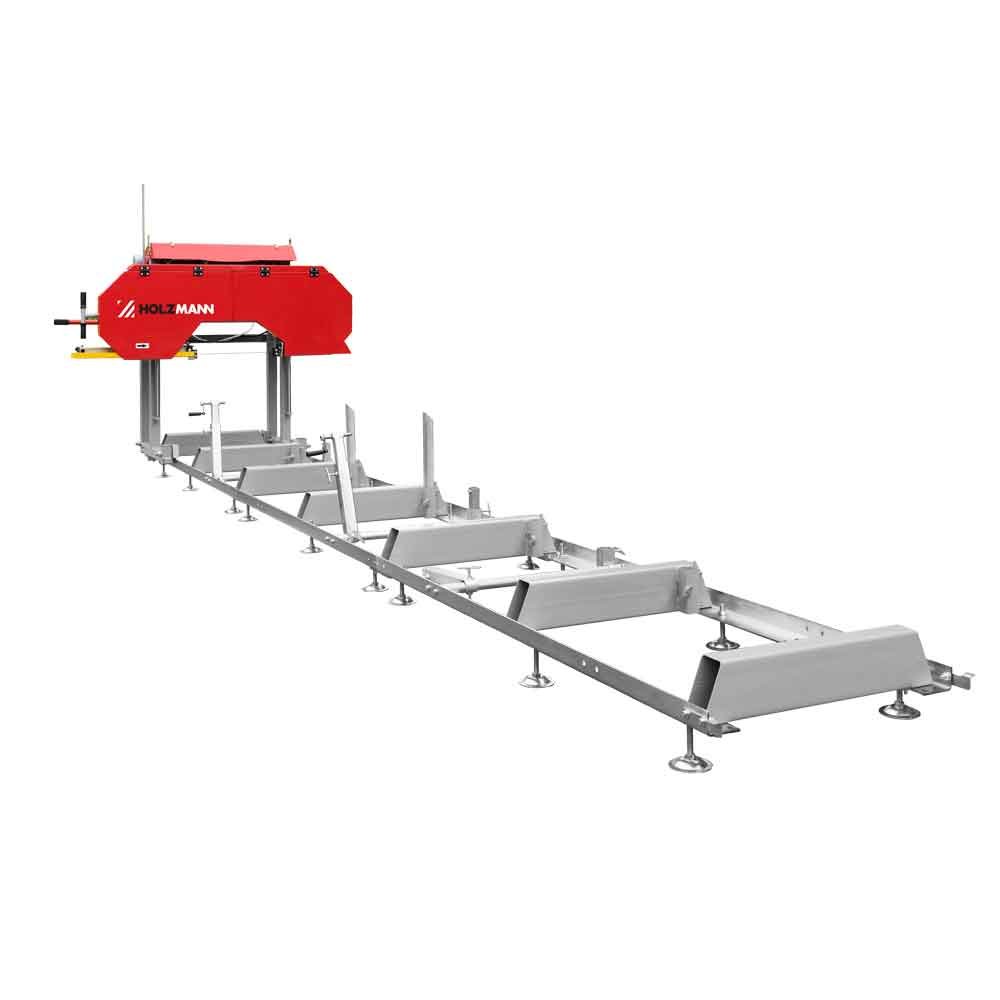

HOLZMANN BBS810SMART Head Band Saw – 810 mm Logs, 7.5 kW Electric
BBS810SMART
Choose the BBS810SMART when the yard already has 400 V / 50 Hz: a 7500 W S1 motor replaces the petrol engine of the BBS810SMART-G and drives the 4015 x 34 x 1.1 mm band at 1080 m/min. HOLZMANN publishes a 3.2 m basic cutting length for this electric version, on Ø810 mm logs with a 720 mm guide opening.
What moves the BBS810SMART price is the number of 2 m track sections added to the 3.2 m basic cut, the spare 4015 x 34 x 1.1 mm bands and sharpening equipment included, the 400 V electrical installation to the machine position, and transport plus crane or forklift offloading of a 416 kg gross crate.
ფასის მოთხოვნაWhat the HOLZMANN BBS810SMART does
The HOLZMANN BBS810SMART is the large electric mill of the SMART series, built exclusively for cutting soft, hard, dry, raw or frozen timber and wooden prisms into boards and beams. With a maximum log diameter of Ø810 mm and 720 mm of opening between the blade guides, the BBS810SMART handles the oversized logs that stop a smaller mill, and its basic version already cuts 3.2 m long.
Electric drive on a fixed site
The BBS810SMART uses a 7.5 kW motor on 400V / 50 Hz, which makes it the machine to choose when the sawmill has a permanent three-phase connection. Electric drive means lower running cost per cubic metre than petrol, no exhaust in a covered shed, and no engine servicing between seasons. The trade-off is location: the BBS810SMART cannot be taken to the forest, and the petrol-driven BBS810SMART-G exists for exactly that situation.
Band, kerf and track
The BBS810SMART runs a 4015 x 34 x 1.1 mm band at 1080 m/min on Ø475 mm flywheels, cutting a kerf of just 1.5-2.2 mm so that more of each large log becomes saleable board. All timber types are cut with the same band, which avoids blade changes when the log deck holds mixed species. Track sections measure 2 m, and the cutting length of the BBS810SMART grows with each additional expanding section. Height and thickness are set manually, on a solid twist-free frame that keeps long cuts parallel.
How the BBS810SMART compares in the HOLZMANN range
The BBS810SMART is the 810 mm electric option between two neighbours. The HOLZMANN BBS550SMART is the same style of machine with a 5.5 kW motor and 550 mm log capacity for smaller timber, while the BBS920PRO-G goes further with 920 mm logs, electric height adjustment and electric feed. Within the 810 mm size, the only real decision is electric BBS810SMART against petrol BBS810SMART-G.
Delivery, installation and who it suits
The BBS810SMART is delivered with one saw band, weighs 368 kg net and occupies 4260 x 1950 x 1900 mm when assembled. Sound power level is 98 dB(A) and maintenance requirements are low. The BBS810SMART suits established sawmills, timber yards and door or beam manufacturers in Georgia that mill large-diameter logs at a fixed location with three-phase power.
ძირითადი მახასიათებლები
- 7500 W S1 motor on 400 V / 50 Hz - 2 kW above the BBS550SMART for the larger log
- Ø810 mm logs with a 720 mm opening between the blade guides
- 4015 x 34 x 1.1 mm band, 34 mm wide against the 32 mm band of the 550 mm machines
- 1080 m/min band speed on Ø475 mm flywheels
- 3.2 m basic cutting length published for this electric version, extended by 2 m sections
- 368 kg net / 416 kg gross
- 4260 x 1950 x 1900 mm assembled
- 98 dB(A) sound power / 89 dB(A) sound pressure
- 1 x saw band delivered; manual thickness setting, hand feed, 1.5-2.2 mm kerf
ტექნიკური მახასიათებლები
- Motor power S1
- 7500 W
- Voltage
- 400V / 50Hz
- Total dimensions
- 4260 x 1950 x 1900 mm
- Saw band
- 4015 x 34 x 1.1 mm
- Saw band speed
- 1080 m/min
- Flywheel diameter
- Ø 475 mm
- Max. log diameter
- Ø 810 mm
- Max. opening between blade guides
- 720 mm
- Track section
- 2 m
- Kerf thickness
- 1.5 - 2.2 mm
- Sound power level
- 98 dB(A)
- Sound pressure level
- 89 dB(A)
- Net weight
- 368 kg
- Gross weight
- 416 kg
- EAN code
- 9120058379260
უპირატესობები
- Ø810 mm log capacity with a 3.2 m basic cutting length covers large structural timber
- Electric 7.5 kW drive keeps running costs and noise lower than a petrol mill in a covered yard
- Thin 1.5-2.2 mm kerf and one band for all species maximise yield and minimise blade changes
გასათვალისწინებელი
- 400V three-phase only, so unusable on sites without a mains connection
- Manual height adjustment and manual feed, unlike the BBS920PRO-G
- 368 kg net and 4260 mm long assembled, effectively a fixed installation
