BBS920PRO — HOLZMANN BBS920PRO Head Band Saw (Ø920 mm, 11 kW, Electric Feed) 1 / 4

HOLZMANN

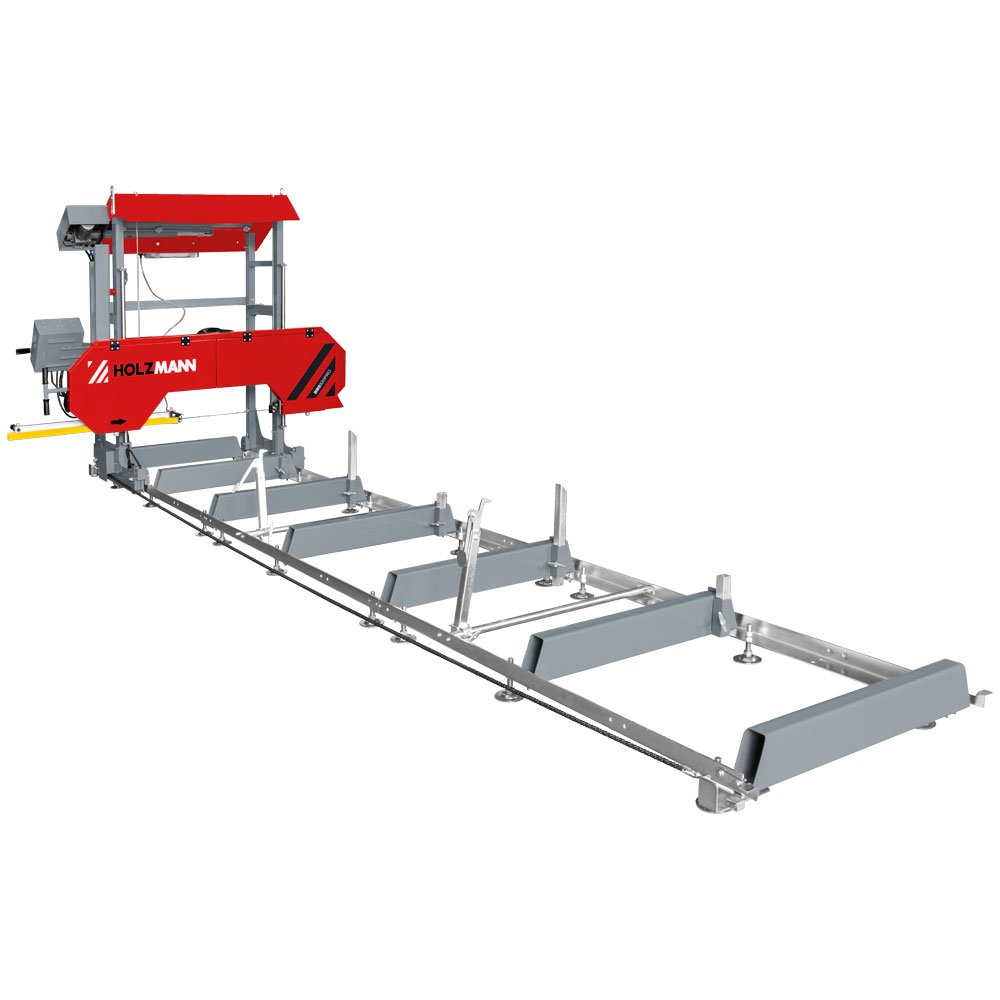

HOLZMANN BBS920PRO Head Band Saw (Ø920 mm, 11 kW, Electric Feed)

BBS920PRO

For a permanent 400 V bay, the BBS920PRO swaps the petrol engine of the BBS920PRO-G for an 11000 W S1 motor while keeping the electric height adjustment and electric head feed. It converts Ø920 mm logs across a 5.2 m standard cut, occupies 6450 x 2360 x 2210 mm and weighs 520 kg net.

ფასი მოთხოვნით

The BBS920PRO price is moved by the optional BBS920_RB extension track and how many 2 m sections go beyond the 5.2 m standard cut, the rotation of 4136 x 34 x 1.1 mm bands and sharpening equipment specified, the 400 V installation for an 11 kW drive, and transport plus crane offloading of a 599 kg gross crate.

ფასის მოთხოვნა

What the HOLZMANN BBS920PRO does

The HOLZMANN BBS920PRO is a track-mounted head band saw that converts standing-log stock into boards, planks and squared timber. Logs up to Ø920 mm are clamped on the track and the saw head travels along them, so the BBS920PRO handles timber far too heavy to lift onto any table-based bandsaw. A 4136 x 34 x 1.1 mm blade runs over two Ø475 mm precision cast flywheels at 1080 m/min, and the maximum opening between the blade guides is 780 mm. HOLZMANN rates the BBS920PRO for soft, hard, dry and frozen wood, and a single blade type covers that whole range.

Electric feed and electric height adjustment

Powered operation on both working axes is what separates the BBS920PRO from the smaller machines in the HOLZMANN head band saw range. Cutting height is set electrically rather than by hand crank, and the saw unit carries an electric feed that drives the head along the log under motor power. Over a full sawing day those two powered functions remove the most fatiguing part of head band saw work and keep board thickness consistent from the first cut to the last. The log itself is secured with eccentric clamps.

Cutting length and track extension

In standard configuration the BBS920PRO reaches a maximum cutting length of 5.2 m, built up from 2 m track sections. Workshops cutting beams or ridge timber longer than that can add the optional BBS920_RB extension track, so the BBS920PRO does not have to be replaced when the job outgrows the standard bed.

How the BBS920PRO compares inside the HOLZMANN range

The BBS920PRO sits at the top of the electrically driven HOLZMANN head band saws. The BBS810SMART takes logs to Ø810 mm on a 7.5 kW motor; the BBS920PRO raises log capacity to Ø920 mm and motor power to 11 kW on 400 V. Sawmills working without a three-phase connection should compare the BBS920PRO-G, which offers the same Ø920 mm sawing geometry with a petrol engine instead of an electric motor.

Site requirements and delivery

The BBS920PRO weighs 520 kg net (599 kg gross) and measures 6450 x 2360 x 2210 mm once the track is laid, so it needs a level, permanent bed rather than a corner of a joinery. Sound power level is 98 dB(A) and sound pressure level 89 dB(A), so hearing protection is mandatory for the operator and anyone stacking output.

ძირითადი მახასიათებლები

  • 11000 W S1 motor on a 400 V / 50 Hz three-phase supply
  • Ø920 mm maximum log diameter with 780 mm between the blade guides - the largest capacity in this range
  • Electric cutting-height adjustment plus electric feed of the saw head along the track
  • 5.2 m standard cutting length from 2 m sections, extendable with the optional BBS920_RB track
  • 4136 x 34 x 1.1 mm band at 1080 m/min over Ø475 mm precision cast flywheels
  • Eccentric clamps secure the log on the track for repeatable cuts
  • 520 kg net / 599 kg gross
  • 6450 x 2360 x 2210 mm assembled footprint, published for this electric version
  • 98 dB(A) sound power, 89 dB(A) sound pressure, 1.5-2.2 mm kerf

ტექნიკური მახასიათებლები

Motor power S1
11000 W
Voltage
400 V / 50 Hz
Total dimensions
6450 x 2360 x 2210 mm
Saw band
4136 x 34 x 1.1 mm
Saw band speed
1080 m/min
Flywheel diameter
Ø 475 mm
Max. log diameter
Ø 920 mm
Max. opening between blade guides
780 mm
Track section
2 m
Kerf thickness
1.5 - 2.2 mm
Max. cutting length (standard configuration)
5.2 m
Sound power level
98 dB(A)
Sound pressure level
89 dB(A)
Net weight
520 kg
Gross weight
599 kg
EAN code
9120132141165

უპირატესობები

  • Ø920 mm log capacity with an 11 kW motor — the largest electrically driven head band saw in the HOLZMANN range
  • Electric cutting-height adjustment and electric head feed remove the two most tiring manual operations of log sawing
  • 5.2 m standard cutting length that can be extended with the optional BBS920_RB track instead of replacing the machine

გასათვალისწინებელი

  • 400 V three-phase only — there is no single-phase variant of the BBS920PRO
  • 6450 x 2360 x 2210 mm and 520 kg net demand a permanent, prepared site, not a shared workshop corner
  • Logs are loaded, positioned and clamped manually with the eccentric clamps; the BBS920PRO has no hydraulic log handling

ხშირად დასმული კითხვები

What power supply does the HOLZMANN BBS920PRO need?
The HOLZMANN BBS920PRO is supplied only as BBS920PRO_400V and requires a 400 V / 50 Hz three-phase connection to run its 11 kW S1 motor. There is no 230 V single-phase version of the BBS920PRO, so a site without three-phase mains should compare the petrol-engined BBS920PRO-G, which offers the same Ø920 mm sawing geometry.
What does the HOLZMANN BBS920PRO not do?
The HOLZMANN BBS920PRO does not plane, edge, dry or grade timber, and it does not load or turn logs for the operator. The BBS920PRO breaks logs down into boards, planks and squared timber; logs are positioned and secured by hand with the eccentric clamps, and the sawn output still has to go to a planer, thicknesser or drying stack afterwards.
What is the maximum log diameter and cutting length of the BBS920PRO?
The HOLZMANN BBS920PRO takes logs up to Ø920 mm in diameter and cuts to a maximum length of 5.2 m in standard configuration. Because the BBS920PRO track is built from 2 m sections, longer cutting lengths are achieved by adding the optional BBS920_RB extension track.
Can the BBS920PRO cut frozen and hardwood logs?
Yes. HOLZMANN rates the BBS920PRO for soft, hard, dry and frozen wood, and one bandsaw blade type covers all of them. For Georgian mountain sawmills working through the winter this means the BBS920PRO does not need a blade change when moving between frozen stock and seasoned timber.
How much space does the BBS920PRO need on site?
The HOLZMANN BBS920PRO measures 6450 x 2360 x 2210 mm assembled and weighs 520 kg net (599 kg gross). The BBS920PRO therefore needs a level, prepared and permanent bed with clear working space along both sides of the track, plus room alongside for log storage and sawn-timber stacking.
How does the BBS920PRO differ from the HOLZMANN BBS810SMART?
The HOLZMANN BBS920PRO takes logs up to Ø920 mm and runs an 11 kW motor, while the BBS810SMART is limited to Ø810 mm on a 7.5 kW motor. Both machines run at 1080 m/min on Ø475 mm flywheels, but the BBS920PRO adds diameter capacity, blade guide opening (780 mm) and power for consistently larger logs.
Which factors decide the quoted price of a BBS920PRO?
A HOLZMANN BBS920PRO quotation is shaped by whether the optional BBS920_RB extension track is added to the 5.2 m standard cutting length, how many 4136 x 34 x 1.1 mm saw bands and what sharpening equipment go with it, the 400 V / 50 Hz installation for the 11 kW motor and its powered height and feed drives, and transport with crane offloading of a 599 kg gross crate. Send the log diameters and lengths you handle and we quote the BBS920PRO configured for them.
What is the lead time on a BBS920PRO?
The HOLZMANN BBS920PRO is built to order and the current lead time for the BBS920PRO is confirmed at quotation. Site preparation for the 6450 x 2360 x 2210 mm bed usually runs in parallel with the delivery period, so we set out both in the same offer.
What does site preparation and commissioning for the BBS920PRO involve?
Because the HOLZMANN BBS920PRO measures 6450 x 2360 x 2210 mm and weighs 520 kg net, it needs a prepared, level, permanent bed with clear working space on both sides of the track and room for log storage and board stacking. Commissioning the BBS920PRO then covers levelling and aligning the 2 m track sections, the 400 V three-phase connection by a qualified electrician, checking the electric height adjustment and head feed, tensioning and tracking the band, setting the guides and taking a trial cut.
What has to be budgeted next to the BBS920PRO machine price?
Budget beside the HOLZMANN BBS920PRO for a working rotation of 4136 x 34 x 1.1 mm saw bands with sharpening and setting equipment, the optional BBS920_RB extension track if you cut beyond 5.2 m, log-handling equipment for Ø920 mm logs, the electrical installation, and PPE. All of these are quoted as named lines with the BBS920PRO.
