CL4060 — HOLZMANN CL4060 CNC CO2 Laser Cutter and Engraver (400 x 600 mm) 1 / 4

HOLZMANN

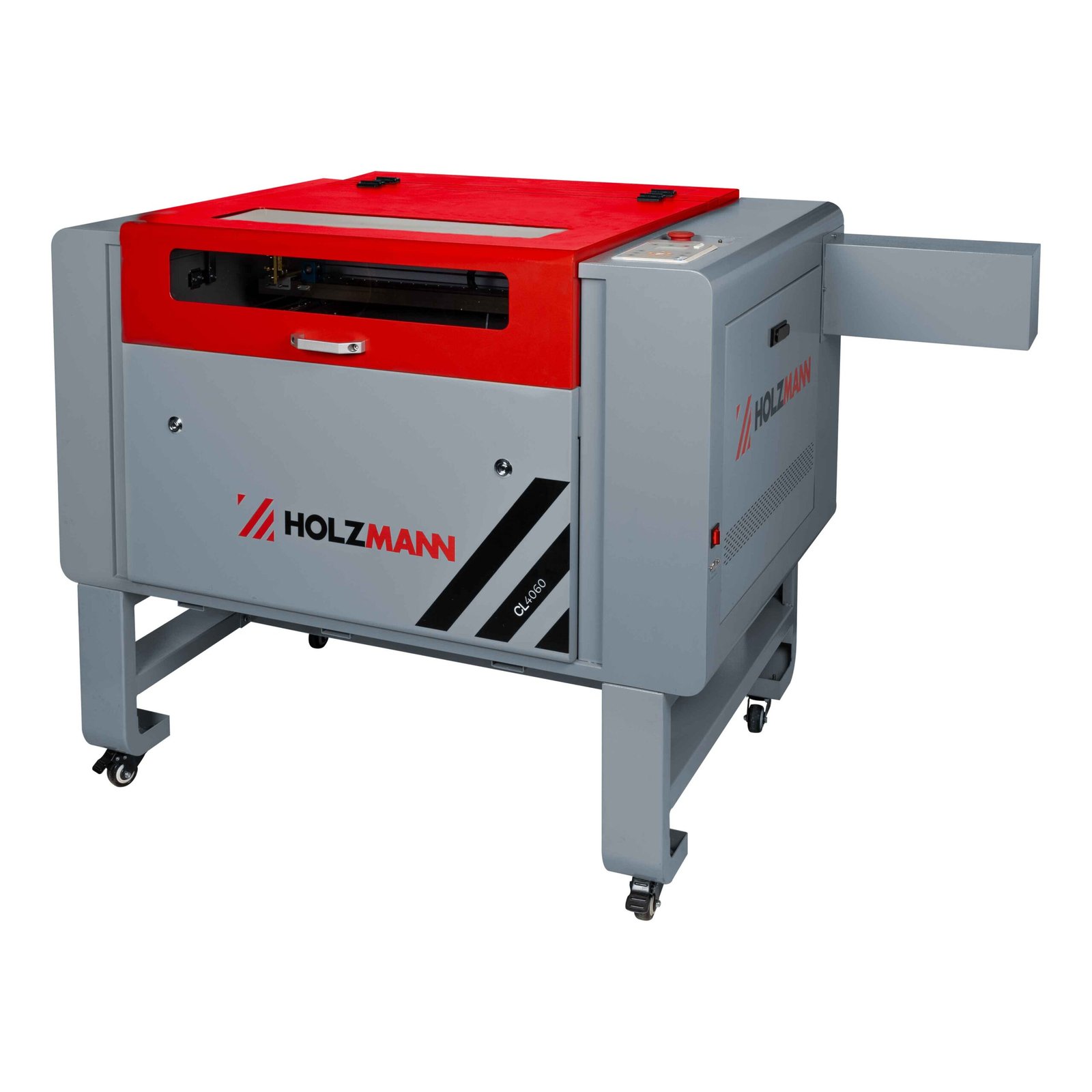

HOLZMANN CL4060 CNC CO2 Laser Cutter and Engraver (400 x 600 mm)

CL4060

Bed size and floor space put the CL4060 below its CL6090 sibling: a 400 x 600 mm working area inside a 1150 x 850 x 980 mm cabinet weighing 105 kg net, which suits a studio or the corner of a joinery. HOLZMANN quotes positioning accuracy under 0.01 mm and 200 mm of Z travel for the CL4060.

ფასი მოთხოვნით

CL4060 pricing turns on the laser tube and optics specification, on whether a fume extraction unit and a spare tube are taken with the machine, on freight and customs clearance for a 145 kg crate of 1510 x 850 x 980 mm, and on the number of units ordered.

ფასის მოთხოვნა

What the HOLZMANN CL4060 cuts and engraves

The HOLZMANN CL4060 is a CO2 laser cutter and engraver for non-metallic materials, working on a 400 x 600 mm bed with a laser rated up to 80 watts. Wood, leather, acrylic, glass and plastic are the materials HOLZMANN names for the CL4060, which puts the machine directly in the path of sign shops, model makers and furniture workshops that want engraved fronts, inlay parts, name plates and cut-out decorative panels. Positioning accuracy is quoted below 0.01 mm and the smallest reproducible character is 2 x 2 mm, or 1 x 1 mm for letters, so fine text and detailed line work stay legible.

Z travel, cooling and extraction

Z-direction travel on the CL4060 is 200 mm, so the bed drops far enough to engrave blocks, boxes and assembled parts rather than sheet material only. A large water cooler is included with the CL4060: 1400 W cooling capacity, a 48 W pump, a 650 W compressor and a 6 litre tank, which is what keeps a CO2 tube stable through long production runs in a hot workshop. A Ø150 mm port is provided for fume and dust extraction, and connecting it to an extraction unit is not optional when cutting acrylic or MDF.

Software and workflow

The CL4060 is driven by RDWorks operating software, supplied on a self-installation basis. Artwork is prepared on a PC, transferred to the machine and cut or engraved from there, which means the CL4060 fits a workshop that already produces DXF or vector files rather than one starting from paper drawings.

CL4060 or CL6090?

Bed size and floor space are the whole difference. The CL4060 offers a 400 x 600 mm working area, weighs 105 kg net and occupies 1150 x 850 x 980 mm. The larger CL6090 opens the bed to 600 x 900 mm at 140 kg and 1440 x 1050 x 990 mm. Choose the CL4060 for small-format parts and a tight workshop; choose the CL6090 when full sheets have to lie flat on the bed.

Delivery and supply

The CL4060 is supplied in the 230 V version with its water cooler, shipping at 145 kg gross, and runs from an ordinary single-phase workshop socket.

ძირითადი მახასიათებლები

  • 400 x 600 mm working area - the smaller of the two HOLZMANN CL-series laser beds
  • Positioning accuracy quoted at under 0.01 mm on the CL4060 data sheet
  • Minimum character size 2 x 2 mm, letters from 1 x 1 mm
  • 200 mm of Z-direction travel over the 400 x 600 mm bed for blocks and assembled parts
  • 105 kg net and 145 kg gross, in a cabinet measuring 1150 x 850 x 980 mm
  • Crated 1510 x 850 x 980 mm - narrow enough for a standard workshop doorway
  • Water cooler included: 1400 W cooling capacity, 48 W pump, 650 W compressor, 6 litre tank
  • RDWorks operating software (self-installation) and an Ø150 mm fume-extraction port; extraction unit not supplied

ტექნიკური მახასიათებლები

Working area
400 x 600 mm
Laser power
up to 80 W (CO2)
Travelling distance Z-direction (up/down)
200 mm
Positioning accuracy
< 0.01 mm
Min. character size / letter size
2 x 2 / 1 x 1 mm
Water cooler (included)
1400 W cooling capacity / 48 W pump / 650 W compressor / 6 litre tank
Operating software
RDWorks (self-installation)
Voltage
230 V (CL4060_230V)
Dust collector port
Ø150 mm
Total dimensions
1150 x 850 x 980 mm
Net weight
105 kg
Gross weight
145 kg
EAN code
9120132141288

უპირატესობები

  • 400 x 600 mm bed with up to 80 W of CO2 laser power and positioning accuracy below 0.01 mm
  • Large water cooler (1400 W, 6 litre tank) included rather than sold separately
  • Runs on a standard 230 V single-phase socket, so no three-phase installation is needed

გასათვალისწინებელი

  • Non-metallic materials only — the CL4060 cannot cut or engrave steel, aluminium or brass
  • The Ø150 mm extraction port needs a separate extraction unit, which is not part of the delivery
  • 400 x 600 mm is the smaller of the two HOLZMANN CO2 beds; full-size panels need the CL6090

ხშირად დასმული კითხვები

What power supply does the HOLZMANN CL4060 need?
The CL4060 is catalogued as CL4060_230V, so the machine is built for a 230 V supply. Beyond that variant designation HOLZMANN's CL4060 data sheet carries no mains row, so we confirm the exact connection and current draw on the quotation rather than infer it from an omitted line. Whichever supply is fitted, the water cooler included with the CL4060 must be powered and circulating whenever the laser is firing, and the fume extractor on the Ø150 mm port needs its own connection.
What does the HOLZMANN CL4060 not do?
The HOLZMANN CL4060 does not cut or engrave metal. The CL4060 is a CO2 laser specified for non-metallic materials only — wood, leather, acrylic, glass and plastic — so steel, aluminium and brass are outside its working range, and chlorinated plastics such as PVC should not be put on the bed at all.
How big a workpiece fits on the CL4060?
The HOLZMANN CL4060 has a 400 x 600 mm working area and 200 mm of Z-direction travel, so parts up to that footprint and objects up to that height can be engraved. Workshops that need to lay larger boards or full furniture panels flat should take the CL6090, which opens the working area to 600 x 900 mm.
Does the CL4060 need a separate extraction unit?
Yes. The HOLZMANN CL4060 provides a Ø150 mm port for fume and dust extraction, but the extraction unit itself is a separate purchase. Running the CL4060 without connected extraction is not advisable, because laser cutting wood, MDF and acrylic produces smoke and fine particles that must be removed from the workshop.
What software runs the CL4060 and is it included?
The HOLZMANN CL4060 is operated through RDWorks software, which is supplied on a self-installation basis. Designs are drawn or imported on a PC, then transferred to the CL4060 and cut or engraved, so a workshop already working with vector or DXF files can put the CL4060 into production quickly.
What is included with the CL4060?
The HOLZMANN CL4060 is delivered with its large water cooler — 1400 W cooling capacity, a 48 W pump, a 650 W compressor and a 6 litre tank — plus RDWorks operating software for self-installation. Gross shipping weight of the CL4060 is 145 kg against a 105 kg net machine weight.
What does a HOLZMANN CL4060 laser cutter cost?
The CL4060 is a capital machine quoted per order, not sold at a shelf price. The figure is driven by the laser tube and optics specification, by whether a fume extraction unit and a spare tube are bought with the machine, by freight and customs clearance on a 145 kg crate, and by the number of CL4060 units taken. Tell us the materials and duty cycle you have in mind and we will quote the CL4060 to suit.
What is the lead time on a CL4060?
The CL4060 is built to order and its current lead time is confirmed at quotation rather than published in advance. Ask us when you enquire about the CL4060 and we will state the position at that moment, including transit into Georgia for the 145 kg crate.
What does installing and commissioning a CL4060 involve?
Installing a CL4060 means siting the 1150 x 850 x 980 mm cabinet on a level floor with room to work at all four sides, placing and connecting the included water cooler, connecting mains to both, and ducting the Ø150 mm port to a fume extractor that discharges outside the workspace. Commissioning then covers mirror and focus alignment plus a first cut on your own material. We quote installation, commissioning and operator training for the CL4060 as separate lines.
What running costs and extras should be budgeted with a CL4060?
Beyond the CL4060 machine price, budget for a fume and dust extraction unit - none is supplied for the Ø150 mm port and running the laser without one is not advisable - and for consumables: the CO2 laser tube is a wear item, as are the mirrors and focus lens. A spare tube ordered with the CL4060 avoids downtime later. Coolant water quality and the power draw of the included cooler are the other recurring items.
