CL6090 — HOLZMANN CL6090 CNC CO2 Laser Cutter and Engraver (600 x 900 mm) 1 / 4

HOLZMANN

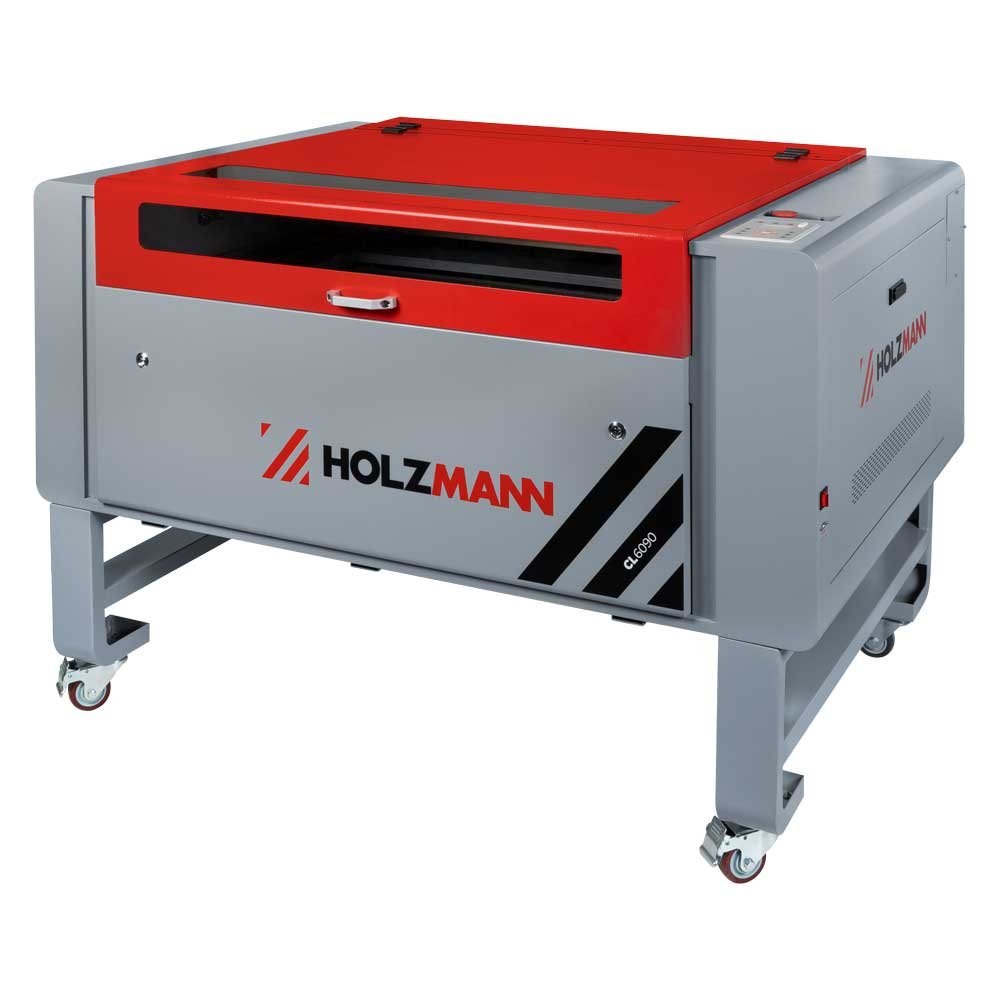

HOLZMANN CL6090 CNC CO2 Laser Cutter and Engraver (600 x 900 mm)

CL6090

Bed area is the whole reason to take the CL6090 rather than the CL4060: 600 x 900 mm against 400 x 600 mm, for the same up-to-80 W CO2 laser class and the same 200 mm of Z travel. The machine draws 230 V / 50(60) Hz single phase, fills 1440 x 1050 x 990 mm of floor and weighs 140 kg net.

ფასი მოთხოვნით

CL6090 pricing turns on laser tube and optics specification, on the fume extraction unit sized for its 600 x 900 mm bed if that is taken with the machine, on freight and customs clearance for a 185 kg crate of 1520 x 1130 x 850 mm, and on order quantity.

ფასის მოთხოვნა

The large-format HOLZMANN CO2 laser

The HOLZMANN CL6090 is a CO2 laser cutter and engraver with a 600 x 900 mm working area and a laser rated up to 80 watts, aimed at workshops whose parts do not fit a small-format machine. Furniture fronts, decorative door panels, signage boards, leather goods and acrylic display parts all fall inside the CL6090 bed. HOLZMANN specifies the CL6090 for non-metallic materials: wood, leather, acrylic, glass and plastic. The smallest character the CL6090 reproduces is 2 x 2 mm, or 1 x 1 mm for letters, which is fine enough for maker’s plates and serial marking on furniture parts.

Working height, cooling and extraction

Z-direction travel on the CL6090 is 200 mm, so the machine engraves boxes, drawer fronts and assembled components as well as flat panels. A large water cooler ships with the CL6090 and carries 1400 W of cooling capacity, a 48 W pump, a 650 W compressor and a 6 litre tank, which is the part that lets the laser run long jobs without thermal drift. Extraction connects to a Ø150 mm port; a separate extraction or fume unit is required and is not part of the machine.

Software

RDWorks operating software drives the CL6090 and is installed by the buyer. Designs are produced on a PC, transferred to the CL6090 over the machine connection, and then cut or engraved, so a workshop already working in vector files can put the CL6090 into production quickly.

Choosing between the CL6090 and the CL4060

The CL6090 and CL4060 share the same laser class, the same 200 mm Z travel and the same included water cooler; the difference is capacity and footprint. The CL6090 gives 600 x 900 mm of bed, weighs 140 kg net and measures 1440 x 1050 x 990 mm. The CL4060 gives 400 x 600 mm at 105 kg and 1150 x 850 x 980 mm. Georgian workshops cutting large sign boards or full furniture panels should take the CL6090; a small engraving bench is better served by the CL4060.

Supply and delivery

The CL6090 runs on 230 V / 50(60) Hz single-phase power and is delivered with its water cooler at 185 kg gross.

ძირითადი მახასიათებლები

  • 600 x 900 mm working area - 2.25 times the bed area of the CL4060 at the same laser class
  • 230 V / 50(60) Hz single-phase supply stated in the CL6090 specification
  • Minimum character size 2 x 2 mm, letters from 1 x 1 mm
  • 200 mm of Z-direction travel across a 900 mm-long bed for drawer fronts and cabinet sides
  • 140 kg net and 185 kg gross, in a cabinet measuring 1440 x 1050 x 990 mm
  • Crated 1520 x 1130 x 850 mm - check door and route width before delivery
  • Water cooler included: 1400 W cooling capacity, 48 W pump, 650 W compressor, 6 litre tank
  • Ø150 mm extraction port serving the full 600 x 900 mm cutting area; RDWorks software for self-installation

ტექნიკური მახასიათებლები

Working area
600 x 900 mm
Laser power
up to 80 W (CO2)
Travelling distance Z-direction (up/down)
200 mm
Min. character size / letter size
2 x 2 / 1 x 1 mm
Water cooler (included)
1400 W cooling capacity / 48 W pump / 650 W compressor / 6 litre tank
Operating software
RDWorks (self-installation)
Voltage
230 V / 50(60) Hz
Dust collector port
Ø150 mm
Total dimensions
1440 x 1050 x 990 mm
Net weight
140 kg
Gross weight
185 kg
EAN code
9120132141295

უპირატესობები

  • 600 x 900 mm bed takes large sign boards and furniture panels that a small-format laser cannot
  • 1400 W water cooler with a 6 litre tank is included, supporting long uninterrupted production runs
  • Runs on 230 V / 50(60) Hz single-phase supply despite the large working area

გასათვალისწინებელი

  • Non-metallic materials only — the CL6090 will not cut steel, aluminium or brass
  • 1440 x 1050 x 990 mm and 140 kg net make the CL6090 a permanent installation, not a portable engraver
  • Extraction unit for the Ø150 mm port and RDWorks installation are both left to the buyer

ხშირად დასმული კითხვები

What power supply does the HOLZMANN CL6090 need?
The HOLZMANN CL6090 runs on 230 V / 50(60) Hz single-phase power, so no 400 V three-phase connection is required despite the machine's size. The CL6090 can therefore be installed in a workshop, studio or shop unit with ordinary mains, provided the included water cooler is powered whenever the laser is running.
What does the HOLZMANN CL6090 not do?
The HOLZMANN CL6090 does not cut or engrave metal, and it is not a router — it burns rather than mills. The CL6090 is specified for non-metallic materials only: wood, leather, acrylic, glass and plastic. Steel, aluminium and brass are outside its range, and chlorinated plastics such as PVC should not be placed on the CL6090 bed.
How does the CL6090 differ from the HOLZMANN CL4060?
The HOLZMANN CL6090 has a 600 x 900 mm working area, weighs 140 kg net and measures 1440 x 1050 x 990 mm; the CL4060 has a 400 x 600 mm area at 105 kg and 1150 x 850 x 980 mm. Both share the up-to-80 W laser class, 200 mm Z travel, the same included water cooler and RDWorks software, so the CL6090 is bought purely for the larger bed.
Does the CL6090 need a separate extraction unit?
Yes. The HOLZMANN CL6090 has a Ø150 mm port for fume and dust extraction, but the extraction unit is not included with the machine. Because the CL6090 cuts wood, MDF and acrylic across a 600 x 900 mm bed, connected extraction is essential for air quality and for keeping the optics clean.
What software does the CL6090 use?
The HOLZMANN CL6090 is operated with RDWorks software, supplied for self-installation on the buyer's PC. Artwork is prepared on the computer and transferred to the CL6090, which then cuts or engraves the file — a workflow that suits shops already producing vector or DXF drawings.
How fine can the CL6090 engrave?
The HOLZMANN CL6090 reproduces characters down to 2 x 2 mm, and letters down to 1 x 1 mm. That resolution allows the CL6090 to apply maker's plates, model numbers and fine decorative line work to furniture parts as well as cutting out full-size panels.
What does a HOLZMANN CL6090 cost, and how does it compare with the CL4060?
The CL6090 is quoted per order rather than priced on a shelf. The drivers are laser tube and optics specification, whether a fume extraction unit and spare tube are included, freight and customs on a 185 kg crate against 145 kg for the CL4060, and order quantity. The CL6090 carries the larger 600 x 900 mm bed and the heavier cabinet, and both show up in the landed figure - so the question to settle first is whether your work actually needs the bigger bed.
What is the lead time on a CL6090?
The CL6090 is built to order and the current lead time is confirmed at quotation, not published as a standing figure. Ask us when you enquire about the CL6090 and we will state the position then, including transit of the 1520 x 1130 x 850 mm crate into Georgia.
What access and installation work does a CL6090 need?
Access is the first thing to check for a CL6090: the crate measures 1520 x 1130 x 850 mm and the machine 1440 x 1050 x 990 mm at 140 kg net, so doorways, corridors and any lift must take it. Installation then means levelling it with working room on all sides, connecting the 230 V / 50(60) Hz supply to machine and water cooler, ducting the Ø150 mm port to a fume extractor, and aligning mirrors and focus. We quote installation, commissioning and training for the CL6090 as separate lines.
What extras and running costs go with a CL6090?
Alongside the CL6090 itself, budget for a fume and dust extraction unit sized to a 600 x 900 mm bed - none is supplied - and for consumables, since the CO2 tube, mirrors and focus lens all wear. A spare tube ordered with the CL6090 saves downtime later. The included water cooler also draws power continuously while the laser runs, which belongs in the operating cost.
