D460FXL — HOLZMANN D460FXL Wood Lathe (460 mm, 153 mm Centre Height, 230 V) 1 / 3

HOLZMANN

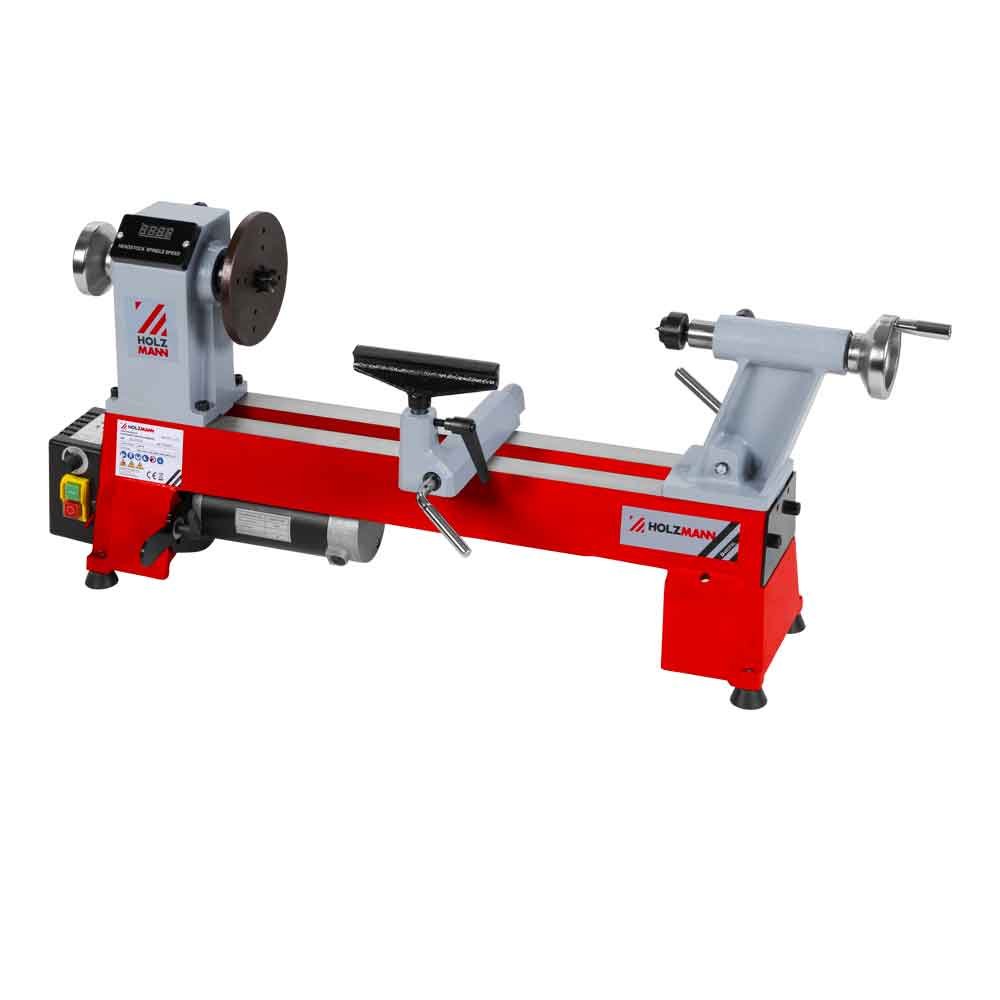

HOLZMANN D460FXL Wood Lathe (460 mm, 153 mm Centre Height, 230 V)

D460FXL

A digital speed readout is what separates the HOLZMANN D460FXL from the rest of the D range: the set rpm is read off a display rather than counted off a pulley. At 35 kg it is the lightest cast iron lathe of the group, taking 460 mm between centres at a 153 mm centre height on 770 W (S6), across three ranges to 3800 min-1.

ფასი მოთხოვნით

The quoted price for the D460FXL moves with whether the optional 460 mm bed extension is taken, the chisel set, chuck and faceplate specified alongside it, and freight and customs clearance into Georgia.

ფასის მოთხოვნა

A benchtop lathe with an oversized centre height

The HOLZMANN D460FXL is a benchtop wood lathe whose defining figure is a 153 mm centre height over the bed, unusually large for a machine that weighs only 35 kg. That extra height is what lets the D460FXL take bowls and platters, not just spindle work, while still sitting on a bench in a small joinery. Distance between centres is 460 mm, the bed, tailstock, tool rest and headstock are cast iron, and the drive is a 770 W (S6) / 550 W (S1) motor on 230 V.

Variable speed with a digital readout

Speed on the D460FXL is variable within three belt ranges: 650-1450, 1250-2800 and 1600-3800 min-1, and the selected speed is shown on a digital display rather than guessed. For bowl work that combination matters, because a wide blank has to be started slowly and finished fast, and the D460FXL lets the operator read the exact figure before the tool goes in. The tool rest has quick adjustment, the tailstock offers 55 mm of sleeve travel and takes MT2 centres, the headstock spindle is M33, and both headstock and tailstock are bored 10 mm.

Extending the D460FXL

An optional 460 mm bed extension doubles the capacity of the D460FXL to 920 mm between centres, which covers chair legs and short balusters. The extension is bought separately; the standard D460FXL ships at 460 mm.

How the D460FXL differs from the D460F

The D460FXL and the D460F share the 460 mm bed length and the same three variable speed ranges, but the D460FXL raises the centre height from 130 mm to 153 mm and the motor from 400 W to 550 W (S1). Buyers turning only spindles can take the smaller machine; buyers who want diameter as well as length should take the D460FXL.

Included in delivery

The D460FXL is delivered with a long and a short tool rest, a faceplate, a revolving centre punch, a 4-prong drive centre and the operating tools, so the machine turns between centres and on the faceplate straight out of the 37.5 kg crate.

ძირითადი მახასიათებლები

  • Digital speed display - the only D-range lathe here that shows the set spindle speed instead of leaving it to be read off a pulley step
  • Three electronic speed ranges, 650-1450, 1250-2800 and 1600-3800 min-1: the highest top speed of the four D lathes
  • 153 mm centre height above the bed, 23 mm more than the 130 mm of the D460F on the same 460 mm bed
  • 460 mm between centres, doubled to 920 mm by the optional 460 mm bed extension - the only capacity-doubling accessory in the D range
  • 35 kg net / 37.50 kg gross: light enough to be lifted onto a bench by one person, with no stand to buy
  • 770 W (S6) / 550 W (S1) motor on 230 V single-phase supply
  • 10 mm through-bore in both headstock and tailstock, M33 spindle, MK2/MT2 tailstock taper, 55 mm sleeve travel
  • Supplied with long and short tool rests, faceplate, revolving centre punch, 4-prong drive centre and operating tools

ტექნიკური მახასიათებლები

Motor power S6
770 W
Motor power S1
550 W
Voltage
230 V
Head stock spindle
M33
Tailstock taper
MK2/MT2
Lathe spindle speed
650-1450 / 1250-2800 / 1600-3800 min-1
Headstock / tailstock bore
10 mm
Tailstock sleeve travel
55 mm
Distance between centers
460 mm
Center height
153 mm
Net weight
35 kg
Gross weight
37.50 kg
EAN code
9120039902562

უპირატესობები

  • 153 mm centre height is unusually large for a 35 kg benchtop lathe, opening up bowl and platter work
  • Variable speed to 3800 min-1 with a digital speed display, not a guessed belt position
  • Complete starter set included: two tool rests, faceplate, revolving centre punch and 4-prong drive centre

გასათვალისწინებელი

  • No copying attachment — the D460FXL cannot reproduce identical legs like a DBK copy lathe
  • Only 460 mm between centres as standard; longer work requires the optional bed extension
  • At 35 kg the D460FXL needs to be bolted to a solid bench, as it is too light to stand alone against heavy cuts

ხშირად დასმული კითხვები

What power supply does the HOLZMANN D460FXL need?
The HOLZMANN D460FXL is supplied as D460FXL_230V and runs from an ordinary 230 V single-phase socket, so no three-phase installation is required. That makes the D460FXL suitable for a home workshop or a small joinery in Georgia where a 400 V connection is not available; larger HOLZMANN lathes such as the DBK1300F are 400 V only.
What does the HOLZMANN D460FXL not do?
The HOLZMANN D460FXL does not copy from a master workpiece and does not turn long spindles as delivered. The D460FXL has no copying attachment — batch-identical legs need a DBK copy lathe — and its 460 mm between centres only reaches 920 mm with the optional bed extension, so full-length balusters are outside its range.
How big a bowl can the D460FXL turn?
The HOLZMANN D460FXL has a 153 mm centre height above the machine bed, which HOLZMANN describes as an extra-large centre height for machining workpieces with larger diameters such as bowls and platters. That is 23 mm more than the 130 mm of the D460F, and it is the main reason to choose the D460FXL over the standard model.
Can the D460FXL turn longer workpieces?
Yes, with an accessory. The HOLZMANN D460FXL takes an optional 460 mm bed extension that increases the distance between centres from 460 mm to 920 mm. The extension is not part of the standard delivery, so the D460FXL should be ordered with it if chair legs or short balusters are planned.
What speeds does the D460FXL run and how are they set?
The HOLZMANN D460FXL offers variable speed within three ranges — 650-1450, 1250-2800 and 1600-3800 min-1 — and shows the selected speed on a digital display. The operator selects the range on the belt and then varies the speed electronically, so the D460FXL can start a wide blank slowly and finish it at high speed.
What is included with the D460FXL?
The HOLZMANN D460FXL is delivered with a long tool rest, a short tool rest, a faceplate, a revolving centre punch, a 4-prong drive centre and the operating tools. That means the D460FXL is ready for both between-centres and faceplate work on arrival, with only chisels to be bought separately.
How much does the HOLZMANN D460FXL cost?
The HOLZMANN D460FXL is sold by quotation, not at a shelf price. What moves the figure for a D460FXL is the accessory package taken with it - above all the optional 460 mm bed extension that doubles capacity to 920 mm, plus chisels, a scroll chuck and extra faceplates - and then freight and customs clearance into Georgia. Tell us which of those you want with the D460FXL and we will quote the machine delivered.
How soon can a HOLZMANN D460FXL be delivered in Georgia?
The HOLZMANN D460FXL is built to order, so the delivery date for a D460FXL is confirmed on the quotation rather than promised in advance. Request a quote and we will state the current lead time, the freight route and the delivery terms for the D460FXL together on one document.
Does the HOLZMANN D460FXL need commissioning by a technician?
No. The HOLZMANN D460FXL is a 35 kg benchtop lathe and is commissioned by the workshop itself: bolt it to a bench that will carry the weight, level it, plug it into a 230 V socket and check that the tool rest clears the workpiece through a full turn. Where a D460FXL is bought together with larger machinery we can include setting-up on site in the same quotation.
What should be budgeted alongside a HOLZMANN D460FXL?
Budget separately from the D460FXL itself for turning chisels, which HOLZMANN does not supply with the machine, for a scroll chuck if bowls and hollow forms are planned, and for the optional 460 mm bed extension if workpieces beyond 460 mm are expected. A bench or cabinet stiff enough to carry the D460FXL and a mobile extractor for sanding dust are the other usual additions.
