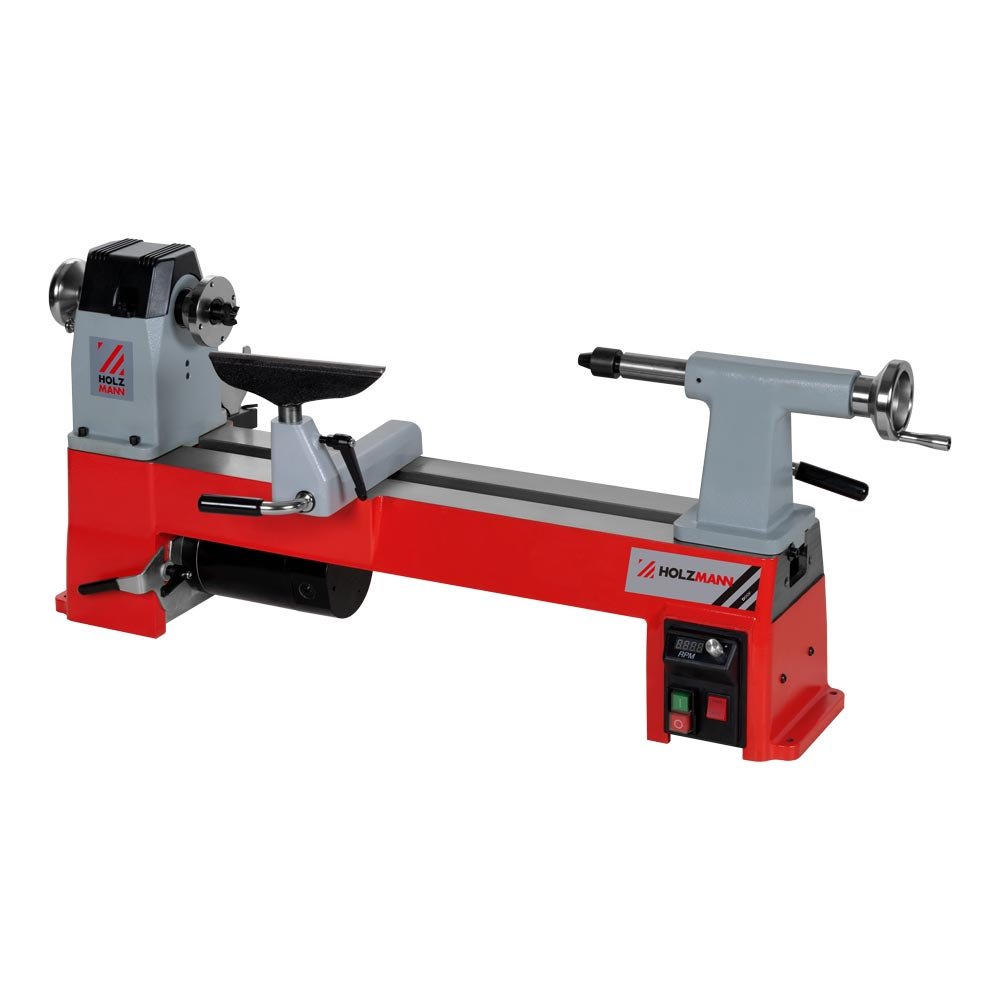

HOLZMANN D510F Wood Lathe (510 mm, Cast Iron, Frequency Converter)

D510F

No lathe in this group starts as slowly as the HOLZMANN D510F: its mini frequency converter opens at 250 min-1 and carries on to 3850 min-1 in three ranges. Grey cast iron throughout at 55 kg, the D510F holds 510 mm between centres at a 160 mm centre height, with 90 mm of tailstock quill and MK2/MT2 tapers at both ends.

ფასი მოთხოვნით

The quoted price for the D510F moves with whether the optional D510FBVL 644 mm bed extension is included, the chuck and chisel package specified with the machine, and freight and customs clearance into Georgia.

ფასის მოთხოვნა

An inverter-driven cast iron lathe

The HOLZMANN D510F is a grey cast iron wood lathe with 510 mm between centres, a 160 mm centre height and a 735 W motor governed by a mini frequency converter. The converter is the point of the D510F: speed is variable within three ranges, 250-750, 550-1650 and 1300-3850 min-1, and because the drive is an inverter the D510F keeps high torque at the low end of each range. Starting a heavy, unbalanced blank at 250 min-1 without the motor stalling is exactly what a step-pulley lathe of this size cannot do.

Precision and spindle quality

HOLZMANN positions the D510F as a precision machine for professional turners and specifies a high standard of spindle concentricity. The headstock spindle is M33 with a 10 mm bore, and both headstock and tailstock take MK2/MT2 tapers, so drive centres, live centres and drill chucks interchange. Tailstock sleeve travel is 90 mm, which is generous for a machine of this class and useful for drilling lamp bases and boxes on the lathe.

One-hand operation

Tailstock and tool rest on the D510F lock with a cam lock mechanism operated single-handed, so the tool rest can be repositioned mid-piece without putting down a chisel. The metal handles are chrome polished. Sound pressure level is below 70 dB(A). Net weight is 55 kg, heavy enough to damp cleanly on a solid bench but still liftable by two people.

Bed extension and comparison

An optional bed extension, the D510FBVL, adds 644 mm of capacity to the D510F for longer spindle work. Against the smaller D460FXL, the D510F offers a longer bed, 90 mm rather than 55 mm of sleeve travel, a heavier 55 kg cast iron build and a lower minimum speed of 250 min-1; the D460FXL answers back with a taller 153 mm centre height for wide bowls. Against the D500VECO, the D510F is a different class of machine entirely.

Availability

The D510F is currently listed as unavailable at the manufacturer, so lead time on the D510F_230V should be confirmed before ordering.

ძირითადი მახასიათებლები

  • Mini frequency converter opening at 250 min-1 - the lowest starting speed of any D-range lathe - and running to 3850 min-1
  • Three converter ranges, 250-750, 550-1650 and 1300-3850 min-1, varied steplessly while the spindle is turning
  • 90 mm of tailstock sleeve travel, the deepest quill stroke of the four D lathes, for drilling held work from the tailstock
  • MK2/MT2 taper in headstock and tailstock alike, with a 10 mm spindle bore through the M33 headstock spindle
  • 160 mm centre height over 510 mm between centres, with the optional D510FBVL bed extension adding a further 644 mm
  • 735 W (S1) motor on 230 V / 50 Hz, holding torque at the bottom of the speed range where a fixed-pulley drive would stall
  • Single-hand cam-lock clamping of tailstock and tool rest, with chrome-polished metal handles
  • 55 kg of grey cast iron built for spindle concentricity, published at a sound pressure level below 70 dB(A)

ტექნიკური მახასიათებლები

Motor power S1
735 W
Voltage
230 V / 50 Hz
Total dimensions
1060 (960) x 440 (310) x 440 mm
Spindle bore
10 mm
Spindle taper
MK2 / MT2
Head stock spindle
M33
Lathe spindle speed
(1) 250-750 / (2) 550-1650 / (3) 1300-3850 min-1
Tailstock sleeve travel
90 mm
Distance between centers
510 mm
Center height
160 mm
Tailstock taper
MK2 / MT2
Sound pressure level
< 70 dB(A)
Net weight
55 kg
Gross weight
58 kg
EAN code
9120058372377

უპირატესობები

  • Mini frequency converter delivers stepless speed from 250 to 3850 min-1 with high torque at the bottom of the range
  • Grey cast iron build at 55 kg with a high standard of spindle concentricity for precision work
  • 90 mm of tailstock sleeve travel and MK2/MT2 tapers at both ends make lathe drilling straightforward

გასათვალისწინებელი

  • No copying attachment — the D510F cannot reproduce identical profiles like a DBK copy lathe
  • 510 mm between centres as standard; longer work needs the extra-cost D510FBVL bed extension
  • Currently listed as unavailable at the manufacturer, so lead time must be confirmed before ordering

ხშირად დასმული კითხვები

What power supply does the HOLZMANN D510F need?
The HOLZMANN D510F runs on 230 V / 50 Hz single-phase power with a 735 W motor, so no three-phase connection is required. The D510F is supplied as D510F_230V only, which makes it installable in any Georgian workshop with ordinary mains, unlike the 400 V DBK copy lathes.
What does the HOLZMANN D510F not do?
The HOLZMANN D510F does not copy from a master workpiece and does not take long spindle work as standard. There is no copying attachment for the D510F, so identical batches of legs require a DBK copy lathe, and the 510 mm between centres only grows to a longer capacity with the optional D510FBVL bed extension.
How does the frequency converter on the D510F help?
The mini frequency converter on the HOLZMANN D510F gives stepless speed adjustment within three ranges — 250-750, 550-1650 and 1300-3850 min-1 — and maintains high torque at low speeds. That lets the D510F start a heavy or out-of-balance blank at 250 min-1 and bring it up gradually, which a fixed-pulley lathe of the same size cannot do.
How does the D510F compare with the HOLZMANN D460FXL?
The HOLZMANN D510F is the larger machine on every published figure that matters: 55 kg against 35 kg, 510 mm between centres against 460 mm, a 160 mm centre height against 153 mm, 90 mm of tailstock quill against 55 mm, a 735 W motor against 550 W (S1), and a converter that will hold 250 min-1 where the D460FXL bottoms out at 650 min-1. The D460FXL answers with a digital speed display, a top speed of 3800 min-1 and a 35 kg benchtop format that can be lifted and stored, plus a bed extension that doubles its capacity to 920 mm. Choose the D510F for slow, heavy or out-of-balance blanks; choose the D460FXL where portability and a speed readout matter more.
Can the D510F be extended for longer workpieces?
Yes. The HOLZMANN D510F accepts an optional bed extension, the D510FBVL, which adds 644 mm of capacity for longer spindle work. The extension is a separate purchase; as delivered the D510F takes 510 mm between centres.
Is the HOLZMANN D510F currently available?
The HOLZMANN D510F is supplied against a quotation rather than from a shelf price list. Ask for a quote listing the D510F_230V together with any options - the D510FBVL 644 mm bed extension, chisels, a chuck - and the current lead time, the delivered price, the freight route into Georgia and the warranty terms for the D510F are all confirmed on that one document.
What does a HOLZMANN D510F cost?
The HOLZMANN D510F is quoted rather than sold at a listed price. The figure on a D510F quotation is set by the optional D510FBVL 644 mm bed extension if it is taken, by the chuck, faceplate and chisel package specified with the machine, and by freight and customs clearance into Georgia. Send us the configuration you want and the D510F is quoted delivered.
How long is the lead time on a HOLZMANN D510F?
The HOLZMANN D510F is built to order and the current lead time is confirmed at quotation, not stated in advance. Because the D510F is a 58 kg gross package rather than a freight item needing special handling, the transit element of the D510F lead time is straightforward once production is scheduled.
What is involved in installing a HOLZMANN D510F?
Installing a HOLZMANN D510F means providing a bench or stand that carries 55 kg without flexing, bolting the machine down, levelling the bed so headstock and tailstock centres meet over the full 510 mm, and plugging the frequency converter into a 230 V / 50 Hz socket. No three-phase supply and no compressed air are needed for the D510F, and no extraction connection is published for it.
What tooling should be budgeted separately for a HOLZMANN D510F?
The HOLZMANN source record lists no accessories in the delivery scope of the D510F, so budget separately for turning chisels, a scroll chuck, faceplates and drive and revolving centres in the M33 / MK2 sizes the D510F takes. Add the D510FBVL 644 mm bed extension to the same budget if workpieces longer than 510 mm are planned.
