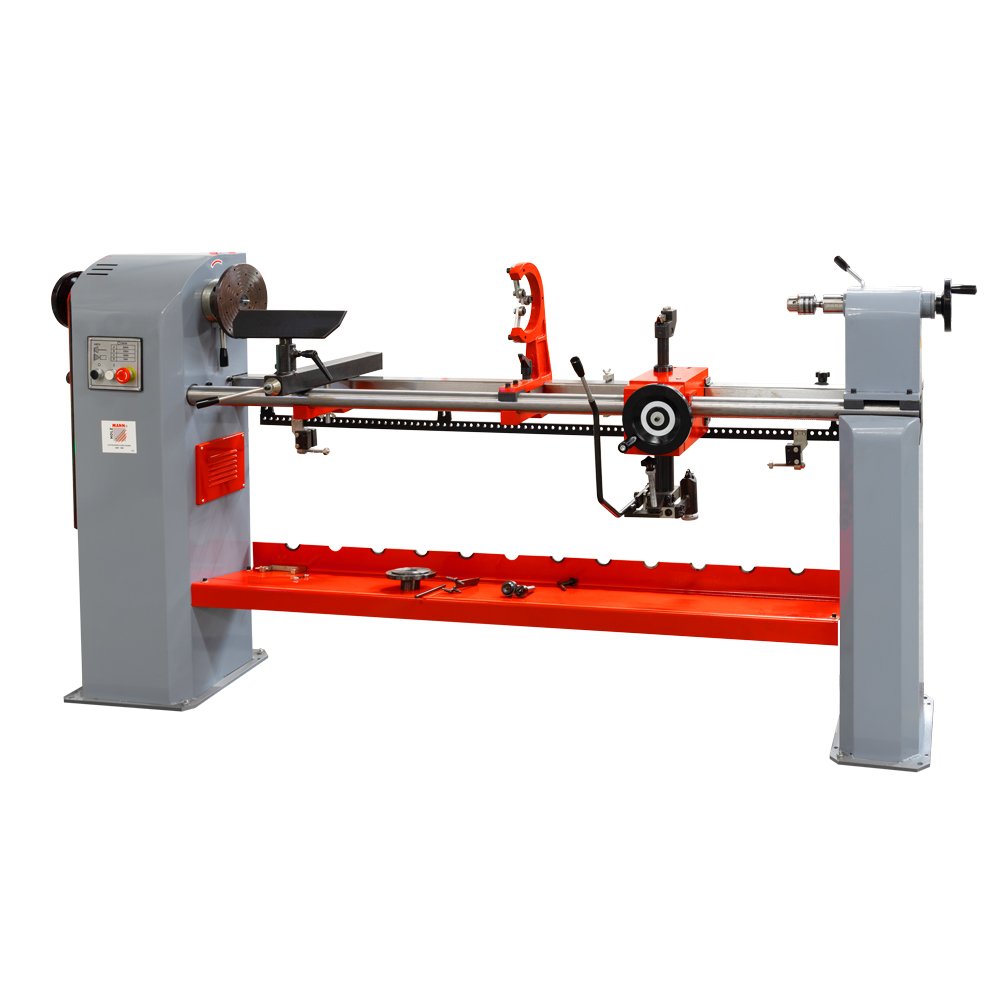

HOLZMANN DBK1500 Copy Wood Turning Lathe (1500 mm, 400 V)

DBK1500

Length is the DBK1500's whole argument: 1500 mm between centres and 1300 mm of copy length, against 1300 mm and 1100 mm on the DBK1300 - the difference between a table leg and a stair newel. Speeds remain the four belt steps of 2800/1950/1000/500 min-1, the frame weighs 210 kg net, and supply is 400 V.

ფასი მოთხოვნით

DBK1500 pricing is driven by the longer 1500 mm bed and the 236 kg, 2320 mm crate it ships in - inland transport and door clearance in Georgia are a real line here, not a footnote - plus the single 400 V configuration, order quantity, and any M33 chucks, faceplates and turning tools added.

ფასის მოთხოვნა

The long-bed HOLZMANN copy lathe

The HOLZMANN DBK1500 is the longest copy wood turning lathe in the HOLZMANN copy range, taking 1500 mm between centres and copying profiles up to 1300 mm long. Length is the reason to buy the DBK1500: stair newels, long balusters, bed posts and tall table legs that overrun the 1100 mm copy length of the DBK1300 fit the DBK1500 without splicing or repositioning. Centre height is 220 mm and copy depth is 50 mm, at a copying centre height of 65 mm.

How the copying system works

The copying attachment on the DBK1500 traces a master workpiece or a template and transfers that profile to the blank, so a full staircase set or a matching suite of legs is produced to one shape rather than turned by eye. The DBK1500 still works as a conventional lathe for one-off pieces, with an M33 headstock spindle, an MT2 tailstock and 100 mm of tailstock sleeve travel.

Drive, frame and controls

The DBK1500 uses a 1500 W (S6) / 1100 W (S1) motor with four belt-selected spindle speeds: 2800, 1950, 1000 and 500 min-1. The frame is a torsion-resistant steel construction weighing 210 kg net, slightly heavier than the shorter DBK1300 because of the longer bed. Tailstock and tool rest are clamped one-handed through the eccentric clamp system, the tailstock runs on a double guide, and the long tool rest has a quick clamp with stepless height adjustment. Various accessories are included in delivery.

Choosing between the DBK1500 and the shorter models

Buy the DBK1500 for length. Buy the DBK1300 if 1100 mm of copy length is sufficient and the workshop prefers a 230 V single-phase option, which the DBK1500 does not offer. Buy the DBK1300F if stepless 0-3000 min-1 speed control matters more than bed length, because the DBK1500 uses the four fixed speeds rather than a variable drive.

Power supply and shipping

The DBK1500 is supplied as DBK1500_400V only and requires a 400 V three-phase connection. Shipping weight is 236 kg gross, and the crate is 2320 mm long, which is worth checking against the workshop door before delivery.

ძირითადი მახასიათებლები

  • 1500 mm between centres - the longest bed in the HOLZMANN DBK copy-lathe range
  • 1300 mm maximum copy length, 200 mm more than the DBK1300 and DBK1300F allow
  • The four belt speeds 2800/1950/1000/500 min-1 from a 1500 W (S6) / 1100 W (S1) motor
  • 50 mm maximum copy depth at 65 mm copying centre height, 220 mm centre height over the bed
  • Supplied only as DBK1500_400V for a 400 V three-phase supply
  • 210 kg net and 236 kg gross - 8 kg over the 1300 mm machines
  • Crated 2320 x 490 x 1230 mm; check the delivery route for the 2.32 m case
  • M33 headstock spindle, MK2/MT2 tailstock taper and 100 mm sleeve travel on a double guide system

ტექნიკური მახასიათებლები

Motor power S6
1500 W
Motor power S1
1100 W
Voltage
400 V
Head stock spindle
M33
Tailstock taper
MK2/MT2
Lathe spindle speed
2800/1950/1000/500 min-1
Max. copy length
1300 mm
Max. copy depth
50 mm
Copying center height
65 mm
Tailstock sleeve travel
100 mm
Distance between centers
1500 mm
Center height
220 mm
Net weight
210 kg
Gross weight
236 kg
EAN code
9120039902005

უპირატესობები

  • 1500 mm between centres and 1300 mm of copy length — the longest copy capacity in the HOLZMANN range
  • 210 kg torsion-resistant steel frame supports long blanks without chatter
  • Same one-hand eccentric clamping and quick-clamp tool rest as the shorter DBK models

გასათვალისწინებელი

  • 400 V three-phase only — no 230 V single-phase version of the DBK1500 exists
  • Four fixed belt speeds only; stepless speed control is available on the DBK1300F, not on the long-bed DBK1500
  • 2320 mm crate and 236 kg gross weight make delivery and installation a planned operation

ხშირად დასმული კითხვები

Does the HOLZMANN DBK1500 need 230 V or 400 V?
The HOLZMANN DBK1500 is supplied only as DBK1500_400V and requires a 400 V three-phase connection. There is no 230 V single-phase version of the DBK1500, so a workshop on single-phase mains that needs a copy lathe should look at the DBK1300_230V, accepting the shorter 1300 mm bed and 1100 mm copy length.
What does the HOLZMANN DBK1500 not do?
The HOLZMANN DBK1500 does not offer variable speed, does not carve or mill, and does not copy without a master. Spindle speed on the DBK1500 is set by belt to one of four fixed steps, copy work requires a master workpiece or template, and copy depth is limited to 50 mm — deeper profiles must be turned freehand.
How long a workpiece can the DBK1500 turn and copy?
The HOLZMANN DBK1500 turns up to 1500 mm between centres and copies profiles up to 1300 mm long at a 220 mm centre height. That makes the DBK1500 the right machine for stair newels, long balusters and bed posts that exceed the 1100 mm copy capacity of the DBK1300.
What is the difference between the DBK1500 and the DBK1300?
The HOLZMANN DBK1500 extends the bed to 1500 mm between centres with 1300 mm of copy length, against 1300 mm and 1100 mm on the DBK1300. Motor, speeds, centre height and copy depth are the same on both. The DBK1500 weighs 210 kg net versus 202 kg, and unlike the DBK1300 it is not available in a 230 V version.
What space and access does the DBK1500 need?
The HOLZMANN DBK1500 ships in a crate 2320 mm long at 236 kg gross and weighs 210 kg net installed, so the delivery route and workshop door should be checked before ordering. Once installed, the DBK1500 also needs clear space at both ends of the bed for loading 1.5 m blanks.
Are accessories included with the DBK1500?
Yes — HOLZMANN includes various turning accessories with the DBK1500 in delivery. The DBK1500 uses an M33 headstock spindle and an MK2/MT2 tailstock taper, so standard chucks, faceplates and centres from the wider HOLZMANN turning range also fit.
What does a HOLZMANN DBK1500 cost compared with the DBK1300?
Both are quoted rather than shelf-priced, and the DBK1500 sits above the DBK1300 on two counts: the longer 1500 mm bed with its 1300 mm copy length, and the larger 2320 mm, 236 kg crate that costs more to freight and clear. Order quantity and any M33 tooling added move the DBK1500 figure further. If nothing you turn exceeds 1100 mm of copy length, ask us to quote the DBK1300 alongside it.
What is the lead time on a DBK1500?
The DBK1500 is built to order and its current lead time is confirmed at quotation, not published as a standing figure. The DBK1500 comes in one configuration only - DBK1500_400V - so ask us at enquiry and we will state the position for that machine, transit into Georgia included.
What access and installation does a DBK1500 need?
Access is the first question on a DBK1500: the crate is 2320 mm long at 236 kg gross, so the delivery route, doorway and any turn must be measured before ordering - this is the practical difference from the 2120 mm crate of the DBK1300. Installation then means a solid level floor, clear space at both ends of the 1500 mm bed for handling 1.5 m blanks, levelling across the full bed length, and a 400 V three-phase connection by an electrician. We quote installation and handover separately.
What tooling and preparation should be budgeted with a DBK1500?
Budget alongside the DBK1500 for chucks and faceplates suited to the M33 headstock spindle, centres for the MK2/MT2 tailstock, turning tools and spare copy cutters, since HOLZMANN includes accessories with the DBK1500 without publishing what they are. Also allow for making the master: the DBK1500 copies up to 1300 mm, and a long master has to be turned accurately once before a batch can be reproduced from it. Where 400 V is not already at the intended position, price the electrical work too.
