DHM330PROSMW2 — HOLZMANN DHM330PROSMW2 Benchtop Thicknesser with Spiral Cutterhead and Granite Table 1 / 3

HOLZMANN

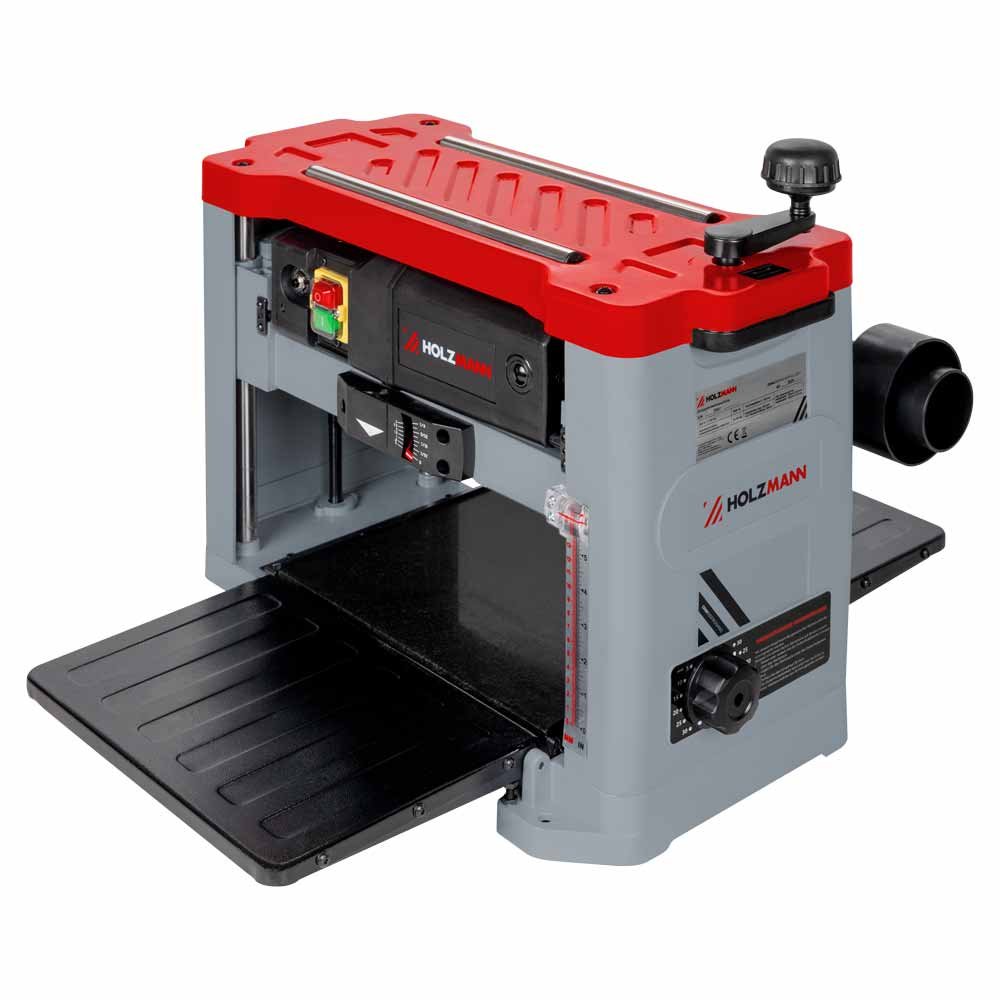

HOLZMANN DHM330PROSMW2 Benchtop Thicknesser with Spiral Cutterhead and Granite Table

DHM330PROSMW2

A spiral cutterhead with two grooves and a granite bed are what the PRO badge buys on the DHM330PROSMW2, where the DHM330 has straight knives over sheet steel. The finished workpiece thickness is set on the machine itself, the cut is capped at 2.4 mm per pass under 152 mm width, and the body weighs 34 kg net.

ფასი მოთხოვნით

The quoted price of the DHM330PROSMW2 is driven by the order quantity, the spare cutterhead inserts quoted with the machine, whether an extractor and adapters for the 65.5 / 101.5 mm port are included, packing and delivery appropriate to a granite-bedded machine, and the freight and import charges applying to the consignment at the time of order.

ფასის მოთხოვნა

What the HOLZMANN DHM330PROSMW2 does

The DHM330PROSMW2 brings timber to a set finished thickness with a surface quality that a straight-knife benchtop machine cannot match. The DHM330PROSMW2 takes boards and beams up to 330 mm wide and 152 mm thick, driven through at 6 m/min by a 1500 W motor turning a 50 x 330 mm spiral cutterhead at 8500 min-1. Three things make this the PRO model: the spiral cutterhead with two grooves, the granite thicknessing table, and the ability to dial in the workpiece thickness the operator actually wants rather than creeping up on it pass by pass.

Why the spiral head and the granite table matter

The spiral cutterhead on the DHM330PROSMW2 shears the fibres at an angle instead of chopping them across the full width, which is what suppresses tear-out in oak, beech, walnut and any board with reversing grain. The granite table adds the second half of the equation: a hard, flat, low-friction bed that lets stock slide without the drag and scoring of a sheet-steel top, and that stays flat over years of site handling. Together they make the DHM330PROSMW2 a finishing thicknesser rather than a stock-removal one.

Capacity, cutting depth and extraction

The DHM330PROSMW2 works on a 330 x 235 mm table, accepts workpieces from 5 mm to 152 mm thick and at least 152 mm long, and removes up to 2.4 mm per pass on stock narrower than 152 mm or 0.8 mm on stock wider than 152 mm. Thicknessing height is set by hand crank against a clearance-height scale, with a separate cutting-depth measurement. Extraction connects to the 65.5 / 101.5 mm port – the DHM330PROSMW2 carries no on-board collection. Overall the machine measures 710 x 600 x 475 mm and weighs 34 kg net, with fixation holes for bolting to a workbench or site table.

How the DHM330PROSMW2 compares with the DHM330

The standard DHM330 shares the 330 mm width, the 152 mm height, the 1500 W motor and the 6 m/min feed, but uses two straight reversible knives on a sheet-steel table and takes a deeper 2.8 mm cut on narrow stock. The DHM330PROSMW2 gives up 0.4 mm of cutting depth and adds 3 kg in exchange for the spiral head, the granite bed and the thickness setting. Workshops working mainly in softwood save money with the DHM330; workshops selling finished hardwood surfaces should take the DHM330PROSMW2.

ძირითადი მახასიათებლები

  • Spiral cutterhead with 2 grooves, shearing across the full 330 mm width
  • Granite thicknessing table with entry and exit planer tables
  • The target finished workpiece thickness is set directly on the machine
  • 2.4 mm maximum cut per pass under 152 mm width, 0.8 mm above it
  • 34 kg net in a 710 x 600 x 475 mm body - 80 mm longer and 3 kg heavier than the DHM330
  • 65.5 / 101.5 mm dust port and fixation holes for bolting to a bench or site table
  • 1500 W motor driving the 50 x 330 mm shaft at 8500 min-1, powered feed 6 m/min
  • 330 x 235 mm thicknessing table, thicknessing height to 152 mm

ტექნიკური მახასიათებლები

Motor power S1
1500 W
Voltage
230 V / 50 Hz
Feed speed
6 m/min
Total dimensions
710 x 600 x 475 mm
Min. workpiece length
152 mm
Min. workpiece thickness
5 mm
Max. workpiece thickness
152 mm
Thicknessing table size
330 x 235 mm
Thicknessing cutting depth
0.8 | 2.4 mm
Thicknessing height
152 mm
Cutter head
Spiral cutterhead with 2 grooves
Cutter shaft
50 x 330 mm diameter
Cutter shaft speed
8500 min-1
Thicknessing table material
Granite
Dust collector port
65.5 / 101.5 mm
Sound power level
96.8 dB(A)
Sound pressure level
83.8 dB(A)
Net weight
34 kg
Gross weight
37 kg
EAN code
9120132141080

უპირატესობები

  • Spiral cutterhead with two grooves gives near tear-out-free results on hardwood
  • Granite thicknessing table stays flat and low-friction where sheet steel scores
  • Target workpiece thickness can be set directly instead of approached pass by pass

გასათვალისწინებელი

  • Maximum cut is 2.4 mm on narrow stock, less than the 2.8 mm of the standard DHM330
  • Thicknesser only - a surface planer is still needed to true the first face
  • Single-phase 230 V only, with no integrated extraction on the 65.5 / 101.5 mm port

ხშირად დასმული კითხვები

Is the DHM330PROSMW2 available in a 400 V version?
No. The DHM330PROSMW2 is supplied only as DHM330PROSMW2_230V (EAN 9120132141080), with a 1500 W motor on a single-phase 230 V / 50 Hz supply, so the DHM330PROSMW2 runs from a standard socket without a three-phase connection. Buyers who need a 400 V three-phase machine should look at the combined planer-thicknessers such as the HOB305ABSSMW2, which is offered in both voltages.
What does the DHM330PROSMW2 not do?
The DHM330PROSMW2 is a thicknesser and not a surface planer - the DHM330PROSMW2 makes one face parallel to another but cannot flatten a cupped or twisted board on its own. It does not saw, mould or sand, and it has no integrated dust collector, so an extractor must be connected to the 65.5 / 101.5 mm port.
What is the advantage of the spiral cutterhead on the DHM330PROSMW2?
The spiral cutterhead of the DHM330PROSMW2 has two grooves and presents its cutting edges at a shear angle, so the fibres are sliced rather than chopped across the full 330 mm width. On oak, beech and boards with reversing grain the DHM330PROSMW2 therefore leaves far less tear-out than the straight-knife DHM330.
Why does the DHM330PROSMW2 have a granite table?
The granite thicknessing table on the DHM330PROSMW2 is hard, flat and low-friction, so workpieces slide with less drag and the bed does not score or dent the way a sheet-steel top can. The standard DHM330 uses a sheet-steel table instead.
How much material can the DHM330PROSMW2 remove per pass?
The DHM330PROSMW2 removes up to 2.4 mm per pass on stock narrower than 152 mm and up to 0.8 mm per pass on stock wider than 152 mm. That is 0.4 mm less than the standard DHM330 on narrow work - the trade-off for the spiral cutterhead.
Can the DHM330PROSMW2 be moved between workshop and site?
Yes. The DHM330PROSMW2 weighs 34 kg net, measures 710 x 600 x 475 mm and has fixation holes for bolting to a workbench or temporary work table, so the machine travels to a site or a fit-out and is secured before use.
What does a HOLZMANN DHM330PROSMW2 cost, and what changes the figure?
The DHM330PROSMW2 is quoted rather than listed at a fixed price, and the figure is moved by the number of machines ordered, the spare inserts specified for the spiral cutterhead, whether an extractor and hose adapters for the 65.5 / 101.5 mm port are quoted with it, packing and delivery suited to a granite-bedded machine, and the freight and import charges applying at the time of order. Because HOLZMANN publishes no insert count or insert size for the DHM330PROSMW2, spare-insert pricing is confirmed with the machine quotation rather than estimated.
How long is the lead time for a DHM330PROSMW2?
The DHM330PROSMW2 is built to order, so the lead time is confirmed on the quotation rather than quoted as a fixed period; it depends on the HOLZMANN production slot for this spiral-head model and the transport route at the time of ordering. Ask for the DHM330PROSMW2 lead time in writing with the price so both refer to the same order date.
What is involved in setting up a DHM330PROSMW2 on site?
Setting up a DHM330PROSMW2 means placing the 34 kg machine on a bench or table that will not flex under a 330 mm pass, levelling it carefully - the granite table is the reference surface, so this matters more than on the steel-bedded DHM330 - and bolting it down through the fixation holes. It then plugs into a single-phase 230 V / 50 Hz socket, with no three-phase option offered, and an extraction hose is connected to the 65.5 / 101.5 mm port. Commissioning is a check of the finished-thickness setting against a test pass.
What should I budget for beyond the DHM330PROSMW2 machine itself?
Alongside the DHM330PROSMW2, budget for replacement inserts for the spiral cutterhead (specified and priced with the quotation, since HOLZMANN does not publish the insert count or size for this model), a chip extractor or high-flow vacuum with an adapter for the 65.5 / 101.5 mm port, a rigid bench or stand plus fixings, roller stands for long boards, and hearing protection for the 83.8 dB(A) sound pressure level. As the DHM330PROSMW2 is a thicknesser only, a surface planer or combined machine may also be needed to true the first face.
