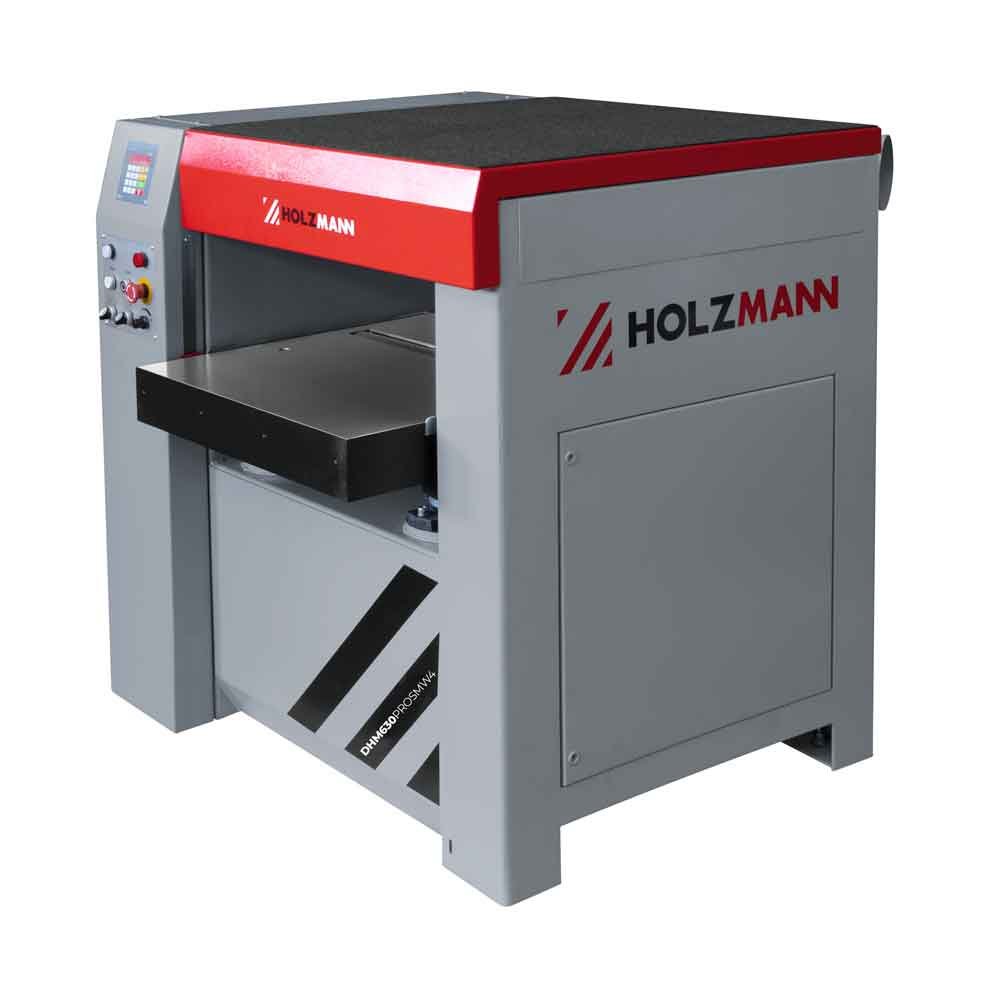

HOLZMANN DHM630PROSMW4 Thicknesser – 630 mm with Spiral Cutterhead
DHM630PROSMW4
Where the straight-knife DHM630PRO carries strip knives, the DHM630PROSMW4 carries 104 carbide inserts in a four-groove spiral head, each one turned to a fresh edge instead of the whole set being changed. Capacity is unchanged at 630 mm wide, 300 mm thick and 8 mm a pass, on 7000 W S1 at 400 V.
Price of the DHM630PROSMW4 is driven by the spiral cutterhead specification, spare insert packs and the torque driver, the extractor and Ø150 mm ducting chosen, freight and customs on a 720 kg crate from Austria, and whether forklift unloading, positioning and commissioning are included.
ფასის მოთხოვნაA four-row spiral head with 104 inserts, at 630 mm width
The HOLZMANN DHM630PROSMW4 is the spiral-cutterhead version of HOLZMANN’s 630 mm thicknesser, and the cutterhead is the reason to buy it. Instead of four full-width strip knives, the DHM630PROSMW4 carries a spiral head with four grooves and 104 individual 15 x 15 x 2.5 mm (60°) carbide inserts turning at 5500 rpm on a 117 mm shaft. Each insert shears a small arc rather than striking the full board width at once, which is what makes a spiral head the tool of choice for interlocked and figured hardwood.
The same 7 kW platform, a different cutting geometry
Capacity on the DHM630PROSMW4 matches the straight-knife DHM630PRO exactly: 630 mm planing width, 300 mm thicknessing height, 8 mm maximum cut, a 1050 x 630 mm table and a 7000 W S1 motor on 400 V / 3 / 50 Hz with IP54-rated electrics. Feed on the DHM630PROSMW4 is driven by its own 550 W motor at 4 to 16 m/min, and the thicknessing table is raised by a 250 W lifting motor. Measured sound power is 100 dB(A) and sound pressure 90 dB(A). Minimum workpiece length is 280 mm.
Consumables work differently on a spiral head
Budget for the DHM630PROSMW4 in inserts, not knife grinding. The machine ships with 104 inserts mounted and four spares; a damaged insert is rotated to a fresh edge or swapped individually, so one nail strike does not take a full-width knife set out of service, but a complete insert replacement is a larger single purchase than a set of strip knives. Ask the dealer to quote a spare insert pack and the correct torque driver alongside the DHM630PROSMW4.
Choosing between the two 630 mm machines
Take the DHM630PROSMW4 for figured timber, long shifts and lower noise at the cut; take the straight-knife DHM630PRO if the shop planes clean softwood and prefers the cheaper, faster knife change. Both machines need a 400V supply, Ø150 mm extraction and a forklift on delivery day at 720 kg gross.
ძირითადი მახასიათებლები
- Spiral cutterhead with 4 grooves and 104 carbide inserts, 15 x 15 x 2.5 mm at 60°
- Inserts index round to a fresh edge rather than being reground; 4 spares supplied
- 104 small cutting edges spread across the 630 mm width, 300 mm thicknessing height
- Ø 117 mm shaft at 5500 min-1 driven by the 7000 W S1 motor, 400 V / 3 / 50 Hz
- 8 mm maximum cut in a single pass; 280 mm minimum workpiece length
- 550 W feed motor at 4-16 m/min with a 250 W electric table lift
- 100 dB(A) sound power, 90 dB(A) sound pressure, IP54-rated electrics
- 656 kg net, 720 kg gross, 1050 x 630 mm table, Ø 150 mm dust collector port
ტექნიკური მახასიათებლები
- Cutterhead type
- Spiral cutter, 4 grooves, 104 inserts
- Insert size
- 15 x 15 x 2.5 mm (60°)
- Max. planing width
- 630 mm
- Thicknessing height
- 300 mm
- Table size
- 1050 x 630 mm
- Cutting depth
- 8 mm
- Min. workpiece length
- 280 mm
- Cutter shaft diameter
- 117 mm
- Cutter shaft speed
- 5500 min-1
- Motor power S1
- 7000 W
- Feed motor
- 550 W
- Lifting motor (table height adjustment)
- 250 W
- Voltage
- 400 V / 3 / 50 Hz
- Feed speed
- 4 - 16 m/min
- Appliance class
- IP54
- Dust collector port
- 150 mm
- Sound power level
- 100 dB(A)
- Sound pressure level
- 90 dB(A)
- Total dimensions
- 1060 x 1220 x 1150 mm
- Net weight
- 656 kg
- Gross weight
- 720 kg
- Packaging (L x W x H)
- 1220 x 1150 x 1300 mm
- EAN code (DHM630PROSMW4_400V)
- 9120058379734
უპირატესობები
- Four-row spiral head with 104 inserts handles figured and interlocked hardwood with less tear-out than full-width strip knives
- Individual inserts can be rotated or replaced one at a time, so a single nail strike does not scrap a complete knife set
- Full production platform: 630 mm width, 8 mm cut, powered 4-16 m/min feed and an electric table lift
გასათვალისწინებელი
- A complete set of 104 inserts is a significant single consumable purchase compared with four strip knives
- At 656 kg net and 720 kg gross the DHM630PROSMW4 requires forklift handling, a load-bearing floor and a surveyed delivery route
- 400V three-phase only, and the 7000 W motor needs a properly rated supply - there is no single-phase option
