FKS400V32PRO — HOLZMANN FKS400V32PRO Panel Saw – 3.2 m Sliding Table with Motorised Rip Fence 1 / 4

HOLZMANN

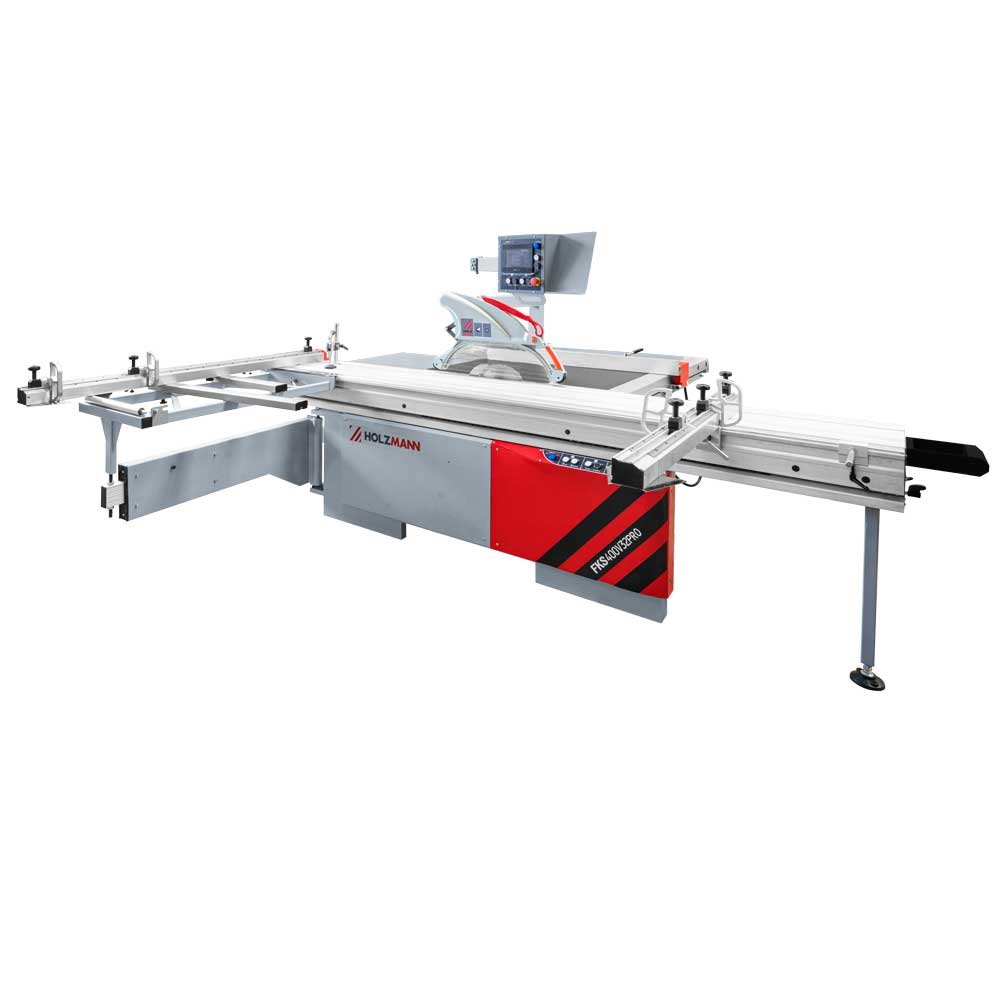

HOLZMANN FKS400V32PRO Panel Saw – 3.2 m Sliding Table with Motorised Rip Fence

FKS400V32PRO

Rip-fence positioning by electric motor, keyed in as a number on the display, is the single spec that separates the FKS400V32PRO from the otherwise identical FKS400V32TOP. Blade tilt 0-45° is commanded from that same display, blade and scorer rise electrically, and the saw weighs 1044 kg net.

ფასი მოთხოვნით

What actually moves the FKS400V32PRO price is the motorised fence and display control package that distinguishes it from the manual FKS400V32TOP, the 400 V electrical specification, XL freight and customs on 1240 kg gross into Georgia, the 250-400 mm main blades and Ø120 mm scoring blades that are not part of the delivery, and whether extraction, unloading, commissioning and training are added to the same order.

ფასის მოთხოვნა

Digitally set format saw for production joinery

The HOLZMANN FKS400V32PRO is the top-specification machine in the HOLZMANN FKS format-saw range, built around a 3200 x 435 mm aluminium sliding table and a main blade of 250 to 400 mm diameter on a 30 mm bore. With a 400 mm blade fitted, the FKS400V32PRO reaches 130 mm cutting height, and the three-step spindle runs at 3000, 4000 or 5000 rpm so hardwood, softwood and coated board can each be given a suitable rim speed. The 5500 W main motor is supported by a dedicated 750 W scoring motor turning a Ø120 x 20 x 3.2-4.2/2.2 mm scoring blade at 8000 rpm.

What the electric controls change

The defining feature of the FKS400V32PRO is that the rip fence is positioned by electric motor from a numeric entry on the display, and blade tilt from 0 to 45 degrees is set the same way; blade and scorer height are also electrically adjusted. For a joinery cutting repeat batches of carcase parts, this removes the tape reading and the trial cut from every size change on the FKS400V32PRO and returns the same dimension reliably after other jobs have been run in between.

Table area, fences and capacity

The FKS400V32PRO carries an 1100 x 700 mm cast iron work table with a 1040 x 920 mm table widening and a 610 x 600 mm table extension, both in solid steel construction, plus a 1200 x 550 mm outrigger table and a cross-cut fence adjustable from 1950 to 3300 mm. Maximum rip width at the parallel fence is 1300 mm and working height is 890 mm. In full working configuration the FKS400V32PRO occupies 4760 x 5010 x 1700 mm and weighs 1044 kg net.

Installation and extraction

The FKS400V32PRO runs on 400 V / 50 Hz three-phase power only and ships as an XL freight item at 1240 kg gross. Extraction connects through one Ø100 mm and one Ø80 mm port. Declared sound power level of the FKS400V32PRO is 90 dB(A) and sound pressure level 88.2 dB(A).

ძირითადი მახასიათებლები

  • Rip fence driven to a width keyed into the display, so a repeat batch size is reached without a trial cut
  • Blade tilt 0-45° commanded from the display; every other FKS in the range is tilted by hand against an indicator
  • Electric height adjustment for both the 250-400 mm main blade and the Ø120 x 20 x 3.2-4.2/2.2 mm scorer
  • Cast iron table 1100 x 700 mm with the range's largest widening, 1040 x 920 mm, plus a 610 x 600 mm extension
  • Three main-spindle stages - 3000, 4000 and 5000 min-1 - across the full 250-400 mm blade range
  • 1044 kg net / 1240 kg gross and 1700 mm overall height, the heaviest and tallest FKS listed here
  • 3200 x 435 mm aluminium carriage and 1200 x 550 mm outrigger, worked from a 4760 x 5010 mm floor plan
  • 1300 mm rip at the parallel fence, 130 mm cut with a 400 mm blade, extraction on 1 x Ø100 mm and 1 x Ø80 mm

ტექნიკური მახასიათებლები

Motor power S1
5500 W (scoring unit 750 W)
Voltage
400 V / 50 Hz
Table height
890 mm
Sliding table
3200 x 435 mm
Outrigger table
1200 x 550 mm
Total dimensions
4760 x 5010 x 1700 mm
Max. cutting width at parallel fence
1300 mm
Saw blade
250-400 mm (30 mm bore)
Saw blade speed
(I) 3000 / (II) 4000 / (III) 5000 min-1
Saw blade swivel
0-45°
Scoring saw blade
Ø120 x 20 x 3.2-4.2/2.2 mm
Scoring unit motor power
750 W
Scoring unit speed
8000 min-1
Dust collector port
1 x Ø100 mm / 1 x Ø80 mm
Sound power level
90 dB(A)
Sound pressure level
88.2 dB(A)
Net weight
1044 kg
Gross weight
1240 kg
EAN code
9120058379420

უპირატესობები

  • Motorised rip fence positioning entered numerically on the display removes trial cuts on repeat batch sizes
  • 400 mm blade capability gives 130 mm cutting height, the deepest cut in this HOLZMANN panel saw group
  • Electric height adjustment of both main blade and scorer, plus display-set 0-45° tilt

გასათვალისწინებელი

  • Three-phase 400V only - the FKS400V32PRO cannot be run from a single-phase 230V supply
  • At 1044 kg net and 4760 x 5010 mm working footprint, the FKS400V32PRO is too large and heavy for a small workshop
  • No dust collector is included; the Ø100 mm and Ø80 mm ports both need to be served by a separately purchased extraction unit

ხშირად დასმული კითხვები

Can the HOLZMANN FKS400V32PRO run on 230V single-phase power?
No. The HOLZMANN FKS400V32PRO is a 400 V / 50 Hz three-phase machine only, with a 5500 W main motor and a further 750 W scoring motor. There is no 230V variant of the FKS400V32PRO, so a workshop must have a three-phase supply installed before ordering it. A single-phase alternative in the HOLZMANN panel saw range is the TS315VF2600, which is offered in a 230V version.
How is the FKS400V32PRO different from the FKS400V32TOP?
The FKS400V32PRO and the FKS400V32TOP share the 3200 x 435 mm sliding table, the 250-400 mm blade range and the 5500 W motor. The difference is control: the FKS400V32PRO positions the rip fence by electric motor from the display and tilts the blade automatically via the display, while the FKS400V32TOP is tilted manually against an angle indicator and its fence is set by hand. The FKS400V32PRO is also heavier at 1044 kg net against 930 kg.
What cutting height does the FKS400V32PRO reach?
The FKS400V32PRO reaches a maximum cutting height of 130 mm when a 400 mm saw blade is fitted. The machine accepts blades from 250 mm to 400 mm on a 30 mm bore, and cutting height falls as smaller blades are used. Three spindle speeds - 3000, 4000 and 5000 rpm - let the FKS400V32PRO keep a sensible rim speed across that blade range.
What does the FKS400V32PRO not do?
The FKS400V32PRO does not rip wider than 1300 mm at the parallel fence, does not run on single-phase power, and is not a CNC machine - the display sets fence position, tilt and height, but the FKS400V32PRO does not run a stored cutting programme or optimise a cutting list on its own. It is also not supplied with a dust collector, and it does not edge-band or drill.
How much floor space does the FKS400V32PRO need?
The FKS400V32PRO occupies 4760 x 5010 x 1700 mm in its total working dimensions, which includes the travel of the 3.2 m carriage and the swing of the outrigger table. Because the FKS400V32PRO weighs 1044 kg net and arrives as an XL freight item at 1240 kg gross, a level industrial floor and a forklift or crane for unloading are required.
Which extraction connection does the FKS400V32PRO use?
The FKS400V32PRO has two extraction connections: one Ø100 mm port and one Ø80 mm port, serving the cabinet and the blade guard. A dust collector is not included with the FKS400V32PRO and should be sized to serve both ports simultaneously so that scoring dust and main-blade chips are removed together.
What determines the price of the HOLZMANN FKS400V32PRO?
The quoted price of the HOLZMANN FKS400V32PRO is driven by the display-controlled rip fence and automatic 0-45° tilt that separate it from the manual FKS400V32TOP, by the 400 V electrical package for a 5500 W main motor plus 750 W scorer, by XL freight and customs on a 1240 kg gross machine into Georgia, by the 250-400 mm saw blades and Ø120 mm scoring blades that HOLZMANN does not list in the delivery, and by whether extraction, unloading, commissioning and operator training are added. We quote the FKS400V32PRO on request against the panel sizes and daily volume you cut.
How long does delivery of the FKS400V32PRO take?
The HOLZMANN FKS400V32PRO is built to order and the current lead time is confirmed at quotation. Because the FKS400V32PRO ships as an XL freight item at 1240 kg gross rather than as a parcel, the transport booking and customs clearance into Georgia are part of the schedule we confirm with the quote. We do not publish a delivery date for the FKS400V32PRO in advance of the factory confirming one.
What is involved in installing and commissioning the FKS400V32PRO?
Commissioning the FKS400V32PRO starts with a level industrial floor rated for 1044 kg, a clear 4760 x 5010 mm plan for the 3.2 m carriage and outrigger, and 1700 mm of headroom; a forklift or crane is required for unloading. A qualified electrician then makes the 400 V / 50 Hz three-phase connection, the carriage is levelled against the cast iron table, the display fence datum is calibrated so keyed-in widths match the cut, and both Ø100 mm and Ø80 mm extraction ports are ducted. Ask us to price installation and commissioning of the FKS400V32PRO on the same quotation.
What should be budgeted alongside the FKS400V32PRO itself?
Alongside the FKS400V32PRO, budget for main saw blades in the 250-400 mm range on a 30 mm bore - including a 400 mm blade if the full 130 mm cutting height is wanted - plus Ø120 x 20 x 3.2-4.2/2.2 mm scoring blades, a dust collector able to serve a Ø100 mm and an Ø80 mm port at the same time, ducting, and operator training on the display-driven fence. None of these are listed in the FKS400V32PRO delivery and all can appear as separate lines on one quotation.
