FKS400V32TOP — HOLZMANN FKS400V32TOP Panel Saw – 400 mm Blade, 3.2 m Carriage 1 / 4

HOLZMANN

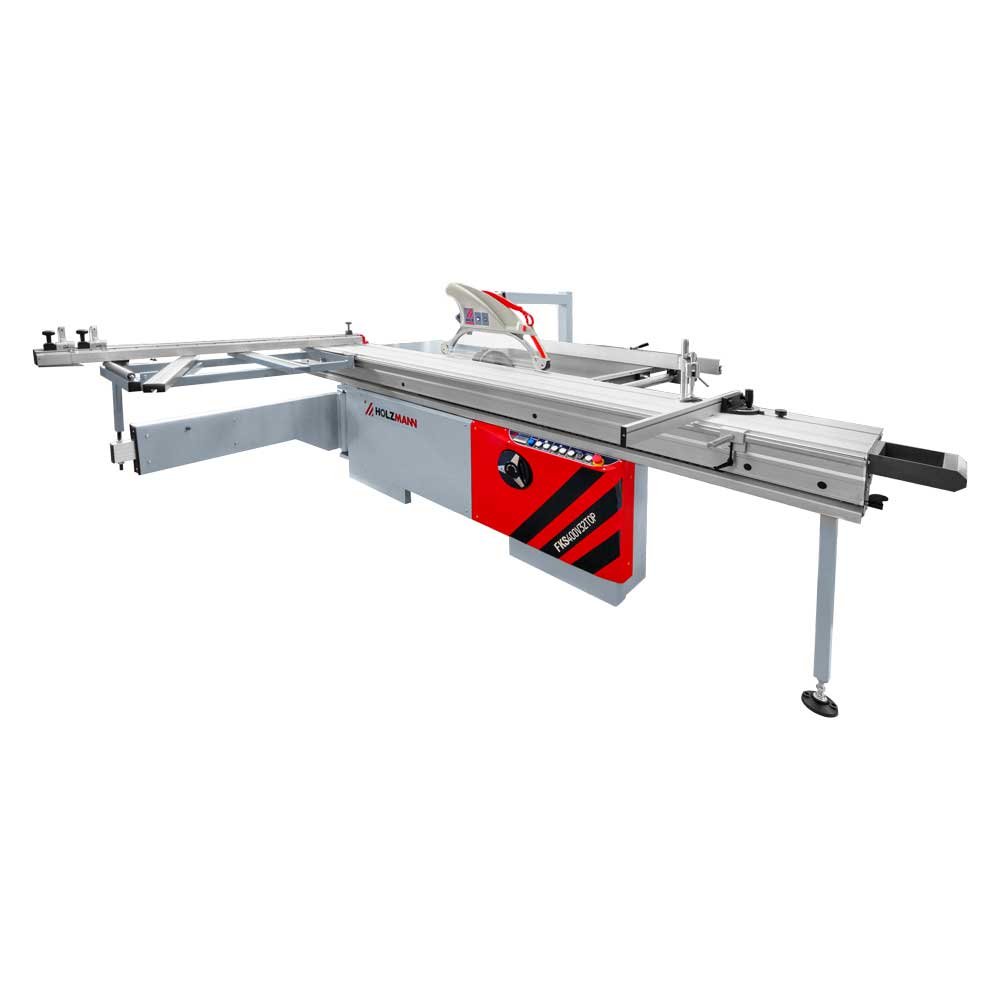

HOLZMANN FKS400V32TOP Panel Saw – 400 mm Blade, 3.2 m Carriage

FKS400V32TOP

Saw blades arrive in the crate with the FKS400V32TOP: a TCT main blade of Ø300 x 30 x 3.2 mm with 72 teeth and a Ø120 x 20 mm scorer. Tilt is set by hand against an angle indicator while main blade and scorer heights rise electrically, and 400 mm blade capacity gives 130 mm of cut at 930 kg net.

ფასი მოთხოვნით

The FKS400V32TOP price is moved by the 400 mm blade capacity and 130 mm cutting height rather than a digital fence, by the two blades already included against those you add in the 250-400 mm range, by XL freight and Georgian customs on 1070 kg gross, by the 400 V connection work on site, and by whether extraction, unloading and commissioning go on the same order.

ფასის მოთხოვნა

400 mm blade for 130 mm cutting height

The HOLZMANN FKS400V32TOP is a sliding-table panel saw that takes main blades from 250 to 400 mm on a 30 mm bore, and with a 400 mm blade fitted the FKS400V32TOP reaches 130 mm cutting height – deep enough for stacked panel, thick blockboard and solid worktop. Three spindle speeds of 3000, 4000 and 5000 rpm match rim speed to the blade diameter in use, and a dedicated 750 W scoring motor spins a Ø120 x 20 x 3.2-4.2/2.2 mm scorer at 8000 rpm ahead of the main cut so coated faces do not break out.

Carriage, tables and fences

The FKS400V32TOP runs a 3200 x 435 mm aluminium sliding table beside an 1100 x 700 mm cast iron work table, with a 900 x 830 mm table widening and a 610 x 600 mm table extension in solid steel. A 1200 x 550 mm outrigger table and a cross-cut fence adjustable from 1950 to 3300 mm handle full sheets, and maximum rip width at the parallel fence is 1300 mm. Working height of the FKS400V32TOP is 890 mm, its total working dimensions are 4730 x 4860 x 1470 mm and net weight is 930 kg.

Where the FKS400V32TOP sits between the PRO and the 305

The FKS400V32TOP gives electric height adjustment of main blade and scorer, but blade tilt from 0 to 45 degrees is set by hand against an angle indicator – that is the dividing line between the FKS400V32TOP and the FKS400V32PRO, which tilts and positions its rip fence from a display and weighs 1044 kg. Against the FKS305V32TOP, the FKS400V32TOP buys the larger 400 mm blade, the deeper 130 mm cut and a wider 435 mm carriage, at the price of 285 kg more weight and a considerably larger footprint.

What is in the delivery

The FKS400V32TOP is delivered with a TCT main saw blade of Ø300 x 30 x 3.2 mm with 72 teeth and a scoring blade of Ø120 x 20 x 3-3.8 mm with 2 x 12 teeth. A 400 mm blade, needed to use the full 130 mm cutting height of the FKS400V32TOP, is not part of the delivery. Extraction is through one Ø100 mm and one Ø80 mm port, and the machine ships as an XL freight item at 1070 kg gross.

ძირითადი მახასიათებლები

  • Delivered with a TCT main blade Ø300 x 30 x 3.2 mm (72 teeth) and a Ø120 x 20 x 3-3.8 mm scorer (2 x 12 ES) - the only FKS here with blades listed in the delivery
  • Tilt 0-45° set by hand on an angle indicator, while main blade and scorer heights are raised by electric drive
  • Cast iron table 1100 x 700 mm with 900 x 830 mm widening and 610 x 600 mm extension in solid steel
  • Accepts blades to 400 mm for 130 mm cutting height, at spindle stages of 3000, 4000 and 5000 min-1
  • 3200 x 435 mm carriage with a 1950-3300 mm cross-cut fence, in a 4730 x 4860 x 1470 mm envelope
  • 930 kg net / 1070 kg gross - 114 kg lighter than the display-controlled FKS400V32PRO
  • 1470 mm overall height, 230 mm lower than the FKS400V32PRO because there is no fence drive gantry
  • 1300 mm rip at the parallel fence; extraction taken on 1 x Ø100 mm and 1 x Ø80 mm ports

ტექნიკური მახასიათებლები

Motor power S1
5500 W (scoring unit 750 W)
Voltage
400 V / 50 Hz
Table height
890 mm
Sliding table
3200 x 435 mm
Outrigger table
1200 x 550 mm
Total dimensions
4730 x 4860 x 1470 mm
Max. cutting width at parallel fence
1300 mm
Saw blade
250-400 mm (30 mm bore)
Saw blade speed
(I) 3000 / (II) 4000 / (III) 5000 min-1
Saw blade swivel
0-45°
Scoring saw blade
Ø120 x 20 x 3.2-4.2/2.2 mm
Scoring unit motor power
750 W
Scoring unit speed
8000 min-1
Dust collector port
1 x Ø100 mm, 1 x Ø80 mm
Sound power level
90 dB(A)
Sound pressure level
88.2 dB(A)
Net weight
930 kg
Gross weight
1070 kg
EAN code
9120058379437

უპირატესობები

  • 400 mm blade capacity gives 130 mm cutting height for stacked panel, blockboard and thick worktop
  • Electric height adjustment of main blade and scorer speeds up setting compared with the fully manual FKS305 models
  • Delivered with a TCT main blade (Ø300 x 30 x 3.2 mm, 72 teeth) and a Ø120 x 20 mm scoring blade

გასათვალისწინებელი

  • The 400 mm blade required to reach the stated 130 mm cutting height is not included in the delivery
  • Blade tilt is manual, read from an angle indicator - only the FKS400V32PRO offers display-set tilt and fence positioning
  • 930 kg net and a 4730 x 4860 mm working footprint, on 400V three-phase only, with no dust collector included

ხშირად დასმული კითხვები

What power supply does the HOLZMANN FKS400V32TOP require?
The HOLZMANN FKS400V32TOP requires a 400 V / 50 Hz three-phase supply. The main motor is rated 5500 W in S1 continuous duty and the scoring unit adds 750 W, so the FKS400V32TOP is not offered in a 230V single-phase version. Georgian workshops without three-phase power will need it installed, or should consider the HOLZMANN TS315VF2600, which has a 230V variant.
Is a 400 mm saw blade included with the FKS400V32TOP?
No. The FKS400V32TOP is delivered with a TCT main saw blade of Ø300 x 30 x 3.2 mm with 72 teeth, plus a Ø120 x 20 x 3-3.8 mm scoring blade with 2 x 12 teeth. The 130 mm maximum cutting height of the FKS400V32TOP is achieved only with a 400 mm blade, which has to be ordered separately.
How does the FKS400V32TOP differ from the FKS400V32PRO?
The FKS400V32TOP and the FKS400V32PRO share the 3200 x 435 mm carriage, the 250-400 mm blade range, the 130 mm cutting height and the 5500 W motor. The FKS400V32TOP tilts its blade manually against an angle indicator and its rip fence is set by hand, while the FKS400V32PRO tilts and positions the fence electrically from a display. The FKS400V32TOP is correspondingly lighter at 930 kg net against 1044 kg.
What does the FKS400V32TOP not do?
The FKS400V32TOP does not position its rip fence automatically and does not tilt the blade from a display - only blade and scorer height are electric on the FKS400V32TOP. It also does not rip wider than 1300 mm, does not run on single-phase power, does not include a dust collector, and does not come with the 400 mm blade needed for its full cutting height.
How much space does the FKS400V32TOP occupy?
The FKS400V32TOP has total working dimensions of 4730 x 4860 x 1470 mm, which accounts for the travel of the 3.2 m carriage and the sweep of the 1200 x 550 mm outrigger table. With 930 kg net weight and 1070 kg gross as an XL freight item, the FKS400V32TOP needs a level industrial floor and a forklift for unloading and positioning.
Which materials suit the 130 mm cutting height of the FKS400V32TOP?
The 130 mm cutting height of the FKS400V32TOP suits stacked panel cut several sheets at a time, thick blockboard, laminated worktop and solid timber sections that a 315 mm-blade panel saw cannot pass in one cut. For plain 18 mm and 22 mm board work this depth is not needed, and the smaller FKS305V32TOP covers the same sheet sizes at 285 kg less weight.
What drives the cost of the HOLZMANN FKS400V32TOP?
The cost of the HOLZMANN FKS400V32TOP is set mainly by its 400 mm blade capacity and 130 mm cutting height, by the electric height drive for blade and scorer without the display fence control of the FKS400V32PRO, by XL freight and customs on a 1070 kg gross machine landed in Georgia, and by the accessories added around it. The FKS400V32TOP already includes a Ø300 mm TCT main blade and a Ø120 mm scorer, so blade spend is lower at the start than on models delivered bare, but a 400 mm blade for the full cut height is still a separate line. Ask us for a quotation on the FKS400V32TOP with the blade set and extraction you need.
When can the FKS400V32TOP be delivered?
The FKS400V32TOP is built to order and the current lead time is confirmed at quotation. As an XL freight item of 1070 kg gross, the FKS400V32TOP is shipped on pallet and cleared through Georgian customs before it reaches the workshop, and both steps are covered by the schedule we confirm in writing with the price. No delivery period for the FKS400V32TOP is committed before the factory confirms the build slot.
What does commissioning the FKS400V32TOP involve on site?
Commissioning the FKS400V32TOP means placing 930 kg on a level industrial floor with a 4730 x 4860 mm clear plan and 1470 mm of headroom, unloading with a forklift or crane, levelling the 3.2 m carriage to the cast iron table, having a qualified electrician connect 400 V / 50 Hz three-phase, verifying the manual tilt indicator against a square at 0° and 45°, and ducting the Ø100 mm and Ø80 mm extraction ports. We can quote installation and commissioning of the FKS400V32TOP with the machine.
Which tooling has to be budgeted separately for the FKS400V32TOP?
The FKS400V32TOP arrives with a Ø300 x 30 x 3.2 mm 72-tooth TCT main blade and a Ø120 x 20 x 3-3.8 mm scorer, so the separate tooling budget for the FKS400V32TOP is the 400 mm blade required to reach the stated 130 mm cutting height, further blades for melamine, solid timber and stacked panel, replacement scoring blades, and a dust collector sized to serve a Ø100 mm and an Ø80 mm port together. None of the extraction equipment is part of the FKS400V32TOP delivery.
