FS200 — HOLZMANN FS200 Spindle Shaper (Spindle Moulder)

HOLZMANN

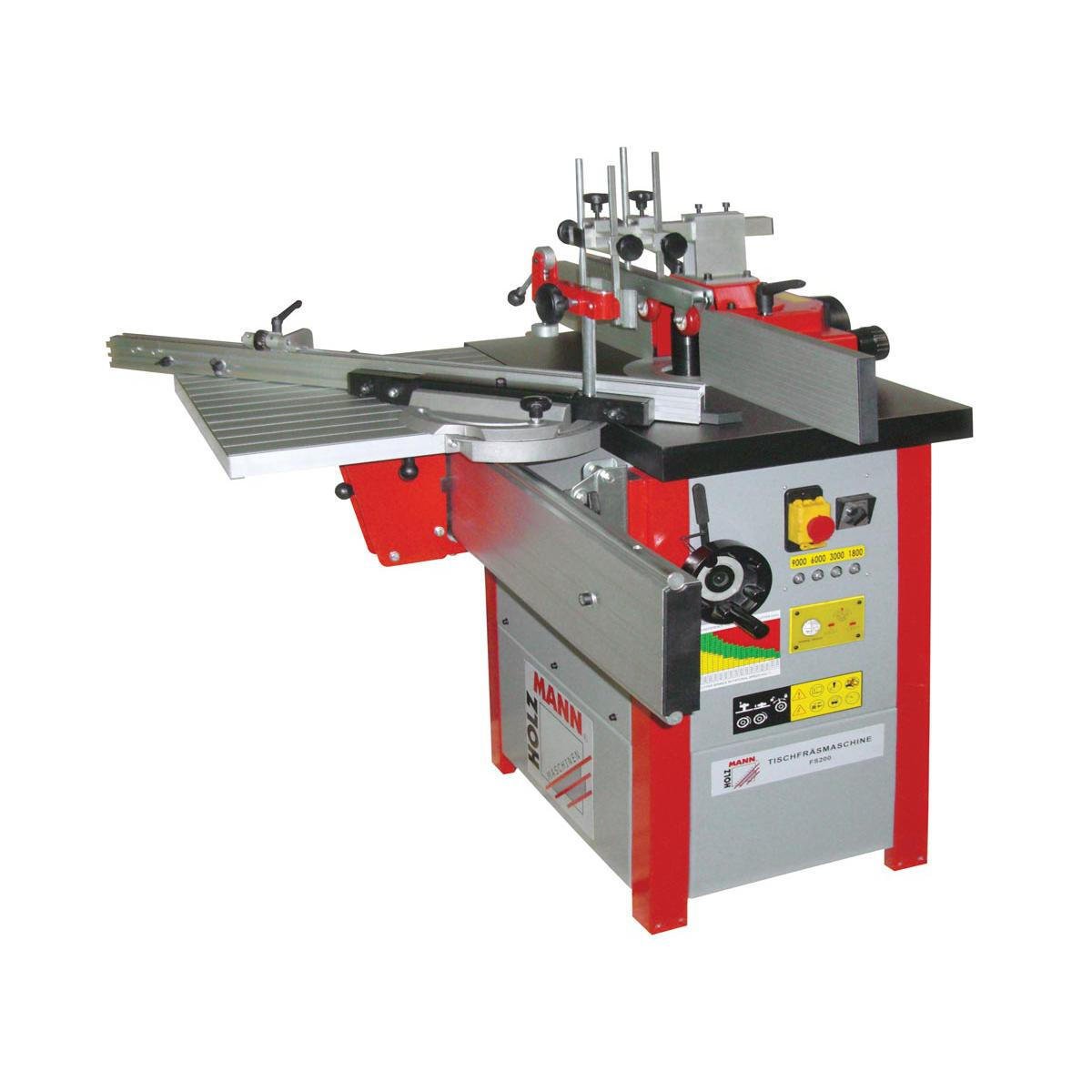

HOLZMANN FS200 Spindle Shaper (Spindle Moulder)

FS200

Fixed vertical spindle is what sets the FS200 apart from the FS200S. HOLZMANN mounts a 30 mm spindle in a 690 x 480 mm cast iron table at 900 mm height, with four speeds of 1800/3000/6000/9000 rpm and a 2800 W S1 (3750 W S6) motor, at 150 kg net, in a 230V or a 400V version.

ფასი მოთხოვნით

The FS200 price moves with the voltage variant ordered (FS200_230V or FS200_400V), whether the optional retrofittable sliding table is added, the 30 mm-bore cutter heads and spindle rings specified, any power feeder mounted to the machine, and inbound freight plus rigging of a 155 kg crate.

ფასის მოთხოვნა

What the HOLZMANN FS200 spindle shaper does

The FS200 is the machine a joinery buys to stop routing profiles by hand. Mounted on a torsion-resistant grey cast iron table of 690 x 480 mm at 900 mm working height, the FS200 turns a 30 mm milling spindle at four selectable speeds of 1800, 3000, 6000 and 9000 rpm, driven by a motor rated 2800 W continuous (S1) and 3750 W intermittent (S6). That combination covers the everyday shaper work of a furniture or door shop: rebating, tongue and groove, panel raising, edge profiles and moulding runs. Spindle stroke is 100 mm, maximum clamping height is 105 mm, and cutters up to 190 mm diameter can be used above and below the table through a 200 mm table opening.

Who the FS200 suits

The FS200 suits established joineries and door manufacturers doing repeat profile work in solid timber. Four speeds as standard matter more than the headline power figure here: small rebate cutters want 9000 rpm, large panel-raising heads want 1800 rpm, and running the wrong speed is what burns edges and shortens tooling life. An LED speed indication shows the selected step, and the shaper hood carries aluminium fences with independent micro adjustment, so a fence can be set to a scribed line rather than to a rough scale.

FS200 against the rest of the HOLZMANN FS range

The FS200 has a fixed vertical spindle. Workshops that need chamfers and angled profiles should look at the FS200S instead, which carries the same motor and speed set but adds a spindle tilting from -5° to +30° on a larger table. The compact FS160SOLID is the choice where floor space rules and a router collet spindle is wanted; the FS300 is the step up for a full production line. Within that ladder, the FS200 is the straightforward, high-value vertical shaper.

Delivery, extraction and setup

The FS200 weighs 150 kg net and is delivered with a sanding roller for curved edge work. A 100 mm dust collector port is fitted, and the FS200 must be connected to a chip extractor before it is used, since shaper cutters produce heavy chip volume. A sliding table is available as an option and can be retrofitted later, which is the usual upgrade path once the FS200 starts seeing cross-grain tenoning work.

ძირითადი მახასიათებლები

  • Fixed vertical 30 mm milling spindle - the FS200 is the non-swivelling machine of the FS200 / FS200S pair, with no tilt scale to set or maintain
  • 690 x 480 mm grey cast iron table at 900 mm working height: 160 mm shallower front-to-back than the FS200S top, so the FS200 occupies less floor depth
  • 150 kg net / 155 kg gross - 20 kg lighter than the FS200S and the easier of the two to rig through a workshop door
  • Crate of 730 x 520 x 680 mm, the smallest packing envelope in the FS200 / FS200S / FS160SOLID group
  • 200 mm table opening taking cutter heads to 190 mm above and below the table - 40 mm more head clearance than the 160 mm opening of the FS160SOLID
  • Four spindle speeds of 1800, 3000, 6000 and 9000 rpm with electronic LED step indication
  • 2800 W S1 / 3750 W S6 motor, ordered as FS200_230V (EAN 9120039902777) or FS200_400V (EAN 9120039900568)
  • Sanding roller named in the HOLZMANN highlights; sliding table listed as optional and retrofittable to the FS200

ტექნიკური მახასიათებლები

Motor power S6
3750 W
Motor power S1
2800 W
Voltage
230V (400V variant also available)
Table size
690 x 480 mm
Table height
900 mm
Dust collector port
100 mm
Milling spindle diameter
30 mm
Milling spindle speed
1800 / 3000 / 6000 / 9000 rpm
Spindle stroke
100 mm
Max. clamping height
105 mm
Max. tool diameter below table
190 mm
Max. tool diameter above table
190 mm
Table opening
200 mm
Mitre fence
360 x 120 mm
Net weight
150 kg
Gross weight
155 kg
EAN code (FS200_230V)
9120039902777
EAN code (FS200_400V)
9120039900568

უპირატესობები

  • Four factory speeds from 1800 to 9000 rpm cover both large panel heads and small rebate cutters
  • 150 kg of grey cast iron gives the mass a shaper needs for a chatter-free profile
  • Offered in both 230V and 400V, so a single-phase workshop is not shut out

გასათვალისწინებელი

  • Spindle is fixed vertical: no tilt, unlike the FS200S
  • Sliding table is an extra cost option, not standard equipment
  • Manual hand feed only; a separate power feeder is needed for consistent production runs

ხშირად დასმული კითხვები

Is the HOLZMANN FS200 available in 230V or 400V?
The HOLZMANN FS200 is offered as two variants of one machine: FS200_230V for a single-phase 230V supply and FS200_400V for a 400V three-phase supply. A workshop with an ordinary domestic connection must order the 230V FS200; a workshop with a three-phase board should order the 400V FS200, which starts more easily under load and puts a balanced load on the supply. Both FS200 variants carry the same 2800 W S1 / 3750 W S6 rating.
What does the HOLZMANN FS200 not do?
HOLZMANN publishes no spindle-swivel specification for the FS200: a milling spindle swivel of -5° to +30° is listed for the FS200S and no swivel row appears for the FS200 at all, so angled profiles on an FS200 should be planned around an angled cutter or a tilted workpiece and confirmed with us before ordering. The FS200 also does not feed the workpiece - feeding is by hand unless a separate power feeder is added - does not include a sliding table as standard, and takes a 30 mm spindle rather than router-bit shanks.
What size cutters can the HOLZMANN FS200 take?
The HOLZMANN FS200 takes cutters up to 190 mm diameter above and below the table, through a 200 mm table opening, on a 30 mm spindle. Maximum clamping height on the FS200 is 105 mm and spindle stroke is 100 mm, so tooling stacks up to that height can be used.
Does the HOLZMANN FS200 need dust extraction?
The HOLZMANN FS200 needs a chip extractor connected to its 100 mm dust collector port. A spindle shaper of the FS200 class throws a heavy volume of chips, and running the FS200 without extraction buries the fence and the cutter, which is both a quality and a safety problem.
How heavy is the HOLZMANN FS200 and what does installation need?
The HOLZMANN FS200 weighs 150 kg net and 155 kg gross, on a table 900 mm high. At 150 kg the FS200 needs a pallet truck or two to three people to place, a level concrete floor, and a fixed position: the FS200 is not a machine to be wheeled aside between jobs.
Can a sliding table be added to the HOLZMANN FS200 later?
A sliding table for the HOLZMANN FS200 is available as an option and is retrofittable, so an FS200 bought without one can be upgraded when tenoning and cross-grain work starts. A sanding roller is already included in FS200 delivery.
What does a HOLZMANN FS200 cost?
The HOLZMANN FS200 is quoted, not sold at a shelf price. The figure for an FS200 is driven by the voltage variant chosen (FS200_230V single-phase or FS200_400V three-phase), whether the optional sliding table is specified, the 30 mm-bore cutter heads and spindle rings you need for your profiles, whether a power feeder is added, and inbound freight and rigging for a 155 kg crate. Tell us which profiles the FS200 will run and we will quote the machine with the tooling it actually needs.
How long does delivery of a HOLZMANN FS200 take?
The HOLZMANN FS200 is built to order, so the lead time for an FS200 is confirmed at quotation rather than published in advance. It depends on which voltage variant you order, on the HOLZMANN production slot for the FS200 and on the shipping route into Georgia. Request a quote and the current FS200 lead time is stated alongside the price.
What is involved in installing and commissioning a HOLZMANN FS200?
Commissioning a HOLZMANN FS200 means unloading a 155 kg crate, placing the 150 kg machine on level concrete with working clearance around the 690 x 480 mm table at 900 mm height, connecting either a 230V single-phase or a 400V three-phase supply to match the FS200 variant ordered, verifying spindle rotation, and connecting the Ø 100 mm port to a chip extractor. Installation attendance and operator hand-over for the FS200 can be included in the quotation.
What tooling should be budgeted separately with a HOLZMANN FS200?
Budget FS200 tooling separately from the machine. A HOLZMANN FS200 needs 30 mm-bore cutter heads for the profiles you run, spacer and spindle rings, limiter-head knives if you use them, push blocks and pressure guards, and a power feeder if the FS200 will do production runs. HOLZMANN names a sanding roller in the FS200 highlights, but profile tooling is specified job by job and is quoted with the machine.
