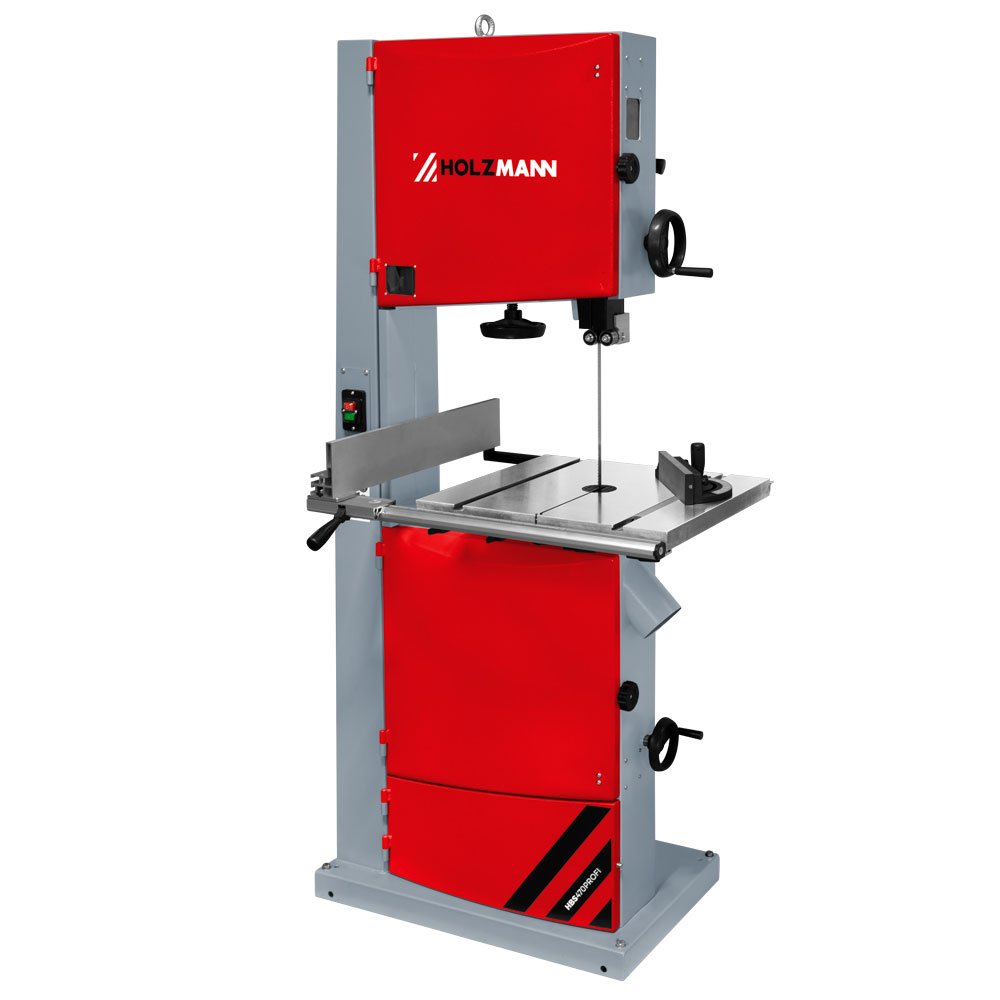

HOLZMANN HBS470PROFI Wood Bandsaw – 285 mm, Two Blade Speeds
HBS470PROFI
The HOLZMANN HBS470PROFI is a 162 kg wood bandsaw with two saw band speeds of 380 and 820 m/min, 285 mm cutting height at 90° and 470 mm flywheels running 3454 mm blades from 6 to 25 mm wide. The HBS470PROFI has a 530 x 480 mm table tilting from -10° to +45°, two Ø100 mm extraction ports, and is available in 230V and 400V versions.
Price of the HBS470PROFI is driven by the voltage version (230V or 400V), the saw band package in the 6-25 mm range, the extractor and hose specified for two Ø100 mm ports, freight and customs on a 170 kg crate from Austria, and whether delivery to the workshop floor is included.
ფასის მოთხოვნაTwo blade speeds, 285 mm of cut
The HOLZMANN HBS470PROFI is the only bandsaw in this group with a two-speed drive: 380 m/min and 820 m/min on a 3454 mm blade over 470 mm wheels. The slow speed is what makes the HBS470PROFI useful beyond softwood – dense hardwood and plastics cut better and burn less at 380 m/min, while 820 m/min keeps softwood ripping fast. Cutting height on the HBS470PROFI is 285 mm at 90° with 390 mm of width at the parallel fence, from a machine weighing 162 kg net.
Adjustment that stays where it is set
Setting up the HBS470PROFI is deliberately quick: an aluminium fence with quick-release, a fence guide with a loupe for accurate reading, and cutting height adjusted by handwheel and gear rack. Blade tension is checked through inspection windows rather than by feel. The 530 x 480 mm table sits at 960 mm and tilts from -10° to +45° on a splined guide, the widest tilt range among the HBS bandsaws covered here, which matters for compound and bevelled work.
Power and workshop supply
The HBS470PROFI runs a 2100 W S6 (1500 W S1) motor and is offered in 230V single-phase and 400V three-phase versions, so a workshop on a domestic supply can still install it. Blade widths from 6 mm to 25 mm let the HBS470PROFI cut curves and rip on the same machine. Two Ø100 mm dust ports mean extraction should be connected at both the table and the lower wheel housing for the shop to stay clean.
HBS470PROFI or the bigger machines
Take the HBS470PROFI when versatility and a modest footprint matter and 285 mm covers the work; step to the HBS610 for 545 mm ripping width and 300 mm height, or the HBS700 for 430 mm resaw capacity. At 162 kg the HBS470PROFI is the last machine in this range that two people can reasonably position without a forklift.
ძირითადი მახასიათებლები
- Two saw band speeds, 380 m/min and 820 m/min, for hardwood and softwood
- 285 mm cutting height at 90° and 390 mm cutting width at the parallel fence
- 470 mm flywheels running 3454 mm saw bands from 6 mm to 25 mm wide
- 2100 W S6 (1500 W S1) motor, available in 230V and 400V versions
- 530 x 480 mm table at 960 mm height, tilting -10° to +45° via a splined guide
- Aluminium fence with quick-release and a fence guide with loupe
- Cutting height adjusted by handwheel and gear rack; windows to check saw band tension
- Two Ø100 mm dust collector ports; 162 kg net weight
ტექნიკური მახასიათებლები
- Max. cutting height at 90°
- 285 mm
- Max. cutting width at parallel fence
- 390 mm
- Outreach (throat depth)
- 465 mm
- Flywheel diameter
- 470 mm
- Saw band length
- 3454 mm
- Saw band width
- 6-25 mm
- Saw band speed
- 380 / 820 m/min
- Table size
- 530 x 480 mm
- Table height
- 960 mm
- Swivel range
- -10° / +45°
- Motor power S6
- 2100 W
- Motor power S1
- 1500 W
- Voltage
- 230V (400V variant also available)
- Dust collector port
- 100 mm
- Net weight
- 162 kg
- Gross weight
- 170 kg
- Packaging (L x W x H)
- 840 x 540 x 1980 mm
- EAN code (HBS470PROFI_230V)
- 9120039903910
- EAN code (HBS470PROFI_400V)
- 9120039900605
უპირატესობები
- Two blade speeds - 380 and 820 m/min - make the HBS470PROFI genuinely versatile across hardwood, softwood and plastics
- -10° to +45° table tilt is the widest in this bandsaw group, which suits bevelled and compound cuts
- At 162 kg and available in 230V, the HBS470PROFI installs in a small single-phase workshop without special handling
გასათვალისწინებელი
- 285 mm cutting height and 390 mm fence capacity are modest - wide panel ripping belongs on the HBS610
- Maximum blade width of 25 mm limits heavy resawing compared with the 50 mm blades the HBS700 accepts
- Two Ø100 mm ports mean two hose connections, so a single small extractor is quickly stretched
