HOLZMANN

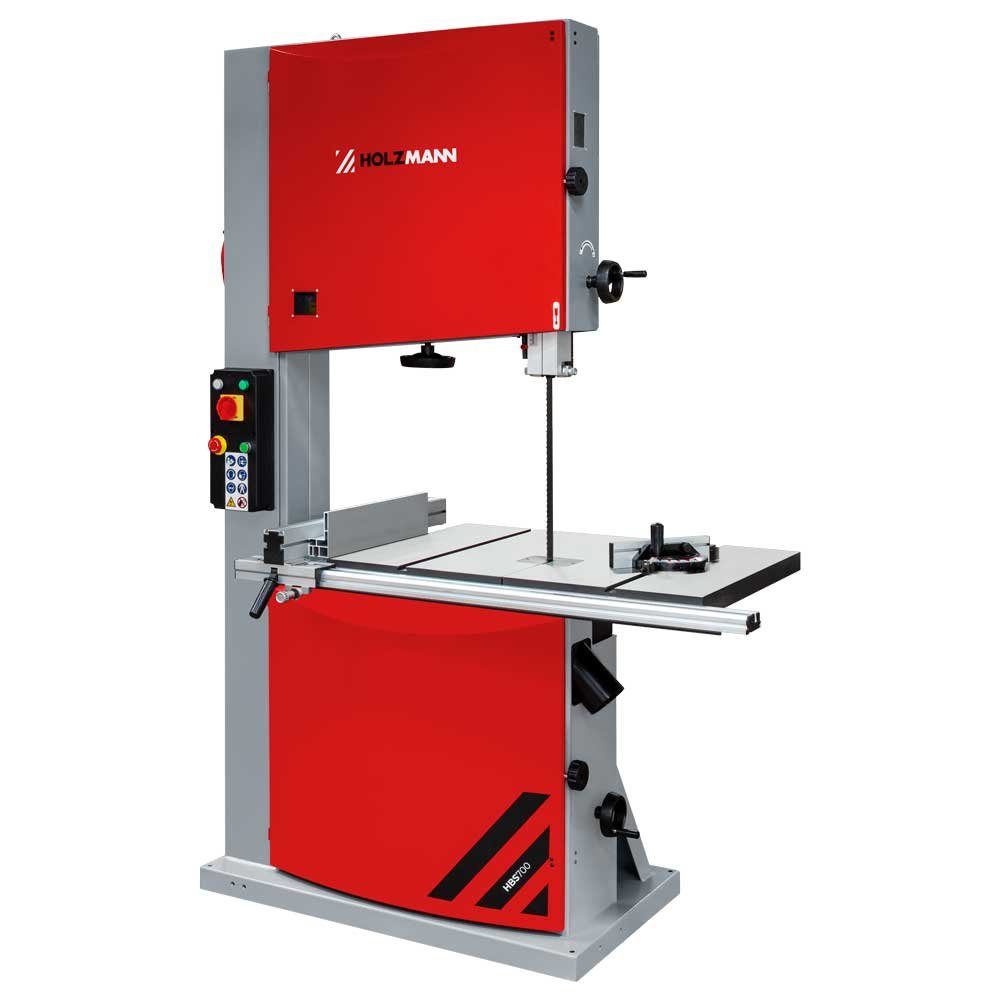

HOLZMANN HBS700 Wood Bandsaw – 430 mm Cutting Height
HBS700
The HOLZMANN HBS700 is a 416 kg resawing bandsaw with 430 mm cutting height at 90°, 700 mm throat depth and 700 mm rubber-coated wheels running 5020 mm blades from 19 to 50 mm wide. The HBS700 is powered by a 5600 W S6 (4000 W S1) motor on 400V three-phase and has a 700 x 900 mm table that tilts through a worm gear.
Price of the HBS700 is driven by the saw band package (19-50 mm widths, 5020 mm), the extractor specified for two Ø100 mm ports, freight and customs on a 480 kg, 2340 mm crate from Austria, and whether forklift unloading, positioning and three-phase commissioning are included.
ფასის მოთხოვნა430 mm under the guide, on 700 mm wheels
The HOLZMANN HBS700 is a resawing bandsaw: 430 mm of cutting height at 90°, 700 mm of throat depth and 700 mm wheels carrying a 5020 mm blade. Those figures let the HBS700 break down beams and resaw wide boards that a 400 or 470 mm class saw simply cannot pass. The HBS700 accepts blades from 19 mm up to 50 mm wide, so the same machine takes a wide, coarse resaw blade or a narrower blade for shaped work.
5.6 kW of three-phase drive
Power on the HBS700 is sized for the cut it offers: a 5600 W S6 (4000 W S1) motor on 400V three-phase. Single-phase is not offered on the HBS700, so a 400V supply is a precondition, not an option. The 700 x 900 mm table sits at 935 mm and tilts through a worm gear, which holds a set angle under the weight of a heavy workpiece instead of drifting.
Setting up and reading the cut
Day-to-day accuracy on the HBS700 comes from three details: an aluminium fence with a quick-release, a fence guide with two loupes for reading the setting precisely, and cutting-height adjustment by handwheel and gear rack. Inspection windows let the operator check blade tension without dismantling guards, and the rubber-coated wheels keep the machine quiet and extend blade life. Two Ø100 mm ports handle extraction; at 430 mm of cut, a 1500 m³/h class extractor such as the ABS1500FF is the realistic minimum.
Delivery and siting
The HBS700 weighs 416 kg net and ships at 480 kg gross in a 2340 x 735 x 1125 mm crate, so a forklift and a clear doorway matter on delivery day. Shops that do not need 430 mm of cutting height should compare the 300 mm HBS610, which is a lighter and cheaper machine to install.
ძირითადი მახასიათებლები
- 430 mm maximum cutting height at 90° and 700 mm throat depth
- 700 mm rubber-coated flywheels for quiet running and longer blade life
- 5020 mm saw bands, 19 mm to 50 mm wide, for resawing or shaped work
- 5600 W S6 (4000 W S1) motor on 400V three-phase
- 700 x 900 mm table at 935 mm height, tilting through a worm gear
- Aluminium fence with quick-release and a fence guide with two loupes for precise reading
- Cutting height adjusted by handwheel and gear rack
- Inspection windows to check saw band tension without removing guards
- Two Ø100 mm dust extraction connections; 416 kg net
ტექნიკური მახასიათებლები
- Max. cutting height at 90°
- 430 mm
- Max. cutting width at parallel fence
- 440 mm
- Outreach (throat depth)
- 700 mm
- Flywheel diameter
- 700 mm
- Saw band length
- 5020 mm
- Saw band width
- 19-50 mm
- Table size
- 700 x 900 mm
- Table height
- 935 mm
- Swivel range
- -5° / +45°
- Motor power S6
- 5600 W
- Motor power S1
- 4000 W
- Voltage
- 400V
- Dust collector ports
- 2 x 100 mm
- Net weight
- 416 kg
- Gross weight
- 480 kg
- Packaging (L x W x H)
- 2340 x 735 x 1125 mm
- EAN code (HBS700_400V)
- 9120039907574
უპირატესობები
- 430 mm cutting height and 700 mm throat put the HBS700 into beam breakdown and wide resawing that smaller bandsaws cannot do
- Blade width range of 19-50 mm means one machine covers coarse resaw work and general ripping
- Worm-gear table tilt and a two-loupe fence guide hold settings accurately under heavy workpieces
გასათვალისწინებელი
- 400V three-phase only - no single-phase version of the HBS700 exists
- 416 kg net and a 2340 mm crate mean forklift unloading and a surveyed route into the workshop
- Two Ø100 mm ports on a 430 mm cut demand a serious extractor; a small collector will not keep up
