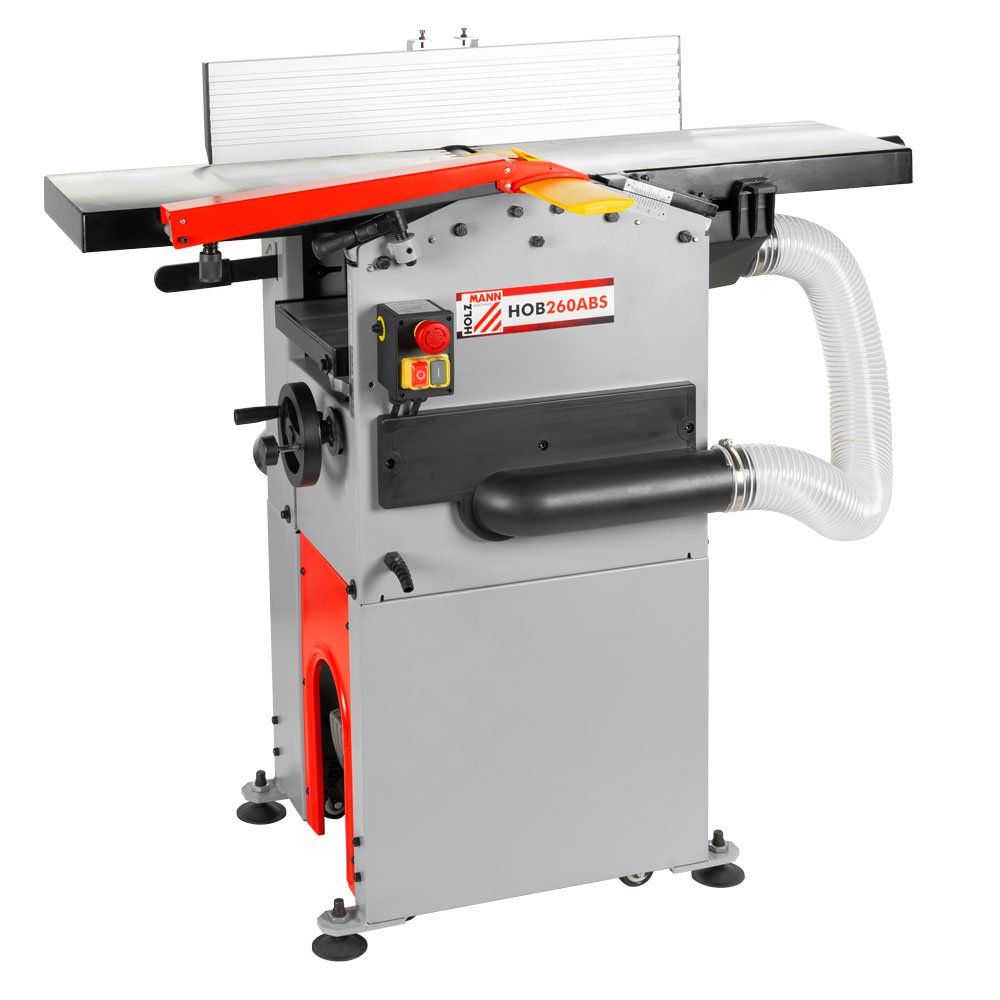

HOLZMANN HOB260ABS Combined Planer Thicknesser with Integrated Extraction
HOB260ABS
The HOLZMANN HOB260ABS is a combined surface planer and thicknesser with an integrated 270 m³/h dust collector, planing stock up to 260 mm wide on 1050 x 260 mm cast aluminium tables and thicknessing up to 160 mm thick. The HOB260ABS is available as a 230V single-phase or 400V three-phase machine and weighs 88 kg net.
Price of the HOB260ABS is driven by the voltage variant (230V or 400V), spare knife sets and chip bags added to the order, freight and customs from Austria to Georgia, and whether delivery to the workshop floor and commissioning are included.
ფასის მოთხოვნაThree machines on one 1160 x 950 mm footprint
The HOLZMANN HOB260ABS suits a small joinery that has floor space for one machine, not three: surface planer, thicknesser and chip extractor are combined in a single 88 kg unit measuring 1160 x 950 x 1100 mm. Stock up to 260 mm wide runs over the 1050 x 260 mm cast aluminium planing tables, and changeover to thicknessing across the 480 x 254 mm table is a quick conversion, not a rebuild. The integrated collector pulls 270 m³/h through the 75 mm port, so the HOB260ABS can be commissioned without first buying a separate extraction unit.
Light passes, from an 1800 W drive
The HOB260ABS is built for finishing passes rather than heavy stock removal. Cutting depth on the HOB260ABS is 2-3 mm per pass depending on the operation, the two-knife shaft is 55 mm in diameter and turns at 6700 rpm, and maximum workpiece thickness in the thicknesser is 160 mm. Feed through the thicknesser runs at 8.5 m/min and the infeed drive can be switched off, which lets an operator stop the feed without stopping the cutterhead. The thicknesser table sits at 925 mm, a comfortable height for a standing operator.
Fence, mobility and noise
The 643 x 126 mm aluminium fence on the HOB260ABS tilts from 90° to 45° for chamfering, and the planing tables carry noise-absorbing slots; measured sound power is 96.2 dB(A) and sound pressure 83.2 dB(A), so hearing protection is not optional. A moving device with two swivel and two fixed castors, with a lowering and lifting function, is part of the machine, so the HOB260ABS can be rolled aside when the floor is needed for assembly.
Where the HOB260ABS sits in the HOLZMANN range
Compared with the larger HOB series combination machines, the HOB260ABS trades planing width and cast-iron mass for portability and a built-in extractor. A workshop planing wider boards, or running long production batches, is better served by a dedicated thicknesser such as the DHM415 paired with a standalone ABS extractor.
ძირითადი მახასიათებლები
- 260 mm planing width over 1050 x 260 mm solid aluminium pressure-cast tables
- Integrated dust collector rated 270 m³/h with a 75 mm port and quick bag exchange
- 1800 W S1 motor, 55 mm cutter shaft with 2 knives running at 6700 min-1
- Thicknesser table 480 x 254 mm, maximum workpiece thickness 160 mm, table height 925 mm
- Tiltable 643 x 126 mm aluminium planing fence, 90° to 45°
- Thicknessing feed at 8.5 m/min with switchable infeed drive
- Noise-absorbing slots in the planing tables; 96.2 dB(A) sound power
- Moving device included: 2 swivel and 2 fixed castors with lowering and lifting function
- 88 kg net, total dimensions 1160 x 950 x 1100 mm
ტექნიკური მახასიათებლები
- Planing width
- 260 mm
- Planing table size
- 1050 x 260 mm
- Planer fence
- 643 x 126 mm
- Fence tilt
- 90° - 45°
- Max. cutting depth (listed under planing)
- 3 mm
- Cutting depth, thicknessing
- 2 mm
- Thicknessing table size
- 480 x 254 mm
- Thicknesser table height
- 925 mm
- Max. workpiece thickness
- 160 mm
- Cutter shaft diameter
- 55 mm
- Cutter shaft speed
- 6700 min-1
- Number of cutter knives
- 2
- Motor power S1
- 1800 W
- Voltage
- 230V (400V variant also available)
- Feed speed
- 8.5 m/min
- Cable length
- 1.8 m
- Integrated suction performance
- 270 m³/h
- Dust collector port
- 75 mm
- Sound power level
- 96.2 dB(A)
- Sound pressure level
- 83.2 dB(A)
- Total dimensions
- 1160 x 950 x 1100 mm
- Net weight
- 88 kg
- Gross weight
- 95 kg
- Packaging (L x W x H)
- 1160 x 590 x 600 mm
- EAN code (HOB260ABS_230V)
- 9120039905181
- EAN code (HOB260ABS_400V)
- 9120039905174
უპირატესობები
- Planer, thicknesser and dust extractor in one 88 kg machine, so a small shop needs one power connection and one floor position
- Integrated 270 m³/h extraction removes the cost and space of a separate collector for a starter workshop
- Castor set with lowering and lifting function is included, so the HOB260ABS can be parked against a wall between jobs
გასათვალისწინებელი
- Cutting depth of 2-3 mm per pass makes the HOB260ABS slow for heavy stock removal compared with a dedicated thicknesser
- A two-knife 55 mm shaft leaves a coarser finish and needs more frequent knife changes than a four-knife or spiral head
- 96.2 dB(A) sound power is high for a machine this size, and the integrated 270 m³/h collector is sized for the HOB260ABS alone, not for a second machine
