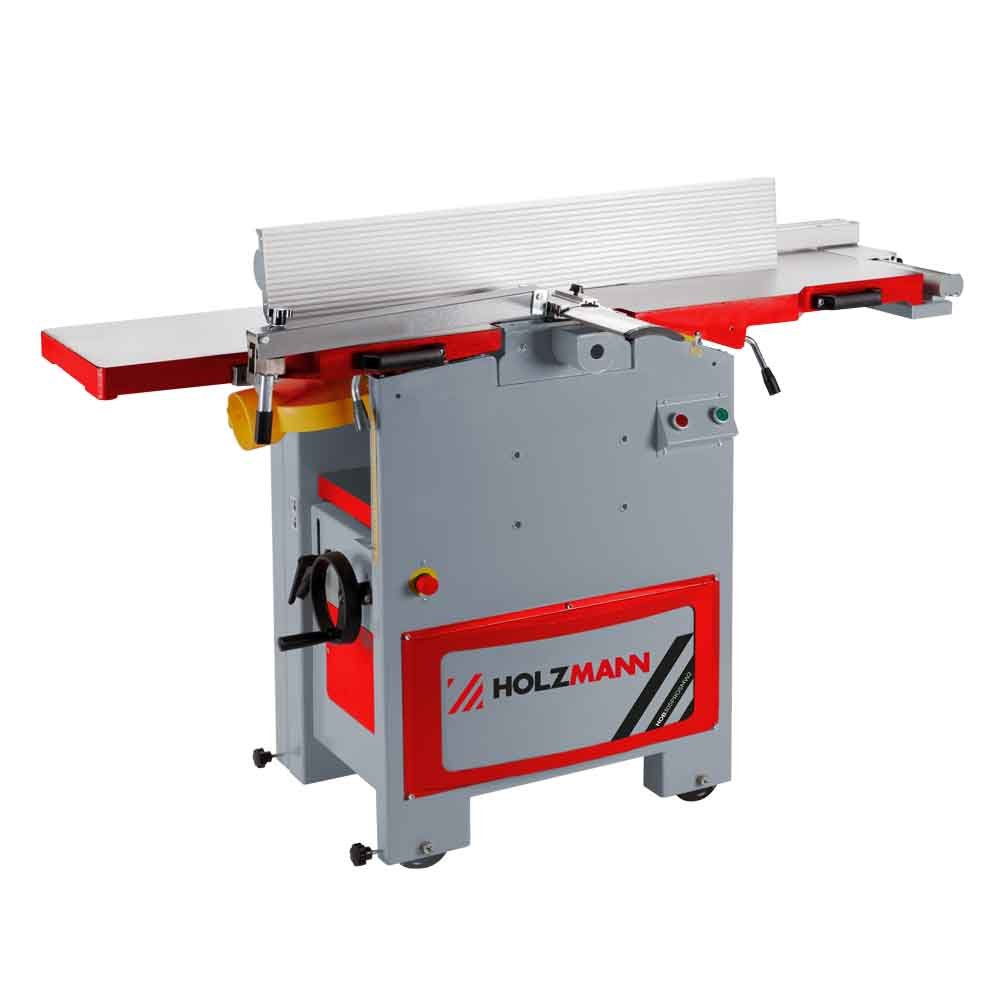

HOLZMANN HOB305PROSMW2 Combined Planer and Thicknesser with Spiral Cutterblock
HOB305PROSMW2
The HOLZMANN HOB305PROSMW2 is a combined planer and thicknesser with a spiral cutterblock carrying 24 carbide cutter inserts, a 2200 W S1 motor and a 1512 x 400 mm cast iron planing table. The HOB305PROSMW2 plans up to 304 mm wide and thicknesses to a 225 mm height at a feed speed of 5.5 m/min.
The price of the HOB305PROSMW2 is driven by the supply version ordered (230 V or 400 V), the Austrian factory price and EUR/GEL rate on the day, freight and customs charges on a 292 kg gross crate into Georgia, and any extractor, spare inserts or installation work added to the order.
ფასის მოთხოვნაWhy the HOB305PROSMW2 sits at the top of the HOB305 range
The HOLZMANN HOB305PROSMW2 turns cutterblock maintenance into an unscrew-and-rotate job instead of a knife-setting exercise. The spiral cutterblock of the HOB305PROSMW2 carries 24 carbide cutter inserts measuring 15 x 15 x 2.5 mm (30°), and each insert can be used four times before replacement, so a nicked edge is dealt with by turning one insert rather than resetting a full knife set. The cutterblock is 74 mm in diameter and runs at 4000 min-1, driven by a 2200 W S1 motor.
Planing and thicknessing capacity
The HOB305PROSMW2 takes most joinery stock across its full width in a single pass: maximum planing width is 304 mm and maximum thickness planing width is 300 mm. Two cast iron surfacing tables form a 1512 x 400 mm planing surface and fold away for thicknessing, while the planer fence measures 100 x 160 mm and tilts from 90° to 45°. In thicknessing mode the HOB305PROSMW2 offers a 585 x 300 mm table, a thicknessing height of 225 mm and a maximum cutting depth of 3 mm, with stock drawn through at 5.5 m/min. Thicknessing table height sits at 901 mm and is set by a smooth central adjustment.
Extraction and footprint
Extraction on the HOB305PROSMW2 is external: the machine carries a single 100 mm dust collector port and no on-board collector, so a chip extractor has to be planned into the workshop layout alongside the machine. Total dimensions of 1665 x 575 x 930 mm and a net weight of 258 kg (292 kg gross) make the HOB305PROSMW2 a fixed floor machine, positioned once and fed from both ends rather than moved between jobs.
Two supply versions, one machine
The HOB305PROSMW2 is offered as two order codes that differ in electrical supply only: HOB305PROSMW2_230V for a single-phase 230 V / 50 Hz workshop and HOB305PROSMW2_400V for a three-phase supply. Both carry the same 2200 W S1 rating and the same 24-insert spiral cutterblock, so the choice is made by the power available at the installation address. State that supply when requesting a quote for the HOB305PROSMW2 and the correct version is quoted from the start.
ძირითადი მახასიათებლები
- Spiral cutterblock with 24 carbide cutter inserts of 15 x 15 x 2.5 mm (30°), each insert usable four times
- 2200 W S1 motor driving a 74 mm cutterblock at 4000 min-1
- Maximum planing width 304 mm and maximum thickness planing width 300 mm
- 1512 x 400 mm cast iron planing tables that fold away for thicknessing
- 585 x 300 mm thicknessing table with 225 mm thicknessing height and 3 mm maximum cutting depth
- Feed speed of 5.5 m/min through the thicknesser
- Planer fence 100 x 160 mm tilting from 90° to 45°
- 100 mm dust collector port and a smooth central height adjustment of the thicknessing table
ტექნიკური მახასიათებლები
- Planing table size
- 1512 x 400 mm
- Thicknesser table height
- 901 mm
- Max. thicknessing cutting depth
- 3 mm
- Planer fence
- 100 x 160 mm
- Fence tilt
- 90° - 45°
- Motor power S1
- 2200 W
- Voltage
- 230 V / 50 Hz (400 V version available)
- Feed speed
- 5.5 m/min
- Dust collector port
- 100 mm
- Total dimensions
- 1665 x 575 x 930 mm
- Thicknessing table size
- 585 x 300 mm
- Thicknessing cutting depth
- 3 mm
- Thicknessing height
- 225 mm
- Cutterblock (shaft) diameter
- 74 mm
- Cutterblock speed
- 4000 min-1
- Cutter inserts amount
- 24
- Cutter insert size
- 15 x 15 x 2.5 mm (30°), usable four times
- Max. planing width
- 304 mm
- Max. thickness planing width
- 300 mm
- Net weight
- 258 kg
- Gross weight
- 292 kg
- EAN code (230 V version)
- 9120058378829
- EAN code (400 V version)
- 9120058378812
უპირატესობები
- The 24-piece spiral cutterblock removes knife setting from the maintenance routine: each carbide insert is turned to a fresh edge four times before replacement.
- A 225 mm thicknessing height over a 585 x 300 mm table lets the HOB305PROSMW2 handle deep beams and glued-up panels, not just boards.
- The same specification is offered in 230 V and 400 V versions, so a single-phase workshop is not excluded from the spiral-head model.
გასათვალისწინებელი
- At 258 kg net and 1665 x 575 x 930 mm, the HOB305PROSMW2 needs a prepared floor position and lifting equipment on delivery day.
- No dust collector is built in: the 100 mm port means a separate extractor has to be bought and ducted before the machine can be run cleanly.
- A full set of 24 carbide inserts costs more to replace than four straight planer knives, even though each insert is used four times.
