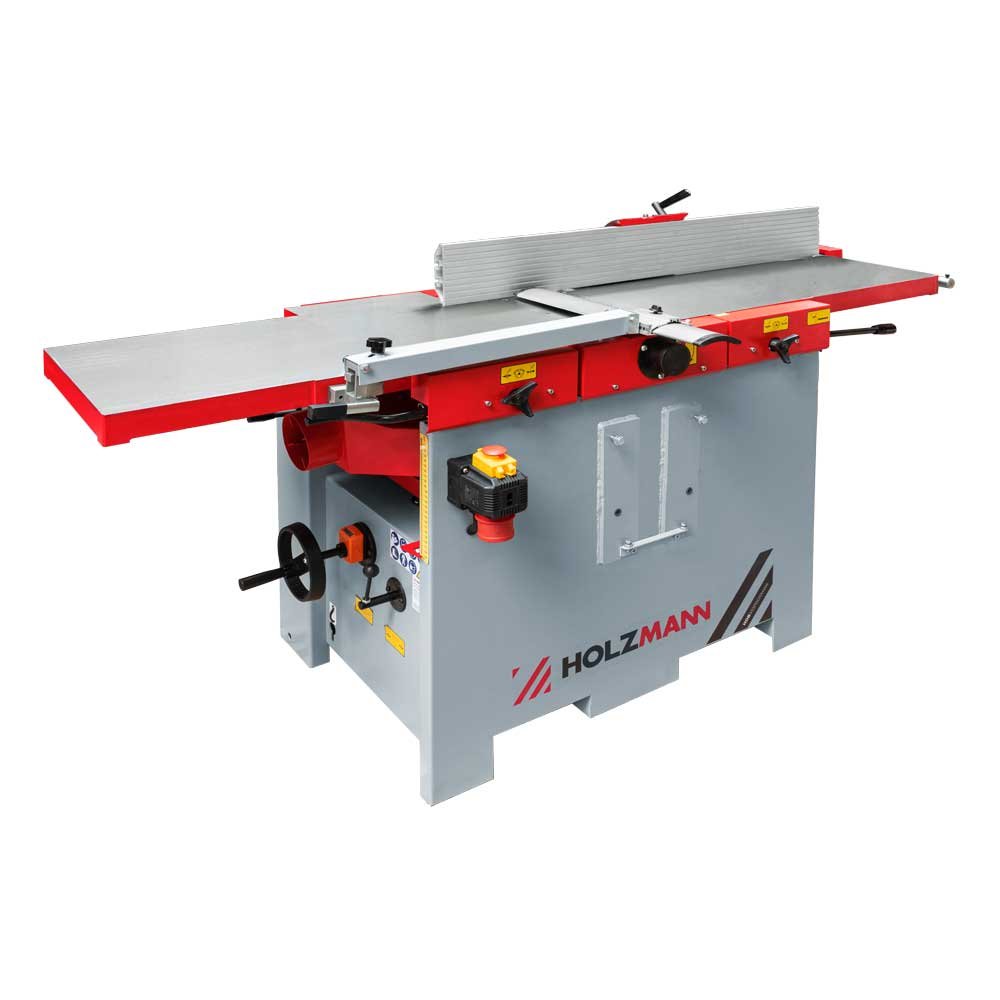

HOLZMANN HOB410PROSMW4 Planer Thicknesser with 68-Insert Spiral Cutterblock
HOB410PROSMW4
The heavy cutterblock is the reason to specify the HOB410PROSMW4: Ø 98 mm carrying 68 indexable inserts in four rows of 17, turning at 4700 min-1 inside a 420 kg industrial frame. Tables measure 1800 x 410 mm, thicknessing reaches 230 mm, and a 5500 W S6 motor on 400 V feeds work through at 7 m/min.
The HOB410PROSMW4 price is driven by the spare cutter-insert package for the 68-insert head, any extraction unit and Ø 120 mm ducting quoted with it, the 400 V electrical installation, transport and offloading for 495 kg gross, and on-site commissioning.
ფასის მოთხოვნაThe HOB410PROSMW4 is the spiral-head version of Holzmann’s heaviest 410 mm combination machine
The HOLZMANN HOB410PROSMW4 exists for shops that want the industrial frame of the PRO series without a straight-knife cutterblock. The HOB410PROSMW4 keeps the 1800 x 410 mm ground grey cast iron tables, the 5500 W motor, the 420 kg net mass and the 4700 min-1 spindle speed, and replaces the four-knife block with a Ø 98 mm spiral head carrying 68 indexable inserts arranged in four rows of 17. That is the densest insert count in this Holzmann group.
What 68 inserts actually change
Three practical things change on the HOB410PROSMW4 compared with the straight-knife HOB410PRO. Surface quality in difficult timber improves, because each insert enters at a shear angle and lifts a small chip rather than the block striking the full 410 mm at once — interlocked oak, ash and figured stock come off with far less tear-out. Noise falls: the HOB410PROSMW4 is rated at 108 dB(A) sound power and 79 dB(A) sound pressure against 111 and 82 dB(A) for the four-knife HOB410PRO. And maintenance changes character entirely — a damaged insert on the HOB410PROSMW4 is rotated to a fresh edge or swapped individually, with no knife gauging and no scrapping of a full set after one nail.
Feeding and thicknessing
Board control on the HOB410PROSMW4 is the same industrial arrangement as the PRO. Two adjustable thicknessing rollers and a spiral-toothed infeed roller hold the board at a constant 7 m/min through a 700 x 410 mm thicknessing table, up to 230 mm workpiece height and 4 mm depth of cut. The thicknessing table is column-guided with extra guiding, and the planing tables fold rearwards so they stay clear of the work.
Installing the HOB410PROSMW4
The HOB410PROSMW4 is a fixed installation on a 400 V supply. Overall dimensions are 1800 x 470 x 1000 mm with a thicknesser table height of 870 mm, the fence measures 1100 x 155 mm and tilts 90° to 45°, and extraction connects at Ø 120 mm. Gross shipping weight is 495 kg, so mechanical offloading is required.
ძირითადი მახასიათებლები
- Ø 98 mm spiral cutterblock with 68 indexable inserts in four rows of 17
- 4700 min-1 block speed driven by a 5500 W S6 motor, 400 V / 50 Hz
- 1800 x 410 mm ground grey cast iron tables that fold rearwards clear of the workpiece
- 5 mm maximum planing cut, the deepest single pass of the 410 mm machines here
- 230 mm thicknessing height on a 700 x 410 mm column-guided table, 4 mm cut
- 79 dB(A) sound pressure at 108 dB(A) sound power
- 1100 x 155 mm sideways-guided professional fence tilting 90 to 45°
- 420 kg net, 1800 x 470 x 1000 mm overall, 870 mm table height, two thicknessing rollers plus a spiral-toothed infeed roller
ტექნიკური მახასიათებლები
- Planing width
- 410 mm
- Planing table size
- 1800 x 410 mm
- Max. planing cutting depth
- 5 mm
- Planer fence
- 1100 x 155 mm
- Fence tilt
- 90 - 45°
- Thicknesser table height
- 870 mm
- Thicknessing table size
- 700 x 410 mm
- Thicknessing cutting depth
- 4 mm
- Thicknessing height
- 230 mm
- Cutterblock type
- Spiral cutterblock with 68 cutter inserts (4 rows of 17)
- Cutterblock diameter
- 98 mm
- Cutterblock speed
- 4700 min-1
- Motor power (S6)
- 5500 W
- Voltage
- 400 V / 50 Hz
- Feed speed
- 7 m/min
- Dust collector port
- Ø 120 mm
- Total dimensions
- 1800 x 470 x 1000 mm
- Sound power level
- 108 dB(A)
- Sound pressure level
- 79 dB(A)
- Net weight
- 420 kg
- Gross weight
- 495 kg
- Packaging length
- 2000 mm
- Packaging width
- 845 mm
- Packaging height
- 1100 mm
- EAN code (HOB410PROSMW4_400V)
- 9120058379376
უპირატესობები
- 68 inserts in four rows give the HOB410PROSMW4 the finest cutting pattern of any machine in this group and effectively remove tear-out as a concern in figured hardwood.
- At 79 dB(A) sound pressure the HOB410PROSMW4 is measurably quieter at the operator position than the straight-knife HOB410PRO at 82 dB(A), despite identical power and speed.
- Insert maintenance on the HOB410PROSMW4 is incremental — rotate or replace one insert after a nail strike instead of gauging and replacing a whole knife set.
გასათვალისწინებელი
- A full replacement set of 68 inserts for the HOB410PROSMW4 is a significant consumable cost, so the spiral head is cheaper per repair but more expensive to re-tool completely.
- The HOB410PROSMW4 is 400 V three-phase only, and at 495 kg gross needs forklift or crane offloading plus a permanent load-bearing floor position.
- Spiral heads shear rather than slice, so the HOB410PROSMW4 leaves a very slightly scalloped surface that shows under raking light and may need sanding before finishing on show faces.
