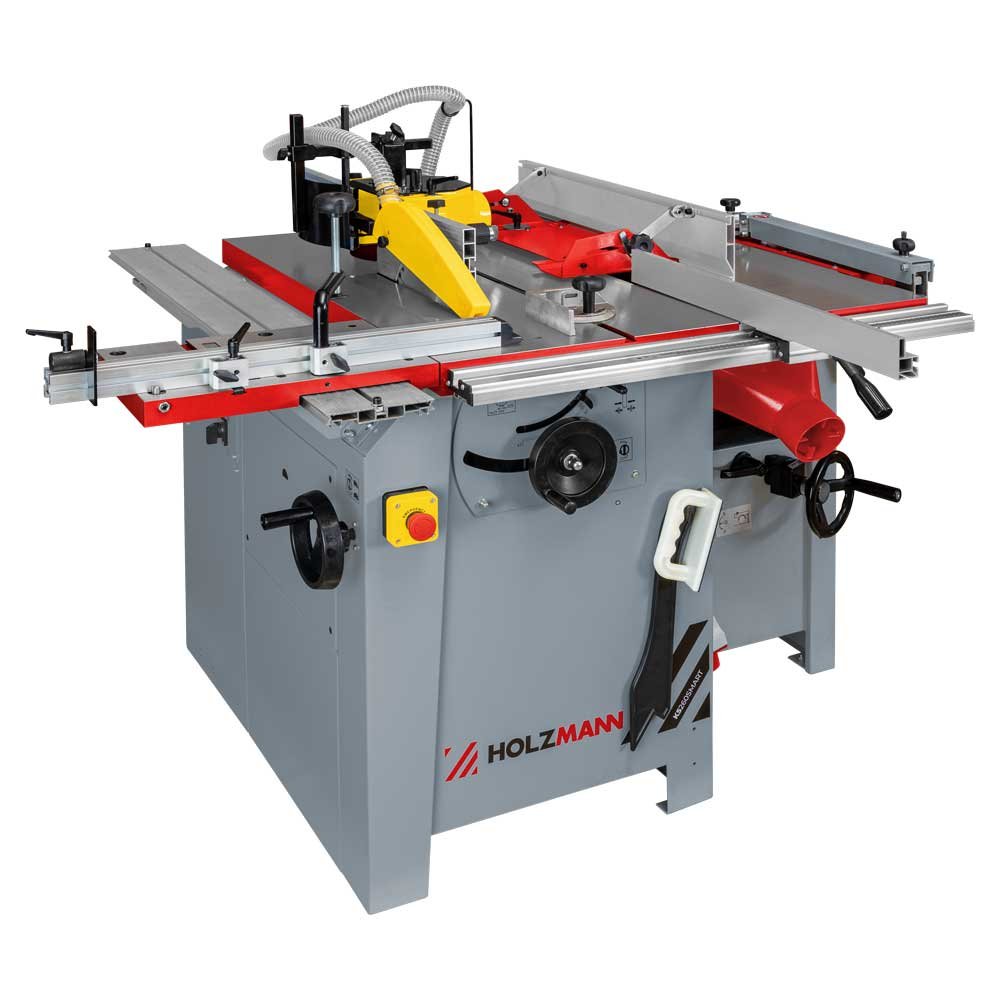

HOLZMANN K5260SMART 5-Operation Combination Woodworking Machine
K5260SMART
The HOLZMANN K5260SMART is a compact five-operation combination woodworking machine with a 254 mm circular saw, a spindle moulder, a 260 mm three-knife planer and a thicknesser working to 225 mm on a 1640 x 1350 mm footprint. The K5260SMART is offered in 230 V single-phase and 400 V three-phase versions and is supplied on quotation.
Price on the K5260SMART is moved by the voltage version (230 V or 400 V), the optional HOB310ECOLL mortising attachment, the shaper tooling and saw blade package, spare planer knife sets, delivery to site in Georgia, and whether installation and training are included.
ფასის მოთხოვნაThe compact entry point into the HOLZMANN K5260 range
The HOLZMANN K5260SMART is the model to look at when floor space, not panel size, is the binding constraint. Measuring 1640 x 1350 x 1150 mm and weighing 335 kg net, the K5260SMART is the smallest and lightest machine in the K5260 range, yet still combines a circular saw, a spindle moulder, a 260 mm surface planer and a thicknesser in one frame, with a rotary switch selecting which unit is live and an optional HOB310ECOLL mortising attachment adding a fifth operation.
Straight planer knives and a short sliding table
Two decisions define the K5260SMART against its sister model K5260PSMW2. First, the K5260SMART planes with three conventional full-width knives on a Ø70 mm shaft at 5500 rpm rather than a carbide-insert spiral block, which keeps purchase price and knife-replacement cost down but gives a coarser result on figured hardwood and a louder cut. Second, the K5260SMART carries a compact 400 x 250 mm sliding table with 380 mm of trimming travel, where the K5260PSMW2 offers 1300 mm. For solid-timber joinery — windows, doors, stair parts, furniture rails — that short slider is adequate; for breaking down full sheets of chipboard or MDF it is not, and a shop doing sheet work should price the longer-slider models instead.
Capacities the K5260SMART actually delivers
Working capacity on the K5260SMART is identical to the rest of the 260 mm class in most respects. The 254 x 30 x 3/2.2 mm saw blade runs at 4000 rpm, swivels 0–45° by handwheel and cuts 78 mm at 90° or 63 mm at 45°, with 710 mm of rip width at the parallel fence on a 920 x 500 mm table set 850 mm above the floor. Thicknessing runs on a 545 x 258 mm table to a maximum workpiece height of 225 mm at up to 4 mm depth of cut, and the feed can be disengaged with a lever, at up to 7 m/min. The moulder spindle is 30 mm with 110 mm stroke and four speeds from 1400 to 9000 rpm.
Supply, extraction and installation notes
The K5260SMART comes as a 230 V single-phase machine or a 400 V three-phase machine, driven by 2.2 kW, 1.5 kW and 2.2 kW motors for saw, shaper and planer respectively. Three extraction connections of 100 / 100 / 32 mm need a collector sized for the machine; measured sound power is 103 dB(A), so hearing protection is not optional.
ძირითადი მახასიათებლები
- Smallest footprint in the K5260 range: 1640 x 1350 x 1150 mm at 335 kg net
- Three full-width planer knives (260 x 25 x 3 mm) on a Ø70 mm shaft at 5500 rpm over 260 mm planing width
- Separate motors — 2.2 kW saw, 1.5 kW spindle moulder, 2.2 kW planer-thicknesser, selected by rotary switch
- 254 x 30 x 3/2.2 mm TCT blade at 4000 rpm with 0–45° handwheel swivel; 78 mm cut at 90°, 63 mm at 45°
- Compact 400 x 250 mm sliding table with 380 mm trimming travel; 710 mm rip width at the parallel fence
- Thicknesser table 545 x 258 mm, 225 mm height, 4 mm cutting depth, feed to 7 m/min with disengaging lever
- Spindle moulder with 30 mm spindle, 110 mm stroke, speeds of 1400 / 4000 / 6000 / 9000 rpm, 160 mm table opening
- Supplied with TCT saw blade, three pre-assembled planer knives and the saw dust collector hose
ტექნიკური მახასიათებლები
- Available versions
- K5260SMART_230V / K5260SMART_400V
- Motor power S1 (W)
- 2200 | 1500 | 2200
- Voltage (230 V version)
- 230 V / 50 Hz
- Measurements — Table size (mm)
- 920 x 500
- Table height (mm)
- 850
- Dust collector port (mm)
- 100 / 100 / 32
- Total dimensions (mm)
- 1640 x 1350 x 1150
- Max. cutting height 90° (mm)
- 78
- Max. cutting height 45° (mm)
- 63
- Max. trimming (mm)
- 380
- Max. cutting width at parallel fence (mm)
- 710
- Thicknessing — Table size (mm)
- 545 x 258
- Cutting depth (mm)
- 4
- Thicknessing height (mm)
- 225
- Shaft diameter (mm)
- Ø 70
- Shaft speed (rpm)
- 5500
- Cutter knives amount
- 3
- Milling spindle diameter (mm)
- 30
- Milling spindle speed (rpm)
- 1400 | 4000 | 6000 | 9000
- Spindle stroke (mm)
- 110
- Table opening (mm)
- 160
- Max. tool diameter below table (mm)
- 160
- Max. tool diameter above table (mm)
- 180
- Sawblade (mm)
- 254 x 30 x 3/2.2
- Sawblade speed (rpm)
- 4000
- Sawblade swivel
- 0-45°
- Sound power level (dB(A))
- 103
- Sound pressure level (dB(A))
- 89.5
- Gross weight (kg)
- 393
- Net weight (kg)
- 335
- Packaging width (mm)
- 1155
- Packaging length (mm)
- 1160
- Packaging height (mm)
- 970
- EAN code (230 V version)
- 9120132141479
უპირატესობები
- At 1640 x 1350 mm and 335 kg the K5260SMART is the easiest machine in the range to fit into a small workshop
- Three replaceable full-width planer knives are inexpensive to renew compared with a full set of carbide inserts
- Supplied ready to work with a TCT saw blade, three pre-mounted 260 x 25 x 3 mm planer knives and the saw dust hose
გასათვალისწინებელი
- The 400 x 250 mm sliding table gives only 380 mm of trimming travel, so full sheet breakdown is out of reach
- Straight knives tear out more than a spiral block on interlocked hardwood, and the machine is rated 103 dB(A) sound power
- No scoring unit, so melamine-faced board will chip on the underside of the cut
