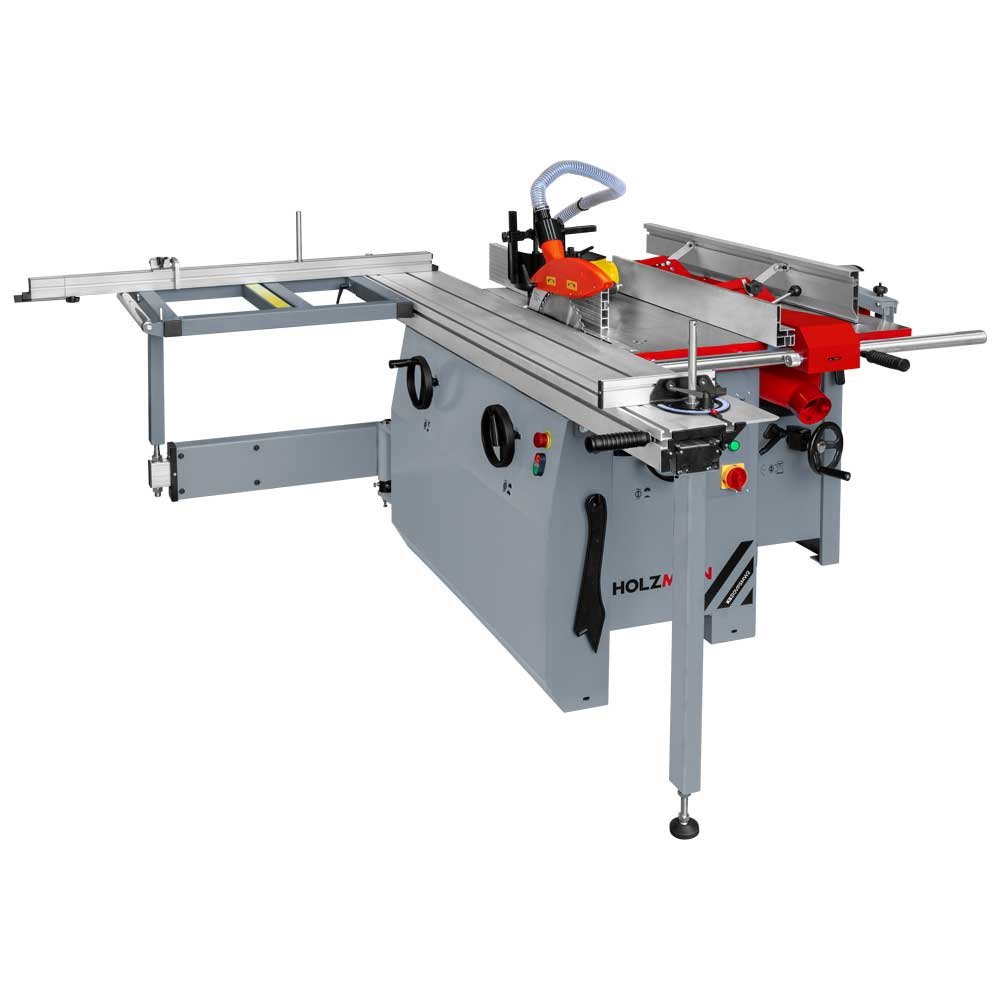

HOLZMANN K5310VPSMW2 Combination Machine with Scoring Saw and Spiral Cutterblock
K5310VPSMW2
The HOLZMANN K5310VPSMW2 is a five-operation combination woodworking machine with a Ø315 mm main saw blade, a Ø100 mm scoring unit, a 2000 mm sliding table and a 310 mm planer-thicknesser running a spiral cutterblock with 30 carbide inserts. The K5310VPSMW2 is offered in 230 V and 400 V versions and is supplied on quotation.
Price on the K5310VPSMW2 is moved by the voltage version, the scoring and main blade specification, the carbide insert package, the optional HOB310ECOLL mortiser, shaper tooling, freight of a 608 kg gross crate to site, and whether commissioning and training are included.
ფასის მოთხოვნაThe K5310VPSMW2 is the panel-capable machine in the HOLZMANN K range
The HOLZMANN K5310VPSMW2 is the model to specify when a shop needs to break down full sheets and still plane wide solid stock on the same frame. A 2000 x 270 mm sliding table with a 730 x 580 mm outrigger and a crosscut fence adjustable from 1225 to 2320 mm gives the K5310VPSMW2 2000 mm of trimming length — enough for a standard sheet in one pass, where the 260 mm machines in the range manage 380 or 1300 mm.
Scoring unit: why it matters for melamine and veneer
The scoring saw is the single feature that makes the K5310VPSMW2 a furniture-shop machine rather than a joinery machine. Ahead of the Ø315 mm main blade running at 4500 rpm, a Ø100 mm scoring blade turns at 850 rpm and pre-cuts the underside of the panel, so melamine-faced board and veneered ply come off the saw without chipping on the exit face. No other model in this HOLZMANN combination range carries a scoring unit. Main blade capacity is 100 mm at 90° and 80 mm at 45°, with 780 mm of rip width at the parallel fence.
310 mm spiral planing and thicknessing
Planing capacity on the K5310VPSMW2 is a step up rather than a variation. The planing table measures 1300 x 310 mm with a 1100 x 150 mm fence tilting 90–45°, and the Ø70 mm cutterblock is a two-groove spiral head carrying 30 indexable carbide inserts at 5500 rpm. Thicknessing runs on a 545 x 308 mm table to 225 mm of workpiece height at up to 4 mm cutting depth, with a lever-disengaged feed at up to 5.5 m/min. Spindle moulding uses a 30 mm spindle with 100 mm stroke and four speeds of 3000, 6000, 8000 and 10000 rpm through a 180 mm table opening.
Power, weight and what the machine demands from the building
The K5310VPSMW2 draws on three motors of 3.0 kW, 3.0 kW and 2.2 kW and is available in 230 V single-phase and 400 V three-phase versions; on a machine of this size the three-phase version is the sensible specification wherever supply allows. At 516 kg net and 2000 x 2370 x 1100 mm in plan, the K5310VPSMW2 needs a genuinely level slab, clear run-off space on both sides of the slider, and Ø100/100/40 mm extraction connected before first use. An optional HOB310ECOLL mortiser adds the fifth operation.
ძირითადი მახასიათებლები
- Ø315 mm main blade at 4500 rpm with a Ø100 mm scoring blade at 850 rpm for chip-free melamine and veneered panels
- 2000 x 270 mm sliding table, 730 x 580 mm outrigger and crosscut fence adjustable 1225–2320 mm, giving 2000 mm trimming length
- 310 mm planing width on a 1300 x 310 mm table with a Ø70 mm spiral cutterblock carrying 30 carbide inserts at 5500 rpm
- Motors of 3.0 kW (saw), 3.0 kW (spindle moulder) and 2.2 kW (planer-thicknesser)
- 100 mm cutting height at 90° and 80 mm at 45°; 780 mm rip width at the parallel fence
- Spindle moulder with 30 mm spindle, 100 mm stroke and speeds of 3000 / 6000 / 8000 / 10000 rpm through a 180 mm table opening
- Thicknesser table 545 x 308 mm, 225 mm height, 4 mm cutting depth, feed to 5.5 m/min with disengaging lever
- Supplied with a 315 x 30 x 3.0/2.2 mm TCT blade, dust hose and 30 pre-assembled 15 x 15 x 2.5 mm carbide inserts
ტექნიკური მახასიათებლები
- Available versions
- K5310VPSMW2_230V / K5310VPSMW2_400V
- Planing table size (mm)
- 1300 x 310
- Max. thicknessing cutting depth (mm)
- 3
- Planer fence (mm)
- 1100 x 150
- Fence tilt
- 90-45°
- Motor power S1 (W)
- 3000 | 3000 | 2200
- Voltage (230 V version)
- 230 V / 50 Hz
- Measurements — Table size (mm)
- 950 x 380
- Table height (mm)
- 860
- Sliding table (mm)
- 2000 x 270
- Outrigger table (mm)
- 730 x 580
- Dust collector port (mm)
- Ø100/100/40
- Total dimensions (mm)
- 2000 x 2370 x 1100
- Max. cutting height 90° (mm)
- 100
- Max. cutting height 45° (mm)
- 80
- Max. trimming (mm)
- 2000
- Max. cutting width at parallel fence (mm)
- 780
- Thicknessing — Table size (mm)
- 545 x 308
- Cutting depth (mm)
- 4
- Thicknessing height (mm)
- 225
- Shaft diameter (mm)
- 70
- Shaft speed (rpm)
- 5500
- Milling spindle diameter (mm)
- 30
- Milling spindle speed (rpm)
- 3000 | 6000 | 8000 | 10000
- Spindle stroke (mm)
- 100
- Table opening (mm)
- 180
- Max. tool diameter below table (mm)
- 180
- Max. tool diameter above table (mm)
- 180
- Sawblade (mm)
- Ø315 (/30)
- Sawblade speed (rpm)
- 4500
- Scoring sawblade (mm)
- Ø100 (/20)
- Scoring unit speed (rpm)
- 850
- Sawblade swivel
- 0-45°
- Sound power level (dB(A))
- 103
- Sound pressure level (dB(A))
- 89.5
- Gross weight (kg)
- 608
- Net weight (kg)
- 516
- Packaging width (mm)
- 1310
- Packaging length (mm)
- 1540
- Packaging height (mm)
- 970
- EAN code (230 V version)
- 9120132142063
უპირატესობები
- The Ø100 mm scoring unit is unique in this HOLZMANN combination range and eliminates underside chipping on melamine and veneered panels
- 2000 mm of trimming length on the sliding table lets a shop break down full sheets on a combination machine
- 100 mm cut at 90° and 780 mm rip width extend the machine into worktop and thick-panel work the 260 mm models cannot reach
გასათვალისწინებელი
- At 516 kg net and 2000 x 2370 mm the K5310VPSMW2 demands far more floor area and access than the 260 mm machines in the range
- A 230 V version exists, but with motors of 3.0 + 3.0 + 2.2 kW this is realistically a three-phase installation
- 30 carbide inserts plus a scoring blade add consumable cost that the simpler K5260SMART does not carry
