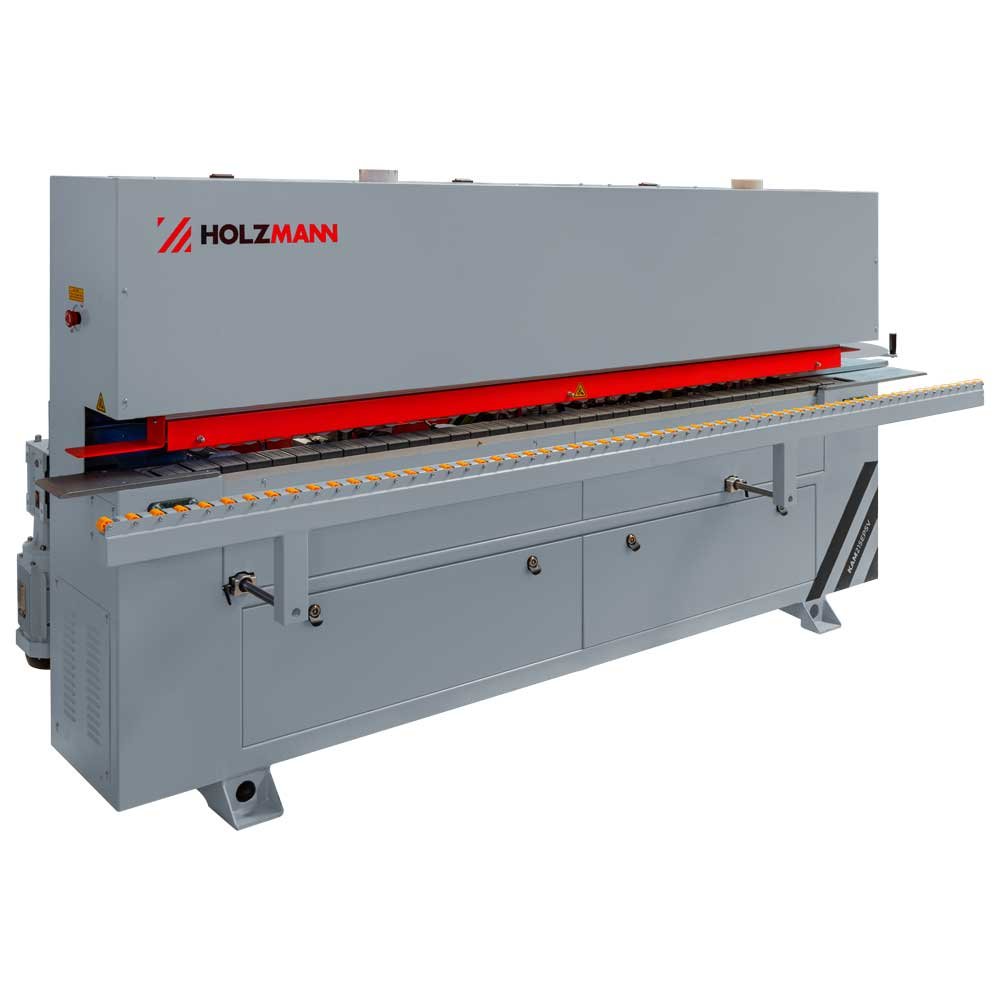

HOLZMANN KAM215EPSV Industrial Edge Banding Machine
KAM215EPSV
The HOLZMANN KAM215EPSV is a one-sided automatic edge banding machine with pre-milling, heated glue application, end trimming, a 0.75 kW double trimming unit, flat scraping and polishing, running at 13 m/min on a 3570 x 1100 x 1500 mm chassis. The KAM215EPSV requires a 400 V three-phase supply and is supplied on quotation.
Price on the KAM215EPSV is moved by the pre-milling and trimming tooling package, spare scrapers and polishing discs, a spare exchangeable glue pot, freight of a 1050 kg gross crate to site, unloading and positioning, and whether commissioning and training are included.
ფასის მოთხოვნაThe KAM215EPSV is an industrial bander, not a scaled-up workshop machine
The HOLZMANN KAM215EPSV belongs to a different class from the compact KAM35 range, and feed rate is the clearest evidence: the KAM215EPSV runs at 13 m/min against 8 m/min on a KAM35. On a shop doing several hundred metres of tape a day that difference decides whether edge banding is the bottleneck. The KAM215EPSV is a one-sided automatic machine built on an industrial chassis of 3570 x 1100 x 1500 mm weighing 900 kg net.
Heavier units, not just faster feed
The unit specification behind the feed rate is what makes it usable. The KAM215EPSV pre-mills with two counter-rotating Ø80 mm cutters on 1.1 kW motors at 12000 rpm, cuts the tape ends with separate front and rear saw units at 0.35 kW and 12000 rpm each, and — the significant figure — trims the overhang with a double trimming unit of 0.75 kW per unit at 18000 rpm, roughly double the trimming power of a compact KAM35 machine. The form cutters can run straight or with a 2 mm radius. Finishing is by straight scraper top and bottom and a polishing unit at 0.18 kW and 1400 rpm.
The exchangeable glue pot
The KAM215EPSV is supplied in the model 2026 specification with an exchangeable glue pot. That matters in production: a shop switching between adhesive types, or dealing with a carbonised pot, changes the pot instead of stripping and cleaning it in place, and the machine goes back into service the same shift.
Capacity and what the KAM215ALL adds
The KAM215EPSV takes tape 15–55 mm wide and 0.4–3 mm thick on panels 10–50 mm thick, with a minimum workpiece of 120 x 80 mm. The step up to the KAM215ALL buys a corner trimming unit and an R2 radius scraper in place of the flat scraper; the KAM215EPSV is the right choice where edges are flat and corners are handled downstream.
Services
The KAM215EPSV needs 400 V three-phase, compressed air at 6 bar, and two Ø100 mm extraction connections. Gluing temperature is set electronically on the touch display.
ძირითადი მახასიათებლები
- Industrial 13 m/min chain-conveyor feed — over 60% faster than the compact KAM35 machines at 8 m/min
- Pre-milling unit with two counter-rotating Ø80 mm cutters, 1.1 kW per unit at 12000 rpm
- Double trimming unit at 0.75 kW per unit and 18000 rpm, straight or 2 mm radius form cutters
- Front and rear crosscut saw units at 0.35 kW and 12000 rpm each for the tape ends
- Straight scraper top and bottom plus polishing unit at 0.18 kW per unit and 1400 rpm
- Model 2026 specification with exchangeable glue pot for fast adhesive changeover
- Tape 15–55 mm wide and 0.4–3 mm thick on panels 10–50 mm thick, minimum workpiece 120 x 80 mm
- 3570 x 1100 x 1500 mm chassis at 900 kg net with 2 x Ø100 mm extraction ports
ტექნიკური მახასიათებლები
- Voltage
- 400V / 50Hz
- Feed speed
- 13 m/min
- Dust collector port (mm)
- 2x ø 100
- Total dimensions (mm)
- 3570 x 1100 x 1500
- Min. workpiece length (mm)
- 120
- Min. workpiece width (mm)
- 80
- Min. workpiece thickness (mm)
- 10
- Max. workpiece thickness (mm)
- 50
- Edge width (mm)
- 15-55
- Edge thickness (mm)
- 0.4-3
- Required air pressure (bar)
- 6
- Gross weight (kg)
- 1050
- Net weight (kg)
- 900
- XL-Versand (oversize freight)
- 17
- Packaging width (mm)
- 760
- Packaging length (mm)
- 3160
- Packaging height (mm)
- 1500
- EAN code
- 9120058378072
უპირატესობები
- 13 m/min feed with 0.75 kW / 18000 rpm trimming units gives genuine production throughput rather than workshop-scale output
- The exchangeable glue pot turns an adhesive change or a carbonised pot into a same-shift job instead of a strip-down
- Shorter and 190 kg lighter than the KAM215ALL, so it fits and installs more easily while keeping the industrial drive train
გასათვალისწინებელი
- No corner trimming unit — corners must be finished by hand or downstream, which the KAM215ALL avoids
- A flat scraper only, so 2 mm radiused edges are not cleaned as well as on the R2-equipped KAM215ALL
- 900 kg net, 400 V three-phase and a 6 bar air supply make this a committed installation, not a machine to move around the shop
