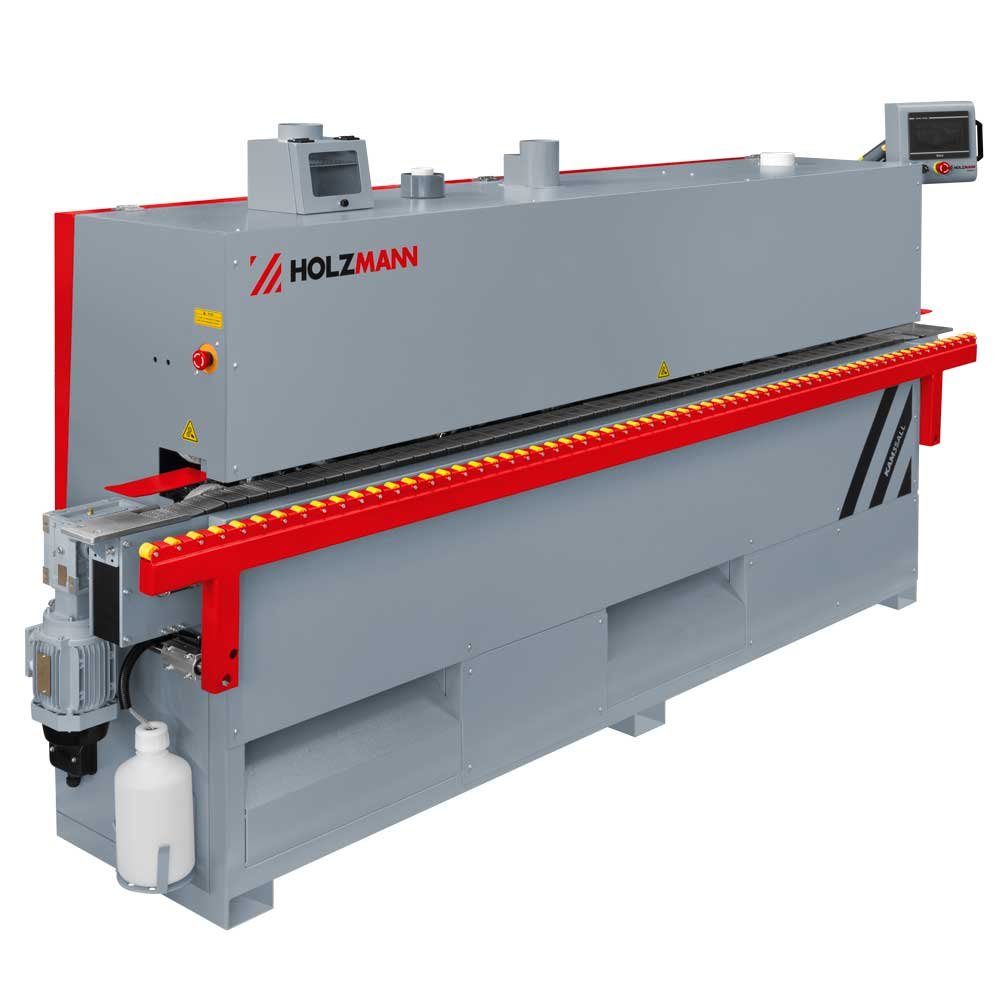

HOLZMANN KAM35ALL Edge Banding Machine with Corner Trimming Unit

KAM35ALL

The HOLZMANN KAM35ALL is the top model of the KAM35 range, a one-sided automatic edge banding machine carrying pre-milling, glue application, end trimming, double trimming, corner trimming, R and flat scrapers, detergent spray and polishing across 3705 mm. The KAM35ALL runs on 400 V three-phase supply and is supplied on quotation.

ფასი მოთხოვნით

Price on the KAM35ALL is moved by the pre-milling, trimming and corner-trim tooling package, spare scrapers and polishing discs, freight of a 1062 kg gross / 3265 mm crate to site, unloading and positioning, extraction sizing for five Ø100 mm ports, and whether commissioning and training are included.

ფასის მოთხოვნა

The KAM35ALL is the top model in the HOLZMANN KAM35 range

The HOLZMANN KAM35ALL is specified when a shop wants a full processing line in a compact machine rather than an industrial one. The KAM35ALL carries every unit in the KAM35 range in sequence: pre-milling, heated glue application, tape pressing, end trimming, double trimming, radius scraping, flat scraping, detergent spray and polishing, plus the corner trimming unit that no other KAM35 model has, across 3705 mm of machine length and 945 kg.

Corner trimming and the double scraper set

Corner trimming is the reason most buyers step from the KAM35SMART up to the KAM35ALL. The unit rounds the leading and trailing corners of the banded edge automatically, so operators stop finishing corners with a hand block — the single most time-consuming manual step left on a compact bander, and the one that most often shows on a finished door front. The KAM35ALL also carries both scraper types where the KAM35SMART has only the R-scraper: an R-scraper for radiused tape that can be switched on or off, and a straight scraper for flat tape. Running both means changing between 0.4 mm PVC and 2 mm radiused ABS is a setting change rather than a unit swap.

Capacity and consumables

The KAM35ALL processes edge tape 15–55 mm wide and 0.4–3 mm thick on panels 12–50 mm thick, minimum 70 mm long and 80 mm wide, at 8 m/min on a chain-conveyor feed. Supplied tooling covers two Ø80 x Ø20 x 55 mm pre-milling cutters, two Ø104 x Ø22 x 3 mm saw blades, two Ø150 mm polishing discs, two R-scrapers, two straight scrapers and two trimming cutters — all of them wear items to be re-ordered in service.

What the KAM35ALL demands from the workshop

The KAM35ALL needs a 400 V three-phase supply for a 6900 W connected load, compressed air at 6–7 bar, and five separate Ø100 mm extraction connections — a genuine sizing question for the dust collector, not a formality. Footprint is 3705 x 1360 x 1585 mm at 850 mm table height, and clear run-off space is required at both ends on top of that.

ძირითადი მახასიათებლები

Corner trimming unit — the only model in the KAM35 range to round the tape corners automatically
Both scraper types fitted: a switchable R-scraper for radiused tape and a straight scraper for flat tape
Pre-milling unit with two counter-rotating Ø80 mm cutters, 1.1 kW per unit at 12000 rpm
Double trimming unit at 0.35 kW per unit and 12000 rpm, plus a 0.37 kW crosscut saw at 12000 rpm for the tape ends
Detergent spray unit ahead of polishing at 0.18 kW per unit and 1400 rpm
Tape 15–55 mm wide and 0.4–3 mm thick on panels 12–50 mm thick, minimum workpiece 70 x 80 mm
6900 W on 400 V three-phase with five Ø100 mm extraction ports and 8 m/min chain conveyor feed
3705 x 1360 x 1585 mm at 850 mm table height, 945 kg net, 78 dB(A) sound power

ტექნიკური მახასიათებლები

Motor power S1 (W): 6900
Voltage: 400 V / 50 Hz
Feed speed: 8 m/min
Dust collector port (mm): 5 x Ø 100
Total dimensions (mm): 3705 x 1360 x 1585
Table height (mm): 850
Min. workpiece length (mm): 70
Min. workpiece width (mm): 80
Min. workpiece thickness (mm): 12
Max. workpiece thickness (mm): 50
Edge width (mm): 15-55
Edge thickness (mm): 0.4-3
Required air pressure (bar): 6-7
Sound power level (dB(A)): 78
Gross weight (kg): 1062
Net weight (kg): 945
XL-Versand (oversize freight): 17
Packaging width (mm): 725
Packaging length (mm): 3265
Packaging height (mm): 1448
EAN code: 9120132141516

უპირატესობები

Automatic corner trimming removes the slowest manual step on a compact bander and the one most visible on finished fronts
Both R and straight scrapers are fitted, so changing between flat PVC and 2 mm radiused ABS is a setting change, not a unit swap
Takes 55 mm tape on panels up to 50 mm thick — the widest capacity in the KAM35 range

გასათვალისწინებელი

Five separate Ø100 mm extraction ports mean the existing dust collector will very likely need upsizing
At 3705 mm long and 945 kg net it is nearly as demanding on space and handling as the industrial KAM215EPSV
Nine processing units carry nine sets of consumables and a real maintenance load for a small workshop

ხშირად დასმული კითხვები

How much does the HOLZMANN KAM35ALL cost?

The HOLZMANN KAM35ALL is supplied on quotation rather than at a published price. The price of the KAM35ALL is moved by the tooling package specified for the pre-milling, trimming and corner-trim units, spare R and straight scrapers and polishing discs, freight of a 1062 kg gross crate 3265 mm long to site in Georgia, unloading and positioning, and whether commissioning and operator training are included.

What is the lead time and availability for the KAM35ALL?

The HOLZMANN KAM35ALL is built to order at the factory in Austria. HOLZMANN currently lists this model as unavailable on its own webshop; in a quotation model availability is confirmed with the factory before the order is placed. Confirm the current lead time for the KAM35ALL when requesting a quote.

What installation and extraction does the KAM35ALL need?

The HOLZMANN KAM35ALL occupies 3705 x 1360 x 1585 mm at 850 mm table height, weighs 945 kg net and needs a level floor with run-off space at both ends. Critically, the KAM35ALL has five separate Ø100 mm extraction ports, so the dust collector must be sized for the machine rather than simply connected to it. A 400 V three-phase connection by a qualified electrician and compressed air at 6–7 bar are also required.

What tooling and consumables should I budget for separately with the KAM35ALL?

Budget separately for hot-melt adhesive granulate, edge tape stock and spray-unit detergent, plus replacement Ø80 mm pre-milling cutters, Ø104 mm saw blades, trimming cutters, R-scraper and straight scraper blades, corner-trim cutters and Ø150 mm polishing discs for the KAM35ALL. A compressor for 6–7 bar continuous duty and an adequately sized dust collector are separate capital items.

What is the difference between the KAM35ALL and the KAM35SMART?

The HOLZMANN KAM35ALL adds a corner trimming unit and a straight scraper alongside the R-scraper that the KAM35SMART already has, and takes wider 55 mm tape on panels up to 50 mm thick against 48 mm tape and 45 mm panels. The KAM35ALL is correspondingly larger at 3705 mm and 945 kg against 2790 mm and 655 kg, and needs five extraction ports instead of one.

Is the KAM35ALL or the KAM215EPSV the better buy?

The HOLZMANN KAM35ALL is the better buy where a completely finished, corner-rounded edge matters more than throughput, since it does corner trimming that the KAM215EPSV does not. The KAM215EPSV is the better buy for sustained volume, feeding at 13 m/min against 8 m/min with 0.75 kW / 18000 rpm trimming units. Both occupy similar floor space, so the decision is output versus finish.
