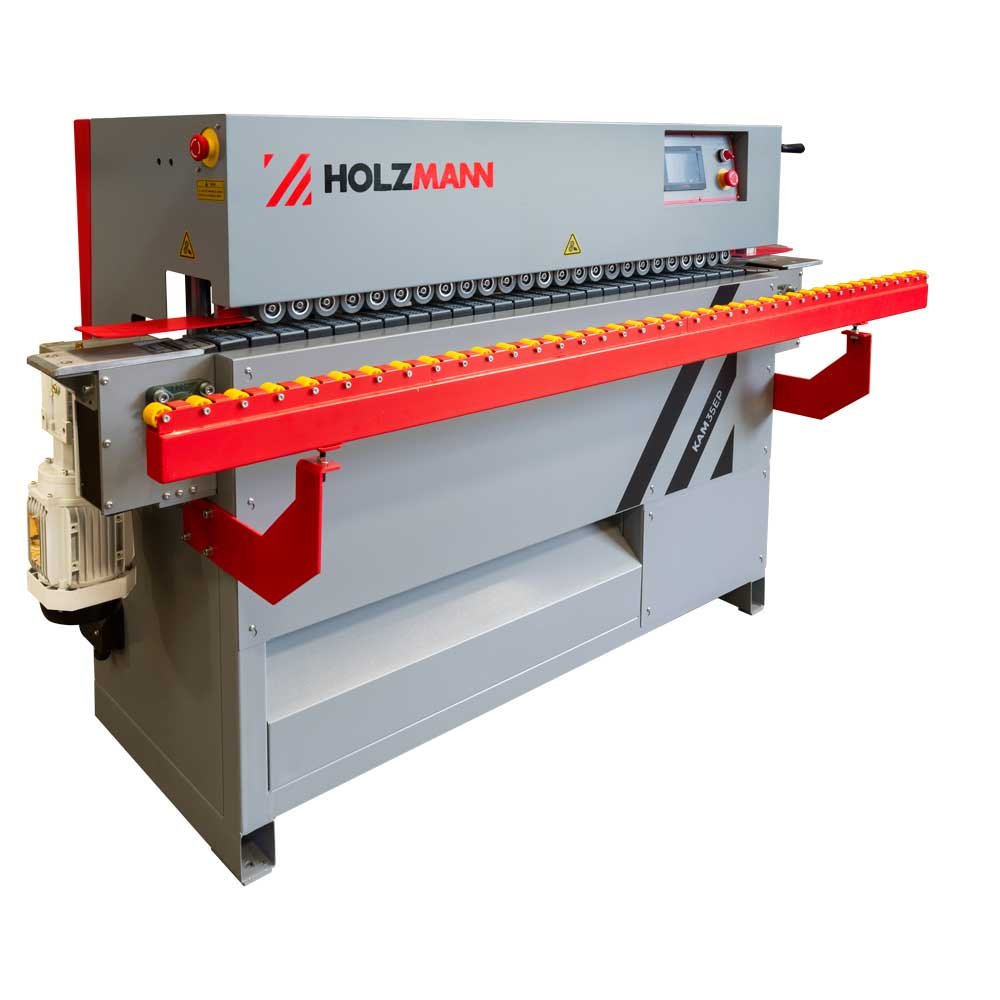

HOLZMANN KAM35EP Automatic Edge Banding Machine with End Trimming
KAM35EP
The HOLZMANN KAM35EP is a one-sided automatic edge banding machine with a heated glue tank, an automatic end trim saw, a double trimming unit and a polishing unit, feeding at 8 m/min on a 3960 W connected load. The KAM35EP has no pre-milling unit, runs on 400 V three-phase supply and is supplied on quotation.
Price on the KAM35EP is moved by the trimming and saw tooling package, spare polishing discs, freight of a 560 kg gross crate to site, unloading and positioning, and whether commissioning and operator training are included.
ფასის მოთხოვნაWhere the KAM35EP sits between the KAM35P and the pre-milling models
The HOLZMANN KAM35EP is the KAM35 model that adds automatic end trimming without stepping up to a pre-milling machine. Against the KAM35P below it, the KAM35EP gains a crosscut saw unit that cuts the edge tape at the front and rear of the panel automatically — the job the KAM35P leaves to a hand trimmer — and lifts the maximum edge thickness from 2 mm to 3 mm. Against the KAM35ESV and KAM35SMART above it, the KAM35EP still has no pre-milling unit and no scraper.
What that means on the finished edge
Skipping pre-milling is a decision about panel quality, not a defect. Without a pre-milling unit the KAM35EP glues the tape onto the panel edge exactly as the saw left it, so results depend directly on how clean and square the cut from the panel saw is. Shops running a well-set scoring saw get a good bond; shops working from rough or slightly bowed edges will see glue lines. The KAM35EP compensates at the other end with a polishing unit running top and bottom at 1400 rpm on 0.18 kW motors, which the KAM35ESV does not have.
Working capacity of the KAM35EP
The KAM35EP processes edge tape 15–48 mm wide and 0.4–3 mm thick on panels 12–45 mm thick, minimum 70 mm long and 80 mm wide, at a constant 8 m/min chain-conveyor feed. The end-trim saw uses a 0.37 kW motor, the double trimming unit 0.35 kW per unit at 12000 rpm. Adhesive temperature is set electronically at the touch panel on the heated glue tank.
Services and footprint
The KAM35EP takes a 400 V three-phase supply with a 3960 W connected load and compressed air at 6 bar. Extraction is a single Ø50 mm port, which is smaller than the Ø100 mm ports used further up the range and should be checked against the hose sizes already in the shop. Overall dimensions are 2350 x 1050 x 1320 mm at 850 mm working height, with a net weight of 495 kg.
ძირითადი მახასიათებლები
- Automatic crosscut saw unit at 0.37 kW cuts the tape at the front and rear of the panel — the KAM35P uses a hand trimmer
- Double trimming unit at 0.35 kW per unit and 12000 rpm for the top and bottom overhang
- Polishing unit top and bottom at 0.18 kW per unit and 1400 rpm
- Heated glue tank with electronic temperature setting at the touch display and direct glue delivery
- Tape 15–48 mm wide and 0.4–3 mm thick on panels 12–45 mm thick, minimum workpiece 70 x 80 mm
- Constant 8 m/min chain conveyor panel feed on a 3960 W connected load
- Compact 2350 x 1050 x 1320 mm footprint at 850 mm table height and 495 kg net
- Supplied with 2 saw blades (ø104 x ø22 x 3), 2 polishing discs (ø150 mm) and 2 trimming cutters
ტექნიკური მახასიათებლები
- Motor power S1 (W)
- 3960
- Voltage
- 400 V / 50 Hz
- Feed speed
- 8 m/min
- Table height (mm)
- 850
- Dust collector port (mm)
- 1 x Ø 50
- Total dimensions (mm)
- 2350 x 1050 x 1320
- Min. workpiece length (mm)
- 70
- Min. workpiece width (mm)
- 80
- Min. workpiece thickness (mm)
- 12
- Max. workpiece thickness (mm)
- 45
- Edge width (mm)
- 15 - 48
- Edge thickness (mm)
- 0.4 - 3
- Required air pressure (bar)
- 6
- Sound pressure level (dB(A))
- 78
- Gross weight (kg)
- 560
- Net weight (kg)
- 495
- Packaging width (mm)
- 645
- Packaging length (mm)
- 2000
- Packaging height (mm)
- 1235
- EAN code
- 9120132140359
უპირატესობები
- Automatic end trimming removes the hand-trimmer step that the cheaper KAM35P still requires
- Handles 3 mm edge tape where the KAM35P stops at 2 mm, so heavier ABS for kitchen carcasses is within range
- Includes a polishing unit that the more expensive, pre-milling KAM35ESV does not have
გასათვალისწინებელი
- No pre-milling unit, so edge quality depends entirely on how clean and square the panel saw cut is
- No scraper unit, so cutter marks on radiused tape are not cleaned up mechanically
- The single Ø50 mm extraction port is smaller than the Ø100 mm ports elsewhere in the range and may not match existing shop hoses
