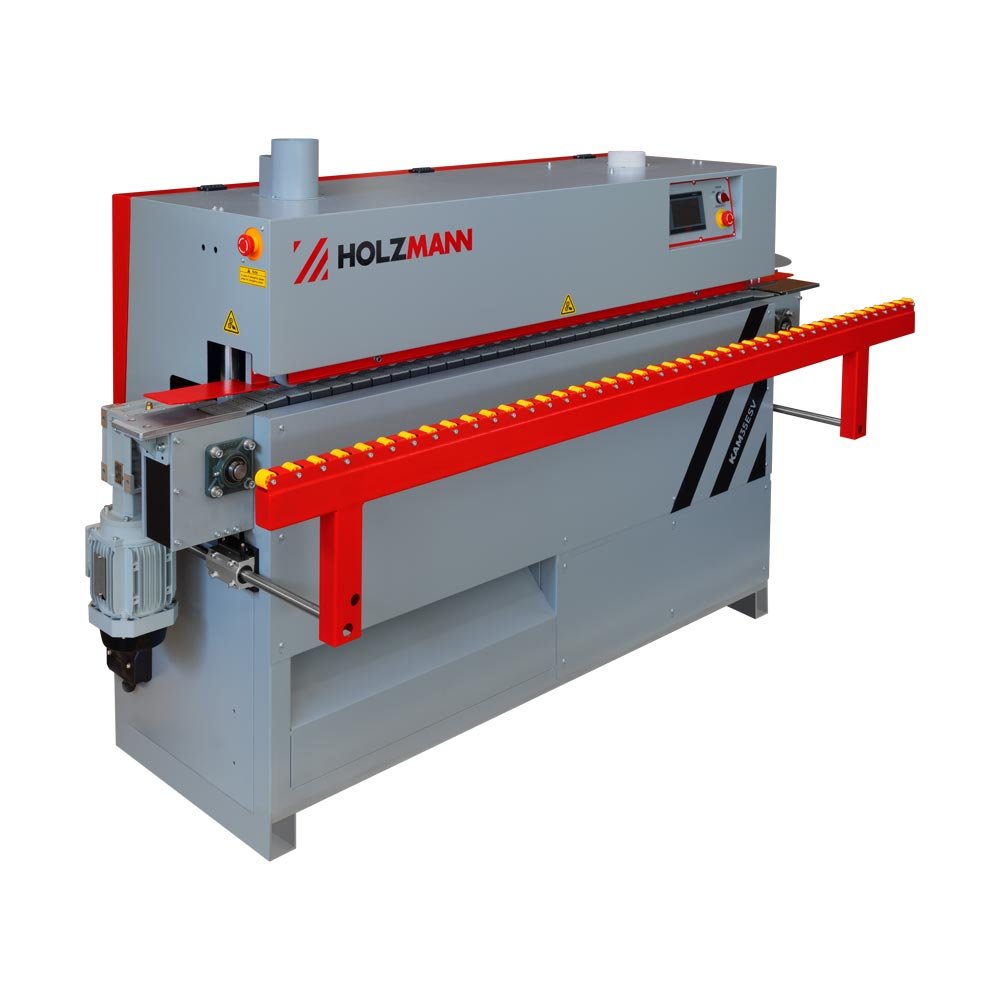

HOLZMANN KAM35ESV Compact Edge Banding Machine with Pre-Milling

KAM35ESV

The HOLZMANN KAM35ESV is a compact one-sided automatic edge banding machine with a pre-milling unit, heated glue application, end trimming, double trimming and a straight scraper, in 2625 x 1315 x 1315 mm at 560 kg net. The KAM35ESV has no polishing unit, runs on 400 V three-phase supply and is supplied on quotation.

ფასი მოთხოვნით

Price on the KAM35ESV is moved by the pre-milling and trimming tooling package, spare straight scraper blades, freight of a 637 kg gross crate to site, unloading and positioning, and whether commissioning and operator training are included.

ფასის მოთხოვნა

The KAM35ESV brings pre-milling into the compact KAM35 format

The HOLZMANN KAM35ESV is the first model in the KAM35 range with a pre-milling unit, and that is the reason to choose it over the KAM35EP. Two Ø80 mm cutters running in opposite directions, each on a 1.1 kW motor at 12000 rpm, skim the panel edge square and clean immediately before glue is applied, so the KAM35ESV is far less dependent on the quality of the cut coming off the panel saw than the non-pre-milling models below it.

No polishing unit — know this before ordering

The KAM35ESV finishes with a straight scraper and stops there. Where the KAM35SMART and KAM35ALL carry a spray unit and a polishing unit running at 1400 rpm to bring the tape to a clean sheen, the KAM35ESV leaves that final step to be done by hand or skipped. For shops banding painted or matt-finish carcasses that is often irrelevant; for gloss PVC and visible furniture fronts it is a real gap, and buyers wanting a polished edge should specify the KAM35SMART instead. In exchange the KAM35ESV is shorter and lighter than either — 2625 x 1315 x 1315 mm and 560 kg net.

Units and capacity

The KAM35ESV processes edge tape 15–55 mm wide and 0.4–3 mm thick on panels from 12 to 50 mm thick, minimum 70 mm long and 80 mm wide, at a chain-conveyor feed of 8 m/min. The line is pre-milling, heated glue tank with electronic temperature control at the touch display, pressure rollers, crosscut saw for the front and rear tape ends on a 0.37 kW motor at 12000 rpm, a double trimming unit at 0.35 kW per unit and 12000 rpm, then the straight scraper top and bottom. Supplied tooling includes two pre-milling cutters, two saw blades, four straight scrapers and two trimming cutters.

Installation requirements

The KAM35ESV needs a 400 V three-phase supply for its 6180 W connected load and compressed air at 6–7 bar. Two Ø100 mm extraction ports must be connected — pre-milling generates chip volume that a small collector will not handle.

ძირითადი მახასიათებლები

Pre-milling unit with two counter-rotating Ø80 mm cutters, 1.1 kW per unit at 12000 rpm
Crosscut saw unit at 0.37 kW and 12000 rpm for the front and rear tape ends
Double trimming unit at 0.35 kW per unit and 12000 rpm for the top and bottom overhang
Straight scraper unit top and bottom; no polishing unit on this model
Tape 15–55 mm wide and 0.4–3 mm thick on panels 12–50 mm thick, minimum workpiece 70 x 80 mm
Compact 2625 x 1315 x 1315 mm footprint at 850 mm table height and 560 kg net
6180 W on 400 V three-phase, 8 m/min chain conveyor feed, 78 dB(A) sound power
Supplied with 2 pre-milling cutters, 2 saw blades, 4 straight scrapers and 2 trimming cutters

ტექნიკური მახასიათებლები

Motor power S1 (W): 6180
Voltage: 400 V / 50 Hz
Feed speed: 8 m / min
Table height (mm): 850
Dust collector port (mm): 2 x Ø 100
Total dimensions (mm): 2625 x 1315 x 1315
Min. workpiece length (mm): 70
Min. workpiece width (mm): 80
Min. workpiece thickness (mm): 12
Max. workpiece thickness (mm): 50
Edge width (mm): 15-55
Edge thickness (mm): 0.4-3
Required air pressure (bar): 6-7
Sound power level (dB(A)): 78
Gross weight (kg): 637
Net weight (kg): 560
Packaging width (mm): 725
Packaging length (mm): 2200
Packaging height (mm): 1248
EAN code: 9120132141523

უპირატესობები

Pre-milling makes edge quality independent of how clean the panel saw cut is — the biggest single quality step in the KAM35 range
Takes 55 mm tape on panels up to 50 mm thick, the same capacity as the far larger KAM35ALL
At 2625 mm and 560 kg it is the smallest and lightest pre-milling machine in the range, so it fits shops the KAM35SMART would not

გასათვალისწინებელი

No polishing unit and no spray unit — glue residue and scraper marks on gloss tape must be dealt with by hand
No corner trimming, so corners are finished manually
Two Ø100 mm extraction ports and a pre-mill producing real chip volume mean a properly sized dust collector is mandatory

ხშირად დასმული კითხვები

How much does the HOLZMANN KAM35ESV cost?

The HOLZMANN KAM35ESV is supplied on quotation rather than at a published price. The price of the KAM35ESV is moved by the tooling package specified for the pre-milling and trimming units, spare straight scraper blades, freight of a 637 kg gross crate to site in Georgia, unloading and positioning, and whether commissioning and operator training are included in the offer.

What is the lead time and availability for the KAM35ESV?

The HOLZMANN KAM35ESV is built to order at the factory in Austria. HOLZMANN currently lists this model as unavailable on its own webshop, which in a quotation model means availability is confirmed with the factory before the order is placed. Confirm the current lead time for the KAM35ESV when requesting a quote.

What installation does the KAM35ESV need?

The HOLZMANN KAM35ESV measures 2625 x 1315 x 1315 mm at 850 mm table height and weighs 560 kg net, so it needs a level floor, mechanical handling to position it, and infeed and outfeed space beyond the machine length. Services are a 400 V three-phase connection made by a qualified electrician for the 6180 W load, compressed air at 6–7 bar, and both Ø100 mm extraction ports connected to an adequately sized collector.

What tooling and consumables should I budget for separately with the KAM35ESV?

Budget separately for hot-melt adhesive granulate and edge tape stock, plus replacement Ø80 mm pre-milling cutters, Ø104 mm saw blades, trimming cutters and straight scraper blades for the KAM35ESV. Because the KAM35ESV has no polishing unit, also allow for hand cleaning materials for gloss tape. A compressor for 6–7 bar and a dust collector sized for a pre-milling machine are separate items.

Does the KAM35ESV polish the finished edge?

No — the HOLZMANN KAM35ESV finishes at the straight scraper and has no spray or polishing unit. That is the deliberate difference from the KAM35SMART, which adds a detergent spray and polishing discs running at 1400 rpm. For matt, painted and foil edges the KAM35ESV result is usually acceptable; for gloss PVC fronts, specify the KAM35SMART or KAM35ALL instead.

Why does the KAM35ESV take wider tape than the KAM35SMART?

It is a capacity difference in how the models are built, not an error: the HOLZMANN KAM35ESV takes edge tape 15–55 mm wide on panels up to 50 mm thick, while the KAM35SMART is limited to 15–48 mm tape on panels up to 45 mm. A shop banding thick worktop panels may therefore need the KAM35ESV or KAM35ALL even though the KAM35SMART has more finishing units.
