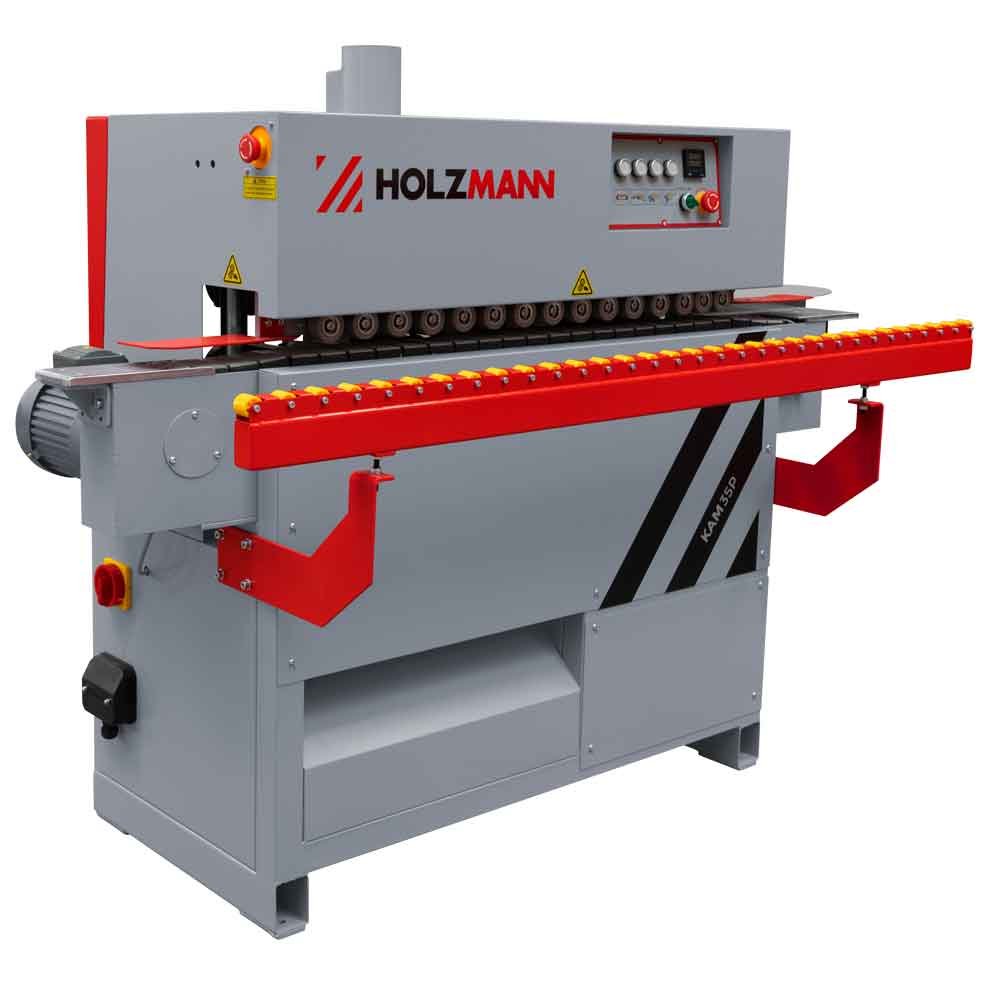

HOLZMANN KAM35P Compact Automatic Edge Banding Machine

KAM35P

The HOLZMANN KAM35P is the entry model of the KAM35 range, a one-sided automatic edge banding machine with a heated glue tank, pressure rollers, a double trimming unit and a polishing unit, feeding at 7 m/min in 2060 mm of machine length. The KAM35P runs on 400 V three-phase supply and is supplied on quotation.

ფასი მოთხოვნით

Price on the KAM35P is moved by the trimming and polishing tooling package, spare polishing discs and cutters, freight of a 430 kg gross crate to site, unloading and positioning, and whether commissioning and operator training are included.

ფასის მოთხოვნა

The KAM35P is the entry model in the HOLZMANN KAM35 range

The HOLZMANN KAM35P is the machine for a shop that is moving off hand-held edge banding for the first time. The KAM35P glues, presses, trims and polishes automatically on a chain-conveyor feed, but deliberately leaves out the two units that make the larger KAM35 models longer and dearer: there is no pre-milling unit and no end-trim saw. Edge ends are cut with the hand trimmer supplied with the machine.

What the KAM35P will and will not handle

Capacity is where the KAM35P must be matched honestly to the work. The KAM35P takes edge tape 15–48 mm wide and 0.4–2 mm thick — note the 2 mm ceiling, which is lower than every other machine in the KAM35 range and rules out the 3 mm ABS commonly specified for heavy-duty kitchen carcasses. Panels run from 12 to 43 mm thick, minimum 70 mm long and 80 mm wide, at a feed rate of 7 m/min. That covers thin PVC and melamine tape on standard 16 and 18 mm board, which is the bulk of routine furniture work.

Units on the machine

The KAM35P carries a heated glue tank with electronic temperature control set from the display, feeding adhesive directly onto straight workpieces, followed by pressure rollers, a double trimming unit working top and bottom with a 0.37 kW motor per unit at 1380 rpm, and a polishing unit top and bottom with 0.18 kW motors at 1400 rpm. Two Ø150 mm polishing discs, two cutters for the double trimming unit and the hand trimmer are supplied with the KAM35P.

Supply, extraction and space

The KAM35P runs on 400 V three-phase with a total connected load of 3390 W and requires compressed air at 6 bar, so a workshop compressor is part of the installation and not an accessory. A single Ø100 mm port connects to extraction. At 2060 x 1050 x 1320 mm and 366 kg net, the KAM35P is the shortest machine in the range and fits into a bay where the 3705 mm KAM35ALL would not, but infeed and outfeed run-off space still has to be allowed on top of the machine length.

ძირითადი მახასიათებლები

Heated glue tank with electronic temperature control from the display and direct glue delivery to the workpiece
Double trimming unit working top and bottom at 0.37 kW per unit and 1380 rpm
Polishing unit top and bottom at 0.18 kW per unit and 1400 rpm
Automatic constant panel feed at 7 m/min on a chain conveyor drive
Tape 15–48 mm wide and 0.4–2 mm thick on panels 12–43 mm thick, minimum workpiece 70 x 80 mm
Shortest machine in the KAM35 range at 2060 x 1050 x 1320 mm and 366 kg net
3390 W connected load on 400 V three-phase with a single Ø100 mm extraction port
Supplied with 2 polishing discs (ø150 mm), 2 trimming cutters and a hand trimmer for the edge band

ტექნიკური მახასიათებლები

Motor power S1 (W): 3390
Voltage: 400 V / 50 Hz
Feed speed: 7 m/min
Table height (mm): 850
Dust collector port (mm): 100
Total dimensions (mm): 2060 x 1050 x 1320
Min. workpiece length (mm): 70
Min. workpiece width (mm): 80
Min. workpiece thickness (mm): 12
Max. workpiece thickness (mm): 43
Edge width (mm): 15 - 48
Edge thickness (mm): 0.4 - 2
Required air pressure (bar): 6
Sound power level (dB(A)): 78
Gross weight (kg): 430
Net weight (kg): 366
Packaging width (mm): 645
Packaging length (mm): 1680
Packaging height (mm): 1270
EAN code: 9120132140342

უპირატესობები

Shortest and lightest edge bander in this HOLZMANN group at 2060 mm and 366 kg, so it fits workshops the other models cannot
Still includes a polishing unit, so the finished edge is cleaner than the price position suggests
Supplied with the hand trimmer, polishing discs and trimming cutters needed to start work

გასათვალისწინებელი

Edge tape is limited to 2 mm thick, which rules out the 3 mm ABS used on heavy-duty kitchen carcasses
No end-trim saw — tape ends are cut by hand on every panel, which becomes the bottleneck as volume rises
No pre-milling and no scraper, so edge quality depends on the panel saw cut and radiused tape is not cleaned mechanically

ხშირად დასმული კითხვები

How much does the HOLZMANN KAM35P cost?

The HOLZMANN KAM35P is supplied on quotation rather than at a published price, as an imported machine ordered to requirement. The price of the KAM35P is moved by the trimming and polishing tooling package specified, spare polishing discs and cutters, freight of a 430 kg gross crate to site in Georgia, unloading and positioning, and whether commissioning and operator training are included in the offer.

What is the lead time and availability for the KAM35P?

The HOLZMANN KAM35P is built to order at the factory in Austria. HOLZMANN currently lists this model as unavailable on its own webshop; in a quotation model that means availability is confirmed with the factory before the order is placed rather than that the machine cannot be supplied. Confirm the current lead time for the KAM35P when requesting a quote.

What installation does the KAM35P need?

The HOLZMANN KAM35P measures 2060 x 1050 x 1320 mm at 850 mm table height and weighs 366 kg net, so it needs a level floor, a pallet truck to position it, and infeed and outfeed space beyond the machine length. Services are a 400 V three-phase connection made by a qualified electrician for the 3390 W load, compressed air holding 6 bar, and the single Ø100 mm extraction port connected before first use.

What tooling and consumables should I budget for separately with the KAM35P?

Budget separately for hot-melt adhesive granulate and edge tape stock up to 2 mm thick, plus replacement Ø150 mm polishing discs, trimming cutters and hand trimmer blades for the KAM35P. A compressor sized to hold 6 bar continuously and a dust collector for the Ø100 mm port are separate capital items if the workshop does not already have them.

Can the KAM35P apply 3 mm ABS edge tape?

No — the HOLZMANN KAM35P is limited to edge tape 0.4 to 2 mm thick, the lowest ceiling in the KAM35 range. For 3 mm ABS, which is common on heavy-duty kitchen carcasses and worktops, the KAM35EP, KAM35ESV, KAM35SMART and KAM35ALL all take 0.4 to 3 mm tape instead.

Does the KAM35P trim the ends of the edge tape automatically?

No — the HOLZMANN KAM35P has no crosscut end-trim saw, and the tape ends are cut with the hand trimmer supplied with the machine. That is acceptable at low volume but becomes the bottleneck as output rises; the KAM35EP is the next model up and adds an automatic 0.37 kW crosscut saw unit for the front and rear ends.
