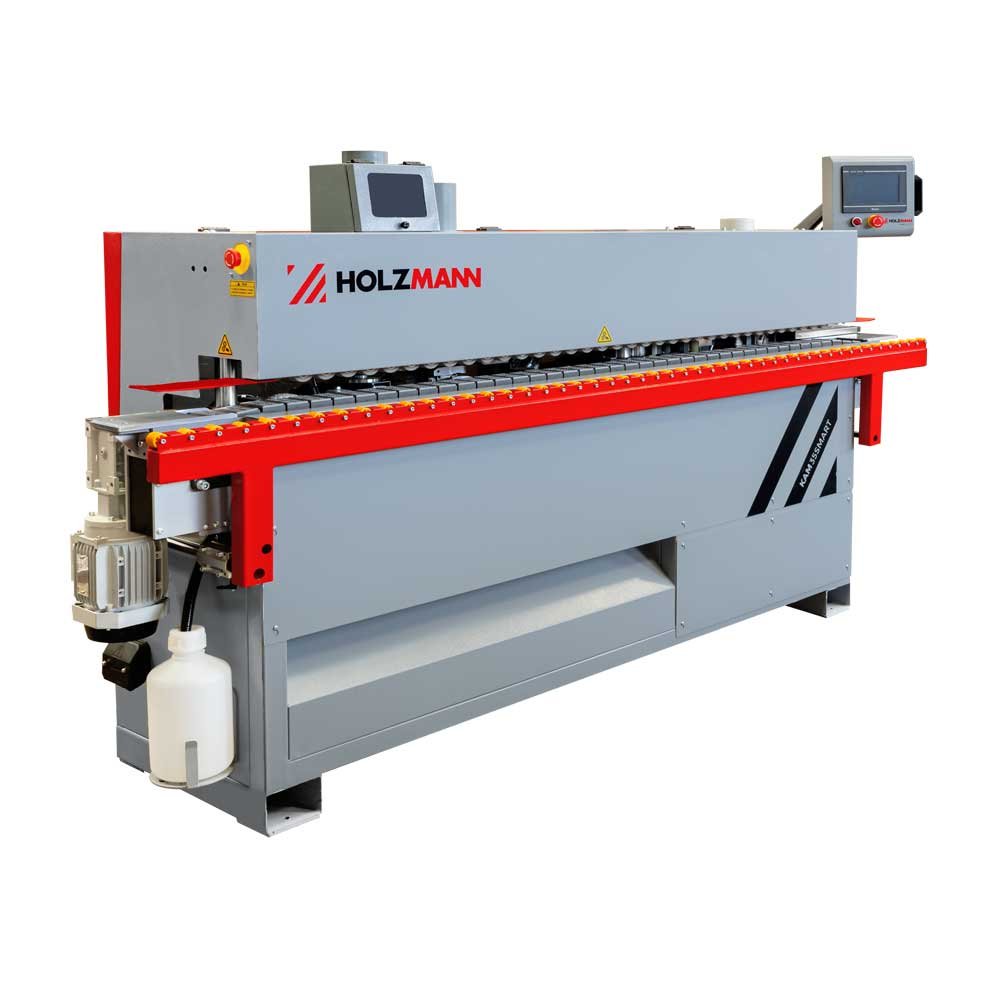

HOLZMANN KAM35SMART Compact Edge Banding Machine

KAM35SMART

The HOLZMANN KAM35SMART is a compact one-sided automatic edge banding machine carrying pre-milling, heated glue application, end trimming, double trimming, a switchable R-scraper, a detergent spray unit and polishing in 2790 mm of machine length. The KAM35SMART runs on 400 V three-phase supply and is supplied on quotation.

ფასი მოთხოვნით

Price on the KAM35SMART is moved by the pre-milling and trimming tooling package, spare R-scrapers and polishing discs, freight of a 745 kg gross crate to site, unloading and positioning, and whether commissioning and operator training are included.

ფასის მოთხოვნა

The KAM35SMART is the complete compact edge bander in the range

The HOLZMANN KAM35SMART is the KAM35 model that carries every processing stage except corner rounding. Running front to back, the KAM35SMART pre-mills the panel edge with two counter-rotating Ø80 mm cutters at 12000 rpm on 1.1 kW motors, applies adhesive from a heated glue tank set at the touch display, presses the tape with pressure rollers, cuts the tape ends with a 0.37 kW crosscut saw, trims the overhang top and bottom, radius-scrapes, sprays detergent and polishes — all in 2790 mm of machine length.

The R-scraper and spray unit are the practical additions

Two units distinguish the KAM35SMART from the KAM35ESV below it. The R-scraper works the top and bottom of the tape and can be switched in or out by the operator, which matters because a scraper set for radiused tape will mark flat 0.4 mm PVC; being able to disable it without stripping the unit down saves setup time on a shop running mixed tape. Ahead of the polishing unit, a spray unit applies detergent so the 0.18 kW polishing discs at 1400 rpm lift glue residue rather than smear it. Neither unit exists on the KAM35ESV, which finishes at the straight scraper.

Capacity, and where the KAM35ALL takes over

The KAM35SMART handles edge tape 15–48 mm wide and 0.4–3 mm thick on panels 12–45 mm thick, minimum 70 mm long and 80 mm wide, at 8 m/min. Those last two figures set the boundary with the top model: the KAM35ALL takes 55 mm tape on panels up to 50 mm and adds a corner trimming unit. A shop banding standard 16–38 mm carcass board will not reach the KAM35SMART limits; a shop making thick worktops or rounded-corner fronts will.

Supply, noise and footprint

The KAM35SMART requires 400 V three-phase for a 6160 W connected load, compressed air at 6–7 bar and a Ø100 mm extraction connection. Measured sound pressure is 78 dB(A). Overall size is 2790 x 1320 x 1380 mm at 850 mm table height, with a net weight of 655 kg.

ძირითადი მახასიათებლები

Pre-milling unit with two counter-rotating Ø80 mm cutters, 1.1 kW per unit at 12000 rpm
Crosscut saw unit at 0.37 kW and 12000 rpm cuts the tape ends front and rear
Double trimming unit at 0.35 kW per unit and 12000 rpm for the top and bottom overhang
R-scraper unit top and bottom that the operator can switch in or out without stripping the unit
Detergent spray unit ahead of the polishing unit; polishing at 0.18 kW per unit and 1400 rpm
Tape 15–48 mm wide and 0.4–3 mm thick on panels 12–45 mm thick, minimum workpiece 70 x 80 mm
Chain conveyor drive giving constant 8 m/min feed; glue temperature set on the touch display
6160 W on 400 V three-phase, 78 dB(A) sound pressure, 2790 x 1320 x 1380 mm at 655 kg net

ტექნიკური მახასიათებლები

Motor power S1 (W): 6160
Voltage: 400 V / 50 Hz
Feed speed: 8 m/min
Table height (mm): 850
Dust collector port (mm): Ø 100
Total dimensions (mm): 2790 x 1320 x 1380
Min. workpiece length (mm): 70
Min. workpiece width (mm): 80
Min. workpiece thickness (mm): 12
Max. workpiece thickness (mm): 45
Edge width (mm): 15-48
Edge thickness (mm): 0.4 - 3
Required air pressure (bar): 6-7
Sound pressure level (dB(A)): 78
Gross weight (kg): 745
Net weight (kg): 655
XL-Versand (oversize freight): 17
Packaging width (mm): 725
Packaging length (mm): 2625
Packaging height (mm): 1250
EAN code: 9120058379611

უპირატესობები

Carries every KAM35 processing stage except corner trimming, in 2790 mm — a finished, polished edge from a compact machine
The R-scraper can be switched out by the operator, so changing between flat and radiused tape is a setting rather than a strip-down
At 78 dB(A) sound pressure and 655 kg it is quiet and manageable for a small shop compared with the industrial KAM215 machines

გასათვალისწინებელი

No corner trimming unit, so corners are finished by hand — the step up to the KAM35ALL buys that
Edge tape is limited to 48 mm wide and panels to 45 mm thick, narrower than the 55 mm / 50 mm of the KAM35ALL and KAM35ESV
400 V three-phase plus a compressor holding 6–7 bar are both required, which rules out shops on single-phase supply

ხშირად დასმული კითხვები

How much does the HOLZMANN KAM35SMART cost?

The HOLZMANN KAM35SMART is supplied on quotation rather than at a published price. The price of the KAM35SMART is moved by the tooling package specified for the pre-milling and trimming units, spare R-scrapers and polishing discs, freight of a 745 kg gross crate to site in Georgia, unloading and positioning, and whether commissioning and operator training are included in the offer.

What is the lead time and availability for the KAM35SMART?

The HOLZMANN KAM35SMART is built to order at the factory in Austria. HOLZMANN currently lists this model as unavailable on its own webshop, which in a quotation model means availability is confirmed with the factory before the order is placed. Confirm the current lead time for the KAM35SMART when requesting a quote.

What installation does the KAM35SMART need?

The HOLZMANN KAM35SMART measures 2790 x 1320 x 1380 mm at 850 mm working height and weighs 655 kg net, so it needs a level floor, mechanical handling to position it, and infeed and outfeed space beyond the machine length. Services are a 400 V three-phase connection made by a qualified electrician for the 6160 W load, compressed air holding 6–7 bar, and a Ø100 mm extraction connection.

What tooling and consumables should I budget for separately with the KAM35SMART?

Budget separately for hot-melt adhesive granulate, edge tape stock, and the detergent used by the spray unit, plus replacement Ø80 mm pre-milling cutters, Ø104 mm saw blades, trimming cutters, R-scraper blades and Ø150 mm polishing discs for the KAM35SMART. A compressor sized for 6–7 bar continuous duty and a dust collector are separate capital items if not already installed.

What is the difference between the KAM35SMART and the KAM35ESV?

The HOLZMANN KAM35SMART adds a detergent spray unit and a polishing unit that the KAM35ESV does not have, and uses a switchable R-scraper where the KAM35ESV has a straight scraper. In exchange the KAM35ESV is shorter and lighter at 2625 mm and 560 kg, and takes wider 55 mm tape on panels up to 50 mm, against 48 mm tape and 45 mm panels on the KAM35SMART.

Does the KAM35SMART round the corners of the edge tape?

No — the HOLZMANN KAM35SMART has no corner trimming unit, so the leading and trailing corners of the applied tape are finished by hand. The KAM35ALL is the model in the same range that adds an automatic corner trimming unit, and it also takes 55 mm tape on panels up to 50 mm thick.
