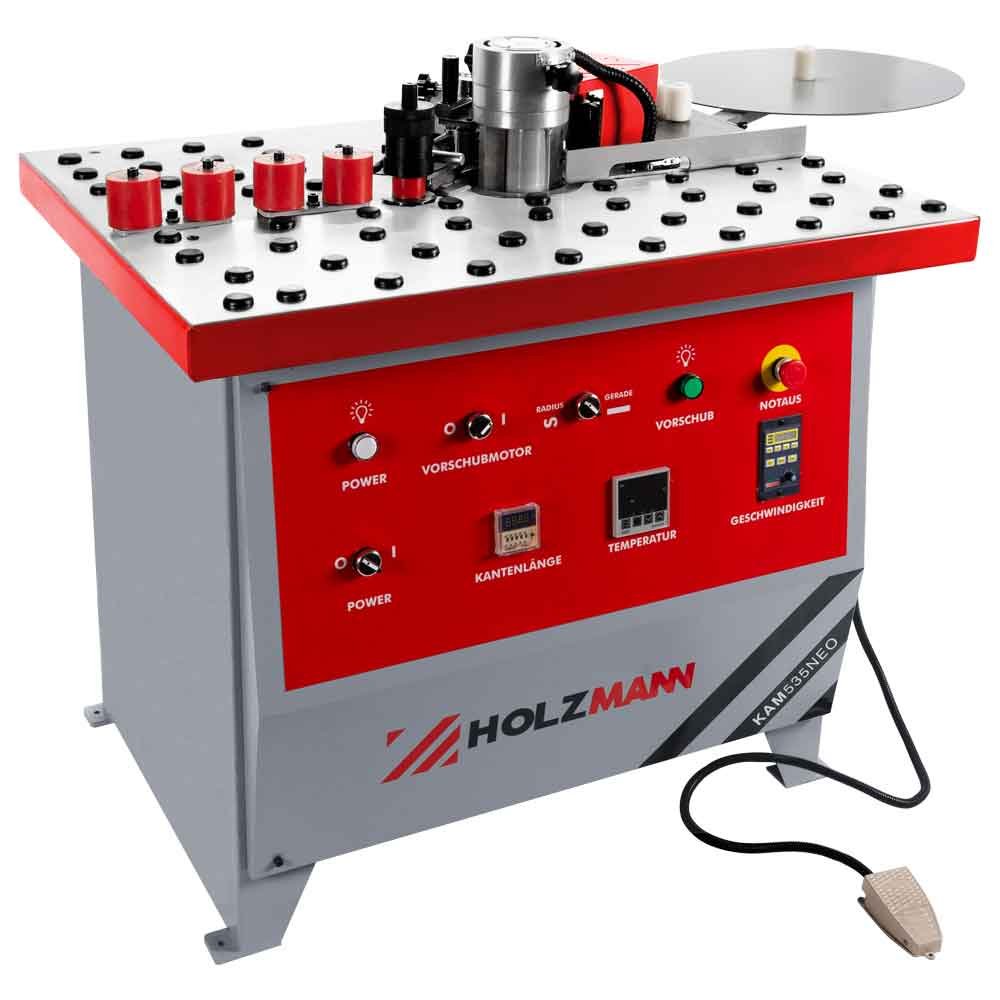

HOLZMANN KAM535NEO Semi-Automatic Edge Banding Machine

KAM535NEO

The HOLZMANN KAM535NEO does its own feeding: a 250 W drive draws the panel past the glue pot at 0-15 m/min while the operator steers, down to a 20 mm inside radius. Its 1000 x 700 mm table sits at 850 mm and carries panels 10-50 mm thick, the 1750 W tank holds 170 C, and the machine wants 400 V plus 4-5 bar of air.

ფასი მოთხოვნით

The quoted price for the KAM535NEO is driven by the 400 V three-phase installation work and the compressed air supply the machine requires, by any commissioning and operator training included, and by freight and customs clearance into Georgia for a 161 kg gross machine.

ფასის მოთხოვნა

What the HOLZMANN KAM535NEO does

The HOLZMANN KAM535NEO applies edge banding to straight and curved panel edges in one semi-automatic pass. Glue is delivered directly onto both surfaces, the edge band and the laminate, which is what allows the KAM535NEO to follow a curve down to a 20 mm inside radius instead of only straight edges. The heater is rated 1750 W with an electronically adjustable working temperature of 170 °C, and a 250 W feed motor drives the band at 0-15 m/min so the operator sets the pace to suit the material.

Who the KAM535NEO suits

The KAM535NEO fits a furniture workshop producing shaped fronts, rounded worktops, curved shelves and one-off kitchen parts, where a fully automatic straight-line bander cannot help. Panels from 10 mm to 50 mm thick and edge tape from 13 mm to 54 mm wide and 0.3 mm to 3 mm thick are within range, which covers PVC, ABS, melamine and thin veneer tape. The 1000 x 700 mm table at 850 mm working height supports the panel while the operator guides it, and the machine runs under 70 dB(A).

KAM535NEO compared with the automatic KAM series

The KAM535NEO is the curve-capable machine in the HOLZMANN edge banding range. The automatic models such as the KAM35SMART are full lines with pre-milling, cross-cut saw, trimming, scraping and polishing units, but they handle straight edges only and weigh several hundred kilograms. The KAM535NEO at 133 kg net does the gluing and the pressing on straight and curved work, and leaves trimming and finishing to a hand trimmer. A shop needing both should keep the KAM535NEO alongside an automatic line for shaped parts.

Installation requirements

The KAM535NEO needs a 400 V three-phase supply and a compressed air line of 4-5 bar. Net weight is 133 kg and gross shipping weight is 161 kg.

ძირითადი მახასიათებლები

  • Powered feed at 0-15 m/min from a 250 W drive motor - the panel is drawn through the machine rather than pushed past a hand-held head
  • 20 mm minimum inside radius, tighter than the 25 mm of the portable KAM65PRO, with glue delivered on both sides onto edge band and laminate together
  • 1750 W glue heater held electronically at a 170 C working temperature
  • 1000 x 700 mm support table at 850 mm working height, taking panels from 10 to 50 mm thick
  • Edge tape 13 to 54 mm wide and 0.3 to 3 mm thick
  • 400 V / 3 / 50 Hz three-phase supply plus a 4-5 bar compressed air line - the only machine of the two KAM models needing either
  • 133 kg net / 161 kg gross: a fixed workstation rather than a machine that travels to site
  • Sound pressure level published below 70 dB(A)

ტექნიკური მახასიათებლები

Motor power (S1)
250 W feed motor (+1750 W heater)
Voltage
400 V / 3 / 50 Hz
Feed speed
0-15 m/min
Table size
1000 x 700 mm
Table height
850 mm
Min. workpiece thickness
10 mm
Max. workpiece thickness
50 mm
Edge width
13-54 mm
Edge thickness
0.3-3 mm
Required air pressure
4-5 bar
Working temperature
170 °C
Min. curve radius
20 mm
Sound pressure level
< 70 dB(A)
Net weight
133 kg
Gross weight
161 kg
EAN code
9120058379741

უპირატესობები

  • Glues curved edges down to a 20 mm radius, which automatic straight-line banders cannot do
  • Stepless 0-15 m/min feed with electronically controlled 170 °C gluing temperature
  • 133 kg and under 70 dB(A), so the KAM535NEO fits a normal workshop bay quietly

გასათვალისწინებელი

  • Three-phase 400 V only, with no single-phase version
  • Also requires a 4-5 bar compressed air supply, so a compressor is a hidden extra cost
  • No pre-milling, cross-cut, trimming or polishing units, so edges must be finished by hand

ხშირად დასმული კითხვები

What power supply does the HOLZMANN KAM535NEO need?
The HOLZMANN KAM535NEO requires a 400 V / 3 / 50 Hz three-phase supply for its 1750 W heater and 250 W feed motor. The KAM535NEO is not offered as a 230 V single-phase machine, so a workshop with only single-phase power needs a three-phase connection installed before the KAM535NEO can be used.
Can the KAM535NEO band curved panels?
Yes. The KAM535NEO glues both straight and curved edges, down to a minimum inside radius of 20 mm, because glue is delivered directly onto the edge band and the laminate on both sides as the panel passes.
What edge tape does the KAM535NEO take?
The KAM535NEO takes edge tape 13-54 mm wide and 0.3-3 mm thick, applied at 0-15 m/min, on workpieces 10-50 mm thick. That range covers PVC, ABS, melamine and thin veneer tape.
Does the KAM535NEO need compressed air?
Yes. The KAM535NEO requires a compressed air supply of 4-5 bar in addition to its 400 V electrical connection, so a workshop compressor and air line must be in place at the machine.
What does the KAM535NEO not do?
The KAM535NEO glues and presses the edge band; the KAM535NEO does not pre-mill the panel edge, does not cross-cut the tape ends with a saw unit, and does not trim, scrape or polish the applied edge. Those operations are done by hand or on a fully automatic machine such as the KAM35SMART. The KAM535NEO also does not take panels thicker than 50 mm.
How heavy is the KAM535NEO and what floor space does it need?
The KAM535NEO weighs 133 kg net and 161 kg gross, with a 1000 x 700 mm table at 850 mm working height, so the KAM535NEO stands as a permanent workstation rather than a machine that is moved between jobs.
What does a HOLZMANN KAM535NEO cost to buy and to install?
The HOLZMANN KAM535NEO is quoted, not shelf-priced, and the installed cost is more than the machine alone. The drivers on a KAM535NEO quotation are the 400 V / 3 / 50 Hz three-phase connection and the 4-5 bar compressed air supply that have to be brought to the machine, whether commissioning and operator training are included, the starting stock of edge tape and glue granulate, and freight and customs clearance into Georgia.
How long is the lead time for a HOLZMANN KAM535NEO?
The HOLZMANN KAM535NEO is built to order and the current lead time is confirmed at quotation. Because the KAM535NEO is a 161 kg gross machine packed 1050 x 830 x 1100 mm, the freight arrangements form part of the same quotation as the build time.
What has to be ready before a HOLZMANN KAM535NEO is commissioned?
Before a HOLZMANN KAM535NEO can be commissioned, the workshop needs a 400 V / 3 / 50 Hz three-phase outlet at the machine position, a compressed air line holding 4-5 bar, a level floor area that takes the 1000 x 700 mm table with infeed and outfeed clearance for the longest panel, and glue granulate on hand for the 170 C tank. Getting the power and air in first is what keeps a KAM535NEO commissioning to a single visit.
What consumables and extra tooling should be budgeted with a KAM535NEO?
Budget alongside the HOLZMANN KAM535NEO for hot-melt glue granulate as an ongoing consumable, edge tape in the 13-54 mm widths and 0.3-3 mm thicknesses the KAM535NEO accepts, and hand trimming and scraping tools - the KAM535NEO glues and presses the tape but does not trim, scrape or polish the applied edge. Panel pre-milling, where it is needed, remains a separate machine.
