HOLZMANN KAP305JL Mitre Saw (305 mm Blade)
KAP305JL
Depth of cut is where the HOLZMANN KAP305JL beats the KAP305ECO: 115 mm at 90 degrees and 85 mm at 45 degrees, against 105 and 60 mm. A 1600 W S1 / 2000 W S6 (25%) motor turns the 305 mm blade at 4200 min-1, an extendable table extension with rear stop sets repeat lengths, and extraction connects at 68 mm.
What moves the KAP305JL price is the quantity ordered, whether a USK2760 or USK1710 machine stand is added, the replacement 305 mm TCT blades specified beyond the one supplied, and the extraction unit chosen for the 68 mm port.
ფასის მოთხოვნაHOLZMANN KAP305JL: a 305 mm mitre saw for timber, panels and trim

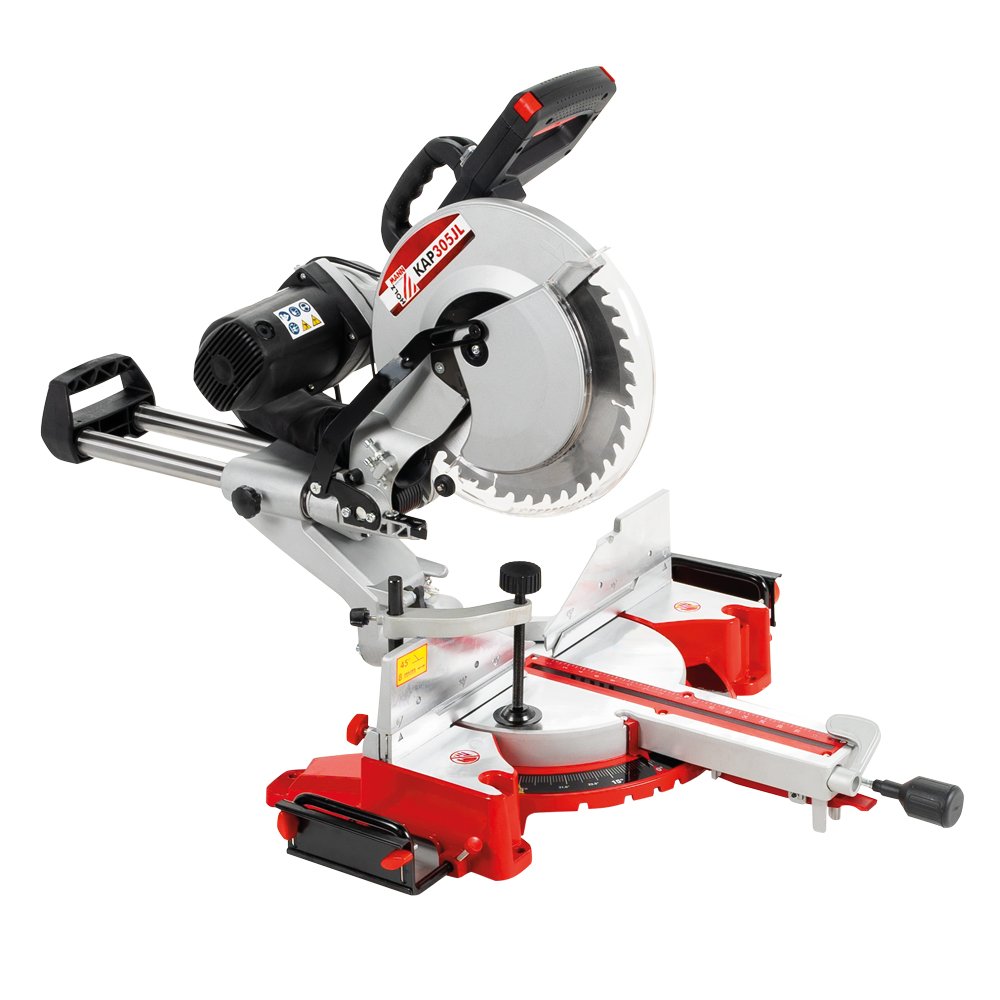

The HOLZMANN KAP305JL is a crosscut and mitre saw for repetitive angle cuts in solid timber, glued laminated panels and trim. A 305 mm blade turning at 4200 rpm on a 1600 W continuous (S1) motor, rated 2000 W S6 (25%) for short peaks, gives the KAP305JL a maximum cut of 330 mm wide by 115 mm high at 90 degrees, and 240 mm by 85 mm at 45 degrees. The saw unit swivels and rotates left and right through -45 to +45 degrees, so mitres and bevels are set on the machine rather than marked out by hand.
Who the KAP305JL suits
The KAP305JL fits joineries, door shops and site carpenters cutting studs, battens, skirting, door stiles and panel offcuts to length all day. At 21 kg net and 895 x 900 x 700 mm the KAP305JL sits on a bench or on the optional USK2760 or USK1710 machine stand, which makes it practical for a workshop that also travels to site. A precision-mounted double guide rail system carries the head, and the extendable table extension with rear stop supports long stock for repeat lengths. The laser marks the cut line before the blade enters the workpiece, and the included depth stop turns the KAP305JL into a groove-cutting saw for housings and rebates.
How the KAP305JL differs from the KAP305ECO
Both saws use a 305 mm blade, but the KAP305JL cuts deeper: 115 mm at 90 degrees and 85 mm at 45 degrees, against 105 mm and 60 mm on the HOLZMANN KAP305ECO. The KAP305JL also takes a Ø 68 mm extraction hose where the KAP305ECO offers only a Ø 37.5 mm port, which matters when the saw is tied into a workshop dust collector. The KAP305ECO answers back with a higher continuous rating of 1800 W S1. Buyers who want table-sawing as well should compare the HOLZMANN TK305 combined table and mitre saw, whose mitre capacity stops at 180 mm.
Delivery and extraction
The KAP305JL is delivered with a TCT saw blade, the marking laser and the table extension, plus the depth stop for groove cuts. Dust extraction is not included: the Ø 68 mm port needs a separate extractor or bag. Sound power is 108 dB(A) and sound pressure 95 dB(A), so hearing protection is mandatory in continuous use.
ძირითადი მახასიათებლები
- Cutting height 115 mm at 90 degrees and 85 mm at 45 degrees - 10 mm and 25 mm more than the KAP305ECO
- 1600 W S1 / 2000 W S6 (25%) motor turning the blade at 4200 min-1
- Cutting length 330 mm at 90 degrees and 240 mm at 45 degrees
- 68 mm dust collector port, sized for a workshop extraction hose
- Extendable table extension with rear stop for repeat lengths on long timber
- Precision-mounted double guide rail system for repeatable crosscuts
- Delivered with TCT saw blade, marking laser and table extension; depth stop for groove cuts
- Expandable with the USK2760 or USK1710 machine stand; 21 kg net, 895 x 900 x 700 mm
ტექნიკური მახასიათებლები
- Motor power S1
- 1600 W
- Motor power S6
- 2000 W S6 (25%)
- Voltage
- 230 V (single-phase, variant KAP305JL_230V)
- Speed
- 4200 min-1
- Appliance class
- IP 20
- Cable length
- 1.2 m
- Saw blade
- 305 mm
- Max. cutting length 90°
- 330 mm
- Max. cutting length 45°
- 240 mm
- Max. cutting height 90°
- 115 mm
- Max. cutting height 45°
- 85 mm
- Dust collector port
- Ø 68 mm
- Total dimensions
- 895 x 900 x 700 mm
- Sound power level
- 108 dB(A)
- Sound pressure level
- 95 dB(A)
- Net weight
- 21 kg
- Gross weight
- 25 kg
- EAN code
- 9120039900742
უპირატესობები
- Deeper cut than the KAP305ECO: 115 mm at 90 degrees and 85 mm at 45 degrees
- Diameter 68 mm extraction port connects properly to a workshop dust collector
- Laser line, depth stop and table extension with rear stop are all included
გასათვალისწინებელი
- Available only as the 230 V single-phase KAP305JL_230V - no 400 V three-phase version
- Dust extraction is not included; the Ø 68 mm port needs a separate extractor or bag
- 330 mm maximum cut at 90 degrees is too narrow for sheet material or wide glued panels
