RLE3000 — HOLZMANN RLE3000 Cyclone Dust Collector (3200 m³/h) 1 / 4

HOLZMANN

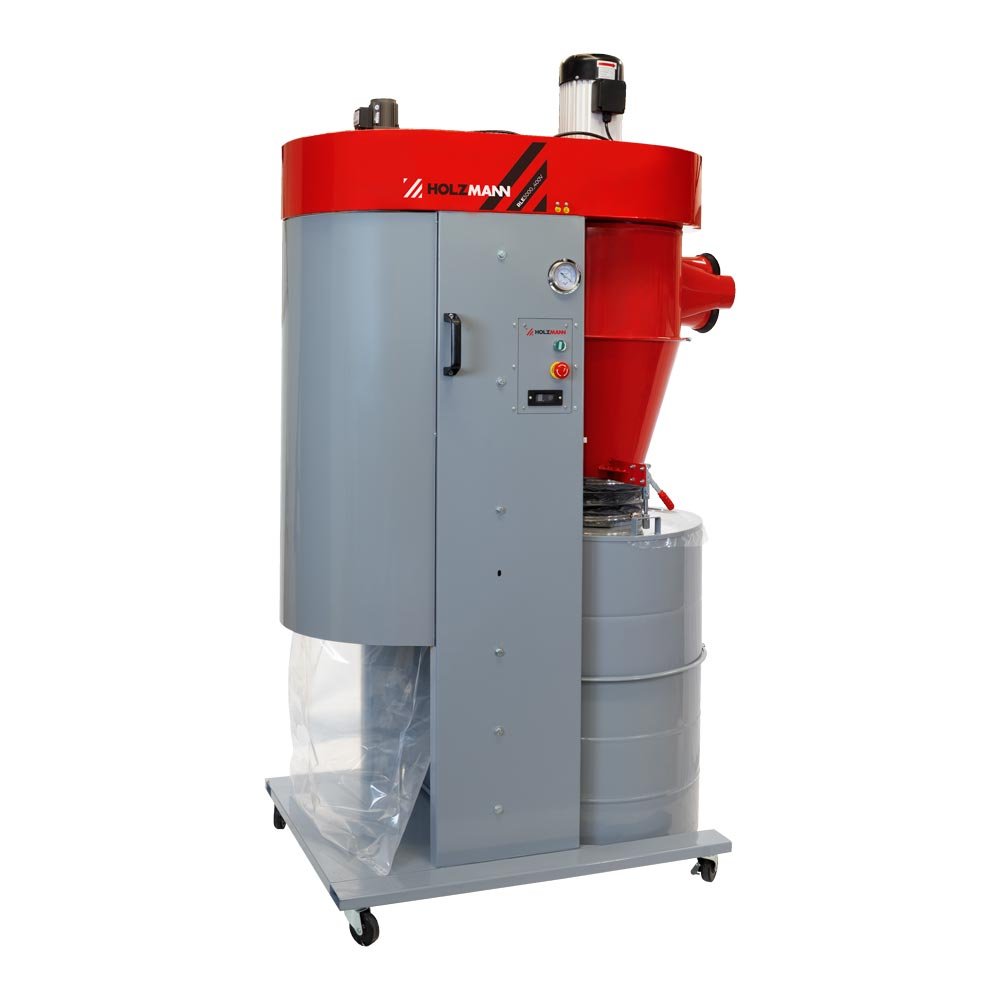

HOLZMANN RLE3000 Cyclone Dust Collector (3200 m³/h)

RLE3000

A 400 mm fan wheel - the only one in the RLE line - gives the HOLZMANN RLE3000 3200 m³/h at 2470 Pa, the strongest vacuum of the three cyclones. The 3000 W 400 V machine empties into a 227 l wheeled bin, 76 l more than the RLE2200, and stands 2190 mm tall, so headroom rather than floor area sets the siting.

ფასი მოთხოვნით

Price on the RLE3000 is driven by the 3000 W 400 V three-phase build and its 400 mm impeller, the ducting package - Ø200 mm main, Ø100 mm branches, blast gates, flexible connectors - quoted with it, spare cartridges and collection bags, and delivery plus rigging a 197 kg gross, 2190 mm tall machine into position.

ფასის მოთხოვნა

What the HOLZMANN RLE3000 does

The HOLZMANN RLE3000 is the larger of HOLZMANN’s two cyclone extraction systems and is specified for a workshop whose machines produce chips faster than a bag unit can swallow them. Air entering the RLE3000 at 3200 m³/h and 2470 Pa passes first through the cyclone separator, which throws the chips into a 227 l collection container, and only then reaches the filter cartridge — the reason a cyclone holds its airflow while a bag collector slowly loses it. A 3000 W motor on 400 V drives the Ø400 mm fan wheel, and the RLE3000 stands 2190 mm high on a 1320 x 900 mm footprint at 153 kg net.

Running the RLE3000 in a working shop

The RLE3000 connects a maximum of three woodworking machines through its inlet adapter, with one Ø200 mm and three Ø100 mm ports, and is switched on and off by remote control from wherever the operator is standing. The static vacuum pressure gauge shows filter loading at a glance, and after the RLE3000 is switched off the cartridge is cleaned automatically, with the freed dust captured in the collection filter bag. The 227 l container has wheels and a sight glass, so the fill level is checked without opening the RLE3000, and the machine itself is supplied with a transport device on wheels for positioning during installation.

How the RLE3000 differs from the RLE2200

The RLE3000 buys capacity with height. Against the RLE2200’s 2200 W, 2800 m³/h, 2220 Pa, Ø365 mm fan wheel and 151 l container, the RLE3000 offers 3000 W, 3200 m³/h, 2470 Pa, a Ø400 mm wheel and a 227 l container — a container half as large again, which matters most in a shop where the planer runs all day. The cost is 2190 mm of overall height against 1840 mm and 153 kg against 136 kg. Where ceiling height allows it, the RLE3000 is the better long-run choice; where it does not, the RLE2200 does the same job with a smaller bin.

Delivery

The RLE3000 is delivered with cyclone separator and filter cartridge, remote control, collection filter bag, wheeled collection container and transport wheels.

ძირითადი მახასიათებლები

  • 400 mm fan wheel - the largest in the RLE line, and the only one above 365 mm
  • 3200 m³/h at 2470 Pa, the highest airflow and highest vacuum of the three RLE cyclones
  • 3000 W motor on 400 V / 50 Hz three-phase
  • 227 l collection container - 76 l more than the RLE2200, so fewer emptying stops per shift
  • 2190 mm overall height: this model needs the ceiling clearance the RLE2200 does not
  • 153 kg net / 197 kg gross on a 1320 x 900 mm floor plan, with a Ø200 mm main and 3 x Ø100 mm branches
  • Cyclone separator ahead of the filter cartridge, with automatic cartridge cleaning after switch-off
  • Remote control start/stop, and a wheeled collection container with a sight glass for the fill level

ტექნიკური მახასიათებლები

Motor power (S1)
3000 W
Voltage
400 V / 50 Hz
Extraction ports
1 x Ø200 mm | 3 x Ø100 mm
Overall dimensions (max. height)
1320 x 900 x 2190 mm
Suction performance
3200 m³/h
Fan wheel diameter
Ø400 mm
Static vacuum pressure
2470 Pa
Container / bag capacity
227 l | 80 l
Sound power level
87 dB(A)
Sound pressure level
74 dB(A)
Net weight
153 kg
Gross weight
197 kg
EAN code
9120132141134

უპირატესობები

  • 3200 m³/h at 2470 Pa — the strongest cyclone in the HOLZMANN RLE range for up to three machines
  • 227 l wheeled container means far fewer emptying stops than a chip-bag collector
  • Automatic cartridge cleaning and pressure gauge remove most routine filter maintenance

გასათვალისწინებელი

  • 400 V three-phase only, with a 3000 W draw that a light shop supply may not carry
  • 2190 mm overall height rules it out of low-ceilinged workshops
  • 153 kg and a 1320 x 900 mm footprint — installation, not a machine you move around

ხშირად დასმული კითხვები

Is the HOLZMANN RLE3000 available in 230 V?
No — the HOLZMANN RLE3000 is supplied only as RLE3000_400V, a 3000 W three-phase machine on 400 V / 50 Hz. A workshop without a three-phase connection cannot run the RLE3000 and should consider the 230 V HOLZMANN ABS4500MF, which reaches 4500 m³/h on single-phase power, instead.
What does the HOLZMANN RLE3000 not do?
The HOLZMANN RLE3000 does not serve more than three machines and is not a general-purpose vacuum. The RLE3000's inlet adapter is rated for a maximum of three woodworking machines connected to extraction hoods; it is not intended for floor cleaning, liquids or hot material, and it does not operate on single-phase supply.
Should I buy the HOLZMANN RLE3000 or the RLE2200?
Choose on airflow, container volume and ceiling height. The HOLZMANN RLE3000 gives 3200 m³/h at 2470 Pa from a 400 mm fan wheel and a 3000 W motor, with a 227 l container - the higher-throughput unit with fewer emptying stops. The RLE2200 gives 2800 m³/h at 2220 Pa from a 365 mm wheel and a 2200 W motor, with a 151 l container, and stands 1840 mm tall against the RLE3000's 2190 mm, which settles the decision in a low-ceilinged shop. Both are 400 V three-phase, share the Ø200 mm main plus 3 x Ø100 mm branch ports, and publish the same 87 / 74 dB(A) sound levels, so noise and connections are not a deciding factor between them.
How is the HOLZMANN RLE3000 emptied?
The HOLZMANN RLE3000 collects separated chips in a 227 l wheeled container fitted with a sight glass, so the fill level of the RLE3000 is checked at a glance and the container is rolled out for emptying. Dust released by the automatic cartridge cleaning cycle is caught in the collection filter bag.
Does the HOLZMANN RLE3000 clean its own filter?
Yes — the HOLZMANN RLE3000 performs automatic filter cartridge cleaning after the unit has been switched off, which keeps the RLE3000's extraction performance consistent without the operator beating out a filter by hand.
How much room does the HOLZMANN RLE3000 need in the workshop?
The HOLZMANN RLE3000 occupies 1320 x 900 mm of floor and stands 2190 mm high, weighing 153 kg net, so the RLE3000 needs a bay with adequate ceiling clearance plus room in front to withdraw the 227 l container.
What determines the price of a HOLZMANN RLE3000?
The HOLZMANN RLE3000 is quoted rather than listed at a price. The drivers are the 3000 W 400 V three-phase build with its 400 mm impeller, the ducting package taken with it - Ø200 mm main, Ø100 mm branches, blast gates and flexible connectors - spare filter cartridges and collection bags, and delivery plus rigging a 197 kg gross machine 2190 mm tall into its bay. Send us the machine list and ceiling height and we will price the RLE3000 into a workable layout.
What is the lead time on a HOLZMANN RLE3000?
The HOLZMANN RLE3000 is built to order and its current lead time is confirmed at quotation. Because the RLE3000 is often bought with ducting and installation, we confirm the machine date and the site work date together so the system is commissioned in one go.
What does commissioning a HOLZMANN RLE3000 involve?
Commissioning a HOLZMANN RLE3000 starts with the ceiling: the machine is 2190 mm tall on a 1320 x 900 mm plan and needs clearance above for the cartridge plus space in front for the 227 l container. Then a 400 V / 50 Hz three-phase supply is run to the bay with rotation verified, the Ø200 mm main is ducted to 3 x Ø100 mm branches with blast gates, and the branches are balanced so the 3200 m³/h reaches the hoods.
What has to be budgeted alongside an RLE3000?
Alongside the HOLZMANN RLE3000 budget for the Ø200 mm main and Ø100 mm branch ducting, blast gates, flexible connectors and machine-side hoods, the three-phase electrical installation to the collector bay, and consumables - filter cartridges and collection filter bags. Where ceiling height is marginal, allow for the structural or layout work needed to accommodate 2190 mm, or price the 1840 mm RLE2200 as the alternative.
