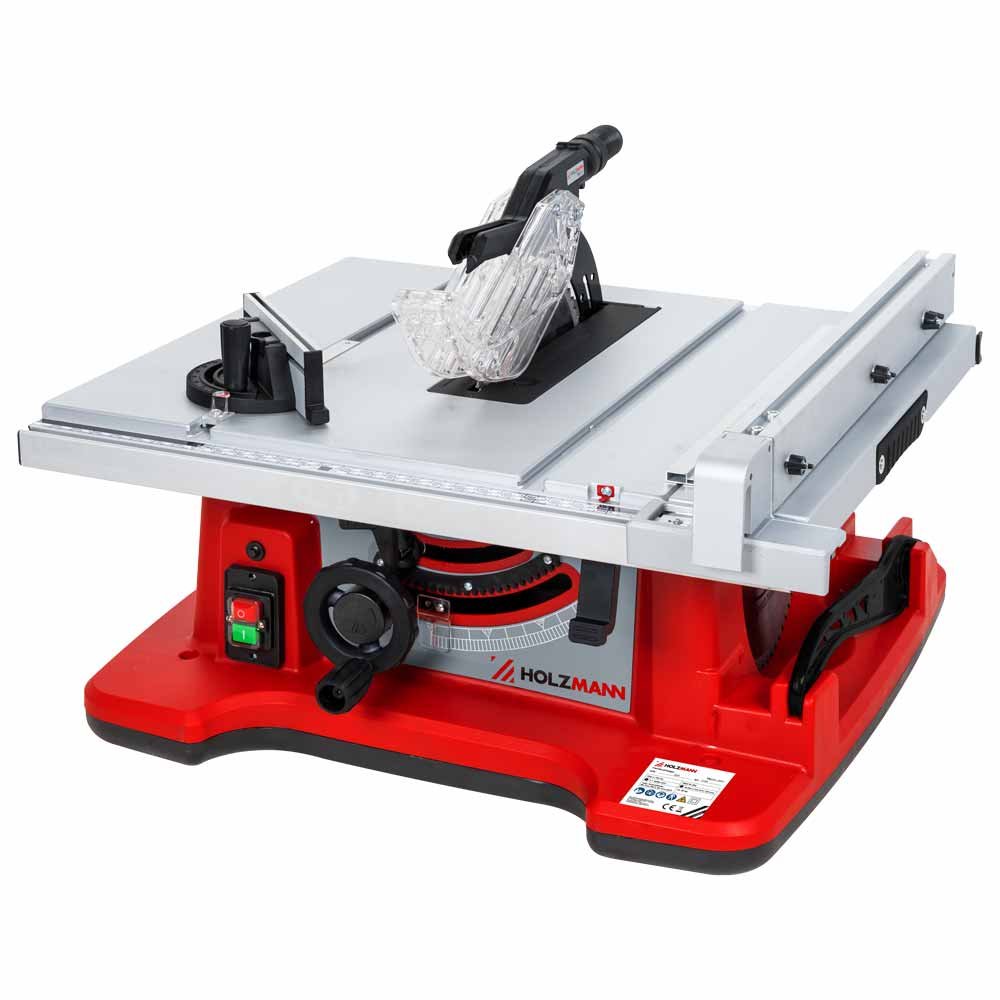

TK255 — HOLZMANN TK255 Portable Table Saw – 254 mm Blade, Extending Aluminium Table 1 / 4

HOLZMANN

HOLZMANN TK255 Portable Table Saw – 254 mm Blade, Extending Aluminium Table

TK255

At 25 kg net the TK255 is the one saw in this group a single person carries to the job, and it still rips to 650 mm at the parallel fence. Its aluminium table opens from 675 mm to 1040 mm, the 254 x 30 x 2.8 mm blade turns at 4800 min-1 for 80 mm of cut at 90 degrees, and 1800 W runs off a normal 230 V socket.

ფასი მოთხოვნით

TK255 pricing is driven by order quantity, by freight and customs on a 31 kg carton of 805 x 755 x 405 mm, and by any additional Ø254 x Ø30 mm blades or a workshop vacuum taken with it; the TK255 exists in a single 230 V configuration, so there is no voltage option to price.

ფასის მოთხოვნა

Portable 254 mm table saw

The HOLZMANN TK255 is a portable table saw designed for cutting wood and wood-based materials with a Ø254 x Ø30 x 2.8 mm blade, reaching 80 mm cutting height at 90 degrees and 50 mm at 45 degrees. An 1800 W continuous-duty motor, rated 2200 W at S6 20 percent, turns the blade at 4800 rpm, and the whole TK255 weighs 25 kg net – light enough for one person to carry to an installation job and back again.

The extending aluminium table

The TK255 uses an aluminium table that extends from 675 mm to 1040 mm in width, with 560 mm of depth and up to 650 mm of rip capacity at the parallel fence. That extension is what allows a 25 kg saw to support a cabinet side or a door panel while it is cut. Integrated storage positions on the TK255 hold an additional saw blade, the rip fence and the mitre gauge, so the accessories travel with the machine instead of being left on site. Table height of the TK255 is 310 mm, which makes it a bench-mounted or trestle-mounted saw rather than a free-standing one.

The TK255 against the bench-standing HOLZMANN saws

The TK255 is the machine to take to the site; the TS200 and TS250 are the machines to leave in the workshop. The TK255 shares the 254 mm blade diameter and the 80 mm cutting height of the TS250, but delivers them at 25 kg on an aluminium table rather than 108 kg on cast iron, and at 310 mm table height rather than on a full stand. For repetitive workshop ripping, the cast iron machines will hold a setting better and damp vibration more effectively; for fitting and installation work, the TK255 is the one that actually arrives on site.

Power, extraction and noise

The TK255 runs on 230 V / 50 Hz single-phase power and is built as a class II appliance. Extraction is through a Ø40 mm connection, intended for a workshop vacuum cleaner rather than a bag-type chip collector. Declared sound power level of the TK255 is 92.6 dB(A) and sound pressure level 105.6 dB(A), so hearing protection is required whenever the saw is running.

ძირითადი მახასიათებლები

  • 25 kg net on a 310 mm-high aluminium table - a saw one person carries
  • 254 x 30 x 2.8 mm blade at 4800 min-1, cutting 80 mm at 90 degrees and 50 mm at 45 degrees
  • Aluminium table extends from 675 mm to 1040 mm, the second table dimension 560 mm
  • Rips up to 650 mm at the parallel fence, against 310 mm on the TKS500S
  • 1800 W S1 / 2200 W S6 (20%) on 230 V single phase, appliance class II
  • On-board storage positions for a spare saw blade, the rip fence and the mitre gauge
  • Ø40 mm suction connection sized for a workshop vacuum cleaner
  • Declared 92.6 dB(A) sound power and 105.6 dB(A) sound pressure level

ტექნიკური მახასიათებლები

Motor power S1
1800 W
Motor power S6
2200 W S6 (20%)
Voltage
230V 50Hz
Speed
4800 min-1
Appliance class
II
Table size
675-1040 x 560 mm
Table height
310 mm
Total dimensions
675-1040 x 750 x 460 mm
Max. cutting height at 90°
80 mm
Max. cutting height at 45°
50 mm
Max. cutting width at parallel fence
max. 650 mm
Saw blade
Ø254 x Ø30 x 2.8 mm
Dust collector port
40 mm
Sound power level
92.6 dB(A)
Sound pressure level
105.6 dB(A)
Net weight
25 kg
Gross weight
31 kg
EAN code
9120058375774

უპირატესობები

  • 25 kg net weight and a 230V class II motor make the TK255 genuinely portable to installation jobs
  • Aluminium table extends from 675 mm to 1040 mm, giving up to 650 mm rip capacity on a carried saw
  • Integrated storage for a spare blade, the rip fence and the mitre gauge keeps accessories with the machine

გასათვალისწინებელი

  • Aluminium table and 25 kg mass cannot damp vibration or hold a setting like the 108 kg cast iron TS250
  • Table height of only 310 mm means the TK255 must be set on a bench or trestles - it is not free-standing
  • Ø40 mm extraction port suits a vacuum cleaner only, and sound pressure of 105.6 dB(A) demands hearing protection

ხშირად დასმული კითხვები

What power supply does the HOLZMANN TK255 need?
The HOLZMANN TK255 runs from a standard 230 V / 50 Hz single-phase socket and is built as a class II appliance, with an 1800 W continuous rating and 2200 W at S6 20 percent duty. There is no 400V three-phase version of the TK255, which is exactly what makes it usable on an installation job where only a normal socket or an extension lead is available.
How wide can the HOLZMANN TK255 cut?
The TK255 rips to a maximum of 650 mm at the parallel fence - the widest published rip capacity of the saws in this group, against 310 mm on the TKS500S. Its aluminium table is listed at 675-1040 x 560 mm: the extending dimension runs from 675 mm to 1040 mm, and HOLZMANN gives 560 mm as the table width (earlier copy described 560 mm as table depth). Cutting height on the TK255 is 80 mm at 90 degrees and 50 mm at 45 degrees.
What does the TK255 not do?
The TK255 does not have a cast iron table, a sliding carriage or a scoring unit, so the TK255 will not hold a setting or damp vibration like a workshop saw and will not produce a chip-free melamine edge. Its 310 mm table height means the TK255 is not free-standing and must be set on a bench or trestles, and its Ø40 mm port is too small for a bag-type chip collector.
Where does the TK255 store its accessories?
The TK255 has integrated storage locations on the machine for an additional saw blade, the rip fence and the mitre gauge. Keeping the accessories on the TK255 itself is a practical detail for a saw that is moved between jobs, because it is the loose fence and gauge that normally get left behind.
Is the TK255 or the TS250 the better choice?
The TK255 and the TS250 share a 254 mm blade and 80 mm cutting height, but they answer different needs. The TK255 weighs 25 kg on an aluminium table and is carried to the job. The TS250 weighs 108 kg on a cast iron table with a 580 mm extension and 710 mm rip capacity, and stays in the workshop. Choose the TK255 for fitting and site work, the TS250 for daily workshop ripping.
What extraction and hearing protection does the TK255 require?
The TK255 has a Ø40 mm suction connection to which a vacuum cleaner can be attached, and no extraction unit is included. Because the declared sound power level of the TK255 is 92.6 dB(A) and the sound pressure level 105.6 dB(A), hearing protection must be worn whenever the machine is cutting.
What does a HOLZMANN TK255 cost?
The TK255 is priced by quotation rather than carrying a shelf price. What moves the number is order quantity, freight and customs clearance on a 31 kg carton, and any extras taken with it - spare Ø254 mm blades or a workshop vacuum for the Ø40 mm port. Because the TK255 is offered only in the 230 V configuration, there is no voltage variant to price against. Tell us how many you need and where they are going.
How quickly can a TK255 be delivered?
The TK255 is supplied to order and its current lead time is confirmed at the point of quotation, not published as a standing figure. Ask us when you enquire about the TK255 and we will confirm the position then, including transit into Georgia.
Does the TK255 need commissioning or installation work?
Very little. The TK255 is a 25 kg benchtop saw: it needs a solid bench or trestles at working height, a level stance so the aluminium table does not rock, an ordinary 230 V socket, and a workshop vacuum cleaner on the Ø40 mm port. No three-phase electrical work and no anchoring is involved, so installation cost on a TK255 is normally nil - we cover setup in handover.
What tooling and accessories should be budgeted alongside a TK255?
Budget alongside the TK255 for spare Ø254 x Ø30 x 2.8 mm saw blades, since blade choice governs finish quality far more than the motor does, and for a workshop vacuum cleaner if you do not already have one - the Ø40 mm port on the TK255 is sized for a vacuum, not for a bag-type chip collector. Hearing protection is also required at the declared 105.6 dB(A) sound pressure level.
