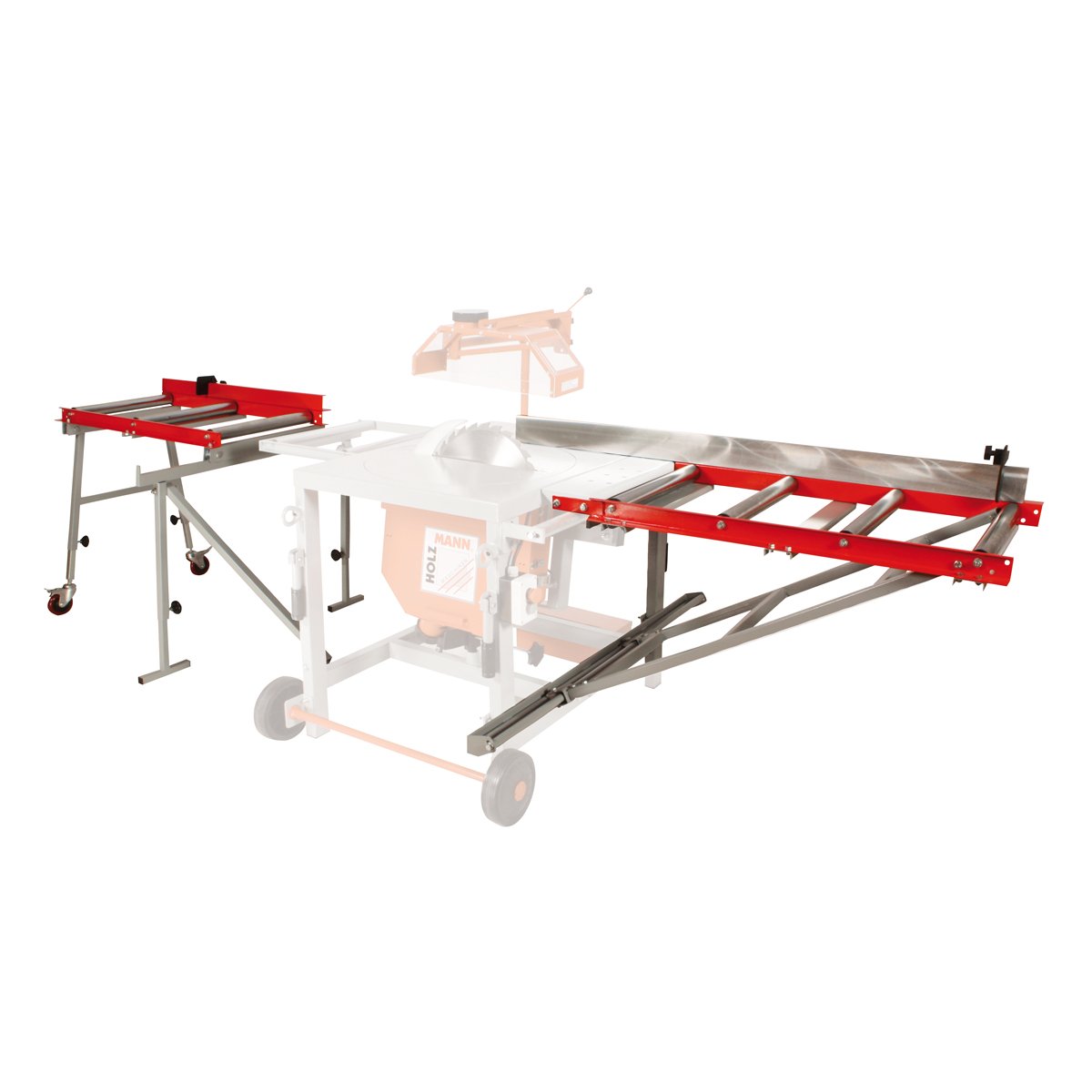

TS400ZAL — HOLZMANN TS400ZAL Extension Arm Set for Carpenter Table Saw

HOLZMANN

HOLZMANN TS400ZAL Extension Arm Set for Carpenter Table Saw

TS400ZAL

Not a saw at all: the TS400ZAL is the extension-arm set for the HOLZMANN carpenter table saw, adding fixed steel support so long timber is carried rather than hand-balanced through the cut. Fitted, it takes the working envelope to 3600 x 1400 x 1180 mm and weighs 60 kg net, 63 kg gross.

ფასი მოთხოვნით

Being a fabricated steel accessory with no motor or controls, the TS400ZAL is priced mainly by freight and Georgian customs on a 63 kg gross, 1520 mm long package, by whether it ships together with a saw on the same consignment or on its own, and by whether fitting and levelling to your existing saw are included in the order.

ფასის მოთხოვნა

What the HOLZMANN TS400ZAL extension arm set is

The TS400ZAL is an accessory, not a saw. The set consists of extension arms that bolt onto a HOLZMANN carpenter table saw so that long boards, roof battens and wide panels are carried on both sides of the blade instead of being balanced by the operator. Once the arms are fitted, the machine occupies total dimensions of 3600 x 1400 x 1180 mm, which is the figure a workshop should plan its floor space and material flow around before ordering.

Why a Georgian joinery adds extension arms

Extension arms earn their place in shops that cut long stock every day. Ripping 3 m framing timber or breaking down door blanks on a bare saw table means one person feeding and a second catching the offcut; with the TS400ZAL the workpiece stays supported through and beyond the cut, so the feed rate is steadier and the cut face is cleaner. Door manufacturers, roof-truss shops and general joineries that already own a HOLZMANN carpenter table saw are the natural buyers for the TS400ZAL.

How the TS400ZAL differs from a sliding table

The TS400ZAL should not be confused with a sliding carriage of the kind fitted to HOLZMANN panel saws. A sliding table moves the workpiece past the blade for squaring and crosscutting sheet material. The TS400ZAL does not move: the extension arm set is fixed support that widens and lengthens the area around the blade. Workshops whose main job is cutting melamine and MDF panels to size are better served by a panel saw with a carriage, while workshops cutting solid timber to length on a carpenter saw are the target for the TS400ZAL.

Delivery and installation

The TS400ZAL is supplied as an extension arm set weighing 60 kg net and 63 kg gross, referenced under model code TS400ZAL_400V for the carpenter table saw configuration it is matched to. Two people should handle assembly. The set contains no motor, no blade and no electrical parts, so no additional electrical work is needed at the wall; the arms simply mount to the existing saw frame and are levelled against the saw table before the first cut.

ძირითადი მახასიათებლები

  • Extension arm set for the HOLZMANN carpenter table saw - no motor, no blade, no fence and no cutting function of its own
  • Takes the fitted saw out to total working dimensions of 3600 x 1400 x 1180 mm
  • The TS400Z carpenter saw measures 1350 x 1100 x 1180 mm alone, so the arms add roughly 2250 mm of supported length at the same 1180 mm height
  • 60 kg net / 63 kg gross of fixed steel support, so long stock is carried through the cut instead of hand-balanced
  • Catalogued as TS400ZAL_400V to match the 400 V carpenter saw configuration, although the set itself takes no electrical connection
  • Identified by EAN 9120039902326 for parts ordering and warranty reference

ტექნიკური მახასიათებლები

Total dimensions
3600 x 1400 x 1180 mm
Net weight
60 kg
Gross weight
63 kg
EAN code
9120039902326

უპირატესობები

  • Turns an existing carpenter table saw into a machine that supports full-length timber, up to a 3600 mm overall working length
  • Purely mechanical: no wiring, no additional motor and nothing extra to service
  • 60 kg of fixed support means steadier feed and cleaner cut faces on long rips

გასათვალისწინებელი

  • Accessory only: the TS400ZAL is useless without a compatible HOLZMANN carpenter table saw
  • Adds a 3600 x 1400 mm footprint, which is a serious demand in a small Tbilisi workshop
  • At 60 kg the set needs two people and basic lifting gear to fit and align

ხშირად დასმული კითხვები

Does the HOLZMANN TS400ZAL need a 230V or 400V power supply?
The HOLZMANN TS400ZAL needs no power supply at all. The TS400ZAL is a mechanical extension arm set with no motor and no electrical parts; it is listed under model code TS400ZAL_400V only because it is matched to the 400V carpenter table saw configuration. The three-phase or single-phase question is settled by the saw itself, not by the TS400ZAL.
What does the HOLZMANN TS400ZAL not do?
The HOLZMANN TS400ZAL does not cut. The TS400ZAL contains no motor, no blade, no fence and no sliding carriage, and it cannot turn a bench into a saw. The TS400ZAL only extends and supports the working area of a carpenter table saw that the workshop already owns.
How much floor space does a saw fitted with the TS400ZAL need?
A carpenter table saw fitted with the HOLZMANN TS400ZAL reaches total dimensions of 3600 x 1400 x 1180 mm. A workshop should allow that footprint plus walking room on the infeed and outfeed sides before installing the TS400ZAL.
How heavy is the HOLZMANN TS400ZAL and can one person fit it?
The HOLZMANN TS400ZAL weighs 60 kg net and 63 kg gross. At 60 kg the TS400ZAL is a two-person assembly job; one person can manage individual arms, but lifting and aligning the complete set to the saw table is safer with two.
Which machine is the HOLZMANN TS400ZAL made for?
The HOLZMANN TS400ZAL is made for the HOLZMANN carpenter table saw range and is sold as an extension arm set for it. Buyers should confirm the exact saw model and configuration with the dealer before ordering the TS400ZAL, because the TS400ZAL is not a universal accessory for any table saw.
Is the HOLZMANN TS400ZAL delivered assembled?
The HOLZMANN TS400ZAL is delivered as a set for assembly, packed at 63 kg gross. The arms of the TS400ZAL are bolted to the saw frame and then levelled against the saw table so the support surface sits flush with the cutting plane.
How is the HOLZMANN TS400ZAL priced?
The HOLZMANN TS400ZAL is quoted, not sold at a listed price. Because the TS400ZAL is a fabricated steel extension arm set with no motor, no blade and no electrical parts, the figure is driven by freight and Georgian customs on a 63 kg gross package 1520 mm long, by whether it travels on the same consignment as a saw or separately, and by whether fitting and levelling to your existing carpenter table saw are included. Tell us which saw it is for and we will quote the TS400ZAL.
How long does it take to get a TS400ZAL?
The TS400ZAL is built to order and the current lead time is confirmed at quotation. Shipping the TS400ZAL together with the saw it belongs to usually makes better sense than ordering it later, because one consignment carries one freight and customs charge; we confirm the schedule for the TS400ZAL in writing on the quotation.
Can you fit the TS400ZAL to a saw we already own?
The TS400ZAL is designed as the extension arm set for the HOLZMANN carpenter table saw range, and the model code together with its identical 1180 mm overall height points to the TS400Z. Before quoting, we ask for the model and serial number of the saw you already own, because the TS400ZAL is not a universal accessory and the arms must bolt to the saw frame and level flush with the cutting plane. Fitting on site can be included in the quotation.
What else should be budgeted around the TS400ZAL?
Around the TS400ZAL, budget for the floor space itself - 3600 x 1400 mm plus walking room is the real cost in a small Tbilisi workshop - for two people and basic lifting gear to fit a 60 kg set, and for the fixings or shimming needed to level the arms to your saw table if they are not itemised in the delivery. The TS400ZAL adds no power or extraction requirement, so nothing electrical needs budgeting for it.
