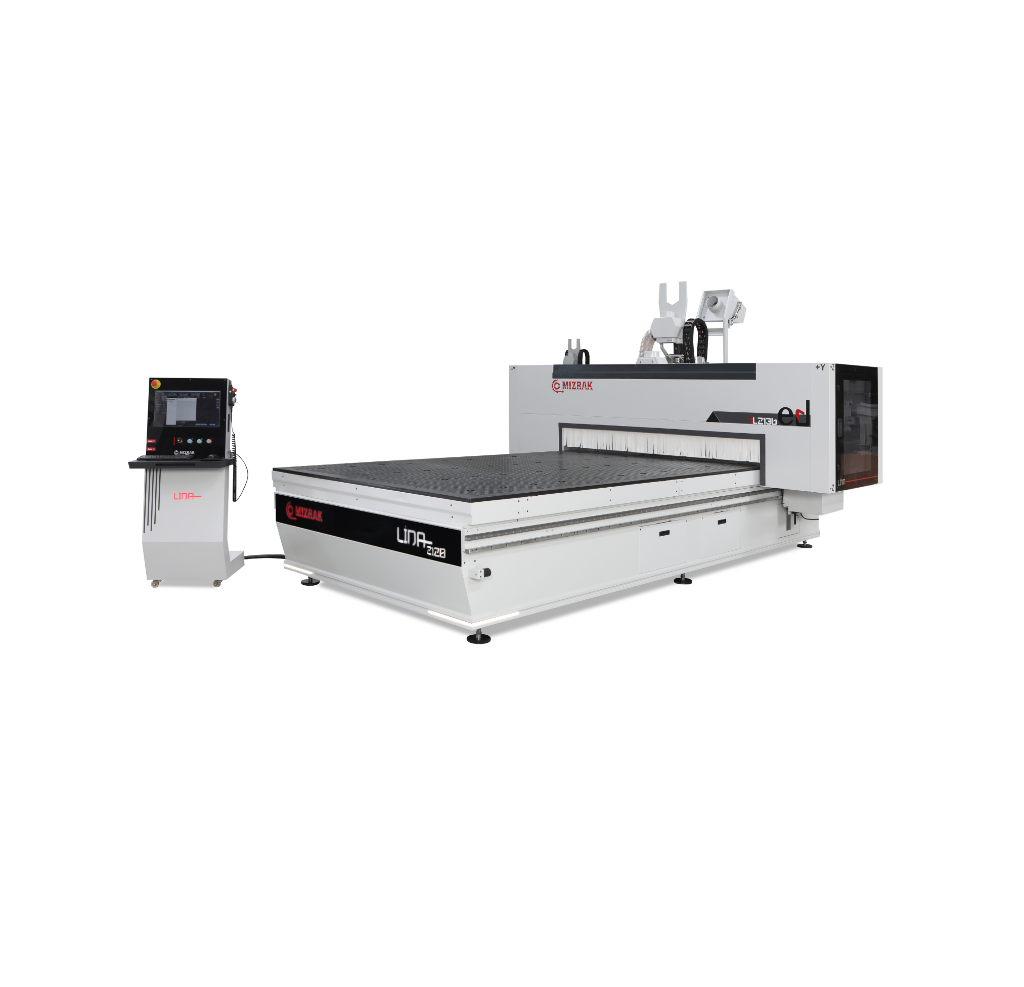

Mizrak LINA 2128 PLUS X CNC Nesting Router

LINA 2128 PLUS X

Standard equipment is the difference: the LINA 2128 PLUS X ships with a 9-spindle vertical drilling group, an F63 twin-output aggregate and 14 HSK-F63 rotary tools included, where the LINA 2136 PLUS X lists them as options. The 11-13 kW HSD spindle turns at 24,000 rpm on 60 mm stock.

ფასი მოთხოვნით

The price of a LINA 2128 PLUS X starts higher than a bare nesting router because the drilling group, aggregate and 14 rotary tools are inside the standard specification rather than added as options, and moves further with the cutters bought for the 15 HSK-F63 holders, the vacuum and extraction plant specified, and transport, rigging and commissioning.

ფასის მოთხოვნა

What the LINA 2128 PLUS X does

The LINA 2128 PLUS X is the most completely equipped manual-load router in Mizrak’s LINA range, because the machining units that are options elsewhere are fitted as standard. A 9-spindle vertical drilling group handles construction holes without a tool change; an F63 twin-output aggregate takes horizontal and angled work; and 14 HSK-F63 rotary tools sit alongside 15 tool holders so a nesting, drilling, grooving and edge-profiling set is permanently available. The LINA 2128 PLUS X therefore completes more of a cabinet part in one setup than a plain nesting router can.

Who the LINA 2128 PLUS X suits

Cabinet and kitchen manufacturers are the natural buyer for the LINA 2128 PLUS X, because their parts need holes, grooves and hardware seats as well as an outline. Adding automatic tool measurement and tool assignment, an energy efficiency mode and a wireless hand terminal, the LINA 2128 PLUS X also reduces the amount of operator setup between jobs, which matters in a shop cutting many small orders rather than long identical runs.

How the LINA 2128 PLUS X compares in the LINA range

The distinction against the LINA 2136 PLUS X is equipment, not power: both use an 11–13 kW HSD spindle and cut 60 mm thick at 120 m/min on Y, but the 2136 PLUS X lists the drilling unit and aggregate as paid options, while the LINA 2128 PLUS X includes them. The 2128 designation also indicates a shorter machine than the 2136 models, and its Z axis runs at 40 m/min against 60 m/min on the 2136 PLUS X. Below both sit the LINA 2136, ED and EVO on a 7.5–9 kW spindle and 45 mm thickness.

What is included with the LINA 2128 PLUS X

Standard supply of the LINA 2128 PLUS X covers the 250 m³ Becker vacuum pump, the 48-point 8-zone aluminium flat table, tool cooling, automatic lubrication, automatic tool measurement and assignment, the industrial PC-based touch control panel, 3D drawing software, the energy efficiency mode and a wireless hand terminal. Cutters and consumable tooling for the LINA 2128 PLUS X are quoted separately, as are extraction plant and installation.

ძირითადი მახასიათებლები

  • 9-spindle vertical multi-drilling group and F63 twin-output aggregate fitted as standard, both optional on the LINA 2136 PLUS X
  • 15 HSK-F63 tool holders plus 14 HSK-F63 rotary tools available at the machine
  • 11-13 kW HSD spindle running at 24,000 rpm for panel and solid-timber machining
  • 60 mm maximum working thickness on Z, with 40 m/min on Z and 120 m/min on Y
  • 48 automatic vacuum suction points in 8 zones fed by a 250 m³ Becker pump
  • Automatic tool measurement and tool assignment with a wireless hand terminal
  • Industrial PC-based touch control panel with 3D drawing software
  • Automatic lubrication and an energy efficiency mode

ტექნიკური მახასიათებლები

Tool Holders
15 pcs HSK-F63
Rotary Tools
14 pcs HSK-F63
Vertical Multi-Drilling Group
9 spindles
Aggregate
F63 double-output
Vacuum Suction Points
48 automatic points in 8 zones
Vacuum Pump
250 m³ Becker
Max. Working Thickness (Z axis)
60 mm
Max. Processing Speed (Z axis)
40 m/min
Max. Working Speed (Y axis)
120 m/min
Spindle Motor
11–13 kW HSD, 24,000 rpm
Tool Cooling System
Included
Lubrication System
Automatic
Control System
Industrial PC-based touch control panel
Software
3D drawing software
Working Table
Aluminium flat table
Tool Measurement
Automatic tool measurement and tool assignment
Energy Efficiency Mode
Included
Hand Terminal
Wireless

უპირატესობები

  • Drilling group and F63 twin-output aggregate included as standard rather than charged as options
  • Automatic tool measurement, tool assignment and a wireless hand terminal cut setup time between short runs
  • 24,000 rpm 11–13 kW HSD spindle with 48-point 8-zone vacuum holds small nested parts at 120 m/min

გასათვალისწინებელი

  • Mizrak publishes no working area, footprint, weight or installed power for this model — confirm before ordering
  • Z axis is limited to 40 m/min against 60 m/min on the LINA 2136 PLUS X
  • Manual sheet loading, and 400 V three-phase plus compressed air and separate extraction are all required

ხშირად დასმული კითხვები

Does the LINA 2128 PLUS X include a drilling head and aggregate?
Yes — the LINA 2128 PLUS X is supplied with a 9-spindle vertical multi-drilling group and an F63 twin-output aggregate as standard, which is the main difference against the LINA 2136 PLUS X where both are paid options.
How thick a workpiece can the LINA 2128 PLUS X machine?
The LINA 2128 PLUS X has a maximum working thickness of 60 mm on the Z axis, and its Z axis moves at up to 40 m/min while the Y axis reaches 120 m/min.
What working area does the LINA 2128 PLUS X have?
Mizrak does not publish a working area figure for the LINA 2128 PLUS X in its current datasheet, so the sheet size the machine accepts must be confirmed in writing with the supplier before the workshop layout is fixed. Footprint, weight and installed power for the LINA 2128 PLUS X are likewise unpublished.
What power supply does the LINA 2128 PLUS X need?
The electrical rating of the LINA 2128 PLUS X is not published by Mizrak, but the machine combines an 11–13 kW HSD spindle, a 250 m³ vacuum pump and a drilling group, so a 400 V three-phase supply and a compressed air line are required. Confirm the installed power of the LINA 2128 PLUS X with the supplier before commissioning.
What tooling does the LINA 2128 PLUS X take?
The LINA 2128 PLUS X uses HSK-F63 tooling: 15 tool holders and 14 rotary tools are listed with the machine, and the aggregate is also F63. Cutters and consumable tooling for the LINA 2128 PLUS X are quoted separately from the machine price.
Can the LINA 2128 PLUS X load sheets by itself?
No — the LINA 2128 PLUS X is loaded manually. Automatic stack loading with a 25-sheet scissor lift and barcode labelling is only available on the LINA 2136 LINE.
How much does the LINA 2128 PLUS X cost?
The LINA 2128 PLUS X is supplied on quotation, not at a published price. It sits above a bare nesting router because the 9-spindle drilling group, the F63 twin-output aggregate and 14 HSK-F63 rotary tools are standard rather than optional. Beyond that, the price moves with the cutters bought for the 15 HSK-F63 holders, the extraction plant specified, and transport, rigging and commissioning. Describe the parts to be machined and a LINA 2128 PLUS X quotation will follow.
Is the LINA 2128 PLUS X available quickly, or built to order?
The LINA 2128 PLUS X is built to order by Mizrak, so the current lead time is confirmed at quotation rather than offered as stock. Ask for the LINA 2128 PLUS X delivery window with the price, and use the interval to prepare three-phase power, compressed air and extraction ducting.
What does commissioning a LINA 2128 PLUS X involve?
Commissioning a LINA 2128 PLUS X covers siting and levelling the machine, positioning the 250 m³ Becker vacuum pump, three-phase connection by a qualified electrician, compressed air connection, ducting to a dust extraction plant, and setting up the drilling group and F63 aggregate in the 3D software. Because Mizrak does not publish the weight or footprint of the LINA 2128 PLUS X, request those figures with the quotation before arranging offloading.
What consumables should be budgeted with a LINA 2128 PLUS X?
The LINA 2128 PLUS X comes with the drilling group and aggregate, but not with the cutting tools, so budget for HSK-F63 router cutters, drill bits for the 9-spindle group, aggregate tooling, spoilboard material for the vacuum table, and a dust extraction plant with ducting. These are itemised separately on the LINA 2128 PLUS X quotation.
