LINA 2136 — Mizrak LINA 2136 CNC Nesting Router 1 / 4

MIZRAK

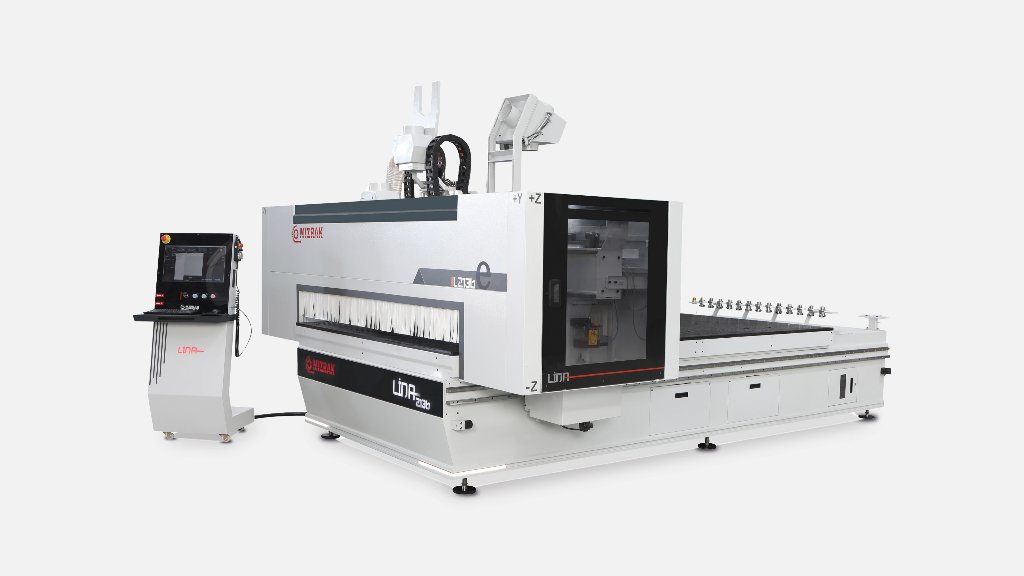

Mizrak LINA 2136 CNC Nesting Router

LINA 2136

The LINA 2136 is the mid-range LINA nesting router, holding work on 48 automatic vacuum points in 6 zones, double the 24 points of the entry LINA 2136 EVO. A 7.5-9 kW HSD spindle, 13 HSK F63 holders and 45 mm Z thickness run at 90 m/min on Y against 70 m/min on the EVO.

ფასი მოთხოვნით

The price of a LINA 2136 is driven by the step up from the entry LINA 2136 EVO to a 48-point vacuum table and faster axes, the tooling package for the 13 HSK F63 holders, the software licence term after the included 2D rental, whether vacuum and extraction plant are quoted with the machine, and transport, rigging, commissioning and training.

ფასის მოთხოვნა

What the LINA 2136 does

The LINA 2136 is Mizrak’s core nesting router: one 7.5–9 kW HSD spindle, a 13-position HSK F63 fixed tool changer, and a compact flat table with 48 automatic vacuum suction points split into 6 adjustable zones. The 250 m³ vacuum pump behind that table is what makes nesting practical on the LINA 2136, because small cabinet parts cut free from a full sheet stay held down until the cut finishes. Working thickness on the LINA 2136 is 45 mm on the Z axis, with 30 m/min on Z and 90 m/min on Y.

Who the LINA 2136 suits

The LINA 2136 fits the furniture workshop that has outgrown a beam saw plus a separate drilling machine and now wants cabinet parts cut, grooved and shaped in one operation. Automatic tool measurement and tool assignment on the LINA 2136 mean the operator does not have to dial in tool lengths by hand, which is the point at which a first CNC either becomes productive or becomes a bottleneck. The 2D rental software matches that profile: flat cabinet work, programmed from a cutting list.

How the LINA 2136 compares in the LINA range

Against the entry LINA 2136 EVO, the LINA 2136 doubles the vacuum suction points from 24 to 48 and runs considerably faster — 30 m/min on Z against 20, and 90 m/min on Y against 70 — while adding an automatic lubrication system the EVO does not list. Against the LINA 2136 PLUS X, the LINA 2136 gives up a great deal: the PLUS X carries an 11–13 kW spindle, 60 mm working thickness, 120 m/min on Y, 15 tool holders and 3D software. Mizrak publishes an identical specification for the LINA 2136 and the LINA 2136 ED, so that pairing needs clarifying at enquiry.

What is included with the LINA 2136

Standard supply of the LINA 2136 covers 13 HSK F63 tool holders with automatic tool change, the 250 m³ vacuum pump, the tool cooling system, automatic lubrication, automatic tool measurement and tool assignment, the compact flat table, a handheld terminal and 2D software on rental. Cutters, collets and holders for the LINA 2136 are consumables quoted separately, and a chip extraction system is a separate installation entirely.

ძირითადი მახასიათებლები

  • 48 automatic vacuum suction points in 6 adjustable zones - double the 24 points of the LINA 2136 EVO
  • 90 m/min on Y and 30 m/min on Z, against 70 m/min and 20 m/min on the LINA 2136 EVO
  • 7.5-9 kW HSD spindle motor with a tool cooling system
  • 13 HSK F63 tool holders with automatic tool change
  • 250 m³ vacuum pump feeding the compact flat table
  • 45 mm maximum working thickness on the Z axis
  • Automatic lubrication system fitted as standard
  • Automatic tool measurement and tool assignment
  • Handheld terminal and 2D software on a rental licence

ტექნიკური მახასიათებლები

Fixed Tool Change
13 pcs HSK F63
Vacuum Suction Points
48 automatic points in 6 adjustable zones
Vacuum Pump
250 m³
Max. Working Thickness (Z axis)
45 mm
Max. Working Speed (Z axis)
30 m/min
Max. Working Speed (Y axis)
90 m/min
Spindle Motor
7.5–9 kW HSD
Tool Cooling System
Included
Lubrication System
Automatic
Software
2D, rental licence
Working Table
Compact flat table
Tool Measurement
Automatic tool measurement and tool assignment
Hand Terminal
Included

უპირატესობები

  • 48 suction points in 6 adjustable zones on a 250 m³ pump gives genuine nesting hold-down
  • Automatic tool measurement, automatic tool change and automatic lubrication reduce operator error
  • Realistic entry into CNC nesting for a workshop stepping up from a beam saw and drilling machine

გასათვალისწინებელი

  • 45 mm working thickness rules out thick worktop and deep solid-timber machining
  • 2D rental software means a recurring licence cost and no 3D programming
  • Mizrak publishes no working area, footprint, weight or installed power, and lists the same specification for the ED version

ხშირად დასმული კითხვები

How thick a workpiece can the LINA 2136 machine?
The LINA 2136 has a maximum working thickness of 45 mm on the Z axis. That covers 18 mm panel and doubled panel, but a workshop machining thick worktops or deep solid components needs the 60 mm capacity of the LINA 2136 PLUS X or LINA 2128 PLUS X rather than the LINA 2136.
What working area does the LINA 2136 have?
Mizrak does not publish a working area, footprint or weight for the LINA 2136 in its current datasheet, so the maximum sheet size and the floor space needed for the LINA 2136 must be confirmed in writing with the supplier before the machine is ordered.
What power supply does the LINA 2136 need?
The electrical rating of the LINA 2136 is not published by Mizrak, but with a 7.5–9 kW HSD spindle and a 250 m³ vacuum pump the LINA 2136 requires a 400 V three-phase supply plus compressed air. Confirm the installed power figure with the supplier before preparing the connection.
What is the difference between the LINA 2136 and the LINA 2136 ED?
Mizrak currently publishes an identical general specification for the LINA 2136 and the LINA 2136 ED — the same 7.5–9 kW HSD spindle, 13 HSK F63 holders, 48 suction points in 6 zones, 250 m³ pump and 45 mm thickness. The difference between the LINA 2136 and the ED version therefore has to be confirmed in writing with the manufacturer.
Does the LINA 2136 include CAD/CAM software?
The LINA 2136 is supplied with 2D software on a rental licence. Buyers of the LINA 2136 should confirm the rental period and renewal cost, and should not expect 3D part programming, which is offered on the LINA 2136 PLUS X.
Does the LINA 2136 come with a dust extraction unit?
No — chip and dust extraction is a separate system and is not included with the LINA 2136. The 250 m³ vacuum pump supplied with the LINA 2136 holds the workpiece to the table and does not remove chips.
How much does the LINA 2136 cost?
The LINA 2136 is supplied on quotation, not at a published price. The figure moves with the specification chosen against the entry LINA 2136 EVO - a 48-point vacuum table instead of 24 points and faster axes - plus the cutter and holder package for the 13 HSK F63 positions, the software licence term after the included 2D rental, the extraction plant, and transport, rigging, commissioning and training. Describe the parts to be nested and a LINA 2136 quotation will be prepared.
What is the lead time for a LINA 2136?
The LINA 2136 is built to order by Mizrak, so the current lead time is confirmed at quotation rather than published as stock availability. Ask for the LINA 2136 delivery window with the price, and use the interval to have three-phase power, compressed air and extraction ducting brought to the machine position.
Is installation and operator training included with a LINA 2136?
Installation, commissioning and operator training for the LINA 2136 are quoted as separate lines from the machine, so the buyer can see what each costs. For a first CNC in the workshop, training on the 2D software, tool measurement and vacuum zoning is worth taking in full rather than trimming - a LINA 2136 that is not programmed properly will not pay for itself.
What consumables and running costs should be budgeted with a LINA 2136?
Budget alongside the LINA 2136 for HSK F63 holders and router cutters to fill the 13-place changer, spoilboard material for the compact flat table, vacuum pump service items, a dust extraction plant with ducting, and renewal of the 2D software rental licence when the included term ends. All of these are itemised on the LINA 2136 quotation.
