MIZRAK

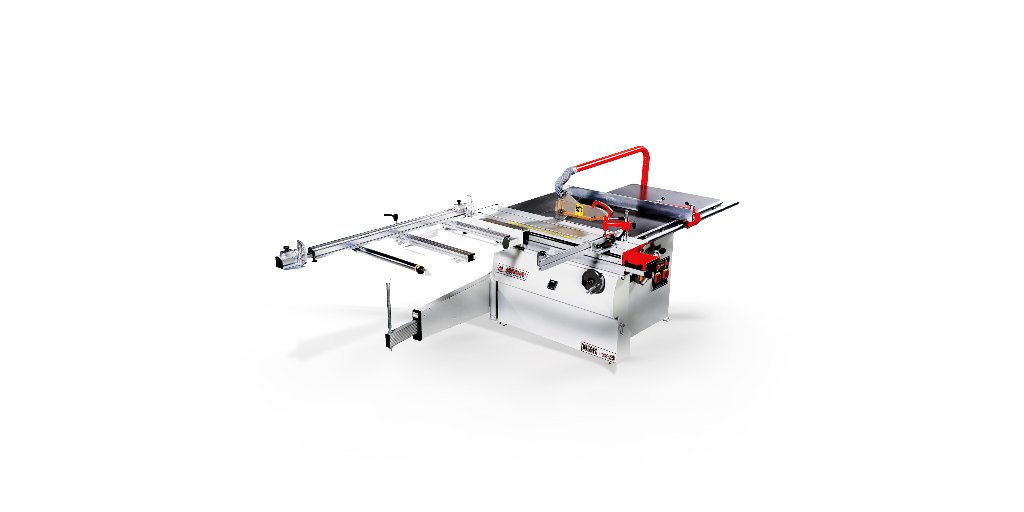

Mizrak MZK 1500 PRESTIJ Sliding Table Panel Saw
MZK 1500 PRESTIJ
Shortest carriage run in the range at 1500 mm, the MZK 1500 PRESTIJ is also the one PRESTIJ saw whose technical table lists a 365 mm aluminium carriage instead of 380 mm. The full cutting head is retained: 4 kW saw motor, 0.75 kW scorer, 80 mm at 90 degrees, 65 mm at 45 degrees, 685 kg net.
Price on the MZK 1500 PRESTIJ is moved by the short 1500 mm carriage specified in place of the longer PRESTIJ strokes, the confirmed carriage width, the blade and scoring tooling package, the extraction unit, and delivery and installation.
ფასის მოთხოვნაWhat the MZK 1500 PRESTIJ does
The MZK 1500 PRESTIJ is the short-stroke entry to the Mizrak format saw range, built for accurate crosscutting and sizing of smaller parts rather than breaking down whole sheets. The cutting head is not scaled down with the stroke: a 4 kW motor drives Ø250 x 30 mm to Ø300 x 30 mm blades at 4750 to 5250 rpm for 80 mm of depth at 90 degrees and 65 mm at 45 degrees, and a dedicated 0.75 kW scoring motor runs a Ø125 x 20 mm blade at 7250 rpm to keep melamine faces clean. The 1950 mm sliding fence with a 0 to 3000 mm stop range and ±45 degree setting is the same unit fitted to the longer machines.
Who the MZK 1500 PRESTIJ suits
The MZK 1500 PRESTIJ suits a joinery or door shop that cuts components, rails, stiles and cabinet parts to length all day but receives board already broken down, or that simply has no room for a long carriage. The 8-shaft movement system on the 365 mm aluminium carriage keeps the short stroke smooth and square, and the 685 kg mass keeps the machine planted through repeated crosscuts.
How the MZK 1500 PRESTIJ compares in the range
The MZK 1500 PRESTIJ is the shortest machine in the PRESTIJ line, with 700 mm less travel than the MZK 2200 PRESTIJ and 1700 mm less than the MZK 3200 PRESTIJ. Two details set it apart on paper: the supplier’s technical table gives the aluminium carriage of the MZK 1500 PRESTIJ as 365 mm rather than the 380 mm of the other PRESTIJ saws, and the quoted net weight of 685 kg is higher than the 625 kg of the longer MZK 2200 PRESTIJ. Both figures are reproduced as the supplier publishes them and are worth confirming before purchase.
What is included
The MZK 1500 PRESTIJ comes with a 550 x 910 mm main table, a 380 x 540 mm side extension, a 785 x 970 mm rear extension and a 1200 mm rip fence. Machine height is 1400 mm, quoted noise is 80 dB and the extraction connection stands 845 mm from the floor.
ძირითადი მახასიათებლები
- 1500 mm sliding table with 1500 mm of travel - the shortest machine in the PRESTIJ line
- 365 mm aluminium carriage on an 8-shaft smooth movement system
- 4 kW saw motor turning Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
- 0.75 kW scoring motor with a Ø125 x 20 mm blade at 7250 rpm
- 80 mm depth of cut at 90 degrees and 65 mm at 45 degrees
- 1950 mm sliding fence with 0-3000 mm stop range and ±45 degree angle
- 685 kg net weight on a 1400 mm high frame with the extraction port at 845 mm
ტექნიკური მახასიათებლები
- Saw Blade Diameter (Min - Max, Outer/Inner)
- Ø250 x 30 mm - Ø300 x 30 mm
- Max. Cutting Depth (at 90°)
- 80 mm
- Max. Cutting Depth (at 45°)
- 65 mm
- Saw Blade Speed
- 4750 - 5250 RPM
- Saw Motor Power
- 4 kW
- Scoring Blade Diameter (Outer/Inner)
- Ø125 x 20 mm
- Scoring Blade Speed
- 7250 RPM
- Scoring Motor Power
- 0.75 kW
- Noise Level
- 80 dB
- Main Table Dimensions
- 550 x 910 mm
- Side Extension Table Dimensions
- 380 x 540 mm
- Rear Extension Table Dimensions
- 785 x 970 mm
- Rip Fence Length (Main Table)
- 1200 mm
- Sliding Table Length
- 1500 mm
- Sliding Table Travel Distance
- 1500 mm
- Sliding Table Fence Angle (Right-Left)
- 0-45° (both directions)
- Aluminum Carriage Width
- 365 mm
- Sliding Table Fence Length
- 1950 mm
- Sliding Table Fence Angle (Right-Left)
- ±45°
- Sliding Fence Stop Range
- 0 - 3000 mm
- Dust Extraction Port Height from Floor
- 845 mm
- Machine Height
- 1400 mm
- Net Weight
- 685 kg
უპირატესობები
- Full 4 kW cutting head, scoring unit and 80 mm depth of cut in the smallest carriage length available
- 1950 mm fence with a 0-3000 mm stop range gives large-machine crosscut accuracy on a short stroke
- Shortest carriage run in the range, so it fits workshops where a long saw simply will not go
გასათვალისწინებელი
- 1500 mm of travel rules out breaking down full boards
- Supplier data conflicts on carriage width (365 mm in the table, 380 mm in the description) and quotes a higher weight, 685 kg, than the longer 2200 model
- Manual tilt, manual blade height and no extractor included
