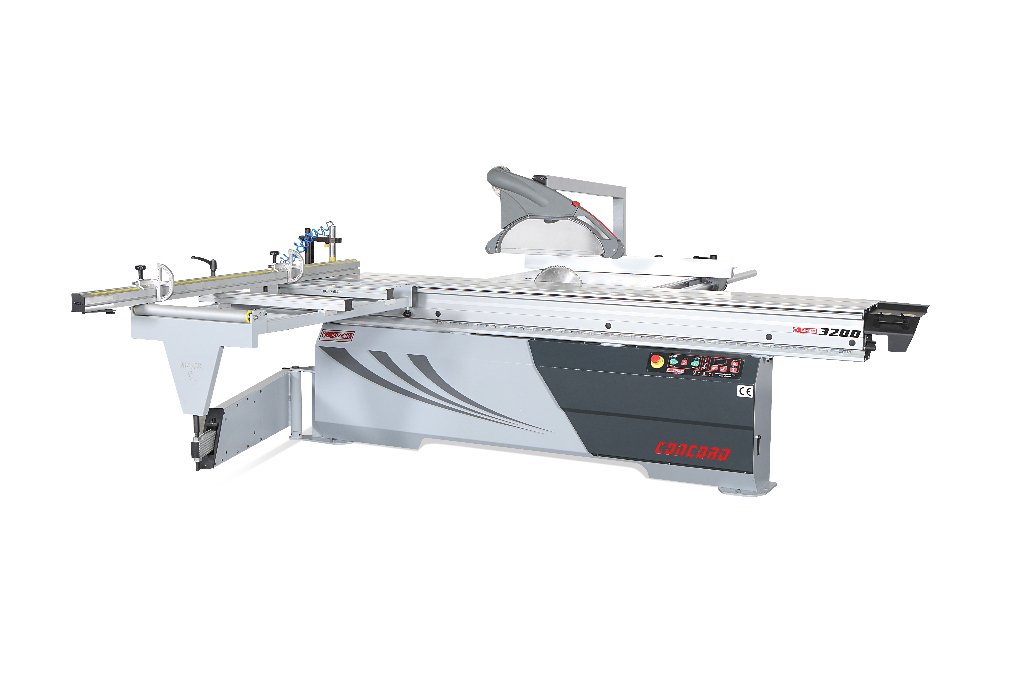

MIZRAK MZK 3200 Concord Sliding Table Panel Saw
MZK 3200 CONCORD
Where the MZK 3800 Concord needs a 3800 mm bed, the MZK 3200 Concord fits the same 5.5 kW drive, automatic 45-90 degree tilt, pneumatic panel hold-down and digital cast fence onto a 3200 mm sliding table, cutting 80 mm deep at 90 degrees at a net weight of 800 kg.
The price of an MZK 3200 Concord is driven by choosing the 3200 mm bed instead of the 3800 mm Concord with its additional profile carriage, the blade package specified against the unresolved Ø250-Ø300 mm versus 400 mm blade question, whether an air compressor is bought with the machine, and delivery, rigging and commissioning of an 800 kg saw needing both power and air.
ფასის მოთხოვნაThe MZK 3200 Concord puts production-grade features on a standard-sheet carriage
The MZK 3200 Concord is the Concord specification built around a 3200 mm sliding table rather than the 3800 mm one, which suits the workshop that cuts standard sheets all day but does not need oversize length. The main motor is 5.5 kW – the same as the larger Concord and 1.5 kW above every Diamond model – running at 4750-5250 rpm with 80 mm of cutting depth at 90 degrees and 65 mm at 45 degrees. A 0.75 kW scoring motor turns a Ø125 x 20 mm scorer at 7250 rpm.
What the pneumatics and the digital fence change
On the MZK 3200 Concord a pneumatic pressing system holds chipboard and MDF flat against the carriage through the cut, which removes the panel lift that causes edge steps and blade marks when a large sheet is fed by hand. A pneumatic dust cleaning system clears the work area, a lubrication system serves the moving parts, and the cast rip fence carries a digital display so rip width is read as a number. Blade angle and height are driven by actuator motors rather than handwheels.
Who the MZK 3200 Concord suits
The MZK 3200 Concord suits furniture producers and joineries with an established production line, a compressor already installed, and enough throughput to justify a 5.5 kW machine. At 800 kg it is 80 kg heavier than the MZK 3200 Diamond and 20 kg less than the MZK 3200 Diamond S, but the difference that matters is the motor and the pneumatics rather than the mass.
How the MZK 3200 Concord compares in the range
Against the MZK 3200 Diamond SX, the MZK 3200 Concord offers more motor power, pneumatic hold-down and a digital fence but no PLC control or servo rear stop; the SX is the machine for programmed positioning, the Concord for cutting force and panel control. Against the MZK 3800 Concord, the specification is the same on a shorter carriage, 100 kg lighter, without the additional profile carriage listed for the 3800. Against the MZK 3200 Diamond, it is a different tier of machine entirely.
What is supplied with the MZK 3200 Concord
The published build covers the 550 x 910 mm main table, a 380 x 540 mm side extension, a 785 x 970 mm rear extension, a 1200 mm rip fence, a 1950 mm crosscut fence with a 0-3000 mm stop range, the scoring unit and the pneumatic systems. Blades, a compressor, dust extraction and the electrical installation are all separate.
ძირითადი მახასიათებლები
- 3200 mm sliding table with 3200 mm travel - the shorter-bay Concord at 800 kg against 900 kg
- 5.5 kW main saw motor at 4750-5250 rpm, 1.5 kW above the Diamond models
- 420 mm wide aluminium carriage on an overhead-shaft linear system
- Pneumatic chipboard pressing system and pneumatic dust cleaning system
- Cast rip fence with digital position display
- Actuator motor-driven automatic 45-90 degree tilt and automatic vertical movement
- 0.75 kW scoring motor with Ø125 x 20 mm blade at 7250 rpm
- 80 mm cutting depth at 90 degrees and 65 mm at 45 degrees
- 800 kg machined frame with lubrication system, 1400 mm machine height
ტექნიკური მახასიათებლები
- Saw blade diameter (outer x inner, min-max)
- Ø250 x 30 mm – Ø300 x 30 mm
- Saw blade compatibility (general information)
- Compatible with 400 mm saw blades
- Max. cutting depth (90°)
- 80 mm
- Max. cutting depth (45°)
- 65 mm
- Saw blade speed
- 4750 – 5250 rpm
- Main saw motor power
- 5.5 kW
- Scoring blade diameter (outer x inner)
- Ø125 x 20 mm
- Scoring saw speed
- 7250 rpm
- Scoring saw motor power
- 0.75 kW
- Sound level
- 80 dB
- Main table size
- 550 x 910 mm
- Side extension table size
- 380 x 540 mm
- Rear extension table size
- 785 x 970 mm
- Rip fence length (on table)
- 1200 mm
- Sliding table length
- 3200 mm
- Sliding table travel
- 3200 mm
- Sliding table fence angle (right–left)
- 0–45° right and left
- Aluminium carriage width
- 420 mm
- Crosscut fence length
- 1950 mm
- Crosscut fence angle (right–left)
- ±45°
- Crosscut fence stop range
- 0 – 3000 mm
- Blade tilt and height adjustment
- Actuator motor-driven automatic 45–90° tilt and automatic vertical movement
- Rip fence
- Cast fence with digital display
- Pneumatic systems
- Pneumatic particle board pressing system and pneumatic dust cleaning system
- Lubrication
- Lubrication system
- Carriage system
- Overhead-shaft aluminium carriage, linear system
- Dust extraction port height from floor
- 845 mm
- Machine height
- 1400 mm
- Net weight
- 800 kg
უპირატესობები
- 5.5 kW motor gives real cutting reserve on dense board and thick solid stock compared with 4 kW Diamond models
- Pneumatic panel pressing keeps large sheets flat through the cut without an operator leaning on them
- Digital cast fence and actuator-driven tilt make rip width and angle readable numbers instead of scale estimates
გასათვალისწინებელი
- A compressor is mandatory for the pneumatic pressing and dust cleaning systems and is not included
- Supplier data conflicts on blade capacity - Ø250-Ø300 mm in the table versus 400 mm in the feature list
- No PLC or servo fence positioning despite the higher price tier, and extraction and blades remain extra
