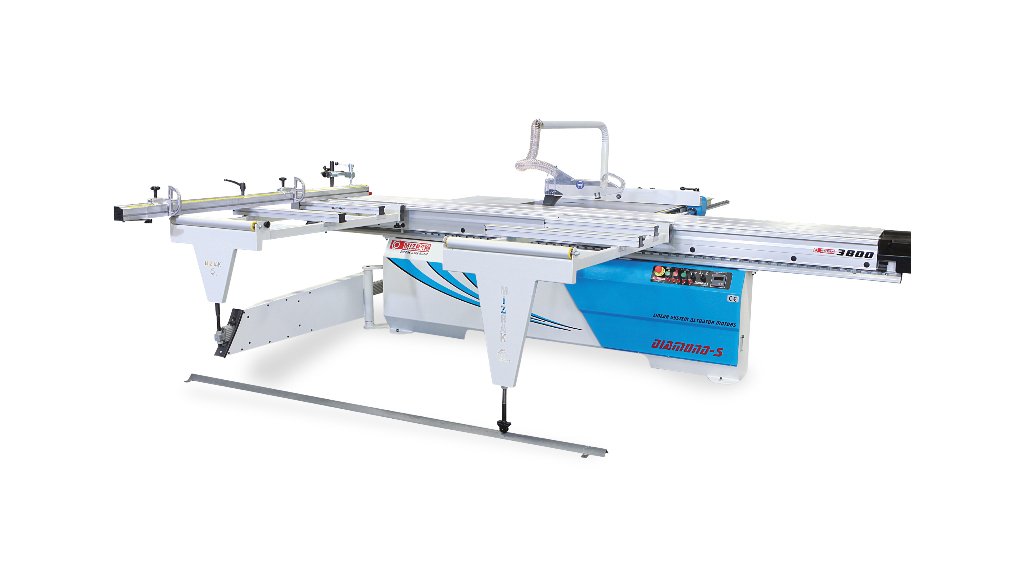

MZK 3200 DIAMOND S — MIZRAK MZK 3200 Diamond S Sliding Table Panel Saw 1 / 4

MIZRAK

MIZRAK MZK 3200 Diamond S Sliding Table Panel Saw

MZK 3200 DIAMOND S

The MZK 3200 Diamond S pairs a 3200 mm aluminium carriage, 435 mm wide, with motorised automatic 45-90 degree tilt and motorised vertical blade movement on an 820 kg machined frame. That is the Diamond S trade-off: powered setting, without the PLC and servo rear stop of the Diamond SX models.

ფასი მოთხოვნით

Price on the MZK 3200 Diamond S is driven by the 3200 mm carriage length specified rather than the heavier 3800 Diamond S, the decision to take motorised tilt and rise instead of the PLC and servo rear stop of the Diamond SX, the blade and scoring tooling package, extraction, and delivery and installation.

ფასის მოთხოვნა

The MZK 3200 Diamond S is the motorised-setting model of the 3200 mm class

The MZK 3200 Diamond S runs a 3200 mm long, 435 mm wide overhead-spindle aluminium carriage and sets blade angle and blade height by motor. Automatic 45-90 degree tilt and automatic up-and-down movement replace the handwheels used on the base Diamond, which matters most on mitred carcass parts and bevelled door edges where a half-degree error multiplies across a joint. The 4 kW main motor takes Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm.

Scoring is part of the machine, not an accessory

A dedicated 0.75 kW motor drives the Ø125 x 20 mm scoring blade of the MZK 3200 Diamond S at 6800-7250 rpm. The scorer opens the coating on the underside of the board a fraction ahead of the main blade, which is the difference between a saleable melamine cabinet side and one that needs its edge hidden. Any workshop cutting faced board rather than solid timber should treat this as a requirement rather than an upgrade.

Who the MZK 3200 Diamond S is for

The MZK 3200 Diamond S fits furniture workshops and joineries that cut standard sheets daily, change blade angle several times a shift, and have floor space for a 3.2 m carriage but not for the 3.8 m machines. At 820 kg on a machined frame, the MZK 3200 Diamond S is a permanent installation rather than a machine that gets moved around the shop.

Where the MZK 3200 Diamond S sits in the range

Below the MZK 3200 Diamond S, the MZK 3200 Diamond keeps the same 4 kW motor and 435 mm carriage but uses a 9-spindle movement system with hand-set angle and height, and weighs 720 kg. Above it, the MZK 3200 Diamond SX adds a PLC control unit and a servo-driven linear cast-iron rear stop. The MZK 3200 Concord is a different tier again: 5.5 kW, 400 mm blade compatibility, pneumatic hold-down and a digital cast fence at 800 kg.

What is included with the MZK 3200 Diamond S

The specification covers the 550 x 910 mm main table, a 380 x 540 mm side extension sheet, a 785 x 970 mm rear extension sheet, a 1200 mm rip fence, the crosscut fence with ±45 degree setting and a 0-3000 mm stop range, and the scoring unit. Blades, extraction and electrical installation are separate.

ძირითადი მახასიათებლები

  • 3200 mm aluminium sliding carriage, 435 mm wide, on an overhead-spindle system
  • Motorised automatic 45-90 degree tilt and motorised vertical blade movement
  • 4 kW main saw motor running Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
  • 0.75 kW scoring motor with Ø125 x 20 mm blade at 6800-7250 rpm
  • 820 kg machined frame with a 1400 mm machine height
  • Crosscut fence with ±45 degree setting and 0-3000 mm measuring stop range
  • 550 x 910 mm main table plus 380 x 540 mm side and 785 x 970 mm rear extension sheets
  • Dust extraction port 845 mm above floor level, measured noise 80 dB

ტექნიკური მახასიათებლები

Saw blade diameter (outer x inner, min-max)
Ø250 x 30 mm – Ø300 x 30 mm
Main saw blade speed
4750 – 5250 rpm
Main saw motor power
4 kW
Scoring blade diameter (outer x inner)
Ø125 x 20 mm
Scoring saw speed
6800 – 7250 rpm
Scoring saw motor power
0.75 kW
Sound level
80 dB
Main table size
550 x 910 mm
Side extension sheet size
380 x 540 mm
Rear extension sheet size
785 x 970 mm
Rip fence length (on table)
1200 mm
Aluminium carriage width
435 mm
Aluminium carriage length (sliding table)
3200 mm
Sliding table fence angle
±45° right and left
Sliding table fence stop range
0 – 3000 mm
Blade tilt and height adjustment
Motorised automatic 45–90° tilt and motorised vertical movement
Carriage system
Overhead-spindle aluminium carriage, linear system
Frame
Machined frame
Dust extraction port height from floor
845 mm
Machine height
1400 mm
Machine weight
820 kg

უპირატესობები

  • Motorised 45-90 degree tilt and blade rise remove the two most error-prone manual settings
  • 3200 mm carriage handles a standard sheet lengthwise while fitting a smaller workshop than the 3800 models
  • 820 kg machined frame gives noticeably more mass than the 720 kg base MZK 3200 Diamond

გასათვალისწინებელი

  • Rip fence is still set by hand - no servo stop or digital position readout
  • Maximum cutting depth is not published in the supplier data for the Diamond S records
  • Extraction unit, blades and electrical installation are all additional to the machine price

ხშირად დასმული კითხვები

What supply does the MZK 3200 Diamond S require?
The MZK 3200 Diamond S has a 4 kW main saw motor and a 0.75 kW scoring motor, an installed motor load of 4.75 kW, plus the motors for automatic tilt and height. Mizrak does not publish the supply voltage or current for the MZK 3200 Diamond S, so the incoming supply, cabling and protection must be agreed with the dealer before delivery.
What size panels does the MZK 3200 Diamond S take?
The MZK 3200 Diamond S has a 3200 mm aluminium sliding carriage, which covers a standard 2800 mm or 3050 mm sheet cut lengthwise in a single pass. Crosscut capacity on the MZK 3200 Diamond S is set by the sliding table fence and its 0-3000 mm measuring stop range.
What tooling does the MZK 3200 Diamond S need?
The MZK 3200 Diamond S needs a main blade between Ø250 x 30 mm and Ø300 x 30 mm and a Ø125 x 20 mm scoring blade, neither of which is included in the published machine specification. For faced board, run a high tooth count main blade on the MZK 3200 Diamond S and keep the scorer set a fraction wider than the main kerf.
Does the MZK 3200 Diamond S need a separate extraction unit?
Yes. The MZK 3200 Diamond S has a dust extraction port 845 mm above the floor and no on-board extractor; the extraction unit, ducting and filters are separate purchases. The port diameter is not published for the MZK 3200 Diamond S, so confirm it before ordering ducting.
How much floor space and handling does the MZK 3200 Diamond S need?
The MZK 3200 Diamond S weighs 820 kg and stands 1400 mm high, so it needs a solid floor and a forklift or machine skates to install. Mizrak does not publish an overall footprint, but the 3200 mm carriage must be able to travel its full length in both directions, so plan on a clear run of roughly 6.5 m along the machine.
What does the MZK 3200 Diamond S not do?
The MZK 3200 Diamond S does not position the rip fence automatically - that is the MZK 3200 Diamond SX with its PLC and servo rear stop - and it has no pneumatic panel hold-down or digital cast fence, which belong to the MZK 3200 Concord. The MZK 3200 Diamond S is also a single-panel saw, not a beam saw for stacked cutting.
How much does the MZK 3200 Diamond S cost?
The MZK 3200 Diamond S is quoted rather than sold at a published price. The price of an MZK 3200 Diamond S depends on the 3200 mm carriage length chosen over the larger 3800 Diamond S, the decision to take motorised tilt and rise instead of the PLC and servo rear stop of the Diamond SX, the blade and scoring tooling package, extraction, and delivery and installation. Tell us your board sizes and angle work for a quotation.
What is the lead time for an MZK 3200 Diamond S?
The MZK 3200 Diamond S is built to order, so the lead time for an MZK 3200 Diamond S is confirmed at quotation against the current production schedule. Say at enquiry stage if the machine has to be commissioned by a set date.
Does an MZK 3200 Diamond S need professional commissioning?
An MZK 3200 Diamond S should be commissioned on site: levelling an 820 kg machine, squaring the 3200 mm carriage and fence, connecting a three-phase supply for the 4 kW saw, 0.75 kW scorer and the tilt and rise motors, verifying the motorised 45-90 degree angle against test cuts, and connecting extraction at the 845 mm port. Commissioning of the MZK 3200 Diamond S is quoted with the machine.
Which consumables should be budgeted beyond the MZK 3200 Diamond S machine price?
Beyond the MZK 3200 Diamond S machine price, budget main blades from Ø250 x 30 mm to Ø300 x 30 mm, Ø125 x 20 mm scoring blades and a dust extraction unit, none of which are listed in the supplier specification. Scoring blade sharpening is the consumable that most affects edge quality on an MZK 3200 Diamond S cutting melamine.
