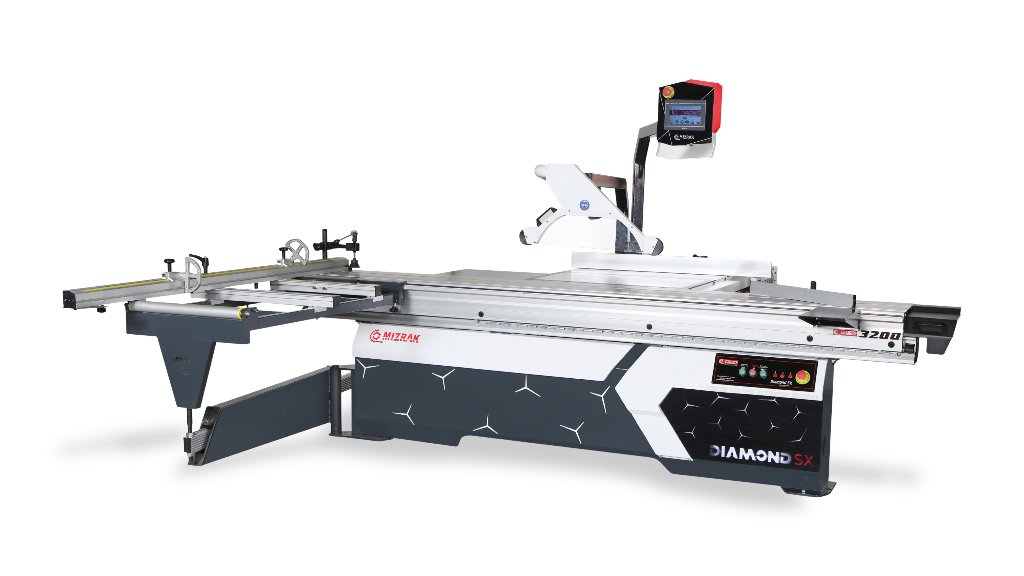

MIZRAK MZK 3200 Diamond SX Sliding Table Panel Saw
MZK 3200 DIAMOND SX
Of the two Diamond SX saws, the MZK 3200 Diamond SX is the one with a published 3200 mm sliding table and 3200 mm travel on a 430 mm aluminium carriage. A PLC unit drives motorised 45-90 degree tilt, motorised blade rise and a servo linear cast-iron rear stop; the 4 kW saw cuts 80 mm at 90 degrees.
Price on the MZK 3200 Diamond SX is driven by the build variant specified (700, 780 or 790 kg with 430 or 435 mm carriage width), the PLC and servo rear stop configuration, the blade and scoring tooling package, extraction, and delivery, installation and operator training.
ფასის მოთხოვნაThe MZK 3200 Diamond SX is the programmable saw of Mizrak’s 3200 mm class
The MZK 3200 Diamond SX cuts full sheets and solid timber on a 3200 mm aluminium sliding table with 3200 mm of carriage travel, which covers a standard 2800 x 2070 mm or 3050 mm panel in a single pass. A 4 kW main motor drives blades from Ø250 x 30 mm to Ø300 x 30 mm at 4750-5250 rpm to a maximum depth of 80 mm at 90 degrees and 65 mm at 45 degrees; a Ø125 x 20 mm scorer on its own 0.75 kW motor runs at 7250 rpm ahead of the main blade to keep the underside of coated board clean.
What the PLC and servo stop change day to day
PLC control turns setting the MZK 3200 Diamond SX into entering numbers. Blade tilt from 45 to 90 degrees and blade height are motorised, and the linear cast-iron rear stop is positioned by servo drive rather than by pushing a fence against a scale. A joinery cutting five different rip widths in a shift stops losing time to fence resetting and stops accumulating the half-millimetre errors that show up when carcass parts are assembled.
Who should buy the MZK 3200 Diamond SX
The MZK 3200 Diamond SX is aimed at furniture and door workshops in the 3-15 employee range that batch-produce cabinets, wardrobes and door leaves and have outgrown hand-set adjustment. It is a production machine: the payback lives in repeatability, not in cutting anything the cheaper Diamond models cannot cut.
MZK 3200 Diamond SX compared with the neighbouring models
The MZK 3200 Diamond SX and the MZK 3200 Diamond S share the same 4 kW saw, 435 mm-class overhead-spindle carriage, machined frame and motorised tilt and rise; the SX alone adds the PLC unit and the servo linear rear stop. Step down again to the MZK 3200 Diamond and the angle and height are set by hand on a 9-spindle movement system. Step up to the MZK 3200 Concord and the motor becomes 5.5 kW with 400 mm blade compatibility, pneumatic panel hold-down and a digital cast-iron fence, at 800 kg.
What comes with the MZK 3200 Diamond SX
The published build of the MZK 3200 Diamond SX includes the 550 x 910 mm main table, 380 x 540 mm side extension, 785 x 970 mm rear extension, a 1200 mm rip fence, a 1950 mm crosscut fence with 0-3000 mm stop range, and the scoring unit. Blades, extraction and the electrical connection are supplied separately.
ძირითადი მახასიათებლები
- 3200 mm sliding table with 3200 mm of carriage travel and a 430 mm wide aluminium carriage
- PLC control unit with servo-driven linear cast-iron rear stop
- 4 kW main saw motor turning Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
- 0.75 kW scoring motor with Ø125 x 20 mm blade at 7250 rpm for chip-free coated panel
- Motorised automatic 45-90 degree tilt and motorised vertical blade movement
- 80 mm cutting depth at 90 degrees, 65 mm at 45 degrees
- 1950 mm crosscut fence with ±45 degree setting and 0-3000 mm measuring stop
- Machined frame, 1400 mm height and 700-790 kg net weight at 80 dB
ტექნიკური მახასიათებლები
- Saw blade diameter (outer x inner, min-max)
- Ø250 x 30 mm – Ø300 x 30 mm
- Max. cutting depth (90°)
- 80 mm
- Max. cutting depth (45°)
- 65 mm
- Saw blade speed
- 4750–5250 rpm
- Main saw motor power
- 4 kW
- Scoring blade diameter (outer x inner)
- Ø125 x 20 mm
- Scoring blade speed
- 7250 rpm
- Scoring motor power / speed
- 0.75 kW / 3000 rpm
- Main table size
- 550 x 910 mm
- Side extension table size
- 380 x 540 mm
- Rear extension table size
- 785 x 970 mm
- Rip fence length (on table)
- 1200 mm
- Sliding table length
- 3200 mm
- Sliding table travel
- 3200 mm
- Sliding table fence angle (right–left)
- 0–45° right and left
- Aluminium carriage width
- 430 mm
- Crosscut fence length (on carriage)
- 1950 mm
- Crosscut fence angle (right–left)
- ±45°
- Crosscut fence stop range
- 0 – 3000 mm
- Control unit
- PLC control unit
- Blade tilt and height adjustment
- Motorised automatic 45–90° tilt and motorised vertical movement
- Rear stop
- Servo-driven linear cast-iron rear stop
- Dust extraction port height from floor
- 845 mm
- Machine height
- 1400 mm
- Sound level
- 80 dB
- Net weight
- 700 / 780 / 790 kg (varies by variant)
უპირატესობები
- 3200 mm sliding table and 3200 mm travel take a full sheet in one pass without an oversize footprint
- PLC control and servo rear stop make rip width and blade angle repeatable settings rather than operator judgement
- Scoring unit is standard, not an option, with its own 0.75 kW motor and Ø125 x 20 mm blade
გასათვალისწინებელი
- Extraction unit, blades and electrical installation are all separate costs, and no voltage or current rating is published
- Panel handling is entirely manual - the machine has no lifting table or automatic loading
- PLC and servo hardware add cost that a workshop cutting varied one-off sizes will not recover
