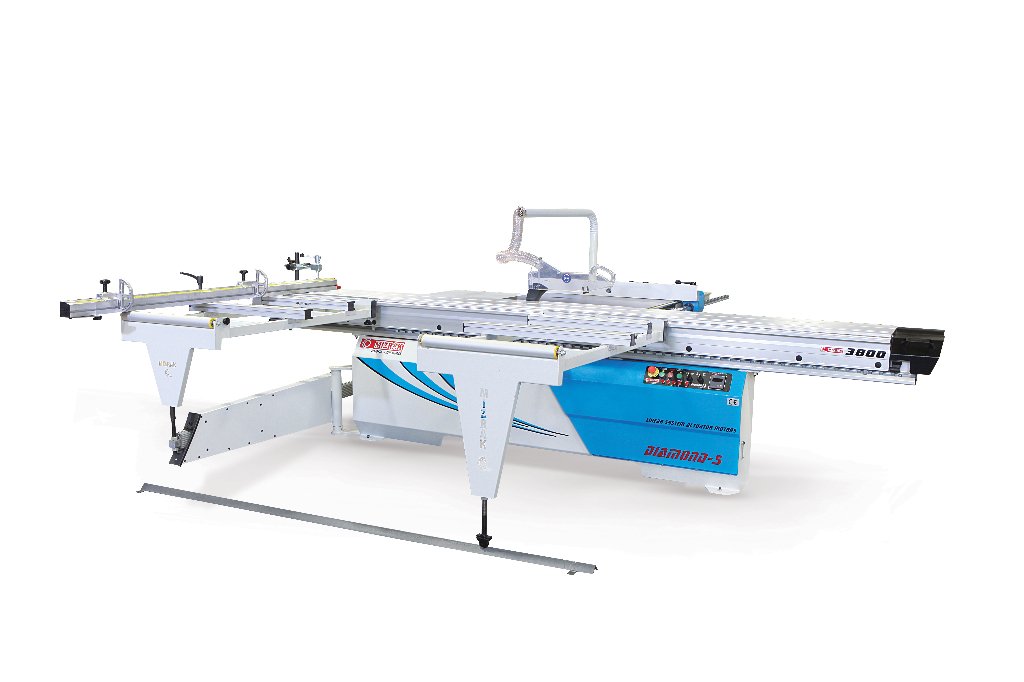

MIZRAK MZK 3800 Diamond S Sliding Table Panel Saw
MZK 3800 DIAMOND S
At 860 kg the MZK 3800 Diamond S is the heavier of the two Diamond S saws, against 820 kg for the MZK 3200 Diamond S, and runs a 435 mm overhead-spindle aluminium carriage with a 4 kW main saw and 0.75 kW scorer. Blade tilt from 45 to 90 degrees and blade rise are motorised, with no PLC fitted.
Price on the MZK 3800 Diamond S is moved by the carriage length configuration, the choice of motorised tilt and rise over the PLC and servo rear stop of the Diamond SX, the blade and scoring tooling package, the extraction unit, and delivery and rigging of an 860 kg machine.
ფასის მოთხოვნაThe MZK 3800 Diamond S motorises the two settings that matter
The MZK 3800 Diamond S is the model in Mizrak’s long-carriage Diamond range where blade angle and blade height stop being handwheel jobs. Automatic 45-90 degree tilt and automatic vertical movement are both motor-driven, so the operator selects the angle and the saw takes itself there. A 4 kW main motor turns Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm, and a 0.75 kW scoring motor runs a Ø125 x 20 mm scorer at 6800-7250 rpm for clean undersides on melamine and veneered panel.
Overhead-spindle carriage and a heavier frame
The 435 mm wide aluminium carriage of the MZK 3800 Diamond S uses an overhead-spindle system rather than the 9-spindle arrangement of the base Diamond models, and the whole machine is built on a machined frame that brings it to 860 kg – about 90 kg heavier than the manual MZK 3800 Diamond. That mass is what keeps a long carriage running straight when a 40 kg sheet is loaded on one end of it.
Who the MZK 3800 Diamond S suits
The MZK 3800 Diamond S suits door manufacturers and furniture workshops that regularly cut oversize leaves and long panels and want repeatable mitre and bevel work without buying PLC positioning. If most of the day is spent at 90 degrees and the fence is rarely moved, the manual MZK 3800 Diamond does the same cutting; the S earns its price where angles change often.
MZK 3800 Diamond S against the SX and the Concord
The MZK 3800 Diamond S sits directly below the MZK 3800 Diamond SX, which adds a PLC control unit and a servo-driven linear cast-iron rear stop on top of the same 4 kW mechanical package. Above both, the MZK 3800 Concord moves to a 5.5 kW motor, 400 mm blade compatibility, a lubrication system, pneumatic panel hold-down and dust cleaning, a digital cast-iron fence and an additional profile carriage, at 900 kg.
What the MZK 3800 Diamond S specification includes
Mizrak lists a 550 x 910 mm main table, a 380 x 540 mm side extension sheet, a 785 x 970 mm rear extension sheet, a 1200 mm rip fence on the table, a crosscut fence with ±45 degree setting and a 0-3000 mm stop range, and the scoring unit. Blades, extraction ducting and the electrical supply are not included.
ძირითადი მახასიათებლები
- Motorised automatic 45-90 degree blade tilt and motorised vertical blade movement
- 4 kW main saw motor with Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
- 0.75 kW scoring motor driving a Ø125 x 20 mm scorer at 6800-7250 rpm
- 435 mm wide overhead-spindle aluminium carriage on a machined frame
- 860 kg machine weight and 1400 mm working height for stability on long cuts
- Crosscut fence with ±45 degree setting and a 0-3000 mm measuring stop range
- 550 x 910 mm main table with 380 x 540 mm side and 785 x 970 mm rear extension sheets
- 80 dB measured sound level with a dust extraction port 845 mm above the floor
ტექნიკური მახასიათებლები
- Main saw blade diameter (outer x inner, min-max)
- Ø250 x 30 mm – Ø300 x 30 mm
- Main saw speed
- 4750 – 5250 rpm
- Main saw motor power
- 4 kW
- Scoring blade diameter (outer x inner)
- Ø125 x 20 mm
- Scoring saw speed
- 6800 – 7250 rpm
- Scoring saw motor power
- 0.75 kW
- Sound level
- 80 dB
- Main table size
- 550 x 910 mm
- Side extension table size (sheet metal)
- 380 x 540 mm
- Rear extension table size (sheet metal)
- 785 x 970 mm
- Rip fence length (on table)
- 1200 mm
- Aluminium carriage width
- 435 mm
- Crosscut fence angle
- ±45° right and left
- Crosscut fence stop range
- 0 – 3000 mm
- Blade tilt and height adjustment
- Motorised automatic 45–90° tilt and motorised vertical movement
- Carriage system
- Overhead-spindle aluminium carriage, linear system
- Frame
- Machined frame
- Dust extraction port height from floor
- 845 mm
- Machine height
- 1400 mm
- Machine weight
- 860 kg
უპირატესობები
- Motorised 45-90 degree tilt and motorised blade rise at a price below the PLC-equipped SX model
- 860 kg machined frame and 435 mm overhead-spindle carriage keep long cuts straight under load
- Standard 0.75 kW scoring unit at 6800-7250 rpm avoids buying a separate scoring retrofit
გასათვალისწინებელი
- Supplier's technical table repeats the 3200 mm carriage figure of the 3200 model, so the actual sliding table length must be confirmed
- No PLC or servo rear stop - rip width is still set manually against the fence scale
- Maximum cutting depth is not published for the Diamond S records, so deep-cut suitability must be checked with the supplier
