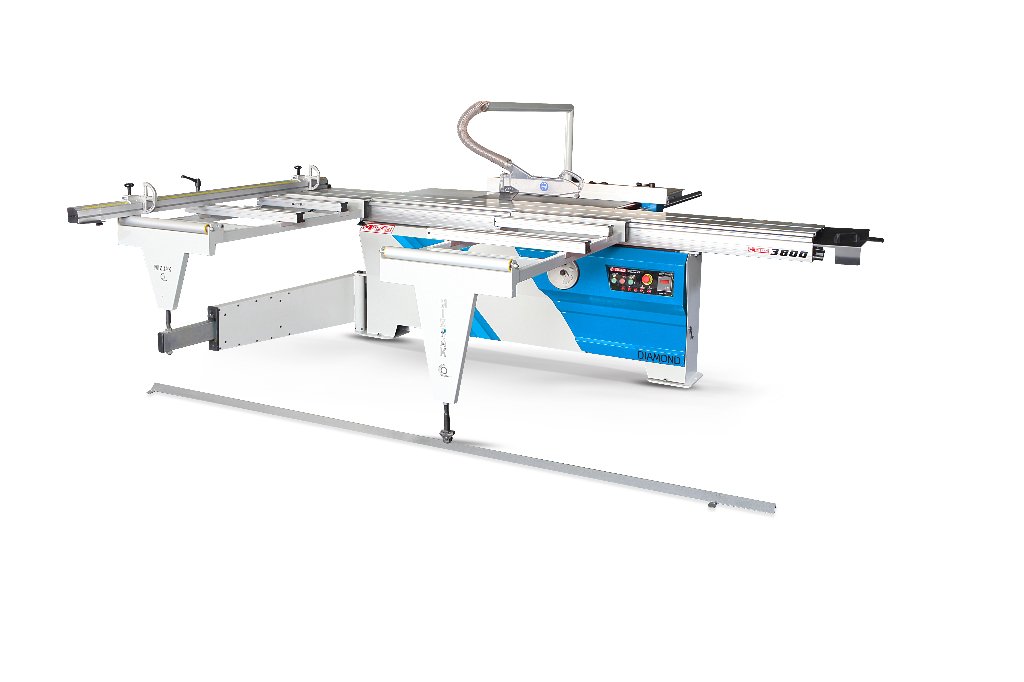

MIZRAK MZK 3800 Diamond Sliding Table Panel Saw
MZK 3800 DIAMOND
Longest carriage in the Mizrak Diamond range: the MZK 3800 Diamond runs a 3700 mm sliding table giving 3800 mm of travel, against 3200 mm on the MZK 3200 Diamond. A 4 kW main saw and 0.75 kW scoring motor cut 80 mm deep at 90 degrees, with manual 45-90 degree tilt. Net weight 770 kg.
The price of an MZK 3800 Diamond is driven by the 3800 mm carriage length itself (the shorter 3200 mm and 2800 mm Diamonds sit below it), the main and scoring blade package specified, freight and rigging of a 770 kg machine into the workshop, and whether extraction ducting and connection are included in the scope.
ფასის მოთხოვნაThe MZK 3800 Diamond is the long-carriage machine for workshops that set by hand
The MZK 3800 Diamond gives a workshop 3800 mm of carriage travel on a 3700 mm sliding table – enough to run an oversize door leaf or a 3.6 m panel past the blade in one pass – without any electronics to specify, learn or repair. Blade tilt from 45 to 90 degrees and blade height are set manually, and a 9-spindle movement system carries the 435 mm wide aluminium carriage. The 4 kW main motor drives Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm for 80 mm of depth at 90 degrees and 65 mm at 45 degrees.
Scoring unit and fences
A separate 0.75 kW motor runs the Ø125 x 20 mm scoring blade of the MZK 3800 Diamond at 7250 rpm, so laminated and veneered panels come off the saw without underside breakout. The crosscut fence measures 1950 mm with a 0-3000 mm stop range and swings ±45 degrees left and right, and the table carries a 1200 mm rip fence.
Who the MZK 3800 Diamond suits
The MZK 3800 Diamond suits door manufacturers and furniture workshops that need long-panel capacity above everything else and are content to set angle and height by hand. Buyers in workshops without a resident electrician or a stable supply often prefer the MZK 3800 Diamond precisely because there is no PLC, no servo and no actuator to fail – the machine is a mechanical asset with a long service life.
MZK 3800 Diamond compared with the S, SX and Concord
The MZK 3800 Diamond is the entry point of the 3800 mm class. Move up to the MZK 3800 Diamond S and the tilt and vertical movement become motorised on an overhead-spindle carriage, at 860 kg. The MZK 3800 Diamond SX adds a PLC control unit and a servo-driven linear cast-iron rear stop. The MZK 3800 Concord is the heavy-duty option with a 5.5 kW motor, 400 mm blade compatibility, pneumatic hold-down and a digital cast-iron fence at 900 kg. Cutting depth is identical across the group; what changes is how the settings are made and how much panel handling the machine does for the operator.
What is included
The MZK 3800 Diamond specification lists a 550 x 910 mm main table, a 380 x 540 mm side extension, a 785 x 970 mm rear extension, both fences and the scoring unit. Blades, extraction and the electrical connection are supplied separately.
ძირითადი მახასიათებლები
- 3800 mm of carriage travel on a 3700 mm sliding table - 600 mm more run than the MZK 3200 Diamond
- 435 mm wide aluminium carriage on a 9-spindle smooth movement system
- 4 kW main saw motor with Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
- 0.75 kW scoring motor and Ø125 x 20 mm scoring blade at 7250 rpm
- 80 mm cutting depth at 90 degrees and 65 mm at 45 degrees
- Manual 45-90 degree tilt and manual vertical blade movement, with no control electronics
- 1950 mm crosscut fence, ±45 degree setting, 0-3000 mm measuring stop
- Machined frame at 770 kg net weight and 1400 mm machine height
- Dust extraction port 845 mm above floor level and 80 dB sound level
ტექნიკური მახასიათებლები
- Saw blade diameter (outer x inner, min-max)
- Ø250 x 30 mm – Ø300 x 30 mm
- Max. cutting depth (90°)
- 80 mm
- Max. cutting depth (45°)
- 65 mm
- Saw blade speed
- 4750 – 5250 rpm
- Saw motor power
- 4 kW
- Scoring blade diameter (outer x inner)
- Ø125 x 20 mm
- Scoring saw speed
- 7250 rpm
- Scoring saw motor power
- 0.75 kW
- Sound level
- 80 dB
- Main table size
- 550 x 910 mm
- Side extension table size
- 380 x 540 mm
- Rear extension table size
- 785 x 970 mm
- Rip fence length (on table)
- 1200 mm
- Sliding table length
- 3700 mm
- Sliding table travel
- 3800 mm
- Sliding table fence angle
- ±45° right and left
- Aluminium carriage width
- 435 mm
- Crosscut fence length (on carriage)
- 1950 mm
- Crosscut fence angle
- ±45° right and left
- Crosscut fence stop range
- 0 – 3000 mm
- Carriage system
- 9-spindle smooth movement system, linear system
- Blade tilt and height adjustment
- Manual 45–90° tilt and manual vertical movement
- Frame
- Machined frame
- Dust extraction port height from floor
- 845 mm
- Machine height
- 1400 mm
- Net weight
- 770 kg
უპირატესობები
- 3800 mm carriage travel handles oversize door leaves and long panels that a 3200 mm saw cannot
- No PLC, servo or actuator to fail - a purely mechanical machine that is simple to keep running
- Scoring unit with its own 0.75 kW motor is standard, giving clean cuts on faced panel
გასათვალისწინებელი
- Blade angle and height are set by hand, so repeat angled cuts depend on the operator's care
- At 770 kg and nearly 4 m of carriage travel, it needs substantially more floor length than a 2800 mm machine
- Dust extraction, blades and electrical installation are all separate purchases
