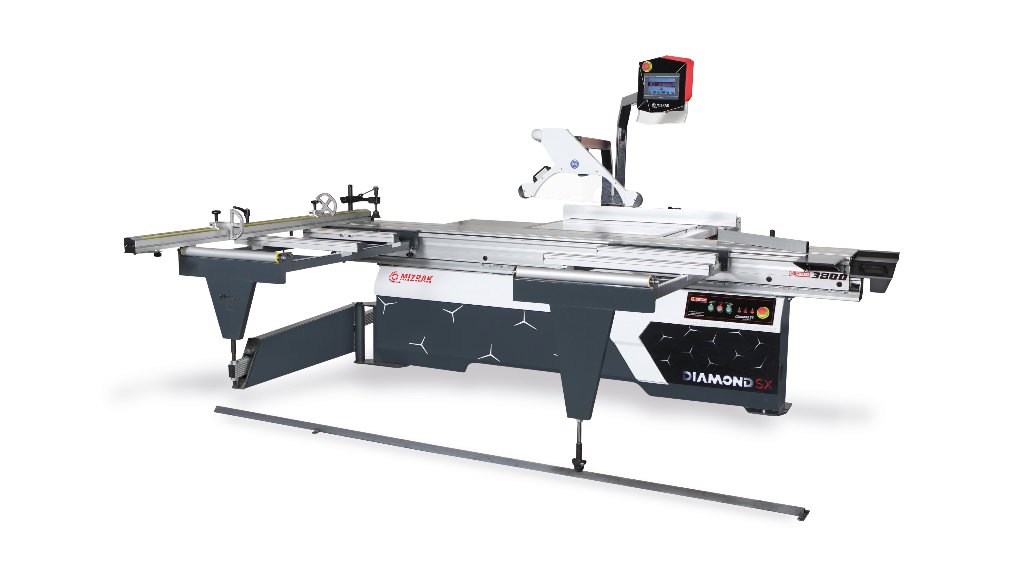

MIZRAK MZK 3800 Diamond SX Sliding Table Panel Saw

MZK 3800 DIAMOND SX

The MZK 3800 Diamond SX is the long-carriage member of the Diamond SX pair and the only one specified with a Ø200 x 30 mm jumping scorer as an alternative to the standard Ø125 x 20 mm scoring blade. PLC control, servo cast-iron rear stop, motorised 45-90 degree tilt, 4 kW saw cutting 80 mm at 90 degrees.

ფასი მოთხოვნით

Price on the MZK 3800 Diamond SX is driven by the carriage length and width variant specified (365, 430 or 435 mm), whether the Ø200 x 30 mm jumping scorer is fitted in place of the standard Ø125 x 20 mm scorer, the PLC and servo rear stop configuration, the blade and extraction package, and delivery, installation and commissioning.

ფასის მოთხოვნა

What the MZK 3800 Diamond SX does

The MZK 3800 Diamond SX squares, rips and crosscuts sheet material and solid timber on a long aluminium sliding carriage while a scoring blade pre-cuts the underside of coated board. A 4 kW main motor turns a Ø250 x 30 mm to Ø300 x 30 mm blade at 4750-5250 rpm for up to 80 mm of cutting depth at 90 degrees and 65 mm at 45 degrees, and an independent 0.75 kW scoring motor spins a Ø125 x 20 mm scorer at 7250 rpm so melamine, laminated MDF and veneered panel leave the saw without bottom-edge chipping.

PLC control, servo stop and motorised settings

The PLC control unit is what separates the MZK 3800 Diamond SX from the rest of the Diamond family. Blade tilt between 45 and 90 degrees and blade rise and fall are motorised and entered at the panel rather than wound in by handwheel, and the rear rip stop is a servo-driven linear cast-iron unit that repositions itself to the entered dimension. On repeat carcass batches, the two settings that drift most on a hand-set saw are taken out of the operator’s hands.

Who the MZK 3800 Diamond SX suits

The MZK 3800 Diamond SX suits established furniture, joinery and door workshops that already put full sheets through a saw every working day and are buying dimensional repeatability rather than raw speed. A workshop purchasing its first sliding table saw rarely needs PLC positioning; a workshop cutting hundreds of identical parts a week usually recovers the difference in avoided re-cuts and offcuts.

How the MZK 3800 Diamond SX differs from its siblings

Against the MZK 3800 Diamond S, the MZK 3800 Diamond SX adds the PLC unit and the servo linear rear stop while sharing the mechanical package: machined frame, overhead-spindle aluminium carriage, 4 kW saw and motorised tilt and rise. Against the MZK 3800 Concord, the SX gives up the 5.5 kW motor, 400 mm blade compatibility, lubrication system and pneumatic hold-down but keeps programmable positioning. Against the base MZK 3800 Diamond, which is adjusted for angle and height by hand, the SX is a different class of machine entirely.

What the published specification covers

Mizrak’s specification for the MZK 3800 Diamond SX covers the machined frame, the overhead-spindle aluminium carriage, the scoring unit, a 1950 mm crosscut fence with a 0-3000 mm stop range, a 1200 mm rip fence, a 550 x 910 mm main table, and 380 x 540 mm side and 785 x 970 mm rear extension tables. Saw blades, a dust extraction unit and the electrical installation are not part of that specification.

ძირითადი მახასიათებლები

  • PLC control unit with a servo-driven linear cast-iron rear stop for programmed rip widths
  • 4 kW main saw motor running Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
  • Independent 0.75 kW scoring motor with a Ø125 x 20 mm blade at 7250 rpm
  • 80 mm maximum cutting depth at 90 degrees and 65 mm at 45 degrees
  • Motorised automatic 45-90 degree blade tilt and motorised vertical blade movement
  • Overhead-spindle aluminium carriage, 365 / 430 / 435 mm wide depending on configuration
  • 1950 mm crosscut fence with ±45 degree mitre setting and 0-3000 mm stop range
  • Machined frame, 1400 mm machine height, 700-790 kg net weight and 80 dB noise level

ტექნიკური მახასიათებლები

Saw blade diameter (outer x inner, min-max)
Ø250 x 30 mm – Ø300 x 30 mm
Max. cutting depth (90°)
80 mm
Max. cutting depth (45°)
65 mm
Saw blade speed
4750–5250 rpm
Main saw motor power
4 kW
Scoring blade diameter (outer x inner)
Ø125 x 20 mm
Scoring blade diameter (jumping scorer option)
Ø200 x 30 mm
Scoring blade speed
7250 rpm
Scoring motor power / speed
0.75 kW / 3000 rpm
Main table size
550 x 910 mm
Side extension table size
380 x 540 mm
Rear extension table size
785 x 970 mm
Rip fence length (on table)
1200 mm
Sliding table fence angle (right–left)
0–45° right and left
Aluminium carriage width
365 / 430 / 435 mm (varies by configuration)
Crosscut fence length (on carriage)
1950 mm
Crosscut fence angle (right–left)
±45°
Crosscut fence stop range
0 – 3000 mm
Control unit
PLC control unit
Blade tilt and height adjustment
Motorised automatic 45–90° tilt and motorised vertical movement
Rear stop
Servo-driven linear cast-iron rear stop
Dust extraction port height from floor
845 mm
Machine height
1400 mm
Sound level
80 dB
Net weight
700 / 780 / 790 kg (varies by configuration)

უპირატესობები

  • PLC control with motorised 45-90 degree tilt and motorised blade rise removes handwheel setting error on repeat batches
  • Servo-driven linear cast-iron rear stop repositions to the entered rip width instead of being set by eye
  • Independent 0.75 kW scoring motor and Ø125 x 20 mm scorer give chip-free undersides on melamine and veneered panel

გასათვალისწინებელი

  • The supplier's technical table for this record repeats the 3200 mm sliding table figure, so the actual carriage length and travel must be confirmed before ordering
  • Dust extraction, saw blades and the electrical installation are all separate purchases, and no supply voltage or current rating is published
  • 80 mm maximum cutting depth at 90 degrees confines the machine to panel work and thinner solid stock rather than deep resawing

ხშირად დასმული კითხვები

What power supply does the MZK 3800 Diamond SX need?
The MZK 3800 Diamond SX carries a 4 kW main saw motor and a 0.75 kW scoring motor, a combined installed motor load of 4.75 kW, plus the PLC and servo drive. Mizrak does not publish a supply voltage or current rating for the MZK 3800 Diamond SX, so the exact electrical requirement must be confirmed before the machine is delivered and wired.
How long a panel can the MZK 3800 Diamond SX cut?
The MZK 3800 Diamond SX belongs to Mizrak's long-carriage 3800 class, but the supplier's technical table for this record repeats the 3200 mm sliding table length and travel used on the MZK 3200 Diamond SX. Confirm the sliding table length and travel of the MZK 3800 Diamond SX before ordering; the crosscut fence stop range is 0-3000 mm in either configuration.
What blades and tooling does the MZK 3800 Diamond SX need?
The MZK 3800 Diamond SX takes main saw blades from Ø250 x 30 mm to Ø300 x 30 mm and a Ø125 x 20 mm scoring blade, with a Ø200 x 30 mm jumping scorer listed as an alternative in the supplier's Turkish data. Blades are not included in the published specification of the MZK 3800 Diamond SX and are chosen to suit the material being cut.
Does the MZK 3800 Diamond SX need a separate dust extractor?
Yes. The MZK 3800 Diamond SX has a dust extraction port 845 mm above floor level and requires a separate extraction unit, which is not supplied with the machine. The port diameter is not published by Mizrak, so confirm it before sizing ductwork or buying an extractor.
How much space and floor strength does the MZK 3800 Diamond SX need?
The MZK 3800 Diamond SX stands 1400 mm high and weighs 700-790 kg depending on configuration, so it needs a solid concrete floor and a forklift or machine skates to position. Allow clear floor space in front of and behind the sliding carriage of at least twice its travel, plus working room to the right of the blade for the offcut.
What does the MZK 3800 Diamond SX not do?
The MZK 3800 Diamond SX is an operator-fed sliding table saw, not a beam saw or a CNC nesting router. The MZK 3800 Diamond SX does not load or unload panels automatically, does not cut a stack of boards to a programmed cutting plan, and cannot bore or rout; its 80 mm cutting depth at 90 degrees also rules out deep resawing of solid timber.
How much does the MZK 3800 Diamond SX cost?
The MZK 3800 Diamond SX is supplied on quotation, not at a published price. The price of an MZK 3800 Diamond SX is set by the carriage length and width variant, whether the Ø200 x 30 mm jumping scorer is specified instead of the standard Ø125 x 20 mm scorer, the PLC and servo rear stop configuration, the blade and extraction package, and delivery, installation and commissioning. Send your panel sizes and batch pattern for a quotation.
What is the lead time on an MZK 3800 Diamond SX?
The MZK 3800 Diamond SX is built to order with its PLC and servo hardware configured for the order, so the lead time for an MZK 3800 Diamond SX is confirmed at quotation against the current production schedule. Controlled machines are not held as stock, so raise fixed dates at enquiry stage.
Does the MZK 3800 Diamond SX need commissioning by an engineer?
Yes - an MZK 3800 Diamond SX should be commissioned rather than simply delivered. Commissioning an MZK 3800 Diamond SX covers levelling, squaring the carriage and fence, connecting a three-phase supply for the 4 kW saw, 0.75 kW scorer and the PLC and servo drive, calibrating the servo rear stop against a measured cut, and connecting extraction at the 845 mm port. This is quoted with the machine.
What tooling should be budgeted alongside the MZK 3800 Diamond SX?
Budget main blades from Ø250 x 30 mm to Ø300 x 30 mm, scoring blades - either the standard Ø125 x 20 mm or the Ø200 x 30 mm jumping scorer - and a dust extractor separately from the MZK 3800 Diamond SX. None are listed in the supplier specification for the MZK 3800 Diamond SX, and scoring blade condition is what protects the finish on coated board.
