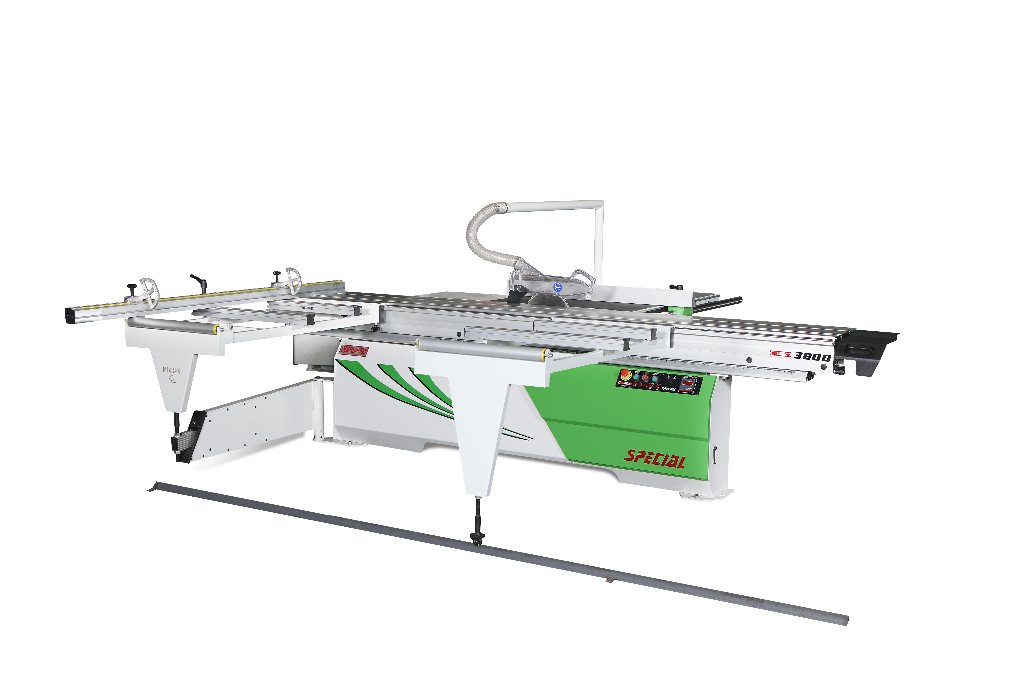

Mizrak MZK 3800 SPECIAL Sliding Table Panel Saw
MZK 3800 SPECIAL
The MZK 3800 SPECIAL is the longer of the two SPECIAL panel saws, running 3800 mm of sliding table travel where the MZK 3200 SPECIAL stops at 3200 mm. Shared with its sibling: a 420 mm linear-guided aluminium carriage, 4 kW saw motor, 0.75 kW scorer and motorised 45-90 degree tilt, here on an 808 kg frame.
Price on the MZK 3800 SPECIAL is moved by the 3800 mm carriage length itself rather than the shorter 3200 mm SPECIAL, the saw and scoring blade package specified, the extraction unit sized to the machine, and delivery, rigging and installation onto the workshop floor.
ფასის მოთხოვნაWhat the MZK 3800 SPECIAL does
The MZK 3800 SPECIAL sizes full sheet material and squares solid stock in a single set-up. The 3800 mm sliding table travel carries a long panel completely past the blade, and the upper carriage fence measures 1950 mm with a stop range of 0 to 3000 mm, so crosscuts are set once and repeated. The main arbor takes blades from Ø250 x 30 mm to Ø300 x 30 mm turning at 4750 to 5250 rpm on a 4 kW motor, giving 80 mm of depth at 90 degrees and 65 mm at 45 degrees. A Ø125 x 20 mm scoring blade running at 7250 rpm on its own 0.75 kW motor opens the cut line first, which is what keeps melamine and veneered faces from chipping on the underside.
Who the MZK 3800 SPECIAL suits
The MZK 3800 SPECIAL is built for a furniture or joinery workshop that cuts board every working day rather than occasionally. At 808 kg net the frame is machined and heavy enough to hold alignment through continuous shifts, and the 420 mm aluminium carriage gives a wide, stable platform for a panel resting flat on the carriage rather than overhanging it. Workshops producing kitchen carcasses, wardrobe systems and shop fittings are the natural fit.
How the MZK 3800 SPECIAL differs from the PRESTIJ and the MZK 3200 SPECIAL
Two things separate the MZK 3800 SPECIAL from the cheaper MZK 3800 PRESTIJ: the carriage is 420 mm wide instead of 380 mm and runs on a linear guide system, and blade tilt from 45 to 90 degrees is driven by an actuator motor instead of being set by hand. Against the MZK 3200 SPECIAL, which shares the same 420 mm carriage, linear system and motorised tilt, the difference is stroke alone: 3800 mm of travel against 3200 mm, and 808 kg against 760 kg. Vertical blade rise and fall on the MZK 3800 SPECIAL remains manual.
What is included
The MZK 3800 SPECIAL is supplied with a 550 x 910 mm main table, a 380 x 540 mm side extension, a 785 x 970 mm rear extension, a 1200 mm rip fence on the table and an additional profile support carriage. The dust extraction port sits 845 mm from the floor and total machine height is 1400 mm.
ძირითადი მახასიათებლები
- 3800 mm sliding table length and 3800 mm carriage travel for full-length sheet cuts
- 420 mm wide aluminium carriage running on a linear guide system
- 4 kW main saw motor turning Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
- Separate 0.75 kW scoring unit with a Ø125 x 20 mm blade at 7250 rpm for chip-free melamine faces
- Actuator-driven motorised 45-90 degree blade tilt, with manual vertical rise and fall
- 80 mm cutting depth at 90 degrees and 65 mm at 45 degrees
- Upper carriage fence 1950 mm long with a 0-3000 mm stop range and ±45 degree setting
- Machined frame at 808 kg net weight, 1400 mm overall height
ტექნიკური მახასიათებლები
- Saw Blade Diameter (Min - Max, Outer/Inner)
- Ø250 x 30 mm - Ø300 x 30 mm
- Max. Cutting Depth (90°)
- 80 mm
- Max. Cutting Depth (45°)
- 65 mm
- Saw Blade Speed
- 4750 - 5250 rpm
- Saw Motor Power
- 4 kW
- Scoring Blade Diameter (Outer/Inner)
- Ø125 x 20 mm
- Scoring Blade Speed
- 7250 rpm
- Scoring Motor Power
- 0.75 kW
- Sound Level
- 80 dB
- Main Table Size
- 550 x 910 mm
- Side Extension Table Size
- 380 x 540 mm
- Rear Extension Table Size
- 785 x 970 mm
- Upper Table Fence Length
- 1200 mm
- Sliding Table Length
- 3800 mm
- Sliding Table Travel
- 3800 mm
- Sliding Table Fence Angle (Right-Left)
- 0-45° right and left
- Aluminum Carriage Width
- 420 mm
- Upper Carriage Fence Length
- 1950 mm
- Upper Carriage Fence Angle (Right-Left)
- ±45°
- Upper Carriage Fence Stop Range
- 0 - 3000 mm
- Dust Extraction Pipe Height from Floor
- 845 mm
- Machine Height
- 1400 mm
- Net Weight
- 808 kg
უპირატესობები
- Motorised 45-90 degree tilt removes the hand-cranking that slows angled work on the PRESTIJ models
- 808 kg machined frame and 420 mm linear-guided carriage hold alignment under daily production
- Dedicated 0.75 kW scoring motor delivers chip-free cuts on melamine and veneered board
გასათვალისწინებელი
- A 3800 mm carriage stroke demands a long clear run of floor - the largest footprint in the MZK panel saw range
- Vertical blade rise and fall is still manual even though tilt is motorised
- No extractor is included, and the supplier table publishes no supply voltage or airflow figures - both must be confirmed before installation
